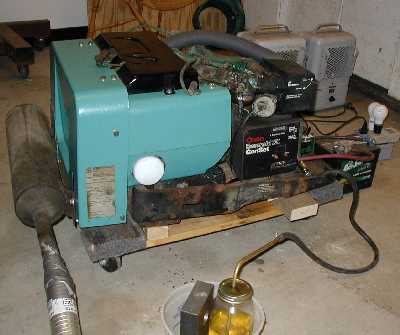

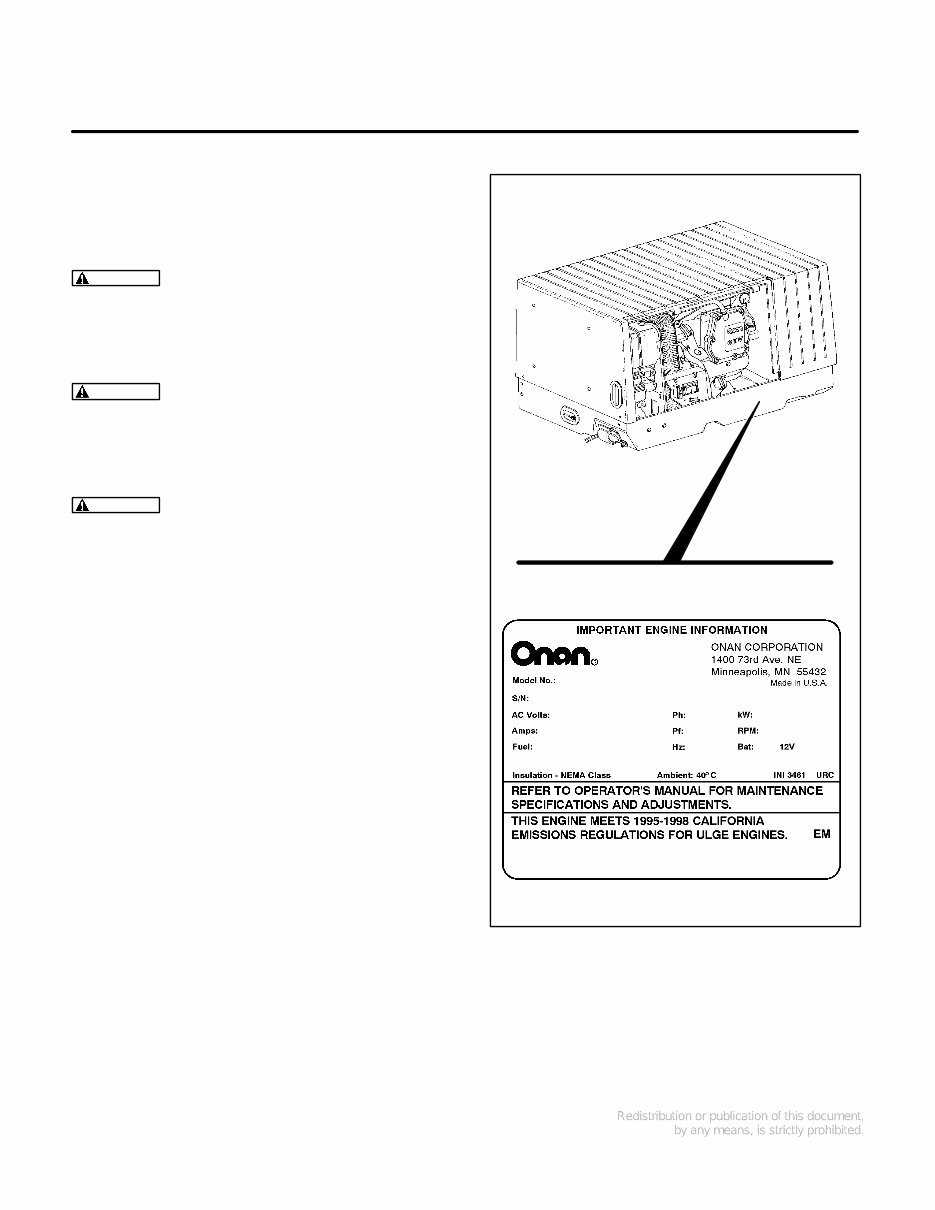

Complete Onan 4000 Generator Electrical Connection Schematic Guide
For immediate operation of a 3.8 kVA portable power source, locate the primary input terminals–marked L1, N, and GND–on the control panel. Ensure the main AC breaker is in the OFF position before initiating connections. Use 10 AWG copper wire for 230V setups, downgrading to 12 AWG only for runs under 10 meters where voltage drop remains under 3%.
Secure the neutral conductor to the neutral bus bar–never splice it mid-run. Ground the frame directly to a dedicated earth rod with 6 AWG bare copper, driven at least 2.4 meters deep. Avoid shared ground paths with other equipment to prevent stray voltage during fault conditions.
Engage the start solenoid via a momentary switch rated for 20A at 12VDC. Route the ignition circuit through a 15A fuse within 15cm of the battery positive terminal. For remote start applications, introduce a relay with a 50A contact rating to isolate high-current draws from low-voltage control signals.
Connect auxiliary loads only after verifying generator output stability. Use a true RMS multimeter to confirm 230V ±5% and 50Hz ±0.5Hz before closing load breakers. For inductive loads, size wires to handle 125% of rated current to account for inrush surges.
Electrical Schematic for Quiet Diesel 4 kW Generator
Start by locating the control panel behind the primary service door–remove the two screws securing the access plate to expose the terminal block. Mark L1, L2, and N outputs with colored tape before disconnecting any wires; mismatched phases during reconnection can trip internal breakers. The 12-pin harness labeled “ENGINE CONTROL” interfaces directly with the governor solenoid; verify continuity between pins 3 and 7 using a multimeter set to 200 ohms–readings above 5 Ω indicate corroded contacts requiring contact cleaner or replacement of the pigtail.
Critical Wire Gauges and Insulation Ratings
Use 10 AWG copper wire for all 120V circuits; undersized conductors risk voltage drop exceeding 3% under full 33.3A load. For neutral and ground runs, maintain 8 AWG minimum–separate ground rod bonding at the generator base must measure below 5 Ω to earth. Replace any cracked insulation with heat-shrink tubing rated for 90°C wet conditions; standard PVC degrades quickly under diesel exhaust exposure. Check the alternator’s stator winding resistance at the rectifier terminals–expected values fall between 0.2–0.4 Ω per leg.
Route the starter cable away from the exhaust manifold; excessive heat melts insulation within minutes. Label each wire with heat-stable tags–generic adhesive fails under vibration. The remote start relay requires a momentary 12V pulse (pin 8 on the control harness); substitute standard automotive relays only if they meet 40A continuous duty cycle. Confirm the hour meter’s signal wire connects to pin 10–improper grounding causes erratic readings.
Test the automatic voltage regulator by applying 120VAC to the “EXCITER” terminals while monitoring output voltage at the main breaker–adjust the potentiometer counterclockwise until voltage stabilizes at 122 ±1.5V. Replace the AVR if adjustments exceed 2 full turns without change; the compact unit fails silently under harmonic distortion. Secure all fasteners with thread-locking compound–standard bolts vibrate loose after 50 hours of operation.
Key Electrical Schematic Elements in RV Power Units: A Precise Breakdown

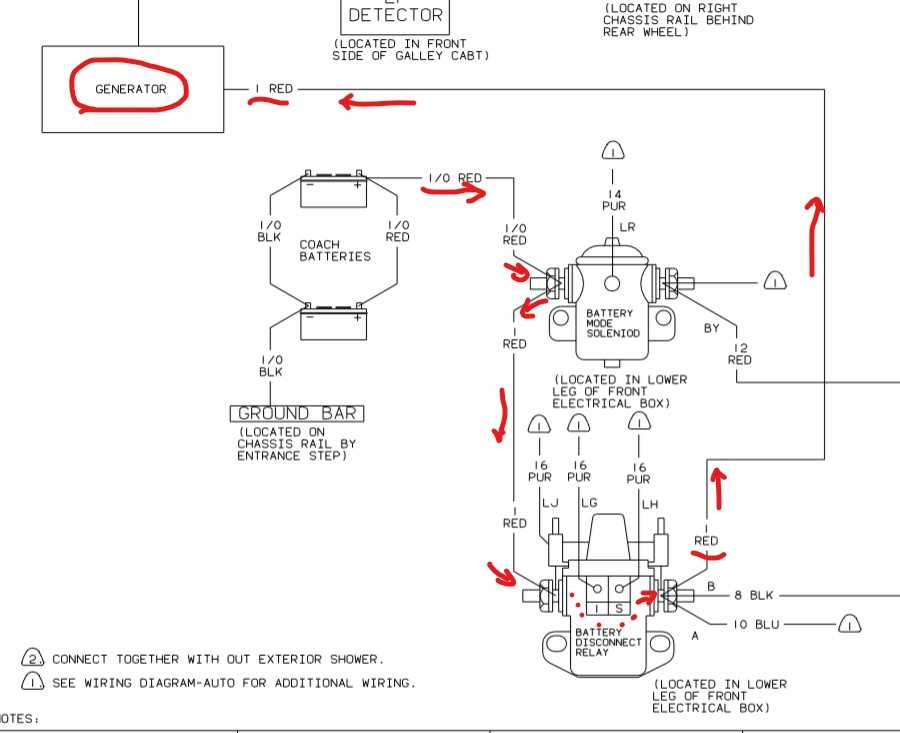

Start by identifying the control panel housing–the compact metal or plastic enclosure typically mounted near the fuel inlet. Inside, expect three distinct terminal blocks: one for AC output (labeled L1, L2, N), another dedicated to DC input (marked B+, B-), and a third for sensor connections (oil pressure, temperature). Trace the thick red cable from the DC block; it leads directly to the starter solenoid, bypassing the battery relay in models with electric start. For manual start variants, locate the push-button switch; its wiring merges with the solenoid’s S-terminal.
Alternator and Voltage Regulation Pathways
The alternator’s stator outputs connect to a six-pin connector, usually bundled with a heat-resistant sleeve near the engine’s rear. Two white wires link to the rectifier, converting AC to DC; two yellow wires feed the voltage regulator. The remaining pair (red/white) carries excitation current. Cross-reference with the schematic’s color codes–most manuals use a standardized palette (e.g., red for power, black for ground, yellow for exciter). If voltages dip irregularly, inspect the regulator’s ground wire; corrosion at the chassis connection is a common failure point.
Fuel shutoff circuits differ between carbureted and fuel-injected units. Carbureted versions route a purple wire from the ignition switch to the solenoid valve–verify continuity with a multimeter (resistance
Isolate the governor motor wires–two black with colored stripes (e.g., BK/RD, BK/YL)–from the main harness. These terminate at a three-pin connector on the throttle actuator. Test for 12V pulses using an oscilloscope; erratic readings suggest a faulty actuator or speed sensor. The neutral safety switch (gray/white wire) must show infinite resistance when engaged; bypass it temporarily to rule out false starts caused by corrosion.
Safety and Monitoring Circuits
Oil pressure and temperature senders share a ground return (black/white); their signal wires (brown for oil, blue for temp) converge at the gauge cluster. Use a jumper to short each sender to ground–gauges should peg to maximum if functioning. For low-oil shutdown systems, the brown wire connects to a relay; if oil pressure drops, this relay cuts ignition. Test by applying 12V to the coil side; the relay should click audibly.
Exhaust temperature probes (white wire) often route through the same harness as the alternator. Check for proper insulation; chafing against the engine block can cause shorts. If the unit stalls under load, probe this circuit first–excessive resistance triggers false overheating alarms. Verify all chassis grounds (green wires) with a megohmmeter; reading below 1 megohm indicates compromised connections requiring cleaning or relocation away from moisture-prone areas.
Step-by-Step Guide to Decoding the 4kVA Power Unit Electrical Blueprint
Begin by isolating the main power feed symbols–typically depicted as thick horizontal lines or bold rectangles–on the left side of the schematic. These indicate the primary voltage input (e.g., 230V AC) and split into branch circuits governed by circuit breakers or fuses, marked with numerical identifiers (F1, F2) or amperage ratings (e.g., 10A, 15A). Trace each branch downward, noting how wires transition through relay coils (denoted by “K” followed by a number), switches (SW), and load terminals (L). Cross-reference color codes–red for live, black for neutral, green/yellow for ground–with the legend, as misalignment here risks short circuits or fire hazards. For alternator-specific sections, locate the rotating field symbols (two concentric circles with arrows) and stator outputs (three-phase icons), confirming they align with the rectifier module via six diode symbols in a bridge configuration.
Key Component Groups and Their Symbols
Engine control circuits cluster near the top right, where ignition switches, fuel pump relays (K5), and oil pressure sensors (PS) interconnect. Voltage regulators appear as dashed boxes labeled “VR” or “AVR,” connected to excitation windings (thin lines looping back to the field). Auxiliary loads–outlets, lights–branch from dotted or dashed lines, often labeled “120V” or “240V” to distinguish single- vs. dual-phase outputs. Grounding points use triangular symbols with downward arrows; ensure these tie to a common bus bar (solid thick line) at the schematic’s base. Verify continuity by matching pin numbers on connectors (e.g., CN1, CN2) against the harness layout, using a multimeter in resistance mode (Ω) to confirm zero ohms between expected joints.
Pinpointing and Resolving Electrical Faults in 4 kW Portable Power Units
Check the alternator stator windings for continuity with a multimeter set to 200 ohms. Resistance values between neutral and each AC terminal should measure 0.2–0.5 Ω; readings outside this range indicate shorted or open coils. Disconnect the unit from the battery and external loads before testing to prevent false positives. Record each measurement–deviations as small as 0.1 Ω across phases suggest imbalance that can trip the voltage regulator.
Voltage Drop Under Load: Critical Test Points
| Circuit Segment | Max Acceptable Drop (V) | Diagnostic Action |
|---|---|---|
| Battery positive to starter solenoid | 0.2 | Inspect cable gauge (minimum 8 AWG); clean connections with wire brush |
| Solenoid to starter motor | 0.3 | Check for burnt contactor points; replace solenoid if pitted |
| Rectifier output to main bus | 0.5 | Scrape oxidation from terminals; verify diode trio bridge continuity |
Reset circuit breakers only after isolating the fault. The 15 A breaker on the control board trips at 22 A instantaneous; exceeding this draw often traces back to a seized fuel pump or moisture in the AVR capacitors. Replace the 10 μF film capacitors if ESR exceeds 2 Ω–they fail silently under humidity, causing erratic voltage swings during startup. Label each wire with numbered tags before disconnecting; mismatched reconnections create back-feed loops that destroy PCUs.
Customizing QG 4.0 kW Electrical Integration for Remote Activation and Automatic Power Transition Units
Begin by relocating the factory-installed start/stop pushbutton to an external enclosure mounted near the main panel box. Wire the normally open (NO) contacts of a 12VDC automotive relay between the original pushbutton terminals, using 16-gauge stranded copper wire with crimp connectors rated for 30A. This setup lets a low-voltage signal from a remote switch or programmable logic controller (PLC) engage the relay coil, triggering ignition without manual intervention.
For seamless integration with a residential transfer switch, splice the generator’s AC output leads directly into the switch’s input lugs. Verify the switch’s voltage rating matches the machine’s 240V single-phase output, and use ferrules on stranded conductors to prevent hourglassing under load. Install a 60A dual-pole circuit breaker on the generator’s output side as a secondary protection measure, ensuring it coordinates with the switch’s internal delay timer to prevent backfeeding during utility restoration.
Key Component Checklist for Remote Activation
- 20A SPST relay (automotive-grade, sealed)
- 14-gauge shielded cable for control signals
- Epoxy-filled junction box (NEMA 4X) for outdoor mounting
- Weatherproof start/stop switch (momentary, latching optional)
- 12V deep-cycle battery or continuous power supply for relay coil
When connecting an automatic transfer unit, prioritize the neutral bonding configuration. The machine ships with a bonded neutral, which must be separated (floating neutral) if the transfer switch includes a utility-side neutral-ground bond. Failure to adjust this can create ground loops when utility power resumes. Follow the switch manufacturer’s schematic–most require a field-installable neutral bond jumper on the generator’s control board, accessible under the side panel near the oil dipstick.
Failsafe Programming Steps
- Configure the transfer switch’s delay-on-break timer to 30 seconds minimum to allow the generator to spool down before re-engaging utility power.
- Install a 120VAC supervisory relay wired to the utility side of the transfer switch, triggering a remote stop command if grid power returns during generator operation.
- Add a 10A fuse inline with the start solenoid circuit to isolate short circuits without damaging the control board.
- Test remote activation weekly–cycle the system through simulated outages using the utility’s breaker to confirm seamless transitions.
Label every wire termination with heat-shrink tubing and indelible markers, including wire gauge and function (e.g., “16AWG Start Relay Feed”). Secure all splices with adhesive-lined heat shrink and strain-relief grommets where cables exit enclosures. For DC control circuits, use twisted-pair wiring to minimize EMI from ignition noise, and route cables away from exhaust manifolds and high-voltage AC lines to prevent false triggers.
