Guide to Wiring Your Optronics Trailer Lights Step-by-Step Diagram
Match the ground connections directly to the towing vehicle’s chassis frame–never rely on the hitch ball or drawbar. Aluminum wiring corrodes at contact points with steel; use dielectric grease or tinned copper terminals for every joint. For dual-axle configurations, split the running lamp feed with a 20-amp relay to prevent voltage drop across long cable runs. Confirm the pin layout before powering any circuit: North American standards dictate a four-way flat connector with specific pin assignments: white for ground, brown for clearance and tail illumination, yellow for left turn/brake signals, and green for right turn/brake functions.
Avoid daisy-chaining indicator circuits through multiple junction blocks; route each signal through its own 16-gauge silicone-jacketed conductor to the rear assembly. Replace all incandescent bulbs with LEDs only after verifying the onboard flasher module’s compatibility–LEDs draw less current and may cause rapid cycling if the module isn’t designed for low-load operation. Test every connection with a 12V load simulator before final installation; a single short can trip the fuse on the tow vehicle’s lighting controller, leaving auxiliary systems inoperable.
Color-code every splice with adhesive-lined heat shrink tubing: red for auxiliary power, blue for brake controller feeds, and violet for reverse lamp triggers. If integrating a multiplexed controller, use a dedicated 120-ohm resistor bypass module to mimic the resistance of an incandescent load. Store spare connectors in sealed plastic enclosures with moisture-absorbing silica packets to prevent terminal oxidation during off-season disuse.
Connecting Vehicle Signal Systems to Towable Units
Use a 7-way RV blade connector as the standard interface for linking towable platforms to towing vehicles. The brown circuit feeds running markers and side lamps, requiring 18–20 AWG copper wire with a minimum of 1.5 mm² cross-section for distances under 7 meters. For longer extensions, upsize to 14 AWG to prevent voltage drop exceeding 0.5V from tail to termination. Test continuity with a multimeter set to 200 Ω range–readings above 5 Ω indicate corrosion or poor crimps.
Ground Loop Prevention
Attach the white ground lead directly to the frame at both ends, ensuring paint-free contact points with a stainless-steel star washer biting into bare metal. Avoid stacking ground connections through multiple fasteners; dedicate a single 12 AWG path from the rear lamp cluster to the chassis ground. Measure resistance between any rear accessory ground point and the battery negative terminal–values above 0.2 Ω suggest loose terminals or oxidized surfaces.
Route harness bundles through plastic loom tubing secured by UV-resistant zip ties spaced no more than 30 cm apart. Keep bundles 5 cm clear of heat sources like exhaust pipes or turbochargers. For LED-based assemblies, include a load equalizer module to prevent hyper-flashing–install it within 60 cm of the turn signal feed, matching the module’s rated amperage to the bulb specification (typically 2–4 A per side).
Essential Gear for Connecting Rear Vehicle Signal Systems
Begin with a multimeter rated for 20V DC or higher to accurately measure circuit integrity. Cheaper models often lack precision, leading to misdiagnosed voltage drops or shorts. Fluke 17B or Klein Tools MM400 are reliable choices–avoid no-name brands.
Wire strippers with replaceable blades prevent insulation damage critical for long-term connections. Look for models with 10–20 AWG notches, such as Ideal 45-121 or Klein Katapult. Inadequate stripping risks frayed strands, increasing resistance over time.
Heat-shrink tubing with a 3:1 shrink ratio ensures durable seals against moisture and abrasion. Polyolefin types (e.g., 3M FP-301) resist diesel, UV, and temperatures to 125°C. Apply with a heat gun–open flames degrade performance.
Key Components Checklist
| Item | Specification | Purpose |
|---|---|---|
| Crimping tool | Ratcheting, 22–10 AWG | Creates gas-tight joints for terminals |
| Butt connectors | Tin-plated copper, 14–16 AWG | Joins wires without solder under 10A loads |
| Ground clamps | Stainless steel, #8–10 bolt size | Low-resistance chassis bonding |
| Circuit tester | LED, 3–15V range | Verifies signal presence without powering load |
Use dielectric grease like Permatex 22058 sparingly on connectors–excess impedes conductivity. Apply a thin layer to pins only; avoid sockets to prevent contamination.
For towing setups, select a 7-way plug with spring-loaded contacts (e.g., Bargman 9700). Cheaper plugs corrode internally within months due to poor sealing. Always verify current-carrying capacity matches the vehicle’s fuse rating.
A soldering iron (40W minimum) with rosin-core solder ensures connections withstand vibration. Heat-shrink tubing alone fails under dynamic stress; soldered joints last 5–10x longer.
Safety Precautions During Installation
Disconnect the battery negative terminal before working to prevent short circuits. Use insulated tools; edges near frames can abrade gloves or wires. Secure all cables with zip ties–loose bundles chafe against moving parts, creating intermittent failures.

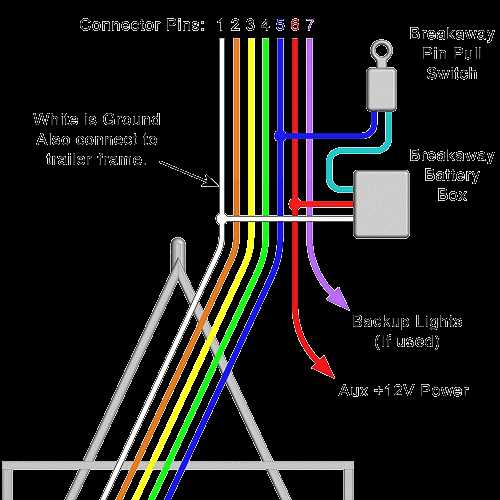

Guide to Hooking Up Your Tow Vehicle’s Signal System
Start by locating the factory electrical port beneath the rear bumper or behind the tailgate. Most modern utility vehicles integrate a standardized 7-pin round connector–match each pin to the corresponding function:
- Yellow: left turn/brake
- Green: right turn/brake
- Brown: marker illumination
- White: ground reference
- Blue: auxiliary (often for electric brakes)
- Black: 12V power feed (battery hot)
- Red: reverse lamps
Verify continuity with a multimeter before connecting any circuitry–crossed circuits risk damaging both the tow vehicle and the hauled equipment’s electrical components.
Strip the cable ends cleanly, exposing 5–7 mm of bare conductor. Crimp heat-shrink butt connectors onto each wire, ensuring a snug fit without exposed copper. Slide the connector onto the matching tow vehicle pin, then apply heat until the sealant melts and forms an airtight bond. Repeat for all seven conductors; incomplete seals invite corrosion within weeks.
Route the harness along the frame rail or existing loom, securing every 18–24 inches with UV-resistant nylon ties. Keep harnesses away from sharp edges, moving suspension components, and exhaust manifolds–heat tolerances for PVC insulation rarely exceed 90 °C. Where unavoidable, wrap vulnerable sections with silicone-impregnated tape rated to 200 °C.
Test all functions before loading cargo:
- Engage each turn signal; confirm simultaneous blinking on both the tow vehicle and the hauled equipment.
- Depress brake pedal; verify both stop lamps illuminate.
- Activate running lamps; measure voltage at the back edge–expect 12.8–13.5 V DC under load.
- Switch on reverse; ensure only the paired white LEDs activate.
Re-test after 50 miles of highway use; vibration often reveals loose crimps or marginal seals.

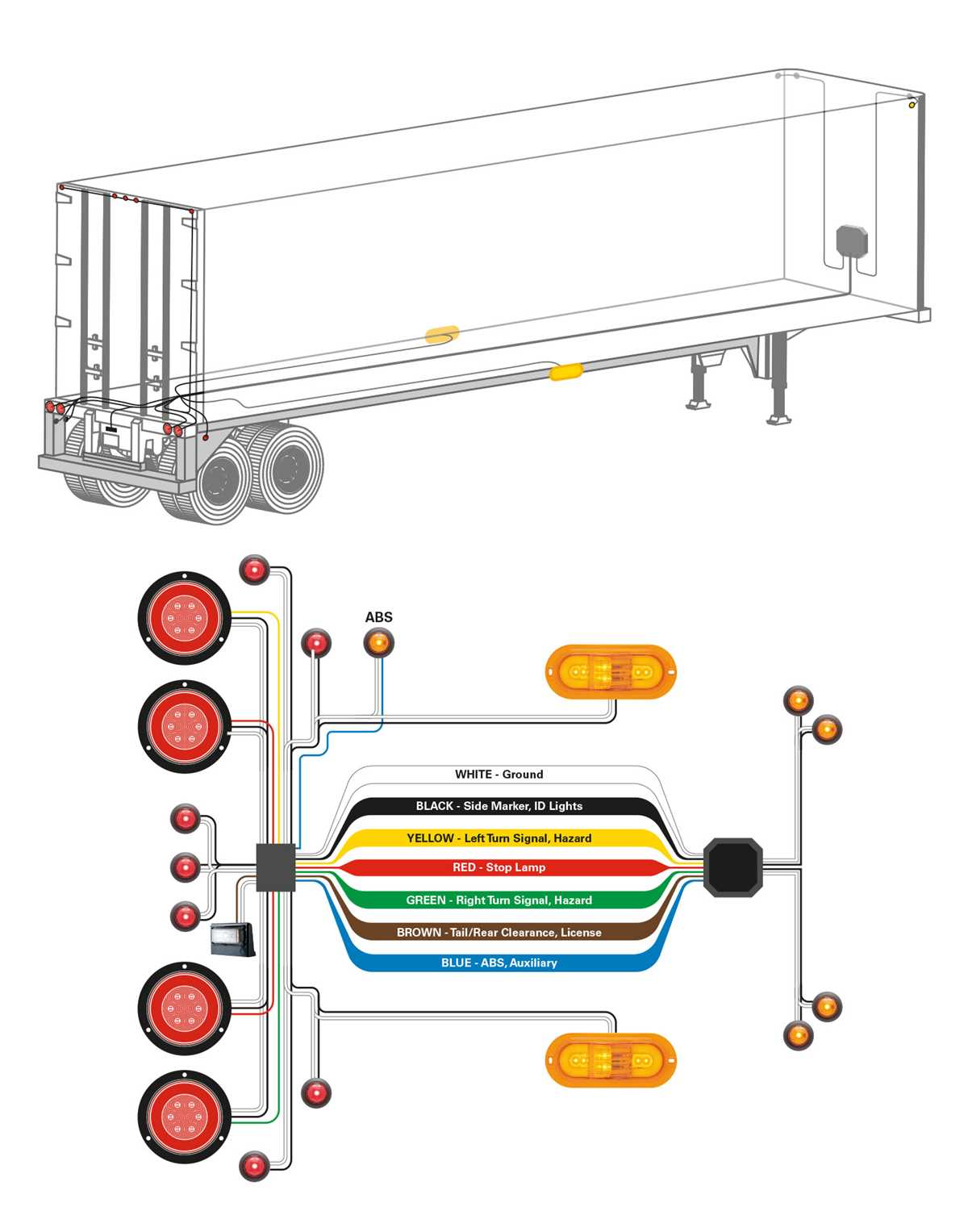

Standard Color Schemes for Heavy-Duty Vehicle Signal Connections
Always verify grounding first–exposed white conductors must connect directly to the towing frame’s bare metal, ensuring corrosion-free contact. Brown cables carry running illumination voltage, typically 12V DC, while yellow strands feed left-turn pulses; both terminate at corresponding bulbs via sealed connectors rated for at least 5A. For right-side blinkers, green wires follow identical voltage patterns, distinguishable only by placement on the harness’s passenger side.
Grounding Variations Across Manufacturers
Certain European aftermarket assemblies substitute gray for brown, though NA-spec systems retain the latter exclusively. If purple lines appear, treat them as reverse signal links–polarity reverses momentarily when backing, triggering rear lamps in pairs. Check splices for crimp integrity; loose strands introduce resistance spikes that mimic bulb failure during diagnostic scans.
Stray from mixing colored strands between functions–confusing amber (stop/side marker) with red (tail) risks fusing filaments or tripping onboard computers. Keep a multimeter preset to diode check mode handy; voltage drops exceeding 0.2V across any junction indicate oxidized terminals needing immediate redress with dielectric grease.
Diagnosing Signal System Faults in Tow-Assist Rigs
Check the ground connection first–corrosion at the tow vehicle’s frame or the rear chassis mount disrupts current flow. Use a multimeter to verify resistance (below 0.5 ohms) between the negative terminal and bare metal. If readings exceed this, sand the contact points with 120-grit paper and secure with a stainless-steel bolt torqued to 15-20 Nm.
Inspect the connector housing for bent pins or water intrusion. A 7-way plug should snap firmly into its socket; loose fits signal worn internal springs. Remove the cover plate and probe each pin with a 12V test lamp–dim illumination suggests a short or frayed cable. Replace damaged pins individually (part #AS-390) rather than the entire harness.
Testing Voltage Drop Under Load
Connect the tow rig’s battery directly to the affected circuit with a jumper wire while activating brake or turn signals. A voltage drop above 0.3V indicates excessive resistance in splices or terminals. Trace the path from the fuse block to the rear lamp cluster–focus on inline connectors, often hidden behind body panels or within conduit. Solder and seal any splices with heat-shrink tubing to prevent future oxidation.
Verify fuse integrity using a circuit tester; a blown 15A slot may not show visible damage. Recheck after bypassing the original fuse holder, as corrosion inside the socket mimics a blown fuse. For intermittent failures, flex cables gently while monitoring signals–intermittent faults often point to internal conductor breaks near stress points like axle hangers.
Isolate LED assemblies from the harness by substituting with a standard incandescent bulb. If circuits function normally, replace LEDs with units featuring embedded load resistors (spec: 6Ω, 50W). Ensure the rig’s flasher module matches the electrical draw–some aftermarket controllers misread LED low current as an open circuit.
