Step-by-Step Orbit Sprinkler Timer Wiring Connection Guide
For reliable operation, connect the controller’s 24VAC transformer to the master valve solenoid and zone valves using 18-gauge stranded copper wire. Ensure the transformer output matches the system requirements–typically 24VAC at 750mA for residential setups. Label each wire pair by zone number before stripping 0.5 inches of insulation from the ends.

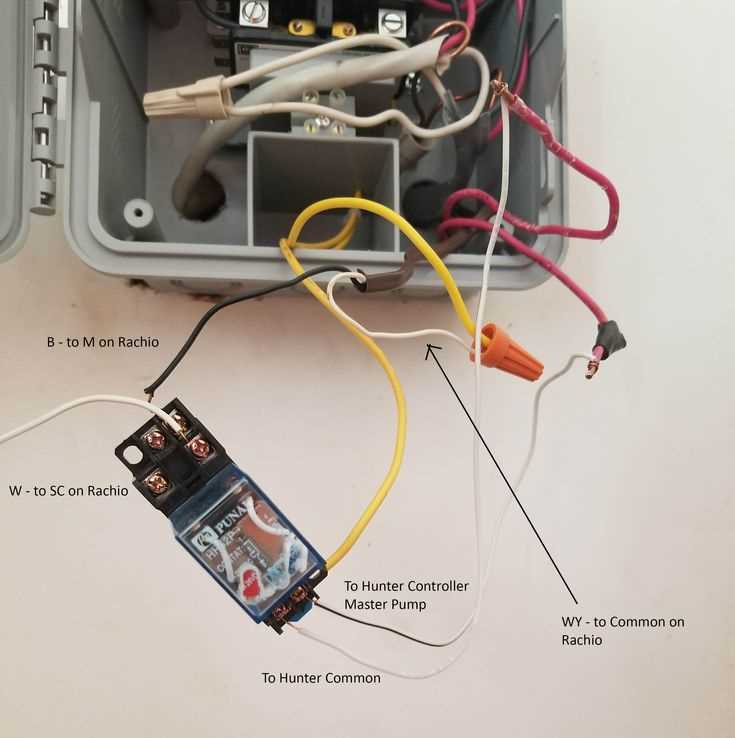

Attach the common wire (white) from the transformer to the corresponding common terminal on the controller’s terminal block. Connect the remaining wires–one per zone–to their designated terminals, verifying polarity if required. For systems with a pump start relay, wire it in series with the master valve to prevent backflow issues.
Test each zone sequentially using the controller’s manual activation feature before finalizing connections. If a zone fails, check for shorted wires, incorrect voltage, or loose terminals. Use a multimeter to measure resistance (ideal range: 20-60 ohms per solenoid). Secure all connections with waterproof wire nuts and reroute exposed wires through conduit if buried.
Power down the system before making adjustments. For multi-station controllers, verify the ground wire (green) is bonded to a copper grounding rod if local codes require it. Replace any damaged wires immediately–corroded connections are the leading cause of valve failures.
Connecting Your Automatic Irrigation Controller: Key Steps

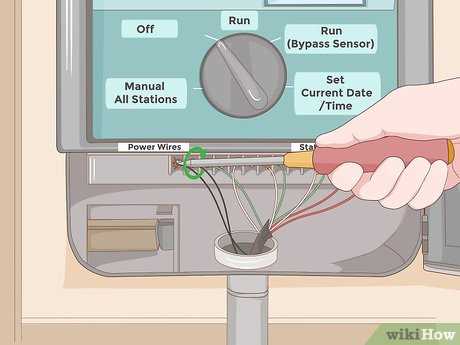

Begin by locating the master valve wire–typically color-coded in white–and secure it to the MV terminal on the control panel. Next, strip ½ inch of insulation from each zone wire (commonly red, green, blue, or yellow) and attach them to their corresponding numbered terminals, ensuring no exposed copper extends beyond the screw clamp. For systems with a pump relay, link the dedicated wire (often purple) to the P/MV terminal and verify the power supply is rated at 24VAC; deviations may cause erratic behavior or component failure.
Troubleshooting Common Connection Errors
If zones fail to activate, check for loose terminal screws using a multimeter–voltage should read 24–28V between the common wire and active zone. Crossed wires (e.g., red attached to terminal 2 instead of 1) often trigger inadvertent cycling; correct by tracing each wire back to the solenoid valve. For intermittent signals, inspect the transformer’s output or replace the fuse if the display remains blank despite power being on. Always disconnect the electrical source before adjusting connections to prevent short-circuiting the circuit board.
How to Pinpoint the Right Connection Points on Your Irrigation Controller

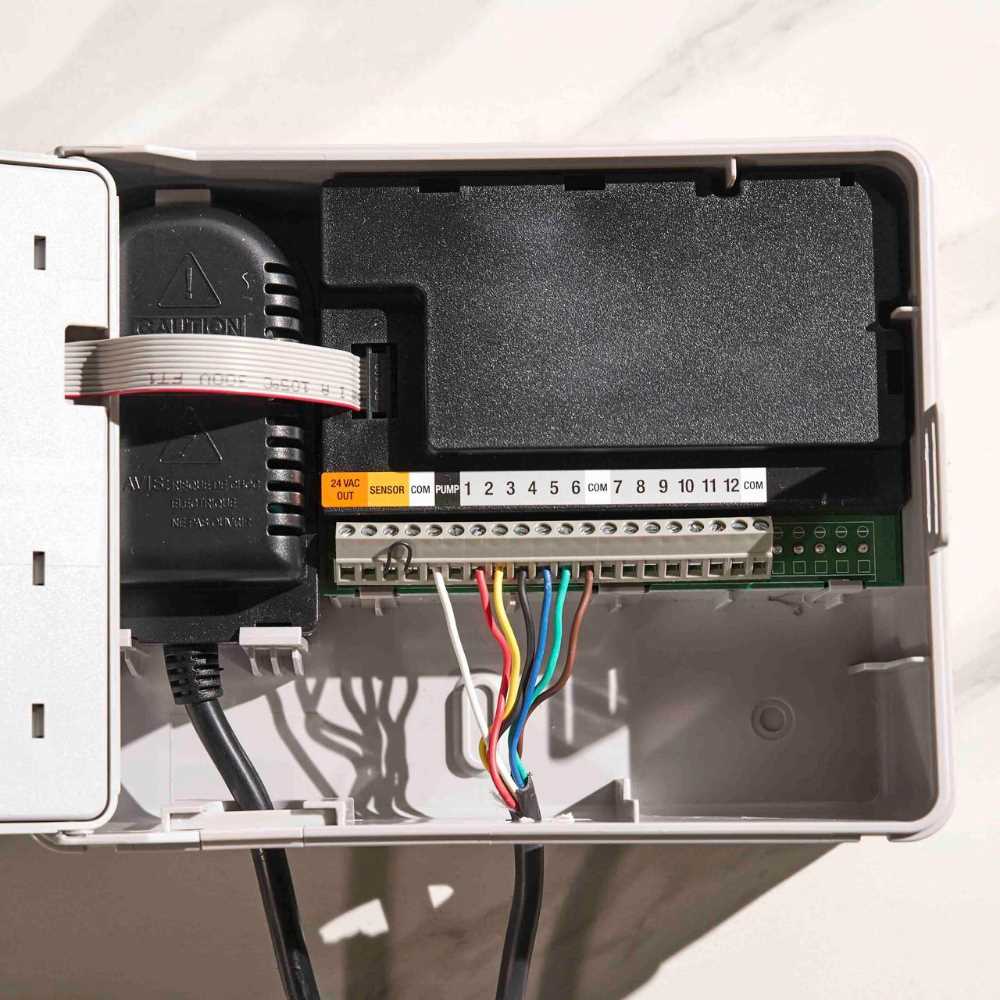

Locate the terminal block on the rear or side panel–often marked with small labels like “AC,” “COM,” “R,” “MV,” or numbered outputs (e.g., 1–8). Match these identifiers exactly to your setup instructions. Misalignment here causes system failures.
Verify the power input slots first. The “AC” (or “L”) terminal accepts the live wire from your power source, while “COM” (or “N”) pairs with the neutral lead. Secure these connections firmly; loose wires lead to erratic operation or complete shutdown.
For station outputs, check the sequence of terminals–typically labeled consecutively (Zone 1, Zone 2, etc.). Each corresponds to a valve solenoid wire. Reverse connections will activate incorrect zones or none at all. Use a multimeter to confirm voltage (24V AC) before attaching any valve cables.
Identify the common terminal (“COM”) shared across all zones–usually larger or grouped separately. Connecting a solenoid wire to the wrong common slot disrupts multiple zones simultaneously. Some models split commons; refer to the label sheet beneath the device for specifics.

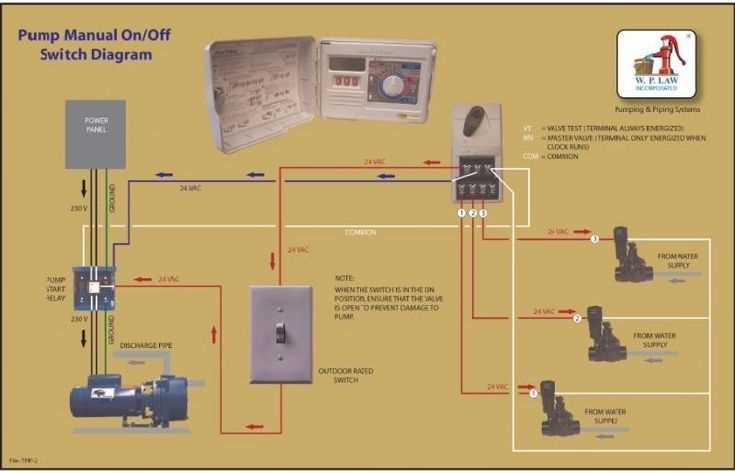

Check for a master valve (MV) or pump (R) terminal if your system includes a booster pump. These require separate wiring from zone valves and often trigger before any zone activates. Missing this step results in dry starts or pump damage.
Inspect for additional slots like “Sensor” or “Rain Delay,” if used. These may require low-voltage jumper wires or dedicated sensor kits. Mixing these with zone outputs voids sensor functionality.
Before finalizing, cross-reference all terminals with your model’s manual–even minor revisions between versions alter configurations. Walk-test each section individually to confirm correct operation before full deployment.
Step-by-Step Guide to Connecting a 24V AC Transformer
Locate the transformer’s output terminals–typically marked with C (Common) and 24VAC labels. Verify the voltage rating on the transformer’s label matches the required 24 volts AC; using an incorrect power supply risks damaging connected devices.
Turn off the main power supply to the circuit before handling any connections. Use a multimeter set to AC voltage mode to confirm zero voltage between the transformer’s output terminals and the ground. Safety goggles are recommended to protect against accidental sparks.
Strip 1/4 inch (6 mm) of insulation from the ends of the two low-voltage wires (usually 18 AWG). Twist the exposed copper strands tightly to prevent fraying. Securely fasten one wire to the C (Common) terminal and the other to the 24VAC terminal using a screwdriver–ensure no loose strands remain outside the terminal clamp.
Ground the transformer by attaching a green or bare copper wire to the grounding screw on its metal housing. Connect this wire to the system’s ground bus or a dedicated grounding rod driven at least 8 feet (2.4 m) into moist soil. Resistance should not exceed 25 ohms when tested with a ground meter.
Route the low-voltage wires through a 1/2-inch (13 mm) conduit if running outdoors or through walls. Use watertight connectors for outdoor installations to prevent moisture ingress. Secure wires every 18 inches (45 cm) with UV-resistant clips to avoid sagging or damage from environmental exposure.
Testing and Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| No power at terminals | Blown fuse, loose connection | Check circuit breaker, tighten terminals, test fuse with multimeter |
| Voltage below 22V | Overloaded circuit, faulty transformer | Disconnect load, retest; replace transformer if voltage remains low |
| Humming or buzzing | Loose core laminations, poor grounding | Tighten screws, recheck ground wire connection |
| Transformer overheating | Insufficient wire gauge, excessive load | Upgrade to 16 AWG wire, reduce connected devices |
Re-energize the circuit and use a multimeter to measure voltage across the output terminals. A correct reading should show 24V–28V AC. If voltage exceeds 30V, immediately disconnect power and inspect the transformer for faults.
Connect the output wires to the controller’s input terminals, matching C to C and 24VAC to 24VAC. Tighten all terminal screws to 7–9 inch-pounds (0.8–1 Nm) of torque. Reactivate the power supply and verify the controller powers on without flickering LEDs or error codes.
Final Checks
Inspect all connections for signs of overheating–discoloration or melted insulation indicates a loose terminal. Apply silicone sealant around outdoor connections to prevent corrosion. Document wire routes and terminal assignments on a label affixed to the transformer housing for future reference.
Connecting Multiple Irrigation Solenoids to One Controller
Start by identifying the common wire on your automatic control unit–typically color-coded white or blue. This conductor will carry the return current for all connected valves, so strip 1/2 inch of insulation from each solenoid’s matching lead and twist them together with the common wire in a waterproof splice cap.
For each zone, connect the colored (non-common) solenoid lead to its corresponding terminal on the controller. Terminals are usually labeled numerically or alphabetically; match Zone 1’s lead to Terminal 1, Zone 2 to Terminal 2, and so forth. Avoid daisy-chaining; run individual conductors from every valve directly back to the controller to prevent voltage drop and ensure consistent activation.
Use 18-gauge direct burial cable for runs under 500 feet and 14-gauge for longer distances or zones requiring higher torque solenoids. Secure connections with gel-filled connectors rated for outdoor use, and bury the splices at least 6 inches deep to protect against accidental strikes from lawn tools or frost heave.
Test each circuit before finalizing the setup. Activate Zone 1 from the control unit and confirm the solenoid clicks audibly; repeat for every zone. If a valve fails to respond, check for reversed polarity on the colored lead or a severed conductor–common issues with hastily buried lines.
Label every wire at both the controller and the valve manifold. Use durable, weatherproof tags to mark each conductor’s destination (e.g., “Front Lawn – Zone 2”). This step eliminates guesswork during future repairs and simplifies expansion if additional zones are added later.
Power the system with a dedicated 24VAC transformer, ensuring the wattage exceeds the combined startup load of all connected valves by at least 20%. For a four-zone setup with standard solenoids, a 50VA transformer is sufficient, but scale up to 75VA if operating high-flow valves or exceeding six zones.
Install a master shutoff solenoid upstream of the first valve if running drip tubing or low-pressure systems. Connect its leads to a separate terminal on the control unit and program it to open 3–5 seconds before the first zone activates. This prevents water hammer and ensures even pressure distribution across all emitters.
