Start by verifying the circuit breaker’s amperage rating before planning any parallel or daisy-chain setups. For standard 15-amp residential circuits, limit the total load to 12 amps to avoid overheating and tripping. Use 12 AWG copper conductors for all segments to ensure consistent current flow and minimize voltage drop. Avoid mixing wire gauges in a single run–this creates weak points susceptible to heat buildup.
For sequential socket arrangements, connect the first receptacle’s brass screws to the incoming hot wire and the silver screws to the neutral. Run a pigtailed jumper from the first socket’s second set of terminals to the next unit’s corresponding screws. Repeat this pattern, ensuring each connection is secured with a wire nut rated for the wire gauge. Never rely on the receptacle’s built-in backstab connections–they fail under sustained loads and violate NEC 314.16(B).
Calculate voltage drop across long runs using V = I × R, where R is the conductor’s resistance per foot (0.00198 Ω/ft for 12 AWG copper). At 120V, a 2% drop (2.4V) occurs at roughly 100 feet with a 12-amp load. Exceeding this threshold requires upsizing to 10 AWG or breaking the chain into sub-circuits fed from the panel directly. Grounding integrity is non-negotiable–bond all green screws with an unbroken path back to the service panel’s grounding bus.
Use a multimeter to confirm correct polarity at each socket: 120V AC between hot and neutral, 0V between neutral and ground, and continuity from ground screw to panel bus. Terminate unused conductors with UL-listed twist-on connectors and tape them–exposed ends create shock hazards and fire risks. Install arc-fault circuit interrupters (AFCIs) for all bedroom and living area circuits to comply with NEC 210.12. Test AFCIs monthly using the integrated test button.
For GFCI-protected setups, connect the line-side terminals to the source wires and load-side terminals to downstream sockets. Avoid extending GFCI protection beyond six sockets–excessive load triggers nuisance tripping. Label all receptacles with their circuit number using adhesive tags for future troubleshooting. Document the layout with a hand-drawn schematic showing conductor paths, junction box locations, and breaker assignments.

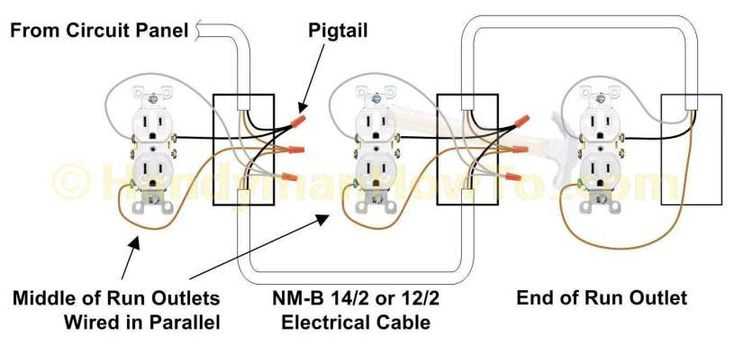

Electrical Connection Schemes for Sequential Power Points
Begin by connecting the first power receptacle directly to the circuit’s hot wire (typically black or red) using a pigtail splice. Secure the splice with a wire nut, ensuring no exposed copper remains. The neutral (white) and ground (bare/green) wires follow the same method–combine them with a short pigtail and attach to the corresponding terminal screws on the device. This avoids loose connections that can lead to arcing or overheating.
- Terminal screws: Tighten to at least 12 inch-pounds of torque. Loose screws are the leading cause of junction failures.
- Pigtail length: Keep between 4–6 inches for manageable installation without excess wire clutter.
- Wire gauge: For 15-amp circuits, use 14 AWG copper; for 20-amp, 12 AWG is mandatory.
For sequential installations, run a separate cable from the first receptacle’s output terminals to the input terminals of the second. This “daisy-chain” method distributes current evenly but limits the number of devices to avoid exceeding the circuit’s 80% capacity rule (e.g., no more than 12 amps on a 15-amp circuit).
Verify polarity before energizing. Hot wires must connect to brass screws, neutrals to silver, and grounds to green. A non-contact voltage tester confirms no live wires remain after shutting off the breaker–a critical safety step often skipped in rushed installations.
- Turn off power at the breaker panel.
- Test all wires with a multimeter or non-contact detector.
- Connect the first device’s pigtails to the circuit wires.
- Run a new cable from the first device’s load terminals to the second.
- Repeat for additional devices, ensuring no more than 4–6 per 15-amp circuit.
- Secure all wire nuts with electrical tape for added strain relief.
Use deep junction boxes (minimum 3.5″ depth) for sequential setups to accommodate wire bends without crimping. Shallow boxes restrict airflow and increase overheating risk, especially with high-draw appliances like space heaters or microwaves. Code requires 18 cubic inches of box volume per 14 AWG wire–calculate this before installation to avoid violations.
Label each circuit breaker with the connected power points. Include the amperage rating and wire gauge used. Example: “Living Room – 15A / 14 AWG – Outlets 1–4.” This simplifies troubleshooting and future modifications.
Avoid backstabs (push-in connectors) for sequential connections. Though quicker, they’re prone to loosening over time. Instead, use side-terminal screws with hook-shaped wire ends for a more reliable grip. For aluminum wiring (common in pre-1970s homes), apply antioxidant paste to all connections to prevent corrosion.

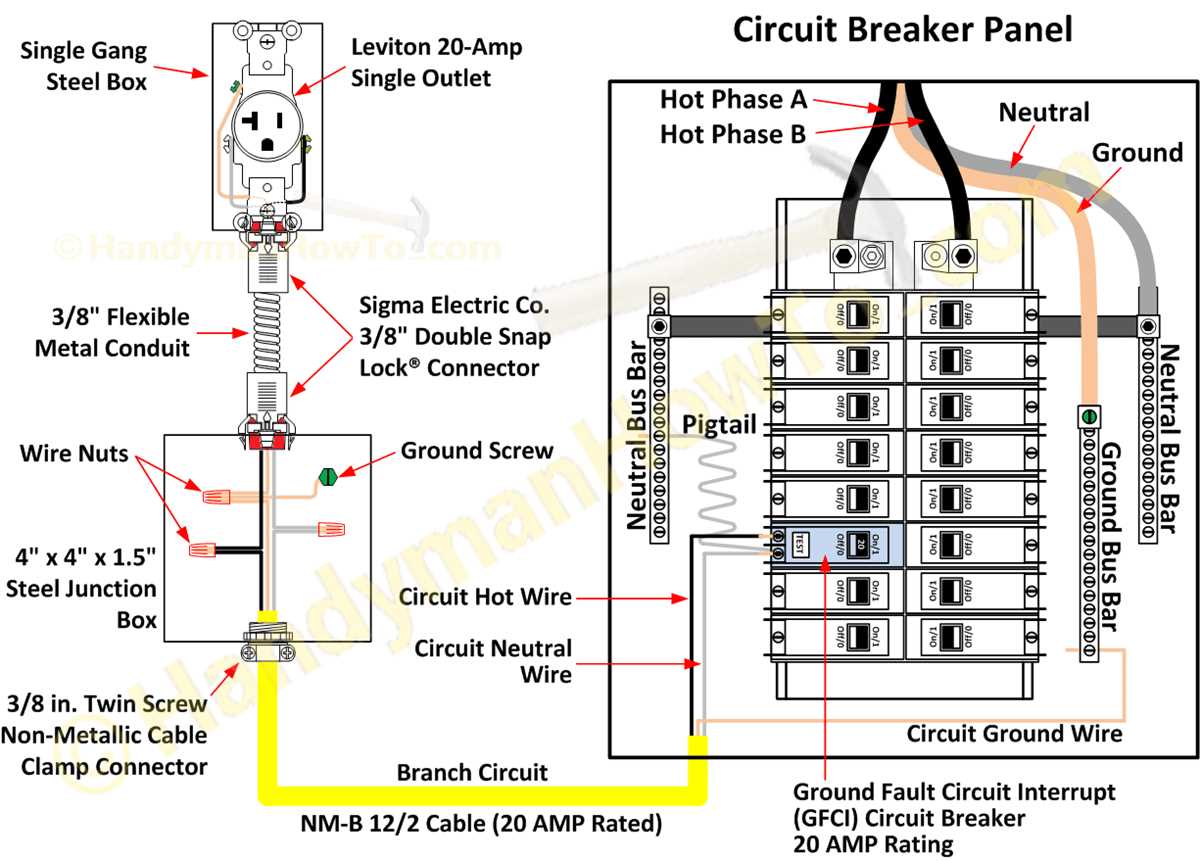

How to Install a 120-Volt Receptacle Safely
Switch off the circuit breaker labeled for the area where you’ll work. Verify power is dead with a non-contact voltage tester by holding it near the electrical box–no beep or light confirms it’s safe. Locate the breaker controlling the wires you’ll handle; if uncertain, turn off the main breaker as a precaution.
Remove the cover plate and unscrew the existing receptacle if replacing one. Pull the device straight out, leaving attached wires accessible. Identify the brass screws (hot), silver screws (neutral), and green screw or bare copper wire (ground). Loosen each screw terminal just enough to release or secure wires–no need to remove entirely.
Strip 3/8 inch of insulation from the ends of each conductor using wire strippers. Twist the stranded copper strands clockwise gently to prevent fraying. Insert the black (hot) wire under the brass screw, wrap it clockwise around the screw, and tighten firmly–ensure no exposed copper protrudes beyond the screw. Repeat for the white (neutral) wire on the silver screw.
Attach the bare or green ground wire to the green screw in the same manner. If the box is metal, ensure a grounding pigtail connects the receptacle’s ground screw to the box itself using a short 10-gauge bare copper wire. Fold wires neatly into the box, pressing the receptacle back in without pinching any conductors.
Secure the receptacle with the screws provided, ensuring it sits flush against the wall. Reattach the cover plate using the short screw. Restore power at the breaker panel and test with a plug-in lamp or voltage tester–if the light illuminates or the tester shows 120 volts, the connection is correct.
For GFCI receptacles, follow the same steps but connect wires to the “LINE” terminals only, ignoring “LOAD” unless extending protection to downstream devices. Label the back of the receptacle with the circuit number for future reference. Keep wire lengths within 6 inches inside the box to comply with NEC 314.16 and avoid clutter.
How to Distinguish Live, Return, and Earth Conductors in Electrical Sockets
Use a non-contact voltage tester to verify which conductor carries active current. Hold the probe near each terminal–live wires will trigger an audible or visual alert, while neutral and earth remain silent. Perform this check with the circuit energized, but ensure no bare metal or tools touch adjacent terminals simultaneously to prevent shorts.
Color Coding and Terminal Positions
| Conductor | Standard Color (US) | Terminal Slot Shape | Verification Method |
|---|---|---|---|
| Live (Hot) | Black or red | Narrow, brass-colored | Non-contact tester reacts |
| Return (Neutral) | White or gray | Wider, silver-colored | No voltage detected |
| Earth (Ground) | Green, bare copper, or green/yellow stripe | Round, green screw | Multimeter reads ~0V to live |
In older installations or certain regions, colors may vary–never assume: test each conductor before handling. A multimeter set to AC voltage mode will show ~120V (US) between live and neutral, and ~0V between neutral and earth in a correctly wired system. If readings deviate significantly, suspect a miswired junction or faulty breaker.
For split-phase systems (e.g., 240V appliances), two live conductors exist: one black, one red, each carrying 120V relative to neutral but 240V between them. Verify polarity by measuring voltage across both–correct pairing yields the sum of their individual potentials. Reverse polarity risks damaging appliances or creating hazards.
Ground faults manifest as slight voltage (a few volts) between neutral and earth–this indicates loose connections in the circuit or panel. Trace the earth conductor back to the service panel’s main ground bar; ensure it’s securely bonded to the neutral bus only at the main disconnect, not at subpanels. Improper bonding causes stray currents, elevating shock risks.
Creating a Half-Switched Receptacle Setup

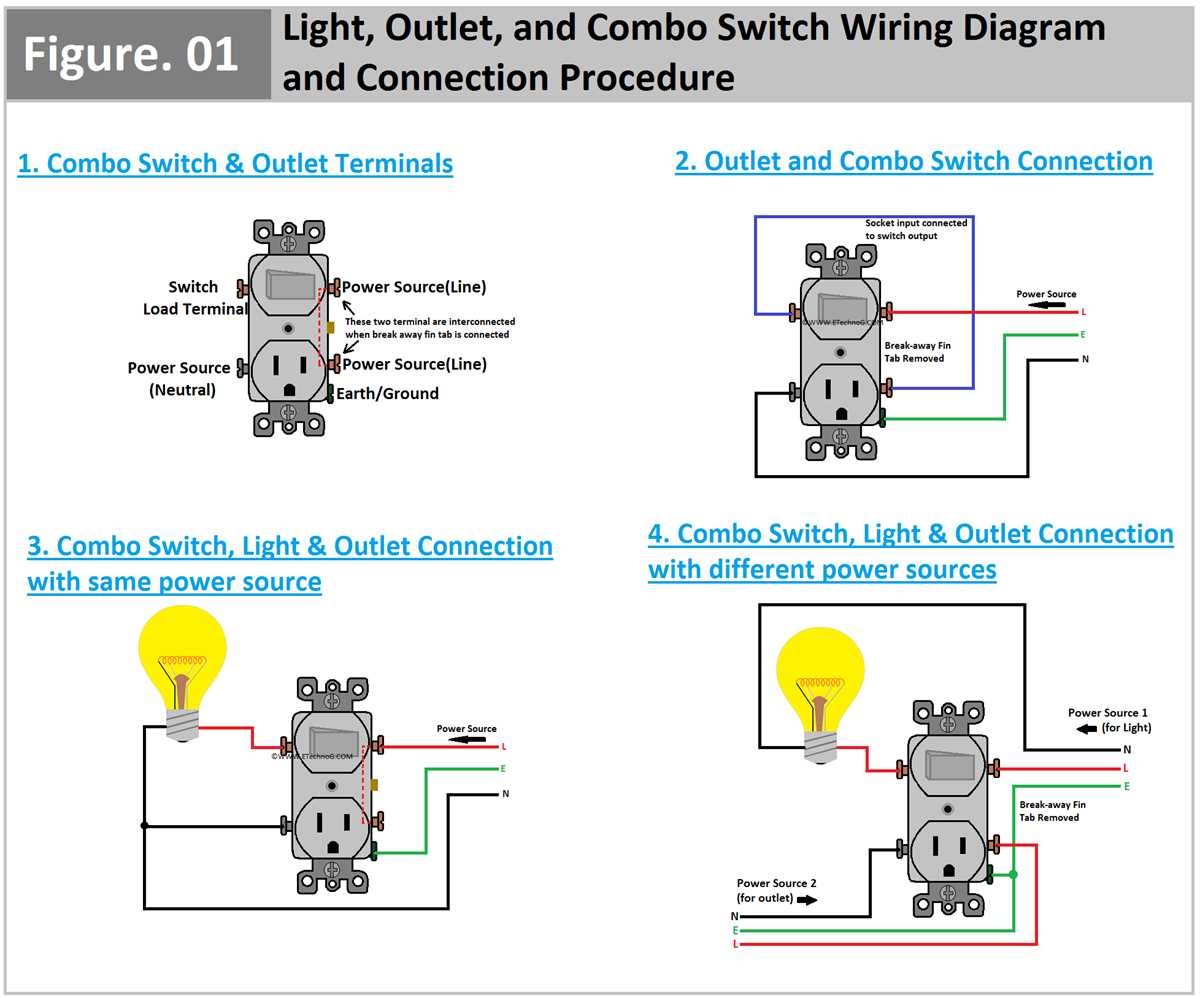

Start by identifying the power source cable entering the electrical box–it typically contains a black (hot), white (neutral), and bare or green (ground) conductor. Strip ½ inch of insulation from each wire end using wire strippers, then connect the incoming hot wire to both the brass screw of the switch *and* one of the brass screws on the duplex receptacle. Use a short 6-inch black jumper wire to bridge the switch’s remaining brass terminal to the receptacle’s second brass screw–this ensures the switch controls only one socket while the other remains permanently powered.
Neutral and Ground Connections
Twist the incoming white neutral wire together with the receptacle’s silver screw lead using a wire connector, then secure the bundle with a twist-on cap rated for the gauge of wire (typically 14 or 12 AWG). For the ground, loop the incoming bare/green wire around the box’s grounding screw (if metal), then connect it to the receptacle’s green grounding screw and the switch’s green grounding screw with an additional 6-inch bare jumper if the switch lacks a grounding clip. Verify all connections are snug–loose terminals can arc and create fire hazards.
Test the installation by flipping the switch: the controlled socket should power on/off while the other remains live regardless of switch position. If neither socket responds, double-check the jumper wire linking the switch to the receptacle’s brass screw–common mistakes include reversed connections or wires not fully seated under the screw heads. Use a non-contact voltage tester to confirm the incoming power is live and the neutral-ground pairing hasn’t been accidentally swapped, which could trip a GFCI if present downstream.
