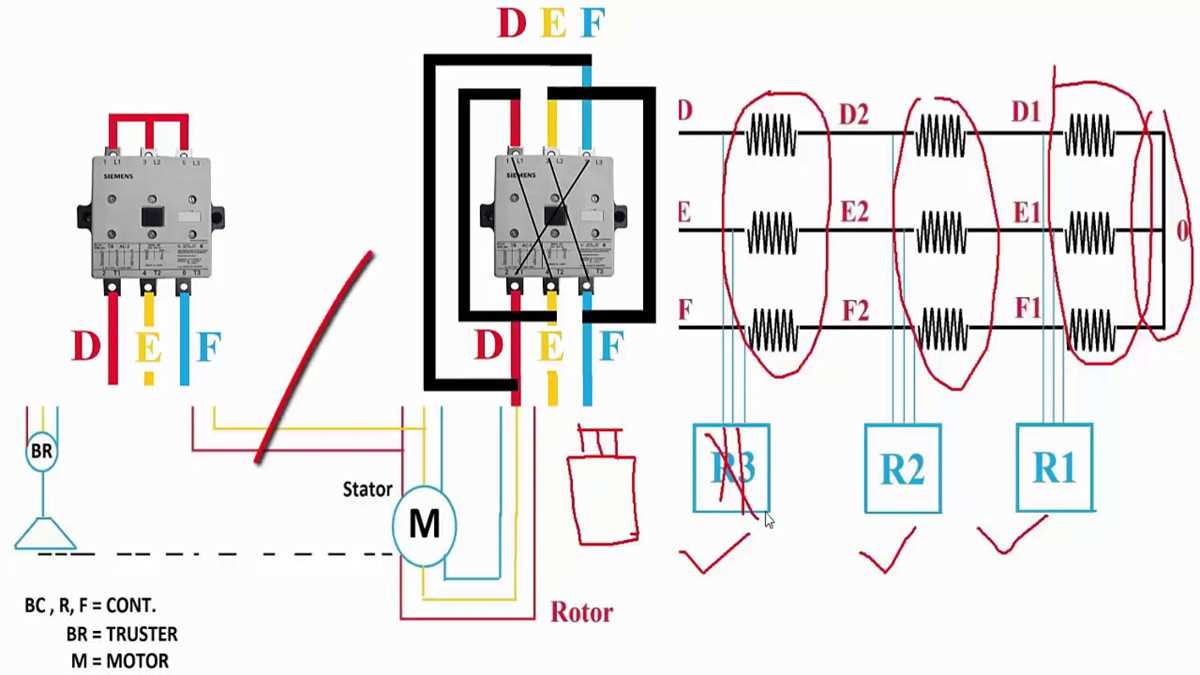

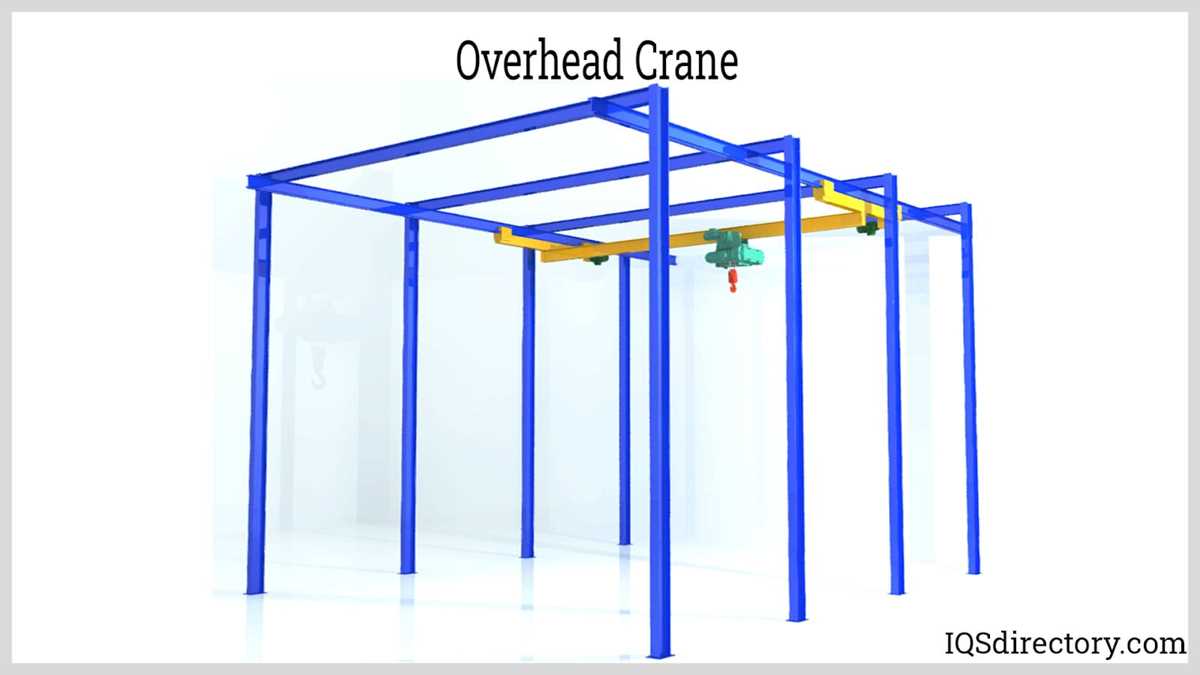

Guide to Overhead Crane Electrical Wiring Schematics and Connections

Start with a three-phase power source rated for the hoist’s maximum load–typically 400V or 480V AC for heavy-duty applications. Connect a main disconnect switch (200A–600A, fused or circuit-breaker type) before the contactor bank to isolate power during maintenance. Use IEC 60947-4-1 compliant contactors sized 20–30% above the motor’s full-load current to prevent overheating.

For motor control, integrate a variable-frequency drive (VFD) with a vector control algorithm to manage torque at low speeds. Wire the VFD’s output to a NEMA Class 10 overload relay calibrated to 115% of the motor’s nameplate current. Include emergency stop relays with self-monitoring contacts (EN 60204-1) to cut power within 100ms of activation.

Limit switches must comply with IP65 ingress protection and be positioned at both ends of the travel path. Use proximity sensors (inductive, 5–12mm sensing range) for precise braking distance calculations. For cabling, employ XLPE-insulated conductors (minimum 600V rating) and copper lugs crimped with a hydraulic tool to avoid loose connections.

Ground the entire system via a TN-S configuration, ensuring the protective earth (PE) conductor’s cross-section is no less than 50% of the phase conductors. Add surge protectors (Type 2, 40kA) at the supply input to safeguard against voltage spikes. Test insulation resistance with a 500V megohmmeter–readings below 1MΩ indicate compromised wiring.

For remote operation, pair a PLC with Modbus RTU or PROFINET for real-time diagnostics. The HMI should display critical metrics: motor temperature (via PT100 sensors), brake wear (micrometer adjustment), and load weight (compression load cells). Log all fault codes with timestamps for predictive maintenance.

Key Electrical Layouts for Industrial Hoisting Systems

Begin by integrating a three-phase power supply rated at 400V AC with a dedicated motor protection circuit breaker (MPCB) sized at 125% of the hoist’s full-load current. Connect the MPCB directly to the main contactor, ensuring its coil voltage matches the control circuit (typically 24V DC or 110V AC). Include an emergency stop button wired in series with the contactor coil to instantly cut power–this must comply with ISO 13850 standards, ensuring a fail-safe response within 200ms of activation. For variable speed applications, insert a frequency inverter between the contactor and motor, selecting models with IP55 protection if operating in humid or dusty environments.

Label every wire with heat-shrink tubing or durable tags, using color codes per IEC 60446: brown/black for live phase conductors, blue for neutral, green/yellow for earth, and gray for control signals. Install limit switches at both upper and lower travel extremes, wiring them in series with the hoist’s direction relays–these should trigger at 90% of the mechanical stop position to prevent overtravel. For sling-type units exceeding 5 tons, add a load cell or strain gauge connected to a relay output, programmed to interrupt lifting if the weight exceeds 110% of the rated capacity. Keep control cables separated from power lines by at least 300mm to minimize electromagnetic interference.

Test the layout with a megohmmeter before energizing–insulation resistance between phases and ground must exceed 1MΩ. During commissioning, verify that the brake release delay (if using an electromagnetic brake) aligns with the motor’s startup torque curve, typically adjusted via a 0.5–2.0 second delay relay. For remote-controlled models, incorporate a dual-channel receiver with a failsafe feature, ensuring the system halts if signal loss exceeds 500ms. Store the schematics in a waterproof enclosure near the power disconnect, marked with the revision date and hazard warnings for live voltages above 50V.

Key Components of an Industrial Hoist Electrical System

Start with a mains disconnect switch rated for at least 125% of the system’s full-load current to ensure safe isolation during maintenance. Use a fused switch or circuit breaker with trip settings adjusted to 150% of the motor’s rated current for reliable short-circuit protection. Avoid generic breakers–select those with adjustable magnetic and thermal trips for precise coordination with motor startup surges.

The hoist controller must include redundant limit switches–primary and secondary–to halt motion if the first fails. Position upper-limit switches at least 200mm below the end-stop to account for mechanical overshoot. For variable-frequency drives (VFDs), ensure braking resistors have a power rating exceeding the motor’s braking energy by 20% to prevent overheating during rapid deceleration. Below are critical VFD parameters to set:

Parameter	Recommended Value	Purpose
Acceleration Time	2–5 seconds	Prevents motor stress during startup
Deceleration Time	1.5–4 seconds	Avoids regenerative energy buildup
Overcurrent Trip	160% of rated current	Protects against stalled conditions
Low-Speed Torque Boost	5–15%	Compensates for friction at

Install contactors with DC coils if ambient temperatures exceed 40°C to reduce coil burnout risk. For AC coils, use capacitors or varistors across contacts to suppress voltage spikes (min. 250V rating for 400V systems). Replace standard contactors with latched relays for critical functions like emergency stops to ensure fail-safe operation even during power loss.

Use traction motors with class F or H insulation for continuous duty cycles (S3–S5) and verify that thermal overload relays have a trip class of 10 or 20 to match the motor’s cooling ability. For trolleys, specify geared motors with no less than 1.2x the calculated torque to handle dynamic loads. Conduit runs must comply with IEC 60364-5-52: use rigid steel (min. 25mm diameter) for power lines and liquid-tight flexible conduits for connections to movable parts.

Integrate a PLC or hardwired safety relay with dual-channel input monitoring for all safety circuits. For pendant push buttons, select models with IP65+ ingress protection and dead-man’s switch functionality to meet EN 60204-32. Wire color codes strictly follow IEC standards: yellow/green for protective earth, brown for phase, black/blue for control voltages, and red/white for emergency circuits. Test all components at 110% of nominal voltage before commissioning.

Step-by-Step Wiring for a Single-Beam Hoist Motor

Disconnect all power sources before starting. Use a multimeter to verify zero voltage across the main terminals (L1, L2, L3) and the motor leads (U, V, W). Label each wire with heat-shrink tubing or adhesive tags to prevent mix-ups during reconnection. For 3-phase configurations, identify the phase sequence at the supply; reverse any two leads if rotation direction must be adjusted later.

Connect the main contactor coil to the control voltage (typically 110VAC or 24VDC) via the pendant pushbuttons. Wire the normally open (NO) contacts of the forward and reverse buttons in series with the contactor coil, ensuring the stop button interrupts the circuit. Add a thermal overload relay between the contactor and motor, setting it to the motor’s full-load amperage (FLA) plus 10% for safety margin. Route its NC contacts back to the control loop to break power on overload.

Ground the motor frame to the facility’s grounding busbar using 8 AWG or thicker copper wire. For variable-frequency drives (VFDs), link the motor leads to the VFD output terminals in the correct order (U to U, V to V, W to W) and set ramp-up/down times to 3–5 seconds to reduce mechanical stress. Install RC snubbers across the contactor coils if rapid switching causes arcing.

Test the setup with a clamp meter: check for balanced current draw across phases (

Resolving Frequent Electrical Faults in Industrial Hoists

Begin by isolating the power source and verifying voltage levels at the control panel terminals with a multimeter. Fluctuations below ±10% of the rated supply (e.g., 400V ±40V for three-phase systems) often indicate a faulty main breaker, corroded busbars, or undersized cabling. Replace any damaged connectors immediately–even minor oxidation can introduce resistive losses, leading to overheating and intermittent failures. Check the transformer output: a deviation of more than 5% from its nameplate voltage suggests winding damage or shorted laminations, requiring immediate replacement to prevent catastrophic failure.

Common symptoms like erratic motor behavior or unintended movements usually stem from worn contactors or faulty limit switches. Examine contactor coils for continuity (resistance should match manufacturer specs, typically 20-200Ω depending on size) and inspect contacts for pitting or carbon buildup. Clean or replace contacts if surface resistance exceeds 0.1Ω. For limit switches, test with a continuity tester while manually actuating the lever–failure to open/close at consistent points indicates misalignment or internal corrosion. Lubricate pivot points with dielectric grease to prevent false triggers.

Diagnosing Control Signal Interruptions

• Verify the integrity of encoder signals (4-20mA or 0-10V) by checking for noise spikes with an oscilloscope–any deviation beyond ±1% of the signal range points to interference or a failing transducer.
• Inspect the PLC’s I/O modules for diagnostic LEDs: a solid “fault” indication usually means overcurrent, undervoltage, or communication errors, while flashing codes correspond to specific error logs (consult the manufacturer’s table for exact troubleshooting).
• Test variable frequency drive (VFD) parameters: if the motor stutters at low speeds, recalibrate the torque limits (typically 110-150% of rated current) and check for harmonic distortion in the supply line using a power analyzer–THD above 5% requires line reactors or filter installation.
• For braking systems, measure the dynamic braking resistor’s temperature: exceeding 80°C under normal operation indicates insufficient resistance value or a failing chopper transistor–replace with a unit rated for at least 125% of the motor’s peak power.

Thermal imaging can identify localized hotspots in wiring harnesses or terminals, where temperatures above ambient by more than 25°C suggest loose connections or undersized conductors. For cable trays, ensure strain relief points aren’t kinked–bending radii tighter than 8× the cable diameter accelerates insulation breakdown. If the system uses slip rings, measure their resistance (should be
