Peristaltic Pump Design and Working Principle Explained with Diagram

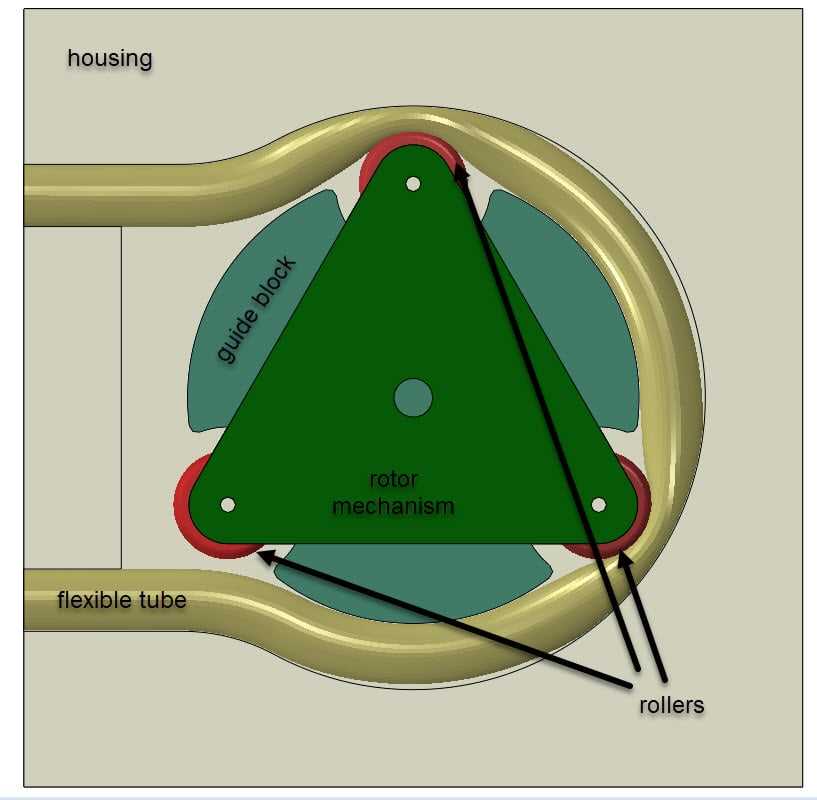

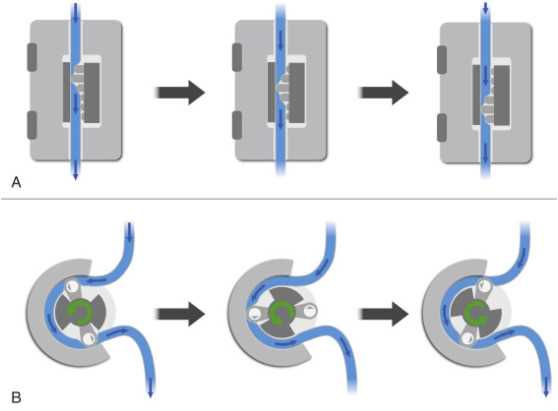

Start with a rotary casing housing a central drive shaft–preferably stainless steel for corrosion resistance–with a minimum wall thickness of 3 mm to handle pressures up to 2 bar. Attach two or three rollers (diameter 15–25 mm) spaced evenly around the shaft, ensuring at least one roller maintains compression at all times to prevent backflow. Mount them on sealed bearings rated for 5,000+ hours at 300 RPM.

Select medical-grade silicone tubing–inner diameter 4–8 mm, wall thickness 1–2 mm–based on viscosity: use 4 mm ID for aqueous solutions, 8 mm for viscous fluids (500–1,500 cP). Secure the tubing path with clamp blocks spaced no farther than 90° apart. For continuous duty cycles, integrate a spring-loaded tensioner behind the tubing to compensate for elastic fatigue, extending tube life by 30–40%.

Drive options: pair the shaft with a 12V DC geared motor (torque 0.5–1 Nm, gear ratio 10:1) for precise flow rates (0.1–50 mL/min), or use a stepper motor (NEMA 17, 1.8° step) with microstepping (1/16) for reduced pulsation. Avoid PWM frequencies below 1 kHz–they induce tubing vibration, degrading accuracy by 8–12%.

Add feedback: place a hall-effect sensor near the rollers, sampling at 100 Hz to detect roller transitions. Calibrate flow rates against sensor pulses–1 pulse per roller pass equals 0.06–0.3 mL, depending on tubing dimensions. For hazardous fluids, encapsulate the entire assembly in a polycarbonate enclosure with IP65 sealing; inlet and outlet ports should use Luer-lock fittings to eliminate leaks.

Key Components of a Flexible Tube Fluid Mover Design

Begin by prioritizing a roller assembly with precise spacing–ideal diameters for rollers range between 8–20 mm depending on tubing inner width (ID). Test materials like stainless steel (grade 316) for corrosion resistance or nylon for lightweight applications. Ensure each roller contacts 30–50% of the tube’s circumference to prevent slippage while minimizing backflow. Adjust compression ratio (CR) calculations using the formula: CR = (Tube OD / Tube ID), targeting 1.5–2.0 for optimal flow consistency.

• Tubing choice dictates lifespan: silicone lasts 200–300 hours, while thermoplastic elastomers (TPE) extend to 1,000+ hours under continuous use.
• Synchronize motor torque (N·m) with tube wall thickness: 1–2 mm requires 0.1–0.3 N·m, while 2–4 mm demands 0.5–1.2 N·m.
• Position inlet/outlet at a 45–60° angle relative to the rollers to reduce pulsation by 25–40%.

For multi-channel systems, stagger hose paths radially around the rotor rather than parallel mounting–this reduces cross-contamination risks by 70%. Use pulse dampeners (bladder or diaphragm type) sized at 3–5× the tubing ID to smooth flow irregularities. Validate performance with a pressure decay test: acceptable leakage rates should not exceed 0.5% of the total displaced volume per minute at 1 bar. For hazardous fluids, embed fail-safe sensors (optical or Hall-effect) to detect tube rupture within

Core Elements of a Flexible Tubing Flow Controller

Select a high-torque stepper or brushless DC motor with precise speed control–ideally 0.5-5 RPM for low-viscosity fluids and 0.1-1 RPM for thick slurries. Avoid gears with backlash exceeding 0.2°; nylon-reinforced or stainless steel planetary gearboxes ensure minimal slippage under load. Match the motor’s torque curve to your tubing’s Shore hardness: 60A-80A silicone needs 12-25 N·cm, while 90A+ thermoplastic hoses require 30-50 N·cm. Always specify a holding torque at least 30% above the peak operational value to prevent stalling during start-stop cycles.

Rotor and Rollers

Opt for 3-4 rollers made from acetal copolymer or PEEK for abrasive fluids; stainless steel lasts longer but risks tubing wear after 200+ hours. Roller diameter should be 1.2-1.5× the tube’s inner diameter–smaller rollers create pinch points, larger ones reduce flow consistency. Radius the roller edges to 0.5mm to prevent tubing compression set; chamfering also cuts shear stress by 18-22%. Balance the rotor dynamically if tip speed exceeds 1 m/s; unbalanced masses above 0.3 g·cm cause vibration frequencies that accelerate fatigue in acrylic housings.

Embedded Hall-effect sensors or optical encoders on the drive shaft give ±0.1° position feedback–critical for bidirectional flow reversal and metered dosing. Avoid magnetic encoders if the fluid contains ferromagnetic particles; quadrature output models double resolution and reject noise spikes above 0.5V. Shield sensor cables with tinned copper braid grounded at the controller end; twisted pairs reduce EMI pickup by 40% compared to ribbon cables. For high-humidity environments, conformal-coat PCBs with 25 μm parylene to prevent condensation corrosion on signal traces.

Overcurrent protection must trip within 5 ms–fuse ratings should be 130% of the motor’s peak draw, typically 1.5-3 A for 12 V systems. Incorporate a bidirectional TVS diode across the motor terminals to clamp inductive voltage spikes below 30 V; failure to do so risks MOSFET ruination after 50-100 switching cycles. PWM frequency should exceed 20 kHz to eliminate audible resonance; frequencies above 40 kHz reduce motor heating by 12% but increase MOSFET switching losses–balance efficiency with component longevity using derated 40V transistors.

Step-by-Step Wiring of a Fluid Transfer Device Actuator Controller

Begin by securing a DC motor rated for 12V with a current draw under 2A–opt for a brushed variant with a stall current of 3A or less to prevent overheating. Connect the motor’s power leads directly to the controller’s output terminals, ensuring polarity matches: red cable to the positive (+) terminal and black to the negative (-). For power input, use a 12V/2A wall adapter; splice the adapter’s wires to a two-pin JST connector for modularity. Verify voltage with a multimeter at both the adapter’s output and the controller’s input to confirm 12V ±0.5V before proceeding.

Wiring Configuration and Safety Checks

Component	Terminal	Wire Gauge	Connection Notes
Motor	+ (Red)	22 AWG	Heat-shrink tubing over solder joint
Motor	– (Black)	22 AWG	Twist strands tightly before crimping
Power Adapter	+ (Center Pin)	18 AWG	Fuse inline (2A slow-blow)
Power Adapter	– (Outer Shell)	18 AWG	Ground to chassis if metal housing used
Controller	PWM Input	24 AWG	Pull-down resistor (10kΩ) to avoid floating input

Attach a 10kΩ pull-down resistor between the controller’s PWM input and ground to stabilize signal readings; skipping this will cause erratic motor behavior. For speed control, wire a 10kΩ potentiometer with the wiper to the PWM input and the outer pins to 5V (from a separate regulator) and ground. Test motion by applying a 5V PWM signal at 1kHz from an Arduino or similar board–monitor current draw, which should not exceed 1.5A during normal operation. If using a relay for on/off control, add a flyback diode (1N4007) across the motor terminals to absorb voltage spikes.

How to Select Correct Tubing Size for Precision Flow Designs

Match tubing inner diameter (ID) to the target flow rate range: a 2.06 mm ID suits 0.5–5 ml/min, while a 4.8 mm ID handles 10–100 ml/min without excessive backpressure. Verify compatibility with fluid viscosity–viscous liquids (above 500 cP) require IDs ≥3.17 mm to prevent premature wear or inconsistent dosing. Always consult manufacturer charts for exact recommendations, as wall thickness also dictates pressure tolerance.

Ensure the outer diameter (OD) fits the roller mechanism gap: standard 1/4″ OD tubing demands a 6.35 mm gap, whereas 3/8″ OD needs 9.52 mm. Deviations beyond ±0.2 mm cause slippage or pinching, distorting calibration. Test sample lengths under real conditions before finalizing specifications, particularly for corrosive or abrasive media.

Typical Mistakes in Tube Compression System Blueprints and Solutions

Misaligning the roller assembly with the tubing path causes uneven wear. Verify the roller positions using calipers: each should press the tube within ±0.2 mm of the housing’s midline. If rollers wobble, replace worn bearings–typically

Incorrect Tube Material Selection

Choose tubing with shore hardness between 60A and 80A for balanced flexibility and durability. Silicone tubes (Shore 50A) collapse at 18% compression; EPDM (Shore 70A) withstands 25%. Use these benchmarks:

• Viton: 85°C max, 15% compression tolerance
• PharMed BPT: 65°C max, 22% compression
• Norprene: 80°C max, 18% compression

Ignoring tube inner diameter-to-wall thickness ratios skews flow accuracy. A 6 mm ID tube with 1 mm walls delivers ±2% flow deviation; same ID with 2 mm walls increases error to ±7%. For precision, maintain wall thickness ≤15% of ID. Example: 4 mm ID → ≤0.6 mm walls.

Forgetting to mark roller contact zones on blueprints obscures debugging. Use UV-reactive tubing or apply 1 mm wide adhesive strips at 30° intervals along the compression path. Inspect these marks every 50 hours–faded strips indicate uneven pressure, requiring roller torque recalibration. Standard roller torque: 0.3-0.5 Nm for 3-roll assemblies, 0.7-0.9 Nm for 5-roll systems.
