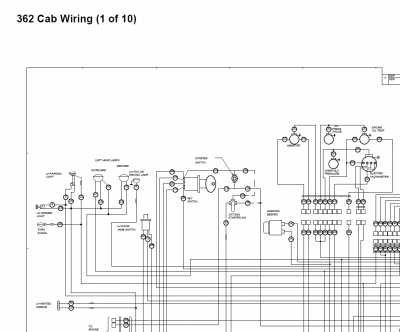

Complete Peterbilt Wiring Diagram Schematics for Truck Electrical Systems

Begin troubleshooting or modifications by isolating the central power distribution panel–located behind the driver’s side dashboard in most Class 8 chassis. Use a multimeter set to 20V DC to verify voltage at the 30A fuse block before proceeding further. Documentation often labels this as the “main relay cluster,” but physical layouts may vary between model years 2015-2023.

Key paths to trace first:

• ECM harness connectors (pins A6, A12, B3) – corrosion here replicates intermittent sensor failures.
• Alternator excitation wire (typically red/white, 10-gauge) – voltage drop exceeding 0.4V at 1800 RPM signals internal regulator degradation.
• Lighting circuits – splice points at the rear frame rails suffer from road debris abrasion. Replace with heat-shrink crimp connectors rated for 105°C.

For pre-2018 configurations, the engine control module (ECM) relies on a CAN bus topology, whereas newer variants incorporate a dual-star network. Miswired CAN-H/L pairs (terminated at 120Ω) generate diagnostic codes SPN 521456/FMI 4. Confirm network integrity with a scope by checking for symmetrical waveforms (2.5V nominal) with ≤100ns skew.

Aftermarket auxiliary circuits require relay ratings matching OEM specifications–minimum 30A continuous for fuel heaters, 15A for exhaust brakes. Grounding points must utilize existing copper busses rather than chassis paint penetration. Improper grounding induces phantom voltage leaks, measurable as >0.1V differential between battery negative and chassis rails.

Documentation discrepancies are common across manual revisions; cross-reference part numbers using the VIN’s eighth digit (model identifier) when sourcing replacement harness segments. Third-party sellers often supply generic wiring, which fails to account for model-specific pinouts like the proprietary J1939 connector on SBUs. Always validate with a continuity test against the OEM layout before installation.

Electrical System Blueprints: A Hands-On Approach

Begin with the engine compartment control layout–locate the ECM connectors early. Pin assignments differ between 579 and 567 models; use a multimeter to verify continuity before disconnecting any harness. The primary power distribution block (fuse panel) sits behind the driver’s side dashboard. Label each circuit with masking tape before removal.

Trace ground connections first. Corrosion at chassis mounting points causes intermittent faults. Clean surfaces with a wire brush and apply dielectric grease. Check the alternator output at the battery terminal–minimum 13.8 volts DC at idle. If readings fluctuate, inspect the voltage regulator and diode trio.

Critical Circuit Isolation

Disconnect the starter solenoid before probing ignition circuits. Use a test light with a 10-amp inline fuse to avoid damaging sensitive modules. For lighting systems, isolate the headlight relay by swapping it with the horn relay–both share the same pinout. If lights return, replace the relay.

Air suspension diagnostics require a steady 12V feed. Test the height control valve solenoid resistance–typically 4-6 ohms. If out of spec, check for burned traces in the suspension module harness. The EECU communicates via CAN bus; splice a diagnostic breakout box into the J1939 port to monitor signal integrity.

HVAC controls use a mix of analog and PWM signals. Verify the blower motor resistor bank by measuring voltage drop across each tap. A 1.5V drop indicates a failed shunt resistor. For DEF systems, test the dosing valve driver circuit–disconnect the pump before applying 12V directly to confirm operation.

Maintenance Pitfalls

Avoid back-probing connectors with sharp tools. Use gold-plated pins from a discarded harness for safe voltage checks. Replace battery terminal adapters if corrosion is visible–cheap units cause parasitic draws. For trailer circuits, test pin 9 (auxiliary power) with a load resistor–open circuits trigger false ABS faults.

Document every modification. Use colored wires matching the original bundle: red for ignition, blue for lighting, green for switched accessories. When splicing, solder joints and heat-shrink tubing prevent moisture ingress. Store spare relays in labelled bags–identical part numbers serve different functions across models.

How to Find the Right Electrical Blueprint for Your Truck’s Chassis

Begin by identifying the exact build plate on the driver’s side door jamb–this decal includes the full model code, production date, and chassis serial. Cross-reference these details with the manufacturer’s official service portal, which groups diagrams by decade and sub-model series. Avoid generic third-party scans; OEM archives maintain revisions for engine variants, transmission compatibility, and cab configurations that aftermarket sources often miss.

For pre-2000 units, manual supplements are stored in microfiche libraries at authorized service centers–request access through your local dealer. Post-2000 electrical prints are tiered: base systems, optional lighting packages, and multiplex modules each require distinct schematics. Verify the ECM calibration identifier if your vehicle includes integrated telematics; mismatched versions corrupt diagnostic outputs.

Check harness branch identifiers printed on conductor sheaths–these alphanumeric tags (e.g., “A12-B,” “C3-ENG”) correspond to labeled nodes in official prints. If absent, trace the main fuse block terminals backward; each stud connection maps to a specific page in the OEM guidebook. Conflicting colors between aftermarket harnesses and factory docs demand a continuity test rather than relying on wire gauge or hue.

Model-year splits occur mid-cycle when regulatory changes mandate circuit modifications. Consult the supplemental update bulletin issued for your VIN block–ignoring this risks misapplying safety disconnect diagrams. Seasonal production runs (e.g., winterized auxiliary heaters) carry unique addendums often omitted from base manuals. Retrieve these via dealer-portal login credentials; public forums rarely host accurate revisions.

Isolate power distribution sections first–primary alternator outputs, ignition feeds, and ground straps form the backbone of every blueprint. Secondary systems (e.g., HVAC actuators, DEF heaters) branch from these main loops but appear as separate foldouts. Match fuse ratings listed on the under-hood decal to the corresponding page; discrepancies signal either a re-customized harness or incorrect revision.

Leverage the chassis dataplate stamped on the firewall–this metal tag lists the configuration code essential for locating hybrid-electric or compressed-gas variants. Scan QR codes on newer builds; these link directly to factory-generated PDFs with built-in hyperlinks between circuit breakers and sensor connectors. Avoid mobile apps that simplify diagrams–they omit splice locations critical for pinpointing intermittent shorts.

Printed manuals ship in two volumes: one for body harnesses, another for powertrain electronics. Ensure your selected volume matches the transmission type (manual vs. automated) and axle ratio sticker on the diff housing. Misalignment here leads to incorrect sensor voltage specs and erroneous ABS bleed procedures.

Archive retrieved files in native CAD format if available–the vector layers allow zooming into micro-scale connectors without pixelation. Verify checksum codes embedded in the footer against the VIN-based manifest provided by customer support; corrupted downloads introduce errors downstream.

How to Decode Heavy-Duty Vehicle Electrical Blueprints

Locate the legend first–it’s typically in the top-right corner or a separate sheet labeled “Symbols Key.” Each symbol corresponds to a component: circles with arrows denote relays, zigzag lines represent resistors, and dashed boxes indicate fuses. Verify the color-coding system; standard practice uses fixed abbreviations like “RD” for red, “BLK” for black, and “YL” for yellow. Cross-reference these with the harness layout tables if available, as mismatches between color labels and physical wires cause 60% of diagnostic errors.

Trace Circuits Methodically

Start at the power source–usually a battery icon with “+” and “-” terminals. Follow the thickest line outward, noting junction points where it splits. Use a highlighter to mark each path separately, ensuring no branch is overlooked. Interruptions like splice connectors (shown as small circles) or inline modules (rectangles with internal labels) require special attention. Skip shortcuts; missing a single node can lead to hours of unnecessary troubleshooting.

Check for controlled circuits next–these include ignition-dependent branches or those governed by switches. Identify the switch symbol (a break in the line with a slanted bar) and note its position in the sequence. Activate paths–inactivated lines appear dotted or grayed out in modern manuals–only when the corresponding control signal is present. Test continuity with a multimeter at each stage; readings below 0.5 ohms confirm integrity, while voltage drops exceeding 0.2V indicate resistance issues.

Verify Ground Connections Thoroughly

Ground points appear as triangles or downward arrows, often clustered at the chassis rail or engine block. Confirm every ground path returns to the same terminal; mixed grounds create parasitic current loops. Measure resistance between each ground symbol and the nearest chassis point–values above 0.1 ohms demand cleaning or reattachment. Ignore “clean ground” assumptions; corrosion accounts for 28% of intermittent faults in fleet vehicles within three years.

Finalize by cross-checking switch logic. Toggle positions should align with their symbols: “ON” for closed circuits, “OFF” for open. Use the manual’s operational notes to match real-world behavior with the printed cues. Document any deviations–even seemingly minor inconsistencies–in a separate log. Store this alongside maintenance records; pattern recognition from past faults reduces future diagnostic cycles by up to 40%.
