How to Build and Understand a Solar Panel Electrical Connection Layout

Begin with a monocrystalline silicon panel rated for 300W or higher. Efficiency drops if you use polycrystalline alternatives–expect losses up to 20% under identical conditions. Connect the module’s positive terminal to a charge controller before linking to batteries or loads. Controllers rated below 20A risk overheating when handling peak currents from 96-cell configurations.

Place a blocking diode between the panel and controller to prevent reverse current at night–schottky diodes limit voltage drop to 0.2V vs. 0.7V for silicon types. For off-grid setups, pair with a deep-cycle lead-acid or LiFePO4 battery; avoid car batteries–they degrade after 50 cycles. LiFePO4 holds 80% capacity after 2000 cycles, while lead-acid lasts 300-500 cycles.

Use 10 AWG copper wire for runs under 5 meters; upgrade to 6 AWG for longer distances to reduce resistive losses. At 20A, 10 AWG loses 3% voltage per 10 meters–add temperature derating if ambient exceeds 30°C. For inverters, match wattage to panel output: a 2000W inverter needs at least 2400W of solar input to handle surge loads like refrigerators or power tools.

Ground every metal frame and exposed conductor with 8 AWG bare copper wire tied to a 2.4m ground rod. Resistance should measure below 25 ohms; test with a multimeter after installation. In high-humidity areas, apply dielectric grease to terminal connections to stop corrosion–untreated aluminum corrodes in 6-12 months.

For grid-tie systems, install a microinverter per panel (e.g., Enphase IQ8). Central inverters cascade failures–if one module underperforms, the entire string drops to its current. Microinverters isolate output, so a single shaded panel won’t throttle the array. Include rapid shutdown switches within 30cm of the roof for NEC compliance.

Designing Solar Energy Harvesting Schemes

Start with a monocrystalline silicon panel; its efficiency ranges from 18% to 24%, unlike polycrystalline variants limited to 13%–17%. Connect a blocking diode in series at the module’s positive terminal to prevent reverse current during low-light conditions, reducing potential power loss by up to 0.7V. For micro-scale setups under 10W, bypass diodes across each segment mitigate shading effects–ensure these handle at least 1.5× the module’s short-circuit current.

Use a low-dropout regulator (LDO) for voltage stabilization; an MCP1700 with a 0.2V dropout voltage maintains output within 2% of the target voltage even under 50% load fluctuations. For lithium-ion storage, integrate a Texas Instruments BQ25798 charger with input current sensing up to 5A–this component adjusts charging parameters dynamically, cutting charge time by 30% compared to fixed-rate chargers.

Layout Considerations

Place solder joints at least 3mm apart on a 35µm copper PCB to prevent thermal bridging; use 2oz copper for currents above 2A. Capacitors should be ceramic, X5R or X7R dielectric, sized at 1µF per 1A of expected load to filter switching noise from PWM controllers. For ambient light sensors, an OPT3001 with a 0.01 lux resolution enables precise irradiance-based adjustments–mount it perpendicular to the panel’s surface, 2cm from edges to avoid edge distortion.

Core Elements of a Solar Energy Device Electrical Configuration

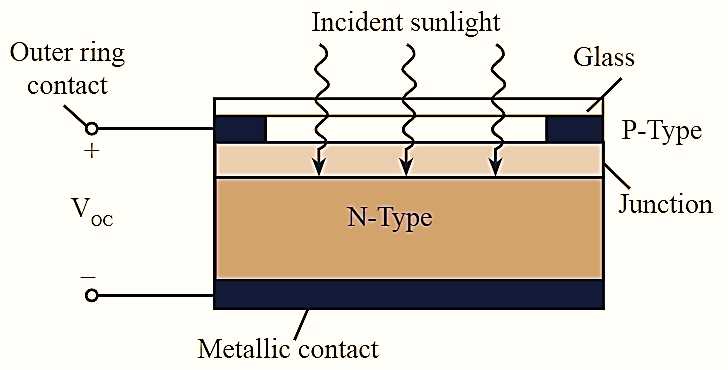

Ensure the semiconductor layer uses crystalline silicon with a thickness between 150–200 micrometers for optimal light absorption and charge separation. Monocrystalline variants deliver 20–24% conversion efficiency, while polycrystalline types drop to 15–20%. Thin-film alternatives like CdTe or CIGS achieve 10–13%, requiring larger surface areas to compensate. The front contact grid must balance transparency and conductivity–silver paste with 50–100 micrometers line width and 2–3 mm spacing reduces shadowing by 6–8% while maintaining current collection.

Key Material Specifications

Component	Material	Optimal Thickness	Performance Impact
Antireflective coating	Silicon nitride (SiNx)	70–100 nm	Reduces reflection losses by 8–12%
Back surface field	Aluminum-doped p+ silicon	5–10 μm	Minimizes recombination at rear contact
Encapsulant	Ethylene-vinyl acetate (EVA)	450–500 μm	Prevents moisture ingress, maintains optical clarity

Integrate bypass diodes with a forward voltage drop ≤0.7V to protect shaded segments–without them, a single occluded module can reduce array output by 30–50%. For 60-cell panels, use three diodes, one per 20-series cells. The junction box should accommodate connections for 10–12 AWG wiring and IP67-rated sealing. Grounding paths require copper strips with ≤0.5Ω resistance to prevent potential-induced degradation, which accelerates at voltages above 800V in large installations.

Step-by-Step Assembly of a Basic Solar Energy Module

Begin by arranging six mono-crystalline silicon wafers in a 2×3 grid on a flat, clean surface. Each wafer should measure 156x156mm with a thickness of 200μm for optimal light absorption. Ensure the front (blue anti-reflective coated) side faces upward. Space the wafers 2mm apart to allow for soldering connections without overheating. Use a soft-bristle brush to remove dust or residue before proceeding.

Prepare 1mm-wide tinned copper ribbons pre-cut to 70mm lengths–two ribbons per wafer. Apply a thin layer of rosin flux to the wafer’s busbars (the horizontal silver strips) and press one ribbon onto each busbar using a soldering iron set to 350°C. Hold the iron in place for 3 seconds to form a secure bond without damaging the silicon. Verify conductivity with a multimeter; resistance should read below 0.5 ohms per connection.

Connect the ribbons in series by soldering the top ribbon of one wafer to the bottom ribbon of the adjacent wafer. This creates a continuous pathway for current flow. For a 9V output (suitable for small 12V batteries), the series should produce an open-circuit voltage of ~10.8V under full sunlight (1000W/m² at 25°C). Isolate the rear of the assembly with a 0.3mm thick EVA (ethylene-vinyl acetate) sheet, cutting it to match the grid’s dimensions. Apply uniform pressure with a laminating press at 150°C for 12 minutes to bond the layers.

Attach a bypass diode (e.g., 1N5822) across the outermost wafers to prevent reverse current during partial shading. Encase the module in a 3.2mm tempered glass front and an aluminum frame with pre-drilled holes for mounting. Test the final assembly outdoors at a 35° angle to the sun; a 20cm² panel should yield 1.5–2A under peak conditions. Store unused modules in a dry, dark environment to avoid degradation of the EVA layer.

How to Measure Output Voltage and Current in a Solar Panel Setup

Use a multimeter set to DC voltage mode to measure open-circuit voltage (Voc) directly across the panel’s terminals. Ensure the meter’s range exceeds the expected output–most 12V panels generate 18-22V under full sunlight. For accurate readings, test outdoors between 10 AM and 2 PM on a clear day, avoiding partial shading. Record values at 10-minute intervals to assess consistency, as fluctuations indicate potential inefficiencies or damage.

Connect a load resistor (e.g., 10Ω for a 100W panel) in series to measure operating current (Isc). Set the multimeter to DC current mode and place it in line between the panel and resistor. Typical short-circuit currents range from 5-8A for standard residential units. Avoid exceeding the meter’s current limit–some models handle only 10A before requiring a shunt. If readings are erratic, verify connections and check for loose wiring or oxidized contacts.

Calculating Power Output Under Real Conditions

Combine Voc and Isc measurements using P = V × I to estimate peak power. For example, 18V × 6.5A = 117W, close to a 120W panel’s rating. For precise wattage, use an MPPT charge controller’s built-in display or a dedicated power meter. Add a pyranometer to correlate solar irradiance (W/m²) with electrical output–expect 15-20% losses due to temperature, wiring, and inverter inefficiencies.

Measure voltage drop across extension cables to identify resistance issues. A 5A current through 10 meters of 4mm² copper wire should lose

When testing under partial loads, attach a variable resistor (rheostat) to simulate realistic demand. Start at 100% load and reduce incrementally while logging V-I pairs to plot an IV curve. The “knee” of the curve indicates optimal operating point–deviations suggest mismatched components or shading. For microinverters, measure AC output at the breaker panel with a clamp meter (true RMS), comparing daytime production to nighttime base loads.

Safety and Calibration Checks

Isolate the system before measurements to prevent arc risks or reverse currents. For high-voltage arrays (>50V), use CAT III-rated meters and insulated probes. Calibrate instruments annually–drift in multimeter readings can skew results by ±2%. For long-term monitoring, install a data logger with voltage dividers and Hall-effect sensors to capture transient events like cloud cover. Include temperature probes, as panels lose ~0.5% efficiency per °C above 25°C.

Critical Wiring Errors in Solar Panel Installations and Prevention Methods

Always match wire gauge to the system’s current capacity. Underestimating thickness leads to overheating, insulation damage, and fire risks. For a 12V setup with 10A current, use at least 14 AWG copper wire. Larger systems (e.g., 48V with 30A) demand 8 AWG or thicker. Verify specs using NEC Table 310.16 or local codes–ignoring this accelerates voltage drop over long runs.

Reverse polarity connections destroy charge controllers and inverters instantly. Before finalizing connections, test with a multimeter: red probe to positive, black to negative, expecting a positive DC voltage (e.g., 17–22V for a single panel). Label wires at both ends–misaligned terminals in series/parallel arrays cause mismatched output, dropping efficiency by 20–40%.

Skipping bypass diodes in panel junctions invites hot-spot failures. When partial shading occurs (e.g., 30% of a module blocked), unprotected cells act as resistors, dissipating heat and degrading output. Factory-installed diodes suffice, but retrofitting requires Schottky diodes (15A, 45V rating) across each substring. Confirm placement via infrared scans post-install.

Avoid daisy-chaining panels without fusing each string. A short in one module can drain the entire system’s voltage, welding tools to terminals. Install DC-rated fuses (1.5× the short-circuit current, e.g., 10A for 6A panels) near combiner boxes. For 24V/48V systems, use circuit breakers with 1,000V DC interrupt ratings–AC-rated breakers explode under arc faults.

Grounding Oversights

• Grounding rods must penetrate undisturbed soil (min. 8ft depth) with
• EQUIPOTENTIAL bonding connects all metal frames, mounts, and system grounds to a single point. Separate grounding for lightning protection (class I surge arrestors) avoids feedback loops.
• NEVER bond neutral to ground in off-grid systems. Floating neutrals create stray voltages, shocking users and corroding aluminum housings via galvanic reactions.

Incorrect MPPT charge controller settings waste 15–30% of potential energy harvest. Input voltage windows must align with panel specs (e.g., Victron 150/70 accepts 70–150V DC). Overvoltage damages internal capacitors; undervoltage triggers premature disconnection. Program charge profiles (bulk/absorption/float) to battery chemistry–SLA, LiFePO4, and flooded lead-acid each require distinct voltage thresholds.

Terminal and Connector Failures

1. MC4 connectors corrode when exposed to UV or moisture. Crimp rather than solder; apply dielectric grease (e.g., NOALOX), and torque to 1.5 N·m. Loose connections arc, melting plastic housings.
2. Oxidized copper wires increase resistance exponentially. Scrub ends with a wire brush, then apply tinning solder (60/40 lead-tin) or use pre-tinned wire. Aluminum wires demand antioxidant compounds and mechanical lugs rated for AL/CU.
3. Stranded wires fray when tightened under screw terminals. Use ferrules (e.g., 12 AWG tin-plated copper) and hydraulic crimping tools. Solid-core wires (e.g., THHN) snap under vibration–replace with stranded THWN for rooftop mounts.

Neglecting temperature derating reduces system lifespan. Wires lose 0.4% conductivity per °C above 30°C. For every 6°C, upsize gauge by one (e.g., 12 AWG → 10 AWG at 36°C). In conduits, reduce ampacity to 60% of rated capacity. Use gray or white conduits to minimize heat absorption–clear or dark conduits raise internal temps by 10–15°C.
