Building a Practical PID Controller Circuit Complete Schematic Guide

Start by assembling a proportional stage using an operational amplifier configured as a differential input. Select resistors with a ratio of 100kΩ for the feedback path and 10kΩ for the input path to set a gain factor of 10. This stage directly scales the error signal–difference between setpoint and process variable–without phase delay. Ensure the op-amp has rail-to-rail output to maintain linearity across the full voltage swing of your system’s 0–5V range.

Add an integrating element using a second op-amp, a 1µF polypropylene capacitor, and a 1MΩ resistor. This pairing creates a time constant of 1 second, accumulating error over time to eliminate steady-state offsets. Connect the capacitor in feedback between output and inverting input; the resistor bridges the output of the proportional stage to the integrator’s input. Verify the capacitor’s leakage current is below 1nA to prevent drift during long-term operation.

Implement a derivative channel with a third op-amp, a 0.1µF ceramic capacitor, and a 10kΩ resistor. Position the capacitor in series with the input to form a high-pass filter, allowing rapid error changes while attenuating low-frequency noise. The resistor converts current into voltage proportional to the rate of error change, providing anticipatory corrections. Keep wiring lengths under 5cm to avoid parasitic capacitance exceeding 5pF.

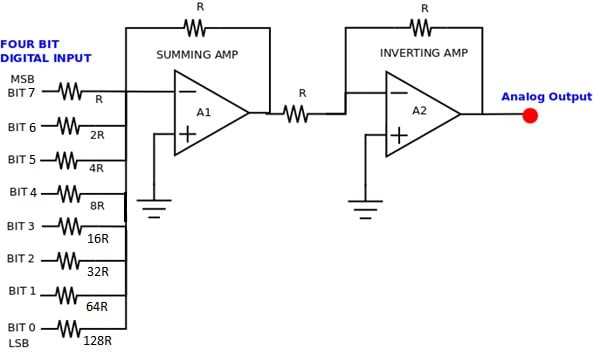

Merge all three channels using a precision summing amplifier. Use 1% tolerance resistors (e.g., 49.9kΩ each) to maintain exact gain balancing. Power the circuit with dual ±12V rails and decouple each op-amp with 100nF X7R capacitors within 2mm of the supply pins. Include schottky diodes across feedback paths to clamp unexpected transients exceeding 6V, protecting downstream sensitive elements.

Test functionality with a step-input signal ranging 0.5V to 4.5V. Monitor the output waveform on a scope: rise time should settle within 70ms with peak overshoot under 15%. Adjust the derivative resistor to 5kΩ if ringing exceeds 20% amplitude. For temperature-sensitive applications, replace standard resistors with thin-film types exhibiting temperature coefficients below 25 ppm/°C.

Designing a Proportional-Integral-Derivative Regulator Schematic

Begin with a precision operational amplifier like the LM358 or OPA2134 for the error summation stage–these components ensure minimal drift and noise. Connect the feedback network using 1% tolerance resistors (e.g., 10 kΩ for proportional gain) and a polypropylene capacitor (e.g., 1 µF for integral action) to avoid dielectric absorption. Use a low-leakage film capacitor for the derivative path to prevent distortion of fast transients. Ground all unused op-amp inputs to prevent oscillations and link power supply decoupling capacitors (100 nF ceramic) directly to the IC pins.

Key Component Selection for Stability

Function	Recommended Part	Value/Range	Critical Parameter
Proportional gain resistor	RN55C series	1 kΩ–100 kΩ	±1% tolerance, 0.1% TCR
Integral capacitor	Panasonic ECQ-P series	1 µF–10 µF	≤0.1% dielectric absorption
Derivative capacitor	Kemet R82 series	10 nF–1 µF	Low ESR, ≤5 pA leakage
Error summation op-amp	TI TLV9002	Rail-to-rail I/O	≤5 mV offset voltage

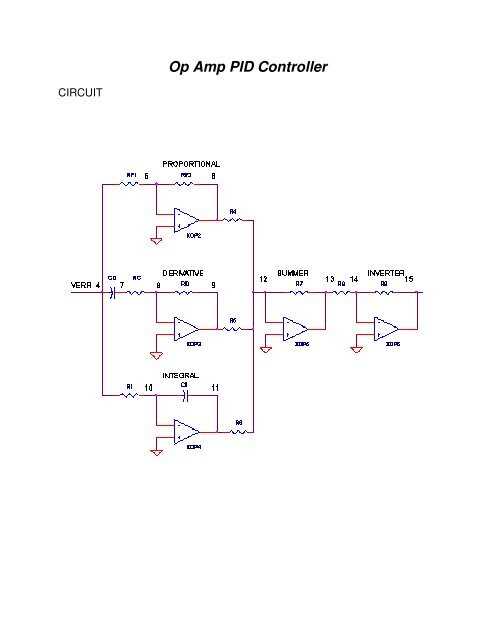

Split the proportional, integral, and derivative paths into separate op-amp stages to isolate tuning interactions. Adjust the integral gain using a 10-turn potentiometer (e.g., Bourns 3590S) wired as a voltage divider feeding the integrator’s input resistor–this prevents windup during saturation. For derivative action, introduce a resistor in series with the capacitor to dampen high-frequency noise while preserving rapid response. Test stability margins with a step input; overshoot should not exceed 25% of the setpoint change. If ringing occurs, reduce derivative gain by 30% before re-tuning the proportional path.

Core Elements and Their Roles in a Feedback Regulation System

Begin with an operational amplifier (op-amp) for the proportional segment–select a low-offset device like the OPA2188 to minimize drift errors at steady-state; a gain resistor between 10 kΩ and 100 kΩ ensures responsiveness without saturation.

The integral component demands a precision capacitor–tantalum or polypropylene types, ranging from 1 µF to 10 µF–paired with a resistor (1 MΩ–10 MΩ) to define reset time; mismatch here causes wind-up, so match temperature coefficients (≤50 ppm/°C) between passive parts.

A differentiator requires a low-leakage capacitor (≤1 nA at 25°C, e.g., C0G/NP0 ceramics) and a resistor (1 kΩ–10 kΩ) to shape rate response; bypass the op-amp input with a 100 pF capacitor to suppress high-frequency noise amplification.

Summing junctions merge signals using a high-impedance op-amp (e.g., LTC1050); keep trace lengths under 5 cm to prevent parasitic inductance from distorting rise times–use a ground plane around high-impedance nodes.

Power rails demand regulated supply voltages (±12 V or ±15 V) with decoupling capacitors (0.1 µF ceramic) placed within 2 mm of each op-amp’s V+ and V– pins; add bulk capacitance (10 µF electrolyte) for transient load stability.

Output scaling uses a voltage divider or programmable gain stage–limit current to ≤20 mA to avoid thermal overload; incorporate a Zener diode (e.g., 1N4744A) for overvoltage clamping if inductive loads are present.

Feedback paths must account for phase delays–include a 100 nF capacitor across resistive elements (≥50 kΩ) in the proportional branch to roll off high-frequency gain and prevent oscillations at unity-gain crossover.

Calibration hinges on potentiometers (multi-turn, 10 kΩ–50 kΩ, 0.1% tolerance) for tuning coefficients; secure them mechanically to avoid drift from vibration–alternatively, use digitally adjustable resistors like the AD5252 for remote configuration.

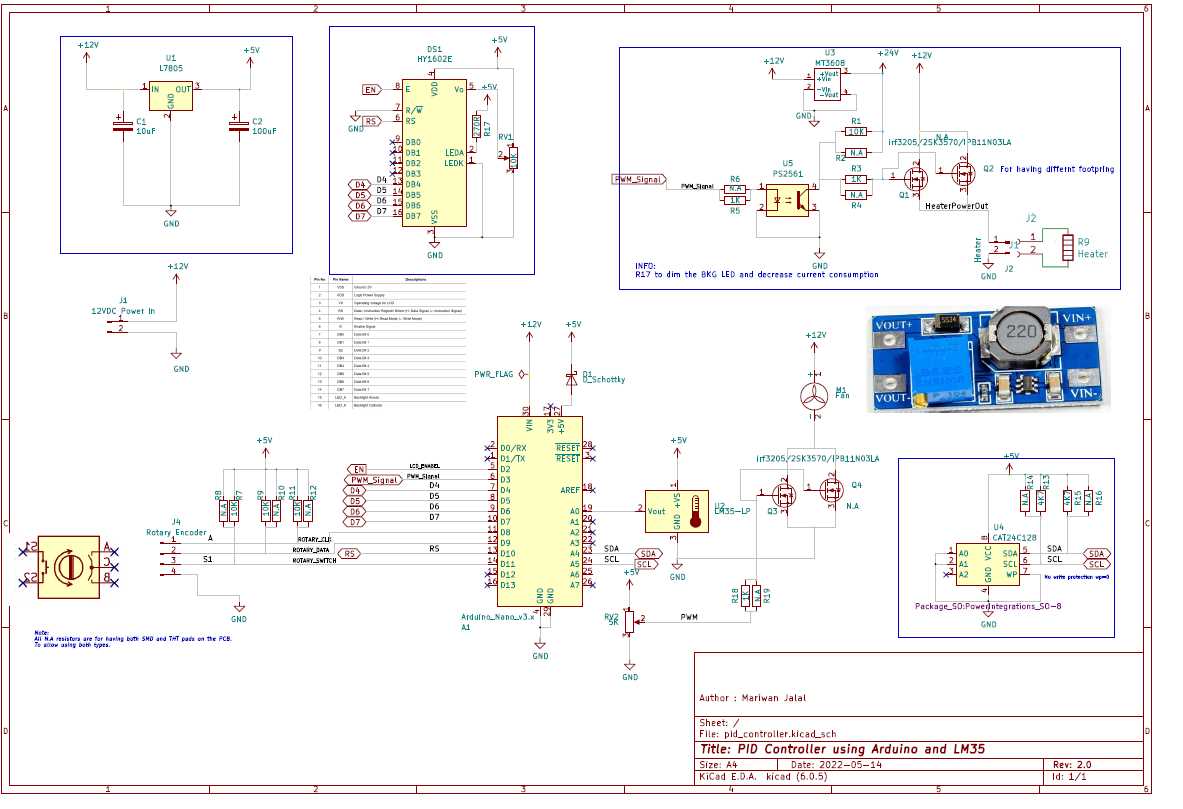

Step-by-Step Guide to Sketching an Automated Regulation System Blueprint

Begin by selecting a schematic editor that supports hierarchical design and real-time simulation, such as KiCad, LTspice, or Proteus. Configure the grid to 2.54 mm (0.1-inch) spacing for standardized component placement. Place the reference signal source at the top left–use a voltage divider with precision resistors (e.g., 0.1% tolerance) for stable input. Route the error signal path next: subtract the feedback via an operational amplifier (op-amp) like the LM358, ensuring the inverting and non-inverting inputs are correctly polarized–swap inputs if phase inversion is needed.

• Drag a proportional gain block–implement it with a non-inverting op-amp configuration, where Rf/Rin sets the gain (e.g., Rf = 100kΩ, Rin = 10kΩ for 10x amplification).
• For integral action, add a resistor-capacitor network in series with the op-amp’s feedback loop–use a film capacitor (e.g., 1µF polyester) to minimize leakage. Calculate Ti = R * C (target ~1s for most applications).
• Derivative compensation requires a capacitor in series with the input resistor–position it at the op-amp’s summing node. Use a small-value capacitor (e.g., 10nF) to avoid noise amplification; pair with a damping resistor (e.g., 1kΩ) to limit high-frequency gain spikes.

Merge the paths into a summing amplifier–use an LM324 quad op-amp for consolidated stages. Connect the output to a power stage: for analog setups, employ a complementary push-pull emitter follower (e.g., TIP31C/TIP32C transistors) with a current-limiting resistor (0.5Ω). Add a failsafe clamp–two antiparallel diodes (1N4148) across the actuator output–to prevent saturation. Label every node with net names (e.g., ERR_SIG, OUT_P) and annotate component values in engineering notation (e.g., 4k7 for 4.7kΩ). Validate with a transient analysis: inject a step input, verify overshoot

Common Mistakes When Designing an Automatic Regulation Feedback System

Neglecting proper signal filtering before the reference input leads to erratic behavior. Raw sensor readings often contain high-frequency noise or spikes. Apply a low-pass filter with a cutoff frequency 5–10 times lower than the loop bandwidth. A first-order RC filter (τ = 10–50 ms) typically suffices. Without filtering, derivative action amplifies noise, causing unnecessary actuator wear.

Tuning gains in arbitrary steps wastes time. Start with proportional gain alone, raise until oscillation occurs, then halve it. Introduce integral gain next, increasing until steady-state error vanishes but overshoot remains below 20%. Reserve derivative gain for sluggish responses, keeping it below 0.3× proportional gain. Document each step’s output waveform for later comparison.

• Ignoring actuator saturation levels skews tuning. Aircraft servo motors stall at ±12 V; exceeding this voltage provides no extra torque. Model saturation limits in simulation; use anti-windup protection to clamp integral term accumulation during saturation events.
• Overlooking loop delay masks instability. Transport delay in pneumatic valves or sensor processing can reach 50 ms. Sample at least 10× faster than the delay; 200 Hz sampling suffices for 50 ms delay. Delays beyond 10% of loop time constant degrade phase margin below 30°.
• Disregarding load inertia changes performance. A motor driving a 0.2 kg payload may exhibit 15 ms rise time; adding 2 kg drops bandwidth to 40 Hz. Re-tune gains whenever mechanical load exceeds ±20% change.

Assuming fixed reference magnitude tolerates errors. Step inputs of 1 V and 5 V produce different overshoot percentages. Scale feedforward compensation proportionally or employ gain scheduling. A 3:1 reference range demands three distinct gain sets.

Skipping closed-loop stability verification invites surprises. Inject a 100 mV peak, 1 Hz sine wave into the reference input; monitor actuator output for amplitude increase or phase lag exceeding 170°. Repeat at 10 Hz; resonance peaks indicate insufficient damping. Measure settling time to within ±2% of steady-state.

Using identical gains across multiple axes fails. X-axis servo bandwidth often exceeds Y-axis by 40% due to bearing friction variances. Tune each axis separately; validate with orthogonal step inputs to detect coupling effects. Cross-axis interference above 5% mandates decoupling matrices.

Relying on manual tuning without simulation risks hardware damage. Model the system in SPICE or Simulink first. A DC motor with 0.5 Ω winding resistance drew 8 A during tuning, exceeding safe 5 A limit. Simulated tuning prevents such overloads.

Final validation must include worst-case disturbances. Apply 80% rated torque disturbance for 500 ms; verify maximum error stays within 12%. Repeat at 25%, 50%, and 75% reference amplitudes. Document recovery time and peak error deviations.
