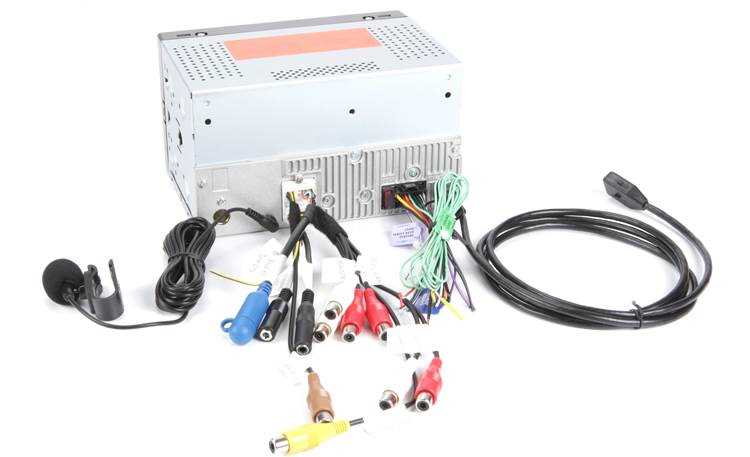

Pioneer DMH-1770NEX Wiring Harness Pinout and Connection Guide
The retrofit installation for high-resolution receivers requires precise matching of electrical interfaces. For this model, focus first on the 12-pin ISO connector–each terminal serves a distinct purpose, from low-level audio outputs to antenna trigger signals. Ignoring color-coding risks voltage mismatches, particularly with the constant-power feed (typically red) and switched ignition (yellow). Ground wires (black/brown) must terminate at a clean chassis point to prevent interference.
Critical steps: Verify wire gauge compatibility–thinner leads (e.g., 18 AWG) suffice for signal paths, while 14 AWG is mandatory for power inputs to avoid voltage drop. Use a multimeter to confirm all connections before final assembly; even a single reversed polarity can damage internal amplifiers. For the parking brake safety circuit, bypass attempts void unit protection features, so route the blue/white safety wire directly to the handbrake switch.
For reverse camera integration, locate the purple/white RCA adapter. This input expects a 1V p-p video signal–exceeding this range distorts the display. If retaining factory steering wheel controls, splice the resistive ladder network into the gray accessory wire using a 1.5kΩ resistor for accurate signal translation. Heatshrink all joints to prevent oxidation, especially in high-vibration areas.

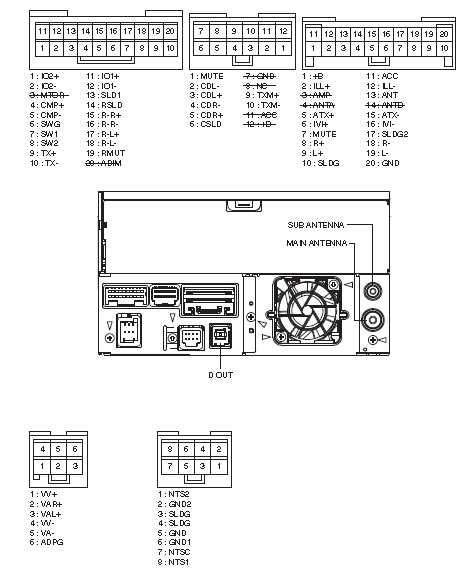

Common pitfalls include mixing up dimmer wires (orange/white striped) with illumination (gray). The former adjusts display brightness dynamically, while the latter only enables backlighting. Double-check with the manual’s pinout diagram if connector labels differ from standard automotive aftermarket conventions. Final testing should include all audio channels, USB charging functionality, and microphone input–subtle installation errors can degrade performance even if the unit powers on correctly.
Connecting Your Multimedia Receiver: A Detailed Pinout Guide
Start by matching the colored cables from the vehicle’s OEM connector to the aftermarket unit’s 16-pin plug. The yellow wire (constant +12V) must link to battery power through a 15A fuse, while red (switched +12V) requires ignition-sourced voltage. Ground the black wire directly to chassis metal–use a crimp ring terminal for secure contact. Avoid twisting splices; solder and heat-shrink each joint to prevent oxidation.
- Blue/white remote turn-on: Connect to amplifier trigger input (max 300mA).
- Orange illumination wire: Pair with vehicle dimmer circuit to sync display brightness.
- Purple parking brake: Secure to brake switch; failure causes video lockout.
- Gray parking sensor input: Optional–ties to reverse light signal for camera activation.
For speaker outputs, distinguish between front/rear channels by impedance–4Ω for component tweeters, 2Ω for woofers if bridged. Use 18AWG twisted pair for mid-range signals, 16AWG for subwoofer leads. Label each wire with masking tape before routing through firewall grommets to prevent pinching.
Test continuity with a multimeter before powering on. Voltage drops above 0.2V on ground lines indicate poor connections. For BMW/Mercedes CAN-Bus vehicles, integrate a data interface module between the radio’s 13-pin MOST connector and the car’s network to retain steering wheel controls and vehicle diagnostics.
Identifying Your Vehicle’s Compatible Installation Adapter Plug
Locate the OEM radio plug shape and pin layout in your car’s service manual–a Toyota Camry 2018-2022 uses a 24-pin rectangular Molex connector (part number 86120-0E050), while a Ford F-150 2015-2020 employs a 16-pin square Metra 70-1771. Match these specifications to aftermarket retention cables: Scosche SU18, AXESS AX-TOY24, or iDatalink Maestro ADS-TOY. Verify voltage on pins 6 (illumination), 12 (constant 12V), and 15 (ground)–deviations exceeding ±0.5V indicate corrosion or blown fuses. Use a multimeter set to DC 20V before connecting.
Check for hidden data buses: late-model Hondas (2016+) include a CAN bus on pins 9/10; Nissan/Infiniti models (2013+) require a bypass module (Crutchfield CS-NIS1) for retained accessory power. Never splice into labeled steering wheel control wires–these carry low-voltage signals prone to shorts. Consult vehicle-specific forums for harness color codes: Subaru WRX 2020 uses lime/green for reverse signal, while Chevrolet Silverado 2019 marks it brown/white.
Step-by-Step Pinout Matching for AV Receiver Integration
Begin by verifying the aftermarket unit’s connection layout against the vehicle’s existing power distribution block. Locate the 12V constant (yellow) and ignition-switched (red) leads on the adapter; these must align with the car’s fused battery and accessory circuits respectively. Confirm the ground (black) wire terminates at a bare metal chassis point, ensuring resistance below 0.5 ohms for stable signal return.
- Speaker outputs (front/rear): Match ± pairs by impedance–typically 4 ohms–using a multimeter to avoid phase reversals.
- Reverse trigger (purple/white): Connect to the vehicle’s backup light circuit only if the head unit requires automated rear camera activation.
- Illumination (orange): Attach to the car’s dimmer switch if adaptive brightness is desired; otherwise, leave unconnected.
- Parking brake (light green): Secure to the handbrake circuit to comply with safety-locked functionalities.
- Mute (brown): Wire to the vehicle’s audio mute lead only if integrating with OEM steering controls.
Finalize by securing all connections with heat-shrink tubing or crimp connectors rated for 16-20 AWG. Test each circuit with a 10A fuse in line during initial power-up to isolate shorts. If the display fails to initialize, recheck the yellow (constant) and red (switched) leads for potential swap errors–common in incompatible adapter templates.
Securing Power and Earth Cables Without Compromising the Receiver
Use a multimeter to verify the main 12V supply cable before attaching it to the stereo’s power input. Set the meter to 20V DC and probe the positive and negative terminals of the vehicle’s electrical connector. A reading between 11.8V and 14.4V confirms proper voltage; anything below 10V indicates a weak battery or faulty alternator, which must be addressed first.
Avoid twisting or soldering the ground cable directly to the chassis. Instead, locate a factory-ground point near the receiver’s mounting bracket–typically a bolt secured to bare metal, free of paint or rust. Clean the contact area with a wire brush, apply dielectric grease to prevent corrosion, and tighten the bolt securely. Loose or corroded earth connections cause intermittent power loss and static noise.
Separate the constant 12V (memory) and accessory (switched) cables by at least 6 inches. Bundle them with zip ties away from signal wires and high-current components like amplifiers. This reduces electromagnetic interference that can degrade audio quality. If the vehicle lacks a dedicated memory wire, splice into the ignition-fed circuit using a relay to prevent parasitic drain when the engine is off.
Insulate all connections with heat-shrink tubing rather than electrical tape. Cut tubing slightly longer than the soldered joint, slide it over the wire before joining, then apply heat evenly until it shrinks tightly. Tape can loosen over time, exposing wires to moisture and short circuits. For soldered joints, use rosin-core solder (60/40 or 63/37) and avoid excess heat, which can melt wire insulation.
Test the illumination circuit with a 12V test light. Connect the probe to the stereo’s illumination wire and turn the headlights on. The test light should glow, confirming the circuit’s functionality. If it doesn’t, check the vehicle’s fuse box for a blown instrument fuse or a faulty dash dimmer. Skipping this step can result in non-functional backlighting after installation.
Attach the antenna trigger cable only if the vehicle’s receiver includes an automatic antenna motor. For standard coaxial antennas, omit this connection. Incorrect wiring here can activate the motor continuously, draining the battery. If the antenna is powered via a separate relay, ensure the relay is rated for 10A to handle surge currents when the antenna extends.
Route all power and earth cables away from moving parts, sharp edges, and hot surfaces. Use grommets when passing wires through firewalls or metal panels to prevent chafing. Secure cables every 12 inches with zip ties or adhesive mounts to avoid vibration-induced wear. A single nicked wire can cause shorts, overheating, or permanent damage to the stereo’s internal circuitry.
After completing all connections, reconnect the vehicle’s battery ground terminal last. This prevents accidental shorts caused by tools contacting live circuits. Before powering on the stereo, recheck all cables for polarity, especially the constant and accessory feeds. Reverse polarity can destroy the receiver instantly. Once confirmed, start the vehicle and verify steady power delivery without flickering lights or erratic behavior.
Integrating Reverse Signal and Parking Brake Wires for Camera Support
Connect the reverse trigger wire (typically violet or purple/white) to the vehicle’s backup light circuit to automatically activate the rear camera. Verify the wire’s voltage–most systems require a 12V signal when shifting into reverse. Use a multimeter to test the circuit before finalizing connections; some vehicles employ a 6V or pulsed signal that may require a relay for compatibility.
Critical Wire Pairings and Troubleshooting
| Wire Function | Typical Color Code | Voltage (Engine Off) | Troubleshooting Steps |
|---|---|---|---|
| Reverse Signal | Violet / Purple + White | 12V (or 6V pulsed) | Check fuse for backup lights; bypass if signal is inconsistent |
| Parking Brake | Green / Green + White | Ground when engaged | Necessary for some units to display camera feed while driving; if missing, install a switchable ground |
| Speed Signal (Optional) | Pink / Pink + Black | Pulse per mile/kilometer | Required for dynamic parking guidelines; splice into VSS wire if available |
Avoid splicing into the parking brake wire unless the head unit specifically mandates it–modern systems often disable video input without this safety interlock. For installations where bypassing is unavoidable, use a 1kΩ resistor to simulate engagement rather than direct grounding to prevent fault codes. Confirm compatibility with the vehicle’s ECU; some luxury models detect tampering and trigger warnings.
Secure all connections with solder and heat-shrink tubing, especially for the reverse signal wire–loose contacts can cause intermittent camera activation. Route wires away from hot surfaces or moving parts; a short to ground can fry the circuit. For vehicles with trailer wiring, isolate the reverse signal from trailer lights using a diode to prevent false triggers during braking.
