Complete Pioneer DMH-W2770NEX Wiring Diagram and Connection Guide

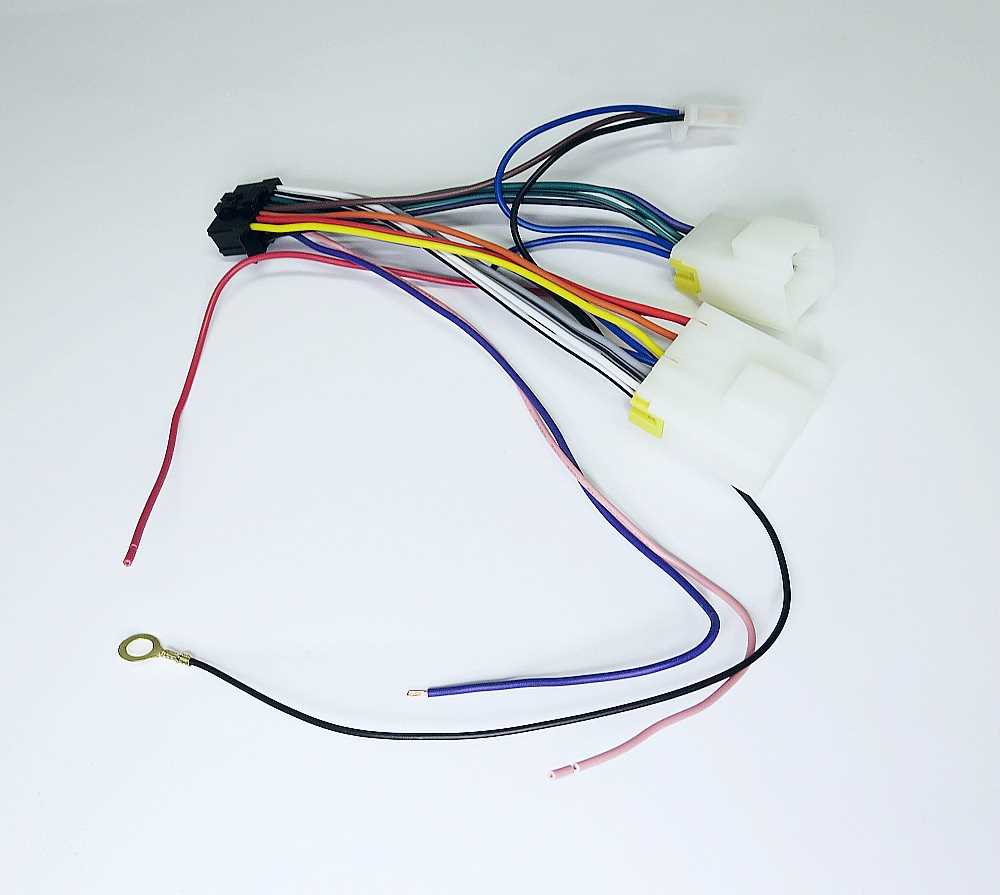

Start by locating the ISO harness adapter–most aftermarket installations use this as a standard interface. The wiring layout for this model includes distinct color-coded cables:
Yellow (B+ constant 12V) for memory retention,
Red (ACC/switched 12V) for ignition-controlled power, and Black (ground) for stable voltage reference. If the vehicle’s harness lacks these colors, cross-reference with a pinout guide specific to your car’s make and year.
For audio outputs, connect the front speakers first–white (left +) and white/black (left –), gray (right +) and gray/black (right –). Ensure polarity matches the vehicle’s existing wiring to prevent phase cancellation. Subwoofer outputs (if included) typically use purple (+) and purple/black (–), requiring shielded RCA cables for noise reduction. Avoid twisting these with power cables to minimize interference.
Reverse camera integration demands careful routing. The camera power feed (pink) must tie into a switched 12V source, while the video signal (typically orange) connects directly to the head unit’s rear input. For vehicles with factory steering controls, retain the OEM data bus wires (often blue/white)–cutting these may disable climate or instrument cluster functions. Always verify connections with a multimeter before securing the unit in the dash.
Installation Connections for the DMH-W2770NEX Multimedia System: Step-by-Step
Begin by connecting the main power cables to the labeled harness ports. The yellow 12V constant wire links to the battery, while the red ignition wire secures to a switched power source ensuring the unit powers on with the vehicle. Use a 10A fuse on the yellow wire to prevent electrical faults. Ground the black wire to a clean, bare metal surface near the mounting location–avoid painted or coated areas to ensure stable operation.
Audio signal transmission requires precise RCA or high-level input handling. If retaining factory amplifiers, splice the speaker wires (front, rear, and subwoofer outputs) directly into the existing harness. For aftermarket setups, use 4-channel RCA cables (white/red for front, gray/purple for rear) connected to corresponding outputs on the rear of the unit. Verify impedance compatibility–this system supports 2-8 ohm loads–before finalizing connections to prevent overheating or distortion.
For steering wheel control integration, locate the SWC interface wire (typically blue/white) on the vehicle’s harness adapter. Connect it to the corresponding input on the head unit’s harness, then refer to the vehicle-specific compatibility chart below to program functions using the system’s built-in calibration tool. Incorrect wiring here will disable controls permanently until reset via the “Factory Reset” option in settings.
| Vehicle Make | SWC Wire Color | Adapter Required |
|---|---|---|
| Toyota/Lexus | Blue/White (A5) | Metra ASWC-1 |
| Honda/Acura | Brown/Yellow (B11) | Pac SWI-RC |
Camera input demands separate treatment. The reverse trigger wire (purple/white) must connect to the vehicle’s reverse light circuit to enable automatic display switching. Link the composite video cable (yellow) from the camera to the corresponding input on the rear panel–ensure proper polarity to avoid signal inversion. For parking sensors, splice the orange/white wire into the sensor module’s output if not using the built-in guidelines feature.
Antenna integration involves either passive or amplified connections. The blue power antenna wire activates external amplifiers when the unit powers on. For motorized antennas, splice the blue/white “antenna trigger” wire into the vehicle’s existing antenna control circuit. OEM SiriusXM tuners require the pink satellite radio wire to be connected to the vehicle’s dedicated satellite harness–failure to do so will disable satellite reception entirely.
Identifying Connector Hues and Roles in the DMH-W2770NEX Integration Kit
Locate the yellow (B+) lead first–it delivers constant 12V power from the vehicle’s battery to sustain memory functions. Verify its gauge matches the car’s main power cable (usually 8-14 AWG) to prevent voltage drop or overheating. Connect this directly to the battery positive terminal, bypassing fuses only if the included fuse holder is installed within 18 inches of the battery.
Pair the red (ACC) wire with the ignition-controlled circuit–typically brown or purple in factory harnesses–to enable on/off operation. Use a multimeter to confirm the voltage switches between 0 and 12V when turning the key to “accessory” or “on” positions. Avoid splicing into dimmer or pulse-width modulated circuits, as these may cause erratic behavior.
The light blue/white (antenna trigger) requires connection to the car’s power antenna output or reverse signal (depending on feature activation). For motorized antennas, splice to the factory antenna lead; for amplified systems, use the designated 12V pulse output. Black (ground) must attach to a bare metal chassis point with ≤30 milliohms resistance–sand paint away and secure with a star washer for optimal conductivity.
Step-by-Step Connection of Your Multimedia Unit to Car Audio Systems
Start by identifying the color-coded outputs on the back of the head unit. The standard harness will include labeled wires for front, rear, and subwoofer channels. Match these to the corresponding inputs on your amplifier or speaker wires using a voltmeter to confirm polarity if labels are unclear.
For systems with an external amp, connect the RCA preamp outputs from the unit to the amplifier’s inputs. Use shielded RCA cables to prevent interference, keeping them away from power lines. If the amp lacks RCA inputs, use high-level speaker wires from the head unit’s harness, ensuring compatibility with the amp’s bridging requirements.
Verify the impedance of your speakers before connecting. Most aftermarket units support 4-8 ohms, but mismatched loads can damage amplifiers or reduce output quality. Check the manual for your specific speaker models to confirm their impedance rating matches the system’s capabilities.
- Front speakers: Connect to the corresponding front channel outputs, typically white (left) and gray (right).
- Rear speakers: Attach to the purple (left) and green (right) wires.
- Subwoofer: Use the brown or black/white wires for dedicated sub channels, if applicable.
Ground the amplifier properly to avoid noise or malfunctions. Locate a clean, unpainted metal surface near the amp and secure the ground wire tightly with a bolt. Avoid daisy-chaining grounds from multiple components to prevent interference.
Test the system with low volume before finalizing connections. Play a full-range audio source and check each speaker for distortion or imbalance. Adjust the unit’s fader and balance controls to confirm signal paths are correct. If distortion occurs, recheck ground connections and cable shielding.
For advanced setups with crossovers, configure the head unit’s built-in filters or use the amplifier’s crossover settings. Set low-pass filters for subwoofers (50-80Hz) and high-pass filters for midrange speakers (80-120Hz) to optimize sound clarity and prevent frequency overlap.
- Power off the vehicle and disconnect the battery’s negative terminal before making any connections to prevent short circuits.
- Route cables away from moving parts, heat sources, and sharp edges to avoid damage.
- Secure all connections with crimp connectors or solder for long-term reliability rather than temporary twisted wires.
- Reconnect the battery and start the vehicle to check for proper system initialization before installing trim panels.
Solving Frequent Connection Errors in Head Unit Setups
Verify ground connections first. A loose or improperly secured grounding point causes intermittent functionality–check the chassis bolt for corrosion, paint, or debris. Use a multimeter to confirm resistance below 0.5 ohms; higher readings indicate a compromised link. Replace the bolt if oxidation is visible or tighten it with a torque wrench to 10-12 Nm.
Incorrect speaker polarity often mimics amplifier failure. Test each output channel with a 1 kHz sine wave at low volume–reversed wires produce distorted bass. Swap the positive and negative leads for any channel where audio quality deteriorates further, confirming misalignment. Label each wire before disconnecting to avoid reassembly errors.
Check fuse ratings on harness adapters. A common issue arises when aftermarket harnesses include 10A fuses for 15A circuits, leading to blown fuses under load. Compare the original installation guide’s fuse specifications with the adapter’s–replace undersized fuses with the exact rated value (e.g., 20A for battery circuits).
Avoid bridging power and accessory wires. Accidental contact between the constant 12V line and ignition-switched line causes the unit to drain the battery when off. Insulate all splices with heat-shrink tubing, not electrical tape, and confirm isolation with a continuity tester before finalizing connections.
- Test the illumination wire with a voltmeter–it should fluctuate between 0V (off) and 12V (on). No voltage suggests a faulty dash light circuit.
- For parking brake detection issues, ensure the wire connects to the correct switch terminal (not ground). Some vehicles require an additional relay.
- Reverse camera malfunctions often stem from incorrect video signal encoding. Use a T-connector to split the composite output and verify signal integrity on a standalone monitor.
