DIY Guide to Building Your Own Pixel LED Controller Schematic
Start with a microcontroller unit–STM32 or ESP32 work best here due to their built-in Wi-Fi, multiple timers, and sufficient GPIO pins. Connect the data line of your lighting strips to a dedicated output pin, ideally one supporting hardware PWM (Pulse Width Modulation) for smooth brightness control. Add a 220-470 ohm resistor between the microcontroller’s output and the strip’s input to prevent signal reflection and protect the driver from voltage spikes.
Avoid common wiring mistakes: never run power and data lines in parallel over long distances without proper separation–they induce noise, causing flickering or erratic behavior. For power, use a buck converter to step down voltage to 5V or 12V, depending on the strip’s requirements. A 2,200µF capacitor across the power lines stabilizes current surges, preventing momentary brightness drops during animations.
Always include a logic level shifter if your microcontroller operates at 3.3V and the lighting tech expects 5V signals–direct connection risks signal degradation. For addressable setups, use a 74HC125 or similar chip to ensure clean signal conversion. Ground loops are another frequent issue; connect all grounds (microcontroller, power supply, and lighting strip) at a single point to eliminate interference.
Firmware requires precise timing: WS2812B-style devices expect a zero-bit high pulse of ~350ns and a one-bit pulse of ~900ns. Coding examples for common platforms are readily available, but timing accuracy is critical–even slight deviations disrupt communication. For longer runs (>5m), add a signal booster or amplifier every few meters to maintain signal integrity.
Power consumption scales linearly with length–calculate peak current draw (e.g., 5V 60mA per segment × 300 segments = 18A) and oversize your power supply by at least 20%. Underpowered setups cause color shifts or complete failure under heavy load. Solder all connections, even seemingly secure screw terminals corrode over time, leading to hard-to-diagnose faults. Heat-shrink tubing over joints prevents short circuits.
Building a Custom Addressable Light Management Schematic
Select a microchip with dedicated signal generation for serially driven lamps, such as the ESP32 or STM32 series. These offer hardware-supported transmission interfaces (UART/USART) to prevent data corruption at high refresh rates, critical when handling over 512 individually controlled luminaries. Avoid Arduino-based solutions if managing more than 10 meters of strip–buffer overflows will cause unpredictable flickering.
Integrate a level shifter (SN74AHCT125 or 74LVC1T45) between your logic board (3.3V/5V) and the luminary string (5V/12V data line). Many cheap strips expect a clean 5V data signal, and omitting this component risks damaging both the driver IC and connected diodes due to voltage mismatch.
Design power distribution with copper pours on your PCB, calculating trace width at 1.5A/mm² for standard 12V strips. For a 5-meter segment rated at 60 lamps per meter, anticipate a continuous draw of 3A–use a 4A fuse inline between the PSU and strip to prevent thermal runaway. Aluminum-backed strips act as heatsinks; ensure the adhesive surface is bonded to a metal rail if exceeding 80% of the strip’s rated capacity.

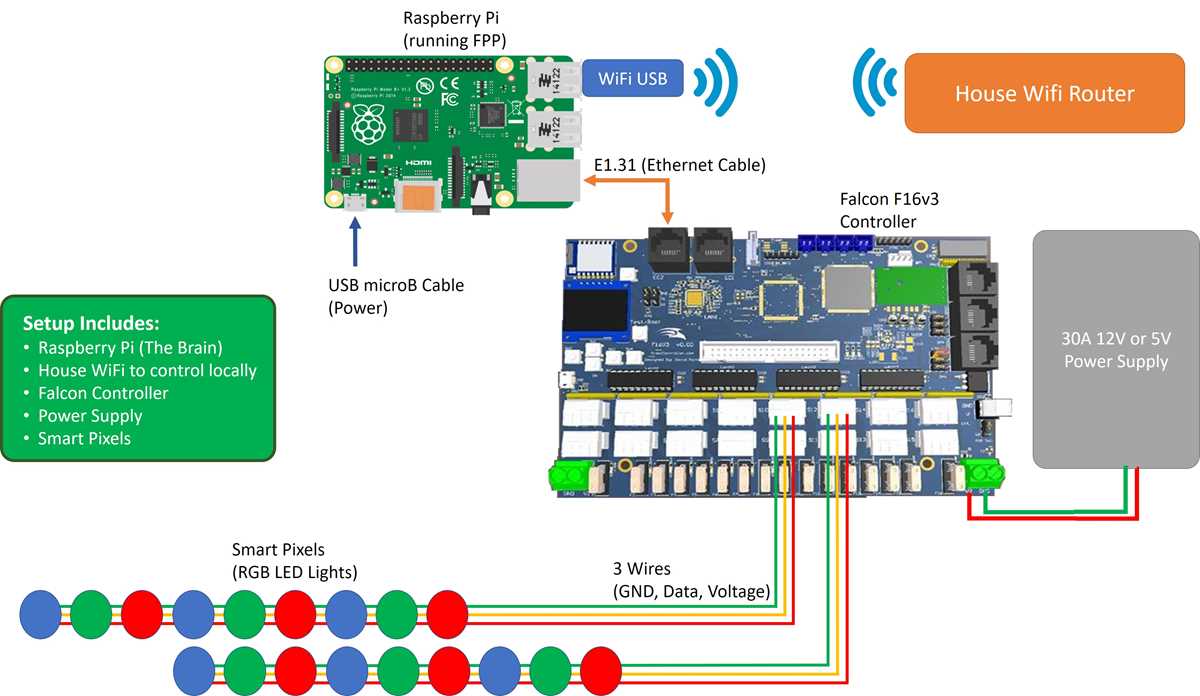

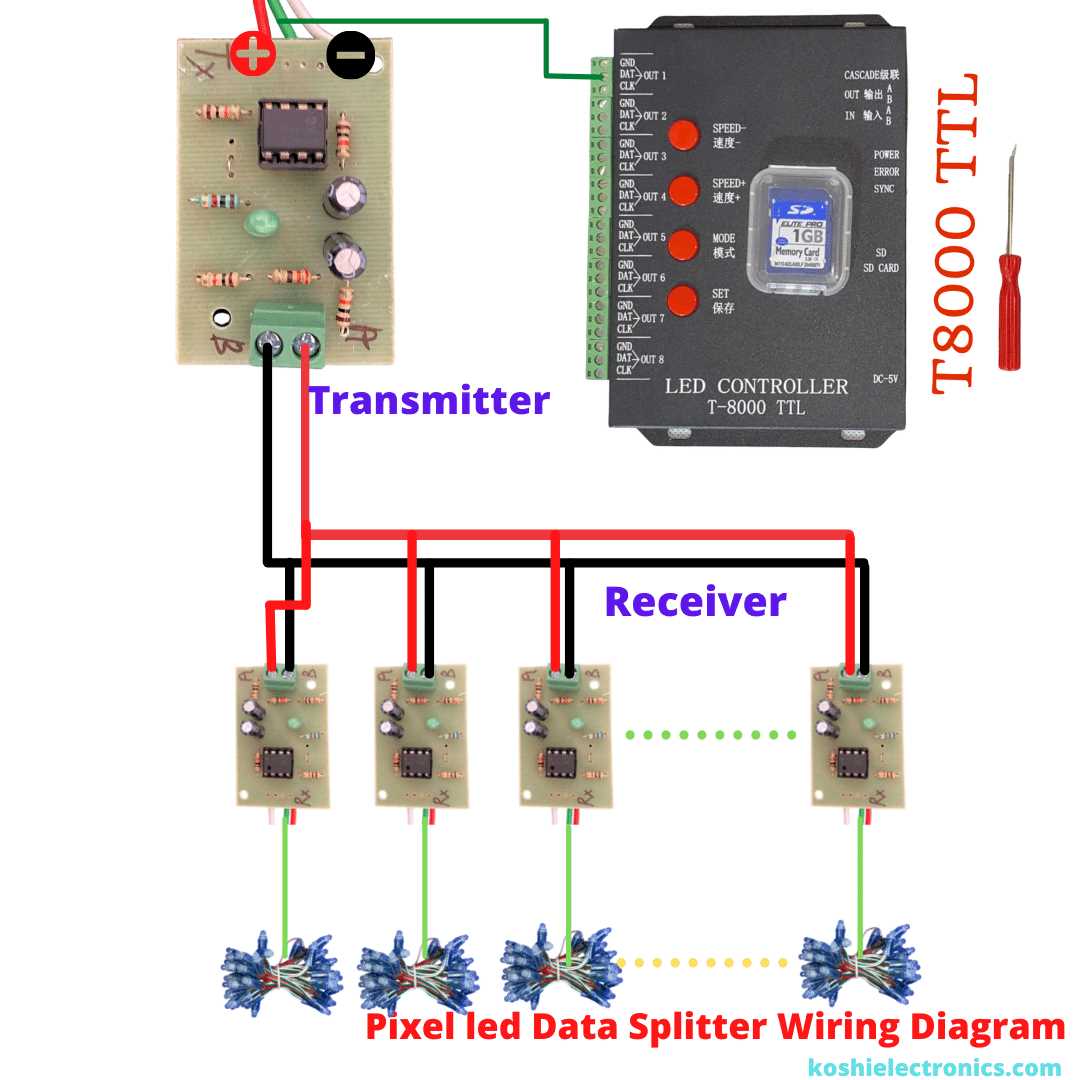

Implement a separate ground plane dedicated to the data path, not shared with the power circuit. Noise coupling from switching supplies (buck converters) can corrupt timing intervals, causing ghosting or synchronized color shifts. Use differential signalling (RS-422 via MAX485) if running more than 15 meters or across electrically noisy environments–standard single-ended protocols like WS2811 degrade beyond 10 meters.
Add resumption logic in firmware to handle unexpected power loss. Store the last known state in EEPROM or flash, then initialize the sequence at start-up; most off-the-shelf solutions skip this, requiring manual reprogramming after each outage. For high-reliability setups, include a watchdog timer (IWDG on STM32) to reset the system if the main loop stalls longer than 100ms.
For outdoor installations, encapsulate all exposed joints in UV-resistant silicone (Dow 3140) and use sealed connectors (Molex Micro-Fit or JST XH with silicone boots). Standard IDC connectors corrode within weeks under humidity–apply dielectric grease (Permatex 22058) to contacts before mating surfaces.
Pre-compile animation sequences into lookup tables instead of generating curves dynamically. A 30-frame gradient transition at 1kHz refresh rate consumes less than 1% CPU when loaded as static data, compared to 30% when calculated in real-time. Store segmented data in external SPI flash if exceeding 1MB of framebuffer–internal memory fills quickly with higher lumen densities.
Test thermal load under extended white light output (R=G=B=255) before final deployment. Many drivers (e.g., SK6812) sink 20mA per channel at full brightness, peaking at 60°C without convection; add forced air cooling (40mm 12V fan) if ambient exceeds 35°C or reduce maximum intensity to 80% for passive cooling stability.
Selecting an Optimal MCU for Addressable Lighting Systems
For WS2812B or SK6812 strips at 30 LEDs/meter, prioritize MCUs with at least 64 KB flash, 16 MHz clock, and hardware PWM/DMA support. STM32F103C8T6 (Blue Pill) handles 500 LEDs at 30 FPS; ESP32-S2 performs similarly with Wi-Fi integration. For APA102, require SPI at 20 Mbps+–STM32F401 handles 1000+ with double-buffered DMA. Avoid 8-bit AVRs (ATmega328P) beyond 150 LEDs due to 16 MHz clock speed and lack of DMA.
Critical MCU Requirements
Clock speed scales linearly with LED count–target 48 MHz+ for 1000+ units. DMA reduces CPU load by 90% vs bit-banging; verify DMA channels (STM32: 7+; ESP32: 3). Memory: budget 30 bytes per RGB unit. Power efficiency matters for PoE projects–ESP32-S3 draws 240 mA vs STM32H7’s 180 mA. Verify toolchain support: STM32’s HAL/CubeMX vs ESP-IDF’s FreeRTOS integration. For USB HID, check descriptor limits (ATSAMD21G has 7 endpoints total).
Step-by-Step Wiring Guide for WS2812B Lighting Modules
Begin by cutting the addressable lighting strip to the required length, ensuring the cut is made strictly along the marked copper pads between segments–never through an individual RGB unit. For a 5V system, the maximum practical segment length without signal degradation is 5 meters; beyond this, inject power at both ends or every 2.5 meters using 18 AWG or thicker wire to prevent voltage drop. Strip the insulation from the DIN, DOUT, 5V, and GND pads, leaving 2–3mm of exposed conductor. Tin each pad with a thin layer of solder to prevent fraying and improve conductivity.
Power and Data Connection Requirements
| Component | Wire Gauge (AWG) | Soldering Temp (°C) | Max Distance (m) |
|---|---|---|---|
| 5V Power Line | 16–18 | 320–350 | 5 |
| Data Line | 22–24 | 300–320 | 10 |
| Ground Line | 18–20 | 320–350 | N/A |
Connect the DIN pad of the first unit to a microcontroller’s GPIO pin configured for 800kHz output–common choices include Arduino pin 6 or ESP32 GPIO2. Use a 330Ω resistor in series with the data line, placed as close to the first module as possible, to suppress signal reflections. For runs exceeding 3 meters, add a second resistor (470Ω) between the DOUT of the last module and the DIN of the subsequent strip to maintain signal integrity. Attach the 5V and GND wires directly to a power supply capable of delivering at least 60mA per module–calculate total current draw by multiplying the segment count by 60mA and selecting a supply with 20% overhead. Test the assembly with a short data sequence before finalizing connections to confirm correct color rendering and ordering.
Power Supply Requirements and Voltage Regulation for Addressable Light Systems
Choose a power source with a current rating at least 20% higher than the total demand of your lighting setup. For strips operating at 5V, calculate 0.06A per segment when all channels are illuminated; 12V and 24V systems require proportionally less current per unit length, but always account for voltage drop over extended runs. Switched-mode supplies rated for continuous output consistently outperform linear regulators, especially in installations exceeding 5 meters, where efficiency losses can reach 15-20% if undersized.
Implement dedicated voltage regulation near high-density clusters rather than relying on a single centralized supply. LM317 adjustable regulators paired with heatsinks work for small arrays, but synchronous buck converters like the MP2307DN achieve better thermal performance at currents above 2A. For 24V setups, consider a two-stage approach: a bulk 24V supply followed by local 12V or 5V conversion to minimize resistive losses in wiring. Always include input capacitors (220µF minimum) to suppress transients generated by fast-changing light patterns.
Ground loops introduce visible flicker; avoid shared return paths between power and data lines. Use star grounding topology with a common point at the primary feed instead of daisy-chaining grounds. For modular installations, opt for supplies with active power factor correction (PFC) to prevent harmonics from interfering with upstream components. Test voltage under maximum load and at the farthest endpoint–ideal regulation maintains output within 3% of nominal value.
Ferrite beads on power inputs filter high-frequency noise, particularly critical when mixing dimmable drivers with microcontroller-based sequencers. For temporary or outdoor installations, select supplies with IP65 or higher ingress protection–standard PC power supplies fail rapidly in humid environments due to corrosion on circuit traces. Overcurrent protection is non-negotiable: polyfuses or PTC devices reset without damage, unlike traditional fuses, and recover within milliseconds after fault conditions subside.
