Understanding PNP and NPN Transistor Circuit Diagrams for Beginners

For precise switching or amplification, position the complementary bipolar junction with the base terminal as the control input. A sourcing arrangement (emitter as common reference) requires a positive bias at the gate to activate current flow from the collector to the emitter. Apply a resistor between the controlling node and the power source to limit base current–typically 1kΩ to 10kΩ, depending on load requirements. Ensure the collector voltage exceeds the emitter by at least 0.7V to maintain saturation.

In sinking setups, reverse the polarity: the emitter connects to the load, while the collector ties to the positive rail. Ground the base through a resistor to prevent false triggering. For low-power applications, use a pull-down resistor of 4.7kΩ to stabilize the off state. Verify the schema with a multimeter–collector-emitter voltage should drop near 0V when active, confirming full conduction. Avoid exceeding the transistor’s maximum collector current (check datasheet; common values: 100mA–1A).

Optimize signal fidelity by adding a flyback diode (1N4007) across inductive loads (relays, motors) to suppress voltage spikes. For high-frequency applications, replace standard junctions with RF-grade components (e.g., 2N3904 for NPN, 2N3906 for PNP) and bypass the base resistor with a 0.1µF capacitor to reduce noise. Test under expected operating conditions–thermal runaway occurs if power dissipation exceeds the package’s rating (usually 300–625mW for TO-92 packages).

Layered schemas combine sourcing and sinking elements: cascade stages to drive heavier loads (e.g., emitter follower + Darlington pair). Use a small-signal junction (2N2222) for the first stage and a power transistor (TIP120) for the output. Isolate control logic from high-current paths with optocouplers (PC817) to prevent ground loops. Terminate unused gates with pull-up or pull-down resistors to avoid floating inputs.

Transistor Configuration Schematics: Key Differences and Practical Layouts

Select a common-emitter arrangement for amplification tasks requiring high voltage gain. Position the base lead between a 10kΩ resistor and a 470Ω input resistor to optimize linearity while maintaining stable bias conditions. The emitter should connect directly to ground through a 1kΩ resistor for N-type configurations, whereas P-type variants require a pull-up resistor to VCC.

For switching applications, prioritize the common-collector topology due to its low output impedance. Connect the load between the emitter and ground, ensuring the base resistor remains within 5–20kΩ to prevent excessive current draw. P-type layouts excel in high-side switching, where the collector ties to the supply voltage and the emitter drives the load, eliminating the need for negative rail voltages.

Critical Component Selection for Reliability

Substitute standard silicon transistors with Schottky-clamped variants (e.g., BC547C vs. BAT54) to reduce switching losses in fast-response designs. Replace carbon-film base resistors with metal-film types (1% tolerance) when thermal stability is non-negotiable, particularly in Class A amplifier stages operating near thermal cutoff thresholds.

In high-current layouts, bypass collector load resistors with a 0.1μF ceramic capacitor to suppress parasitic oscillations. For P-type power stages, add a 100nF snubber capacitor across the collector-emitter junction to dampen inductive kickback from relays or motors. Avoid electrolytic capacitors in signal paths; their high ESR introduces phase shifts at frequencies above 10kHz.

Signal Integrity and Noise Mitigation

Route input traces perpendicular to output traces on prototyping boards to minimize capacitive coupling. Ground planes should cover at least 60% of the board’s underside, with thermal vias connecting to the top layer near heat-generating components. For mixed-signal boards, isolate digital commons (microcontroller grounds) from analog commons (transistor emitters) using a star grounding scheme.

Solder a 1MΩ resistor between the base and emitter of unused transistors to prevent floating inputs–this suppresses leakage currents that can exceed 1μA in high-humidity environments. In RF applications, twist the leads of small-signal transistors (e.g., 2N3904) to reduce loop area, effectively lowering inductive pickup below -80dB for frequencies up to 30MHz.

Polarize complementary pairs asymmetrically when driving differential loads: offset the N-type base voltage by +0.2V relative to the P-type to cancel crossover distortion in push-pull stages. This adjustment compensates for mismatched VBE drops, ensuring balanced conduction angles without external trimming potentiometers.

Test transient response with a 1V pk-pk square wave at 1kHz. Measure collector voltage rise/fall times; targets should be

Basic Wiring Differences Between Complementary and Standard Bipolar Junctions

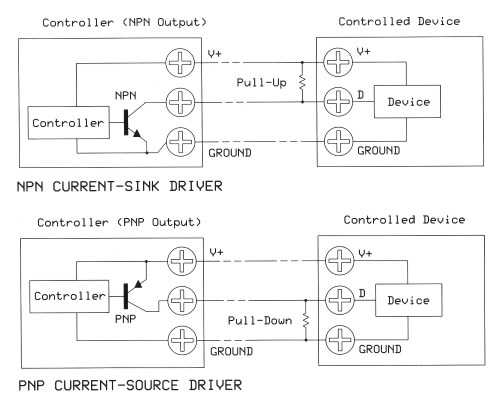

Wire positive-supply sensors to the emitter of a p-type junction, grounding the load between the collector and negative rail–this configuration ensures the switching element handles current flow toward the supply when activated. For n-type setups, reverse the polarity: connect the positive rail to the collector and place the load between the emitter and ground, allowing conduction when the base receives a low signal.

Load Placement and Power Flow

In p-type arrangements, the output device sits upstream of the switching element, pulling the connected device high when triggered. This demands a power source tied directly to the emitter, while the collector links to the load. Conversely, n-type connections invert this, with the output downstream and the emitter grounded, pulling the load low during operation. Failure to observe these placements results in incorrect biasing or short circuits.

Always verify the voltage rating of attached peripherals matches the junction’s specifications–standard silicon variants tolerate 40V, while high-power models reach 100V. Signal inputs for p-types require a pull-down resistor to prevent floating states; n-types benefit from a pull-up resistor for the same reason. Use a 10kΩ resistor for general-purpose applications, adjusting downward for high-speed switching (1kΩ–4.7kΩ).

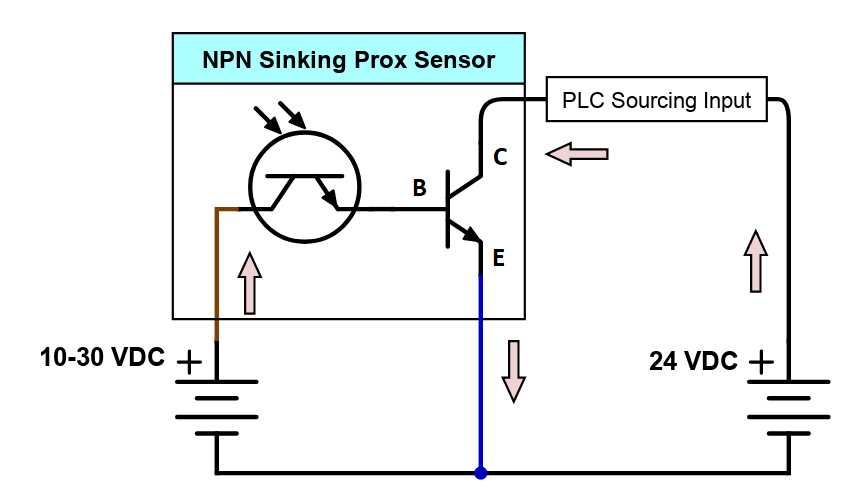

For sinking configurations (n-type), the base current direction mirrors conventional current flow–positive base voltage relative to the grounded emitter enables conduction. Sourcing setups (p-type) reverse this: the base must be negative relative to the supply-side emitter to activate. Miswiring the base current path leads to either latch-up or no operation. Test with a 5V source and 1kΩ base resistor before final integration.

Ground Reference and Signal Integrity

P-type junctions necessitate a floating ground for the load, as the emitter ties to the positive rail. This creates a risk of ground loops if sharing a common reference with other subsystems–isolate critical paths with optocouplers or differential signaling. N-type variants avoid this by using the system’s global ground, simplifying integration but requiring careful decoupling (0.1µF ceramic capacitor) near the collector to suppress transients.

When interfacing with logic ICs, p-type outputs require a level-shift circuit (e.g., common-emitter amplifier) to drop the signal from the positive rail to TTL/CMOS thresholds. N-type outputs interface directly but demand attention to voltage margins–ensure the collector voltage exceeds the logic high threshold by at least 0.7V. For inductive loads (relays, motors), add a flyback diode (1N4007) across the coil for p-types (cathode to emitter, anode to collector) or n-types (reverse polarity) to protect junctions from voltage spikes.

Building a Complementary-Emitter Switching Setup: Practical Assembly

Select a BC557 transistor for low-power applications requiring precise control. Its collector-emitter voltage rating of 45V and DC current gain (hFE) between 120-800 ensures stable switching in signal amplification stages. Secure the base resistor (Rb) between 10kΩ and 100kΩ depending on input signal strength–lower values accelerate turn-on speed but increase current draw. For inductive loads, include a flyback diode (1N4007) across the emitter-collector path to dissipate back EMF surges exceeding 1A.

Connect the load to the collector terminal while grounding the emitter for sinking configurations. Apply input voltage (Vi) to the base through Rb, ensuring Vi exceeds the emitter potential by at least 0.7V to forward-bias the emitter-base junction. For 5V logic signals, use Rb = 22kΩ; for 12V inputs, reduce Rb to 47kΩ to maintain saturation without exceeding the transistor’s 200mA continuous collector current limit.

Test the arrangement with a multimeter in diode mode: probe the emitter-base junction to confirm a ~0.65V drop when active. If the voltage exceeds 0.8V, replace Rb with a lower value or verify transistor integrity. For PWM applications, add a 100nF ceramic capacitor in parallel with Rb to smooth rapid switching edges, preventing oscillations above 10kHz. Avoid exceeding the BC557’s power dissipation limit of 625mW by heatsinking if ambient temperatures exceed 50°C.

Scale component values for higher loads: substitute the BC557 with a TIP42G (rated 6A) for motor control, increasing Rb to 1kΩ-4.7kΩ to handle base currents up to 500mA. Always decouple the supply near the transistor with a 10µF electrolytic capacitor to suppress noise from sudden load changes. For hazardous voltage levels (>60V), isolate the control circuitry using optocouplers (PC817) to prevent ground loops.

Document each connection’s voltage drop under load. Measure collector current (Ic) during operation–if Ic deviates more than 20% from calculated values (Ic = Vi/Rb * hFE), inspect solder joints or replace deteriorating components. Store assembled units at
