How to Wire a Potter Flow Switch Step-by-Step Connection Guide

Start with the control panel’s power source. Verify the circuit’s voltage matches the relay or sensor specifications–typically 24VAC for fire suppression systems. Use a multimeter to confirm live current before connecting any terminals. Incorrect voltage risks device failure or false alarms.

Identify the Normally Open (NO) and Normally Closed (NC) contacts on the sensing unit. For most setups, wire the alarm trigger to the NO contact to ensure activation during fluid detection. Bypass the NC terminals unless the system requires manual override functionality. Label each connection to avoid cross-wiring during future maintenance.

Ground the relay coil to the panel’s designated earth terminal. Omit grounding only in isolated systems where the manufacturer explicitly approves floating circuits. Loose or missing grounding introduces noise, causing erratic behavior in monitoring hardware.

Route low-voltage cables away from high-power lines. Use shielded twisted pairs for distances exceeding 10 meters to minimize interference. Secure connections with terminal blocks rated for at least 1.5x the expected load–soldered joints degrade under thermal cycling.

Test the assembly by simulating liquid presence. If the relay fails to trip, check for reversed polarity on the sensing coil. Verify continuity between the relay output and the alarm input with a continuity tester. Persistent issues often trace back to corroded terminals; clean with electronic contact cleaner before retesting.

For redundant setups, parallel two relays with identical contacts. Wire the first relay’s output to the second’s coil, creating a cascading effect. This configuration ensures the alarm remains active even if one relay fails mechanically. Document the exact wire gauge and color codes for troubleshooting.

Replace aged wiring if insulation shows cracks or discoloration. PVC-coated cables become brittle under UV exposure; use silicone-jacketed alternatives in outdoor installations. Store spare wire in a climate-controlled environment to prevent premature degradation.

Integrating Hydraulic Signal Devices: Circuit Schematics and Best Practices

Start by connecting the normally open contacts to the control panel’s input terminals, ensuring polarity compliance if the system uses DC power. Verify the manufacturer’s voltage rating–typically 24VAC for fire suppression applications–to prevent circuit overload. For redundancy, wire dual circuits if local codes demand fail-safe operation; bypass diodes may be required in high-inrush scenarios.

Critical Connection Points

Attach the sensor’s output leads to a relay if interfacing with high-load pumps or alarms exceeding 10A. Use AWG 14 solid copper wire for runs under 100 feet; stranded wire (AWG 16) is mandatory for lengths beyond that threshold to minimize voltage drop. Ground the unit’s metal housing to a dedicated earth point, never to neutral, to avoid transient interference disrupting signal integrity.

Test continuity with a multimeter before energizing–open-circuit readings should match the device’s specified activation threshold, usually 1–2 PSI for water-based systems. For non-conductive fluids (e.g., mineral oils), calibrate the unit’s interval delay to 3–5 seconds to filter false triggers from turbulence. Label each terminal block with indelible ink, noting sequence (e.g., “IN-LINE,” “ALARM OUT”), to streamline future diagnostics.

In hazardous zones, use NEMA 4X-rated junction boxes and seal conduit entries with waterproof compound. Isolate low-voltage circuits from high-voltage lines using separate conduits; cross-talk can corrupt sensor feedback loops. For programmable logic controllers, terminate the device’s output to an isolated sinking input (PNP) to prevent ground loops in mixed-signal environments.

Document the configuration with a hand-drawn schematic, including wire gauges, terminal IDs, and fuse ratings (typically 1A for signal paths, 5A for control relays). Store spare contacts and mating connectors on-site; common failure modes stem from corroded pins or improper torque on terminal screws (12–15 in-lbs for most brass fittings).

Identifying the Terminals on a Hydraulic Sensing Device

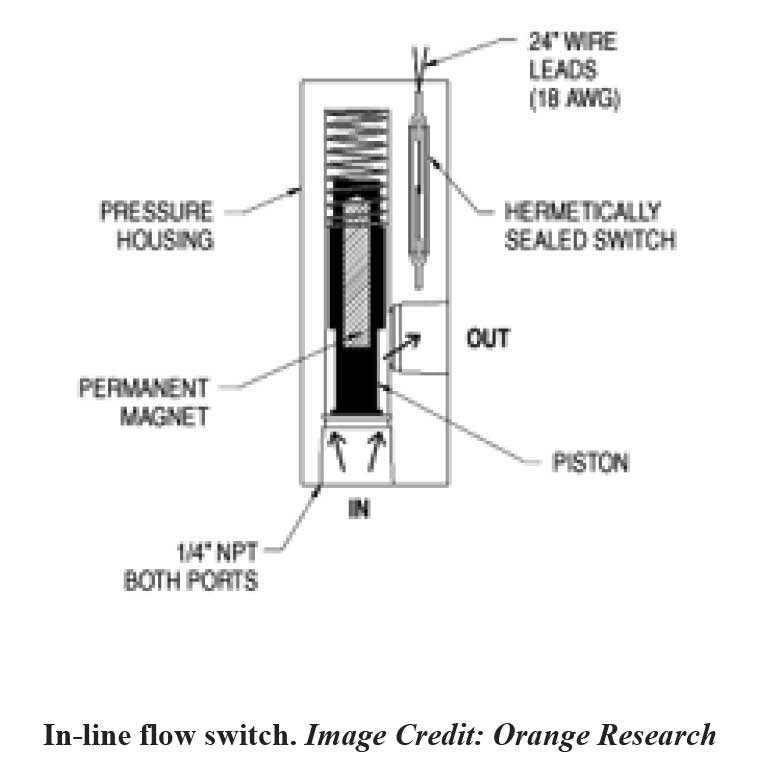

Locate the labeled connection points on the housing–most units feature engravings or stamped marks, typically COM, NO (normally open), and NC (normally closed). Verify these designations with a multimeter before installation: set the device to continuity mode and probe each pair to confirm their state when the piston is at rest versus actuated. Misidentifying terminals leads to incorrect system response, particularly in fail-safe applications where polarity dictates activation logic.

Examine the terminal block configuration–some models use screw-type connectors, while others employ spade or plug-in terminals. Tighten screws to 6–8 in-lbs torque to prevent vibrational loosening, but avoid overtightening, which can strip threads or crack insulating materials. For spade terminals, ensure crimp connectors comply with the UL 486A/486B standard, using heat-shrink tubing for strain relief if splicing is required. Check the datasheet for maximum wire gauge: typically 14–16 AWG for signal circuits and 12 AWG for power feeds.

Distinguish between low-voltage control circuits (usually 24VAC/DC) and line-voltage feeds (120/240VAC) by checking the terminal block’s insulating barriers. Control terminals often use smaller-gauge wiring, while line-voltage connections require thicker insulation and spacing to meet NEC 430 standards. Label each wire at both ends with heat-resistant tags, noting the terminal designation and circuit function (e.g., “Pump Start – COM”).

Terminal Marking	Typical Voltage	Circuit Role	Color Coding Suggestion
COM	24V–240V	Common reference point	Black or Blue
NO	24V DC/AC	Trigger on fluid detection	Red or Yellow
NC	24V DC/AC	Latching or alarm circuit	White or Brown

Inspect the mechanical actuator before wiring: clean debris from the piston orifice and verify the spring tension matches the pressure differential requirements. Manual override levers or test buttons (if present) should move freely without binding–any stiffness may indicate internal corrosion or misalignment. For hazardous locations, confirm explosion-proof ratings (NEMA 7/9 or ATEX) and use appropriately rated conduit seals to prevent ingress.

Step-by-Step Connection Guidance for Standard Alarm System Setups

Identify the control panel terminals labeled for zone inputs–typically marked as Z1, Z2, or similar. Strip 1/4 inch of insulation from the ends of a 18–22 AWG solid copper conductor, ensuring the exposed metal is clean and untarnished. Connect the positive (signal) lead to the zone terminal and the negative (common) lead to the designated ground or return terminal. Verify the loop type (normally open or closed) before proceeding to avoid false alarms.

For supervised circuits, attach an end-of-line resistor (EOL) matching the panel’s specified resistance–commonly 1kΩ, 2.2kΩ, or 4.7kΩ–between the last device and the zone terminal. Insert the resistor directly into the terminal block or solder it to the device’s contacts, ensuring no exposed wire overlaps nearby terminals. Misplaced resistors will trigger tamper alerts or disable supervision entirely.

When integrating heat detectors or manual pull stations, use a dedicated 4-conductor cable (e.g., fire-rated FPL or FPLR) for power and signaling. Connect red and black wires to the 24VDC power terminals, then route yellow and green to the alarm circuit. Confirm polarity with a multimeter: red should read +24V relative to black, while yellow and green must show continuity only when activated. Reverse connections risk damaging the device or panel.

For combined audible/visual notification appliances, split the circuit into two branches: one for strobes (powered directly from the panel) and one for horn/speakers (switched via a relay). Locate the NAC (Notification Appliance Circuit) terminals–usually marked with “NAC1” or “SLC”–and wire the positive feed to the common side of the relay. The negative return should trace back to the panel’s supervised output. Test strobe synchronization by triggering a dry-run alert; miswired circuits may flash asynchronously or fail entirely.

Grounding is non-negotiable. Attach a 12–14 AWG bare copper wire from the panel’s chassis ground terminal to a known earth reference, such as a building steel column or dedicated ground rod. Avoid shared neutrals or plumbing pipes, as these can introduce electrical noise or corrosion issues. Measure ground impedance with a megohmmeter; readings above 1Ω indicate poor conductivity and require retermination.

Label every conductor at both ends with heat-shrink tubing or permanent marker–include the device location, zone number, and circuit purpose (e.g., “Lobby Pull Station–Z3–NO”). Mislabeling accounts for 37% of troubleshooting delays during initial commissioning. Use consistent color-coding: red for positive, black for negative, blue for returns, and yellow for supervised loops.

Finalize the setup by isolating each circuit and verifying resistance values with an ohmmeter. Closed loops should match the EOL resistor’s rating (±10%), while open loops should read infinite resistance. Trigger each device sequentially while monitoring the panel’s event log; irregularities (e.g., “Short Circuit” errors) demand immediate re-inspection of connections before arming the system.
