How to Design and Interpret PCB Schematic Diagrams Step by Step

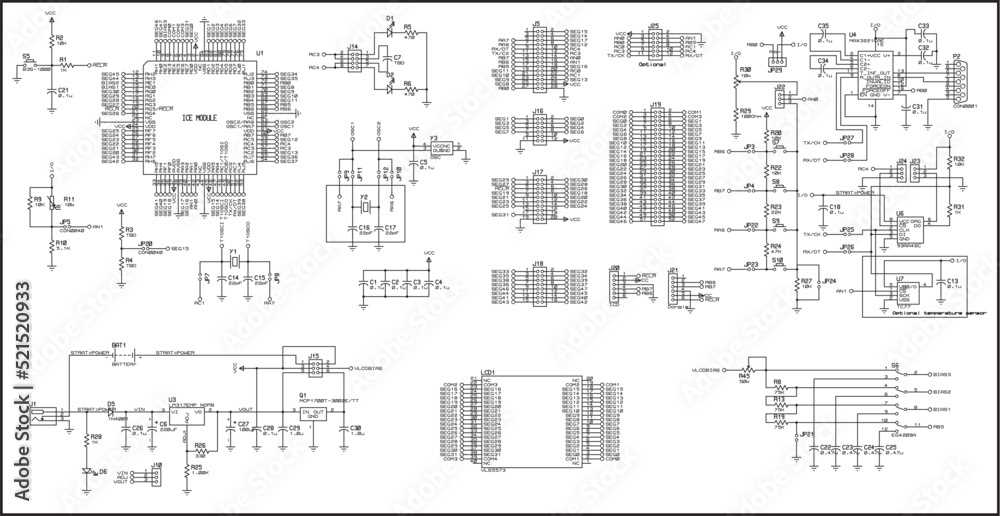

Start by defining signal paths before placing components. Use hierarchical sheets for complex designs–break subsystems into functional blocks (e.g., power regulation, microcontroller core, I/O interfaces). Assign net names early to avoid ambiguity; prefix clocks with CLK_, power nets with VCC_/GND_, and differential pairs with P_/N_ (e.g., USB_DP, USB_DM). For high-speed layouts, calculate trace impedance first: 50Ω for single-ended, 100Ω for differential–use a stackup calculator like Saturn PCB Toolkit.

Label components with a consistent scheme: resistors as R1, R2; capacitors C_PWR_IN, C_DECOUPL; ICs U_MCU, U_REG. Group related elements spatially–place decoupling caps within 5mm of power pins, pull-ups/crystal oscillators adjacent to their respective ICs. Use schematic symbols with explicit pin numbers matching the datasheet; verify pinouts twice before routing.

Add annotation layers for clarity: highlight signal directions with arrows, mark no-connect pins with NC, and flag critical nets (e.g., RESET#, BOOT_SEL) in bold. For multi-voltage designs, color-code nets (red for 5V, blue for 3.3V) and include a voltage domain legend. Export netlists in IPC-356 format if fabrication requires testing–ensure testpoints are accessible and not clustered.

Avoid relying solely on auto-annotate tools. Manually review each subcircuit: check for floating inputs, missing ground references, and unintended parallel paths (e.g., dual diodes on a single GPIO). Use simulation probes on nets with strict timing (e.g., SPI/I2C buses) to catch glitches. For final reviews, print a paper copy and trace each net with a highlighter–hidden errors appear faster on physical media.

Key Principles of Electronic Blueprints

Begin by labeling every net with clear, standardized identifiers–use uppercase prefixes like VCC, GND, or SIG_ followed by a descriptive suffix. Avoid generic names like NET1; instead, specify function, e.g., SIG_LED_CTRL or PWR_12V_SENSOR. Group related signals logically, separating power rails from data lines to prevent ambiguity.

Limit crossovers by routing critical paths orthogonally–horizontal traces on one layer, vertical on another. Keep high-speed signals (>10 MHz) shorter than 10 cm and pair them with adjacent ground returns to minimize EMI. For differential pairs, maintain consistent impedance (typically 100 Ω) and match lengths within 50 mils. Use via stitching near long traces to reinforce return paths.

Component Placement Strategies

Position decoupling capacitors (100 nF ceramic) within 5 mm of IC power pins, prioritizing devices with high transient currents. Cluster components by function–power regulation near the input connector, sensors close to their signals, and microcontrollers at the center to reduce trace lengths. Align polarized parts (LEDs, diodes) uniformly to simplify assembly checks.

Leave 2 mm clearance around mounting holes for screw heads and 3 mm between adjacent components to prevent shorts during soldering. For through-hole parts, orient leads identically (e.g., all cathodes downward) to streamline hand-assembly. Annotate silkscreen with reference designators and polarity markers–use +, -, or ANODE tags instead of relying on footprint shapes alone.

Key Elements and Notation in Electronic Layout Blueprints

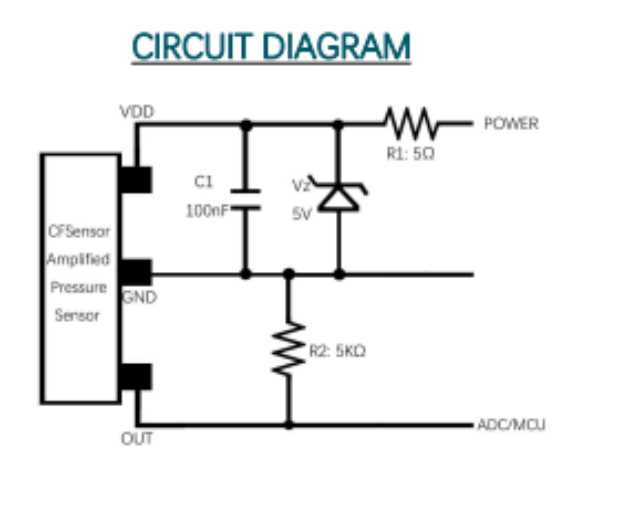

Prioritize consistency in symbol selection to avoid misinterpretation–standardize resistor (R), capacitor (C), and inductor (L) notation across all designs. Resistors must indicate resistance value (e.g., R1 10kΩ), capacitors should specify voltage rating (e.g., C2 22µF 25V), and inductors require both inductance and current tolerance (e.g., L3 10µH 1A). ICs demand pin labels matching manufacturer datasheets, while connectors should mirror physical pinouts precisely. Use IEEE 315 or IEC 60617 standards for graphical symbols to ensure global readability.

• Passives:
  • R: Fixed (---[R]---), variable (---[/]---), or thermistor (---[T]---).
  • C: Polarized (---| |---) vs. non-polarized (---||---); mark voltage for electrolytics.
  • L: Air-core (---@@---) or ferrite (---@@@---); note saturation current.
• Semiconductors:
  • Q: BJT (---|<--- NPN, ---|>--- PNP); specify VCEO, IC.
  • D: Diode (---|>|---), Zener (---|>|<---), LED (---|>|*---).
  • U: ICs require pin numbers and signal names (e.g., U5 LM317 VOUT).
• Power:
  • VCC/VDD: Label rail voltages (e.g., +5V, -12V).
  • GND: Differentiate analog (⏚), digital (⏚), and chassis (⏛) grounds.
  • X: Switches must show pole/throw configuration (e.g., SPST, DPDT).

Validate symbol libraries against manufacturing requirements–crystal oscillators (Y1 8MHz) must include load capacitance, relays (K1) need coil voltage and contact ratings, and transformers (T1) demand turns ratio and isolation specs. For microcontrollers, use pin mux diagrams; for FPGAs, reference user-constraint files. Critically, align all symbols with assembly notes and BOM–mismatched footprints cause rework. Tools like KiCad or Altium include pre-verified libraries; cross-check against IPC-2612 for compliance.

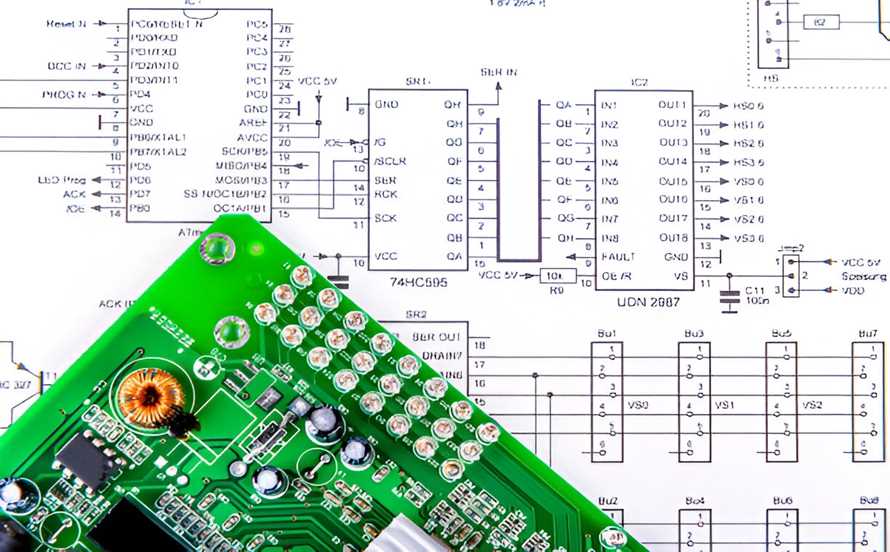

How to Read and Interpret Resistor, Capacitor, and IC Pinouts

Start by locating the reference designator on the design layout–resistors (R) and capacitors (C) are labeled sequentially (R1, R2, C1, C2). Verify values in adjacent silkscreen or the bill of materials; resistors use ohms (Ω) or prefixes (kΩ, MΩ), while capacitors list microfarads (µF) or picofarads (pF). For axial components, the value may be printed directly on the body, though surface-mount devices (SMD) often omit this. Cross-reference with the netlist to confirm connections.

Integrated circuits (ICs) display pin numbering in one of two conventions: counter-clockwise from the notch (DIP packages) or from a marked corner (QFN/BGA). The first pin is always pin 1, identifiable by a dot, notch, or cut corner. Check the datasheet’s pinout diagram–power pins (VCC, VDD), ground (GND), and signal pins (I/O, CLK) are grouped logically. For example, microcontrollers often place VCC on the top-left and GND on the bottom-right. Avoid assuming symmetry; some ICs swap pin functions between packages.

Decipher SMD resistor codes using the EIA standard: three-digit codes (e.g., 472 = 47×10² Ω) or four-digit for precision (3301 = 330×10¹ Ω). Capacitors may use numeric codes (104 = 100nF) or letter-number combos (e.g., “G3” = 4.7µF). For ICs, note that SOIC/TSSOP pinouts mirror DIP but with tighter spacing–use a magnifier to trace paths back to the pin 1 marker. Power integrity matters; decoupling caps (typically 0.1µF) should sit within 2mm of IC power pins to suppress noise.

When interpreting unfamiliar ICs, prioritize the datasheet’s “Pin Description” table over visual diagrams. Key columns include “Pin Name,” “Type” (input/output/power), and “Function.” For analog ICs (op-amps, regulators), identify feedback and compensation pins early–miswiring these can damage the chip. Digital ICs like FPGAs require special attention to bank voltages; mismatched logic levels (3.3V vs 5V) cause latch-up. Always probe continuity with a multimeter before powering; shorts on dense layouts are common and destructive.

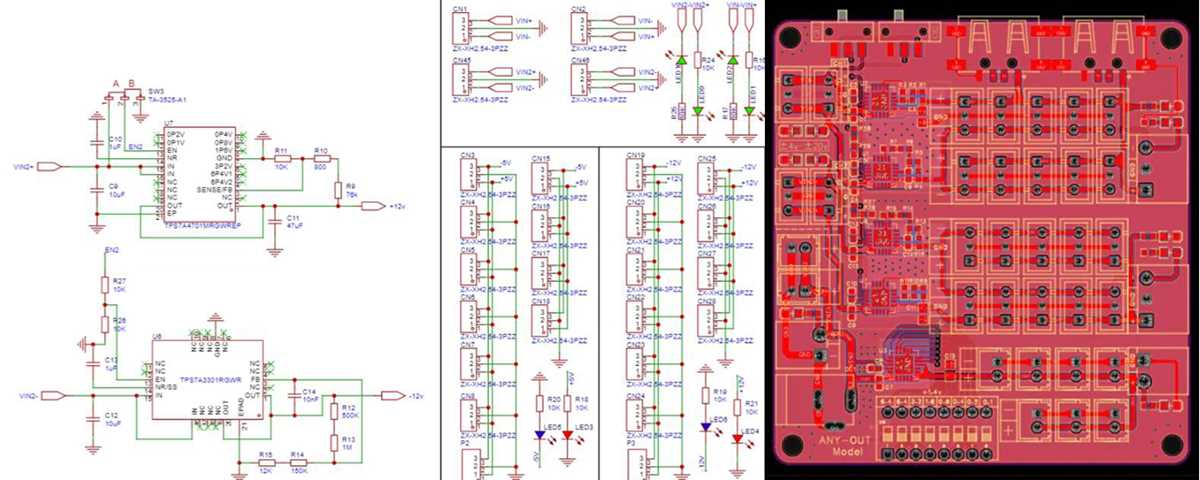

Step-by-Step Guide to Creating an Electronic Layout Draft in KiCad or Altium Designer

Launch KiCad and select File → New → Project. Name the project folder without spaces or special characters–underscores or hyphens are acceptable. Open the Schematic Editor by double-clicking the `.sch` file in the project tree. Altium users should start with File → New → Project → PCB Project and add a schematic sheet via File → New → Schematic.

Set grid preferences before placing components. In KiCad, press G to cycle through grid sizes; 50 mil (1.27 mm) is ideal for most THT parts, while 25 mil (0.635 mm) suits SMD. Altium’s grid defaults to 100 mil–adjust via View → Grids → Set Snap Grid. A non-standard grid (e.g., 20 mil) improves alignment for dense microcontroller layouts.

Software	Default Grid	Recommended Custom Grid	Use Case
KiCad	50 mil	25 mil	SMD resistors/capacitors
Altium	100 mil	20 mil	QFN/LGA footprints

Place components by pressing A in KiCad or P → C in Altium. Start with critical ICs (MCU, regulators) and power rails. For KiCad, type R_0805 in the component selector to add a 0805 resistor; Altium requires browsing the library (Place → Part) or using CTRL+P for quick placement. Position decoupling capacitors within 5 mm of IC power pins–violate this rule only for low-speed (>1 MHz) signals.

Draw nets with the wire tool (W in KiCad, P → W in Altium). Avoid diagonal connections; 90° bends reduce noise coupling. Label critical nets (L in KiCad, P → N in Altium) to simplify later routing–name power rails +3V3 or GND_DIGITAL instead of generic labels. Use bus entries (K in KiCad) for parallel data lines like SPI or I2C, reducing clutter by grouping signals.

Define electrical rules early. In Altium, right-click a net and select Properties to set priority (e.g., “Power” or “Signal”). KiCad lacks a dedicated GUI–use ERC (Electrical Rules Check) flags via Inspect → Electrical Rules Checker to catch unconnected pins or mismatched power domains. For high-current traces (>500 mA), add a net class in Altium (Design → Classes) or specify trace width in KiCad’s Design Rules (File → Board Setup).

Verify connectivity before exporting. KiCad’s Tools → Update PCB from Schematic generates an initial layout; Altium’s Design → Update PCB Document performs the same function. Run a second ERC pass–KiCad flags dangling wires, while Altium highlights violations in the Messages panel. For differential pairs (USB, LVDS), ensure net names follow suffixes like _P and _N (e.g., USB_DM_P, USB_DM_N).

Export the draft for collaboration. KiCad uses File → Plot to generate PDFs or SVG files, with Page Settings enabling custom templates (e.g., company logo, title block). Altium exports via File → Smart PDF, bundling schematic pages, BOM, and design notes into a single file. For version control, KiCad’s File → Archive Project creates a `.zip` of the entire project folder; Altium’s Project → Project Packager generates a `.PrjPcbStructure` archive. Store archives in Git repositories with `.gitignore` rules excluding output directories (`*.kicad_pcb-bak`, `*.SchDocPreview`).
