Professional Audio Equipment Circuit Design and Schematic Principles

Begin with a differential pair input stage when building a preamplifier for low-noise applications. Use dual JFETs (e.g., LSK389) or low-noise BJTs (e.g., MAT03) to minimize voltage fluctuations at the source. Keep the input impedance above 10 kΩ to avoid loading dynamic microphones or passive pickups. Bypass electrolytic capacitors with 0.1 µF film capacitors to suppress high-frequency noise–place them as close as possible to the power pins of active components.

For power amplifiers, implement a complementary symmetry output stage with matched NPN/PNP transistors (e.g., MJL21193/MJL21194). Maintain a quiescent current of 50–100 mA to eliminate crossover distortion while avoiding excessive heat dissipation. Use emitter resistors (0.22–0.47 Ω) to stabilize current sharing between paralleled devices. Include Zobel networks (10 Ω + 100 nF) at the amplifier output to prevent high-frequency oscillations induced by reactive loads.

Grounding requires a star topology with a single central reference point. Separate analog, digital, and power grounds, connecting them only at the central star. Route high-current paths (e.g., power supply returns) directly to the star point–never daisy-chain ground traces. Use thick copper pours (2 oz/70 µm) for ground planes to reduce impedance. For mixed-signal designs, isolate the analog ground plane from digital sections with a ferrite bead or 10 Ω resistor to block noise at the boundary.

Signal routing demands controlled impedance traces for frequencies above 1 MHz. For a standard FR-4 PCB, maintain a trace width of 0.2 mm (8 mil) for a 50 Ω impedance with a 0.15 mm (6 mil) dielectric. Keep critical traces (e.g., between op-amps and decoupling caps) shorter than 25 mm to minimize parasitic inductance. Route sensitive signals (e.g., microphone inputs) away from switching supplies or digital lines–use guard traces tied to analog ground when crossing noisy areas is unavoidable.

Testing the layout requires a dual-channel oscilloscope with ≥100 MHz bandwidth and 50 Ω inputs. Probe the input and output of each stage simultaneously, looking for phase shifts or ringing indicative of poor trace layout. Inject a 1 kHz sine wave at -20 dBu and verify total harmonic distortion (THD) < 0.01% before and after each amplification stage. Use a spectrum analyzer to identify noise peaks–target < -90 dBu for idle channels in quiet environments.

Precision Circuit Layouts for High-Fidelity Equipment

Start by isolating critical signal paths with isolated ground planes, minimizing crosstalk between input stages and power amplification blocks. A star-ground configuration is mandatory for mixed-signal designs, where analog and digital grounds meet at a single point–preferably near the main power supply. For 24-bit converters, ensure impedance-controlled traces with widths calculated for 50Ω or 75Ω (depending on the standard) to prevent signal degradation across PCB layers. Use solid copper pours beneath sensitive components like op-amps and transformers, reducing electromagnetic interference from switching regulators.

Component placement dictates performance in low-noise systems. Position input capacitors (preferably film or C0G/NP0 ceramic) within 2–3 mm of IC power pins to suppress high-frequency noise. Feedback resistors for gain stages must be 0.1% tolerance metal-film types, matched within 0.01% if pairing channels. Avoid routing clock traces (e.g., I²S, S/PDIF) parallel to analog lines; instead, maintain a 90° angle or shield with grounded vias every 5–10 mm. For transformer-coupled circuits, orient cores perpendicular to nearby magnetic fields to prevent saturation.

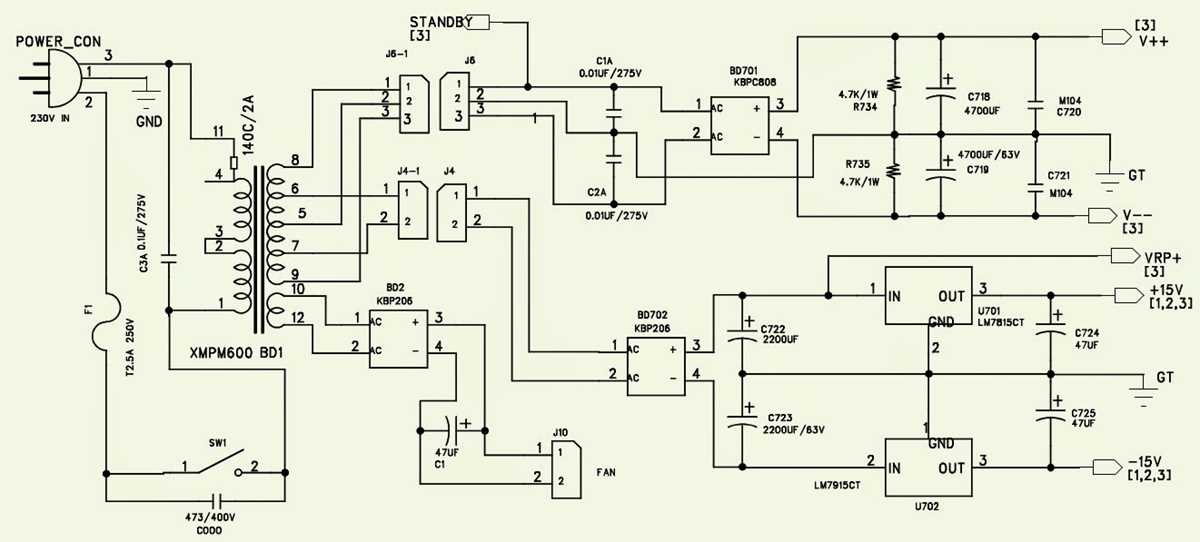

Power supply rejection is non-negotiable. Dedicated linear regulators (e.g., LT3045 for 5V, LM317 for ±15V) should feed each subsystem independently, with output capacitors sized per manufacturer specs–typically 10µF tantalum or 22µF electrolytic for stability. PCB traces carrying raw DC must handle currents safely; a 2 oz copper layer is recommended for paths exceeding 1A. Bypass capacitors (0.1µF ceramic) must be placed at every IC, with a larger bulk cap (47µF) near voltage rails. For digital sections, add ferrite beads (e.g., Murata BLM18PG) to isolate switching noise from analog domains.

Thermal management extends component lifespan. TO-220 and TO-263 packages require thermal vias under the pad, connecting to an internal layer or heatsink. Calculate via count based on power dissipation (1 via per 0.5W typical) and fill with solder for maximum conductivity. Avoid thermal relief pads on high-current traces; solid connections prevent voltage drops. For heatsinks, use a compliant thermal interface (e.g., Arctic MX-6) between surfaces, tightened to 4–5 in-lb torque–excessive force deforms the PCB.

Validation Techniques

Verify layouts with a network analyzer before fabrication. Measure trace impedance with a TDR (time-domain reflectometer) to confirm 50Ω/75Ω accuracy. Check power rails for ripple using an oscilloscope with ≥100MHz bandwidth; peak-to-peak voltage should not exceed 10mV. Listen for ground loops by probing input grounds and chassis with a differential probe–any AC voltage indicates a design flaw. Use a spectrum analyzer to identify spurious frequencies, particularly near oscillator circuits (e.g., 44.1kHz master clocks). If distortion exceeds 0.001% THD at 1kHz, revisit feedback resistor tolerances and op-amp pairing.

Documentation is critical for reproducibility. Label every test point (e.g., TP1: +48V phantom) and include a BOM with exact part numbers–substitutes often introduce noise or instability. Schematic software should generate Gerber files with clear drill maps, including slot routing for irregular component cutouts. For assembly, specify solder paste stencil apertures (reduce by 10% for fine-pitch ICs) and reflow profiles (Pb-free: 250°C peak). Include silkscreened polarity markers for electrolytic caps and diodes, and annotate the board with revision numbers for future debugging.

Critical Elements for High-Performance Circuit Blueprints

Start with precision power distribution–isolate analog and digital rails using separate regulators like the LT3045 for low-noise analog sections and a switching converter (e.g., TPS5430) for digital circuitry. Ground planes must follow a star topology, with a single reference point near the analog input stages to prevent ground loops. Include reverse polarity protection (e.g., P-channel MOSFET or a Schottky diode) and overvoltage clamping (e.g., TVS diodes rated for 10% above rail voltage) to safeguard against transients.

Incorporate input conditioning with balanced XLR/TRS connectors feeding a differential amplifier (e.g., THAT 1200) or an instrumentation amp (INA163). Add phantom power (48V) with current-limiting resistors (6.8kΩ) and DC-blocking capacitors (10µF film) to protect microphones. For line-level signals, use gain staging with 1% tolerance resistors and OPA1612 op-amps to maintain RF filtering (ferrite beads + 100pF capacitors) at all signal inputs to reject interference.

Integrate output drivers capable of driving 600Ω loads, such as DRV135 for balanced outputs or LM4562 for unbalanced. Use Neutrik or Switchcraft connectors with gold-plated contacts to reduce contact resistance. Add mute circuitry (e.g., CD4016 analog switch) on outputs to prevent pops during power cycling. Label every node with net names (V+, GND_ANALOG, IN_L+) and include test points (0.1″ headers) for debugging. Specify Murata GRM series capacitors for signal paths and Nichicon FG for power decoupling to minimize ESR and leakage.

Step-by-Step Guide to Designing a Pristine Signal Path Blueprint

Start by mapping your signal chain on graph paper with 0.1-inch grid spacing. Use this scale to precisely allocate space for every component–resistors, capacitors, and ICs–before committing to traces. A common mistake is underestimating ground plane separation; reserve at least 20% of board real estate for a continuous copper pour dedicated to ground, connected to the main ground via a single point near the power input.

• Place high-impedance nodes (e.g., gate inputs, feedback loops) at least 1.5mm away from noisy traces carrying clock signals or switch-mode power.
• Route critical paths–like op-amp outputs to buffer inputs–with straight, unbroken lines to minimize parasitic capacitance.
• Use vias sparingly; each via adds ~0.5nH inductance and 1pF capacitance, which can introduce phase shifts above 50kHz.

Select a PCB thickness of 1.6mm or 2.4mm for rigid boards; thicker substrates reduce microphonics in sensitive preamp circuits. For flexible circuits, opt for 0.1mm polyimide with 1oz copper, ensuring traces at least 0.5mm wide to handle 500mA currents without overheating. Shield input connectors with a grounded metal can soldered directly to the board; isolate it from the main ground plane to prevent ground loops.

Decouple power rails at every IC with a 100nF ceramic capacitor (X7R dielectric) placed within 2mm of the pin, followed by a 10µF tantalum or electrolytic for low-frequency stability. For digital control lines (I²C, SPI), route them perpendicular to analog signals and bypass each line with a 1nF capacitor to the local ground. Label every test point with its expected voltage (e.g., “TP4: 4.5V ±50mV”) to expedite debugging.

Etch copper pours around resistors and small-signal transistors to act as thermal reliefs and shields. Avoid right-angle bends in traces; use 45° chamfers to reduce impedance discontinuities. For differential pairs, maintain equal trace lengths to within 2.5mm–use serpentine routing if necessary–and keep them spaced at least 3x the trace width apart to minimize crosstalk. Verify clearance rules: 0.2mm minimum for 4-layer boards, 0.3mm for 2-layer.

Finalize the layout by exporting Gerber files at 2:1 scale for fabrication houses requiring imperial units. Include a drill file with hole tolerances (
