How to Read and Create Product Schematic Diagrams Step by Step

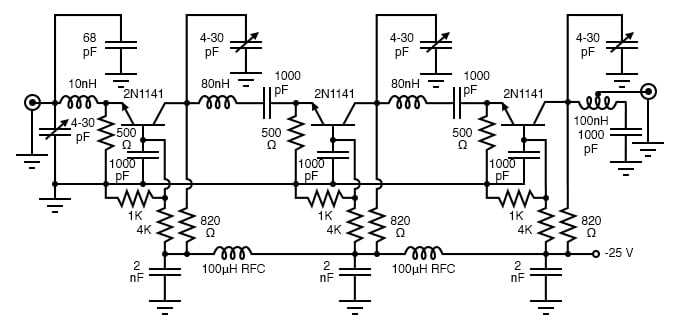

Start with a modular block layout. Divide the system into functional units–power management, signal processing, microcontroller, and peripherals–before refining connections. Use standardized symbols for resistors, capacitors, and ICs (IEC 60617 or ANSI Y32.2) to avoid misinterpretation. Label each component with clear identifiers: R101 for resistors, C204 for capacitors. Include reference designators for connectors (JP3) and test points (TP5). Group related elements on separate sheets if the design exceeds 100 components to maintain readability.

Validate netlists before PCB design. Export the netlist in SPICE or EDIF format and cross-check it against the bill of materials (BOM). Look for orphaned nets, floating inputs, or duplicate pins–common errors in complex designs with 50+ nodes. Use schematic capture tools like KiCad, Altium, or OrCAD to auto-generate DRC (Design Rule Check) reports. Address warnings for unconnected pins, conflicting power rails, or overlapping nets immediately to prevent rework during prototyping.

Annotate critical parameters. Specify voltage ratings for electrolytic capacitors (e.g., C10: 22µF, 50V), transistor configurations (NPN vs. PNP), and IC power requirements (e.g., U2: ATmega328P, 5V). Add notes for thermal considerations, such as “Heat sink required for Q1 (TO-220 package)”. For mixed-signal designs, isolate analog and digital grounds with a star topology to minimize noise coupling.

Document revisions meticulously. Maintain a changelog with timestamps, author initials, and descriptions of modifications. Version control systems like Git (for textual formats) or dedicated tools like Altium Vault ensure traceability. Example entry: “v2.1 – Replaced LM358 with LMV358 for lower noise, 2024-04-15, JK”. Include a title block with project name, date, and compliance standards (IPC-2221, UL 60950) to align with industry requirements.

Test for manufacturability early. Run DFM (Design for Manufacturing) checks to verify component availability and footprints. Use 0.1″ (2.54mm) pitch headers for prototyping and avoid custom packages unless absolutely necessary. For SMD components, adhere to IPC-7351 land pattern guidelines–especially for 0402/0603 packages–to prevent soldering issues. Export Gerber files and verify them with a viewer like GerbView or online tools to catch missing pads or incorrect drill holes.

Creating a Clear Technical Blueprint for Hardware Development

Begin with defining the primary functional blocks–power supply, processing unit, input/output interfaces, and sensors–using standardized symbols from IEEE 315 or IEC 60617. Label each block with its exact component designation (e.g., U1 for microcontroller, R5 for resistor) and include critical parameters like voltage ratings, tolerance values, or pin assignments directly on the layout. This eliminates ambiguity during prototyping and testing phases.

Separate analog and digital sections with distinct ground planes to prevent signal interference. Use thick traces (minimum 0.5 mm) for high-current paths and reserve thinner traces (0.15 mm) for low-signal connections. For impedance-sensitive lines (e.g., USB, Ethernet, or RF), calculate trace width and spacing based on PCB stackup and dielectric constant–ERRC tools can automate this step.

Integrate test points for every critical node–power rails, MCU reset lines, and data buses–using 1 mm diameter pads with silkscreen labels. Position them near the edges of the board for probe access during validation. Avoid placing test points under components or on high-density areas to ensure visibility and ease of debugging.

Document voltage domains explicitly, grouping components by their operating ranges (e.g., “3.3V Logic,” “12V Motor Driver”). Use color-coding or dashed outlines to visually distinguish between domains. Include transient protection devices (TVS diodes, ferrite beads) near connectors to shield against ESD or voltage spikes.

For microcontrollers and FPGAs, map every pin to its intended function (GPIO, SPI, I2C) and cross-reference with firmware registers. Add pull-up/pull-down resistors where required, specifying values based on leakage current or bus capacitance. Keep decoupling capacitors (0.1 µF ceramic) within 2 mm of IC power pins to ensure stable operation.

Label connectors with pin numbers and mating part numbers (e.g., “JST XH-4P”). Include orientation markers (keyed slots, asymmetric pin layouts) to prevent misalignment during assembly. For cables, note wire gauge, shielding requirements, and insulation ratings (e.g., “24 AWG, shielded, 300V”).

Add thermal management annotations–heat sink placements, thermal vias, or airflow directions–directly on the layout. Specify maximum junction temperatures for power components and recommended cooling methods (e.g., “TO-220, 15°C/W heatsink required”). For high-power designs, simulate thermal gradients using tools like Ansys Icepak before finalizing traces.

Include revision history in the top-right corner of the layout: date, author, changes made, and approval status. Export the final blueprint in both PDF (for collaboration) and Gerber/ODB++ formats (for fabrication). Store native design files (e.g., KiCad, Altium) in version-controlled repositories with clear commit messages for traceability.

Critical Elements for Technical Blueprints

Begin with power distribution paths outlined in detail–label all voltage rails, current ratings, and fuses or breakers protecting each branch. Trace connections from primary sources to secondary regulators with exact wire gauges or PCB trace widths calculated for expected loads. Include transient suppression components like TVS diodes or varistors positioned adjacent to connectors prone to ESD or surges. Specify grounding strategies: separate analog, digital, and chassis grounds with star-point connections at a single reference node to avoid loops.

• MCUs: Show reset pins, boot modes, and decoupling capacitors (0.1µF for high-frequency noise, 10µF bulk for low-frequency stability).
• Connectors: Document pinouts, mating cycles, and plating materials (e.g., gold for low-current signals).
• Sensors: Detail excitation voltages, pull-up/down resistors, and EMI shielding if near noisy components.
• Communication buses (I2C, SPI, CAN): Include pull-ups, termination resistors, and maximum trace lengths.
• Firmware interfaces: Mark test points for JTAG/SWD, UART headers for programming and debugging.
• Mechanical integration: Highlight mounting holes, keep-out zones, and thermal vias under high-power ICs.
• Fail-safes: Add watchdog timers, brown-out detectors, and redundant power inputs for mission-critical nodes.

Precise Connection Labeling and Documentation Techniques

Assign unique identifiers to each wire or trace using a consistent naming convention. For low-voltage signals, use prefixes like SIG_ (e.g., SIG_MIC_IN) paired with numbered suffixes if multiples exist, ensuring no duplicates. Power lines should follow VCC_ or GND_ prefixes with voltage values (e.g., VCC_5V), while communication busses require protocol-specific labels (e.g., I2C_SDA, SPI_MOSI). Store these labels in a master spreadsheet with columns for net name, source/destination pins, voltage/current ratings, and connector type–include a “Notes” field for exceptions like pull-up resistors or termination requirements.

Annotate cross-references directly on the layout using callout boxes with pin numbers, component designators (e.g., U3.P5 → JP2.P8), and signal descriptions. For multi-layer boards, color-code layers in the documentation: red for power, blue for ground, green for digital signals, and yellow for analog. Generating an IPC-D-356 netlist file automates validation against fabrication files–compare net names against the schematic’s netlist post-layout to catch discrepancies like swapped pins or missing connections. Document decoupling capacitor placements (e.g., C1@U3_PWR) near their respective IC pins, specifying ceramic types (X5R/X7R) and values (0.1µF + 10µF).

Embed QR codes linking to datasheets or test procedures on fabrication prints–scan these during assembly to verify component polarities or special mounting instructions. Use hierarchical labels for modular designs: prefix subsystem names (RF_TX_, AUDIO_) before individual nets. For differential pairs, denote polarity (e.g., USB_D+, USB_D–) and routing constraints (impedance, length matching) in the documentation. Archive all versions with timestamps and change logs, noting revisions like “V1.2: Added ESD diodes to J4.”

Critical Errors in Circuit Blueprint Design

Mislabeling power rails creates ambiguity for anyone interpreting the design. Use consistent naming conventions like VCC, VDD, GND, and VSS, and verify them against datasheets. A 3.3V line incorrectly marked as 5V may cause component failure during prototyping. Cross-check every voltage node with the expected operating range of connected ICs, resistors, or capacitors.

Omitting decoupling capacitors near integrated circuits leads to unstable operation. Place 0.1µF ceramic capacitors within 2mm of each IC’s power pins, and add bulk capacitance (10µF or larger) for high-current devices. Failure to do so can introduce noise, reset erratically, or draw excessive current. Refer to the device’s application notes for precise capacitor recommendations.

Overcomplicating connections forces reviewers to trace unnecessary paths. Minimize crossover lines by arranging components logically–group related parts like sensors, microcontrollers, and regulators separately. Use net labels instead of wires spanning the entire blueprint. Tools like Eagle or KiCad allow hierarchical blocks to simplify dense sections, improving readability without sacrificing detail.

Inconsistent Pin Numbering

Mixing pin numbering systems (e.g., DIP vs. SOIC) guarantees assembly errors. Always align symbols with the physical footprint–validate against the manufacturer’s datasheet. For example, an ATmega328 in TQFP package has a different pinout than its PDIP variant. Generate a BOM with exact part numbers to ensure compatibility during PCB layout.

Ignoring thermal considerations in power components risks overheating. Linear regulators and MOSFETs require copper pours or heatsinks–calculate power dissipation (P=IV) and verify against the device’s thermal resistance (θJA). A LM7805 dropping 7V at 1A dissipates 7W, demanding a heatsink rated for at least 10°C/W. Skipping this step may lead to permanent damage during operation.
