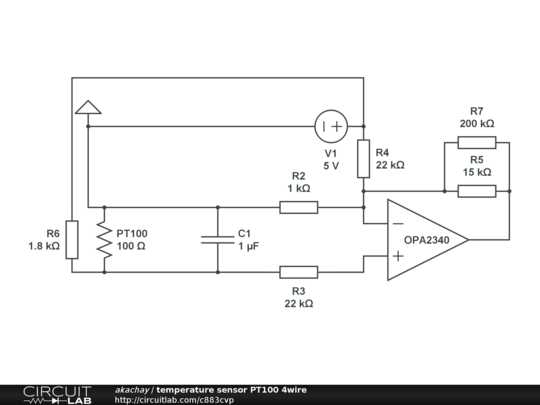

How to Build and Connect a Pt100 Sensor Schematic for Accurate Measurements
For accurate thermal monitoring in industrial or laboratory setups, integrate a platinum-based resistive element with a four-wire configuration to eliminate lead resistance errors. A minimal excitation current of 0.1 mA to 1 mA ensures linearity while preventing self-heating–calculate the required current based on the element’s dissipation factor (typically 1 mW/°C for standard probes). Use a constant-current source rather than a voltage divider to maintain stability across the operational range, which spans -200°C to +850°C with a base resistance of 100 Ω at 0°C.
Select a high-precision instrumentation amplifier (INA125 or equivalent) with input impedance exceeding 100 MΩ and a CMRR of at least 100 dB to reject common-mode noise. Configure gain between 10x and 100x, adjusting for the expected output span (e.g., 0.4 Ω/°C at 0°C). For extended-range applications, compensate for nonlinearity using a polynomial approximation or lookup table–third-order coefficients for IEC 60751: A = 3.9083 × 10⁻³ °C⁻¹, B = -5.775 × 10⁻⁷ °C⁻², C = -4.183 × 10⁻¹² °C⁻⁴.
Grounding is critical: use a star topology to avoid ground loops, and isolate the measurement path from power circuits to prevent EMI. For high-accuracy applications, include a calibration resistor (e.g., 100 Ω ±0.01%) in the same thermal environment as the probe to correct for drift. Filter the raw signal with a low-pass cutoff at 10 Hz to suppress 50/60 Hz mains interference–implement this in hardware (RC network) or software (moving average).
Power supply noise directly impacts resolution–regulate to ±0.1% ripple and decouple with 10 µF tantalum and 0.1 µF ceramic capacitors near the amplifier. For battery-powered devices, consider a chopper-stabilized op-amp (e.g., MAX4236) to mitigate drift. Test sensitivity by exposing the probe to a fixed-point cell (e.g., triple point of water 0.01°C)–repeatability should be ±0.05°C or better. Document the calibration curve and recalibrate periodically if thermal cycling exceeds ±100°C from ambient.
Resistance Thermometer Wiring Guide for Precise Measurements
Use a three-wire configuration to eliminate lead resistance errors in 100-ohm platinum elements over distances exceeding 3 meters. This approach balances the impedance of each conductor, reducing measurement drift by up to 90% compared to two-wire setups. For applications requiring ±0.1°C accuracy, a four-wire arrangement is mandatory, separating excitation and sensing paths entirely.
Select excitation currents between 0.5 mA and 1 mA to prevent self-heating while maintaining signal strength. Currents above this threshold can elevate readings by 0.2–0.5°C per mA in still air. The table below shows recommended current ranges for common accuracy tiers:
| Accuracy Requirement | Excitation Current (mA) | Max Lead Length (m) |
|---|---|---|
| ±1°C | 0.8–1.0 | 100 |
| ±0.5°C | 0.6–0.8 | 50 |
| ±0.1°C | 0.4–0.6 | 10 |
Apply a low-pass filter with a cutoff frequency 10× the sampling rate to suppress 50/60 Hz interference. For environments with variable magnetic fields, twist excitation and sensing wires together at 10–15 turns per meter. This reduces induced noise by 40 dB compared to untwisted pairs.
Calibrate the measurement path against a reference standard at least quarterly. Drift in inexpensive amplifiers can shift readings by 0.3–0.7°C per year. Replace components with thermal coefficients above 50 ppm/°C to preserve linearity across -50°C to 200°C spans.
Shield cables using copper braid or foil, grounding the shield at a single point near the signal conditioning stage. Floating shields accumulate leakage currents, adding measurement errors up to 0.15°C per 10 m of cable. Avoid daisy-chaining shields to multiple grounds.
For multiplexed systems, use relays with gold-plated contacts and leakage currents below 1 nA. Mechanical switches introduce 2–5 Ω contact resistance variability, distorting readings by 0.2–0.8°C. Solid-state multiplexers eliminate this error but require input protection against 20 V transients.
Specify resistors with 0.1% tolerance or better for voltage divider networks. A 1% resistor in the sensing path can skew results by 2.5°C at 100°C. Match the temperature coefficients of divider resistors to within 10 ppm/°C to prevent drift over thermal cycles.
Validate the setup with ice-point (0°C) and boiling-point (100°C) references before deployment. Check continuity and insulation resistance between all conductors with a 500 V megohmmeter–values below 100 MΩ indicate compromised dielectric integrity.
Core Elements for Accurate Resistance-Based Thermometry
Select a precision resistor bridge as the foundation–Wheatstone or Mueller configurations offer optimal stability for 4-wire measurements, reducing lead resistance errors to below 0.1%. The reference resistor should match the target device’s nominal value at 0°C (100Ω for standard industrial models) with tolerance tighter than 0.01% to eliminate baseline drift.
Incorporate low-noise instrumentation amplifiers with input impedance exceeding 1GΩ and CMRR above 120dB. INA125 or AD8221 variants prevent signal degradation from common-mode interference, critical when measuring spans under 1mV/°C. Bypass capacitors (0.1μF X7R) at amplifier inputs suppress high-frequency transients; place them within 5mm of pins.
Excitation Current Optimization
Limit current to 1mA for 100Ω devices–exceeding this risks self-heating errors up to 0.5°C. Use a precision current source like REF200 (dual 100μA) or a temperature-stabilized transistor array (e.g., LM334) scaled via resistor network. For dynamic applications, PWM-driven current sources introduce switching noise; opt instead for linear regulation with thermal coupling to the sensing element’s housing.
Implement a 50Hz notch filter (Q-factor ≥ 20) to reject mains interference, particularly in industrial environments. Sallen-Key active topology outperforms passive RC networks here, preserving signal integrity without phase shift. Calibration standards (ice-point reference cells or FLUKE 9100-series calibrators) should verify system linearity biannually–drift often originates from aging capacitors rather than the primary sensing element.
For harsh environments, enclosure material matters: 316 stainless steel resists corrosion in chlorine-rich atmospheres, while polyether ether ketone (PEEK) maintains dimensional stability under thermal cycling. Ground loops introduce errors up to ±3°C; isolate sensing circuits using optocouplers (e.g., HCPL-316J) or differential signaling–never rely on chassis grounding alone.
Wheatstone Bridge Configuration for Resistance-Based Probes
Use a 3-wire configuration to minimize lead resistance errors in precision measurements. The third wire compensates for voltage drops in the cables, critical when distances exceed 2 meters or environmental conditions fluctuate. Select bridge resistors with a tolerance of 0.1% or better–standard 1% components introduce unacceptable drift in applications requiring ±0.1°C stability.
Excitation current should not exceed 1 mA for standard probes–higher values cause self-heating, distorting readings. For platinum elements, a 0.5 mA supply typically yields a 0.25 mV/°C output, balancing sensitivity and thermal effects. Calculate resistor values for a 1:1 ratio at the midpoint of the expected range (e.g., 138.5 Ω at 100°C) to maximize bridge sensitivity.
Critical Component Selection
- High-stability resistors: C0G/NP0 ceramic capacitors for filtering (if used) to avoid piezoelectric noise.
- Low-TC (temperature coefficient) resistors:
- Avoid carbon composition resistors–drift exceeds 500 ppm/°C, invalidating calibration within days.
Ground the bridge at a single reference point to prevent ground loops. Use a star-grounding topology if multiple bridges share a supply–common impedance paths corrupt readings by 5-20 μV per 1 mA of shared current. For remote installations, add a 10 μF tantalum capacitor across the bridge output to suppress RF interference, which can induce 0.5°C errors at 10 kHz.
Calibrate the bridge under actual operating conditions. Ambient shifts of 10°C alter bridge zero by 0.05°C even with perfect resistors. Use a precision decade box to simulate probe resistance at known reference points (e.g., 100 Ω at 0°C, 138.5 Ω at 100°C) and adjust gain/offset trim pots in 0.01% increments. Skip software compensation–it masks hardware flaws.
- Verify bridge balance with a 6½-digit DMM at zero input–any offset >1 μV indicates resistor mismatch or thermal EMF in connections.
- Test linearity by sweeping the decade box from 100 Ω to 200 Ω–nonlinearity >0.1% suggests parasitic capacitance or poor grounding.
- Measure noise floor with the probe disconnected–values >2 μV RMS (1 Hz–1 kHz bandwidth) require power supply filtering or shielded cables.
Replace solder joints with welded or crimped connections if thermal EMF exceeds 0.1°C. Copper-brass interfaces generate 2–4 μV/°C; use identical metals or thermal shunts. For 4-wire configurations (rare in bridges), ensure sense wires carry
Signal Conditioning and Amplification Techniques
Use a precision instrumentation amplifier with a CMRR exceeding 100 dB to reject common-mode noise in low-level resistive measurements. The AD8221 offers 120 dB CMRR at 50 Hz, ensuring minimal interference from mains hum or nearby switching regulators. Configure the amplifier with a gain of 100–500 to scale microvolt-level variations to a usable 0–5 V range.
Implement a 4-wire Kelvin connection to eliminate lead resistance errors. The excitation current should flow through separate force leads, while sense leads connect directly to the measurement bridge, compensating for up to 10 Ω of wiring resistance without signal degradation.
Add a low-pass RC filter with a cutoff frequency of 10 Hz to attenuate high-frequency transients. A 1.6 kΩ resistor paired with a 10 µF capacitor achieves -20 dB attenuation at 100 Hz, preserving the DC component while rejecting AC interference.
For thermal drift compensation, select resistors with a TCR below 10 ppm/°C. Thin-film resistors like the RN73 series maintain stability within ±0.05% over a 0–70°C range, reducing calibration intervals. Match the bridge resistors to within 0.1% for optimal linearity.
Drive the excitation current using a current source instead of a voltage source to improve stability. A Howland current pump with an op-amp like the OPA2188 delivers 1 mA ±0.1% over -40°C to 125°C, ensuring consistent scaling across the full operating span.
Isolate the analog front end with an optocoupler or digital isolator like the ISO7731, providing 5 kV RMS isolation. This prevents ground loops and protects downstream ADC channels from transient voltages up to 10 kV, especially critical in industrial environments with inductive loads.
