How to Read and Apply Your PTO Clutch Electrical Wiring Guide
Start with the ground circuit. Most heavy-duty activation setups use a 12V or 24V battery as the primary power source. Locate the negative terminal and run an 8-gauge cable directly to the engagement mechanism’s frame–avoid daisy-chaining through other components. Ground points should be clean, bare metal, free of paint or corrosion, secured with a star washer to prevent loosening under vibration.
Use a relay for the control circuit. A 30/40 amp automotive relay (ISO Micro or mini size) is ideal–connect terminal 86 to the dashboard switch and terminal 85 to a reliable ground. Insert a 10-amp inline fuse within 6 inches of the battery positive for protection. For vehicles with electronic control modules, tap into the ignition-switched power at the fuse box using a 18-gauge wire; verify voltage with a multimeter before connecting.

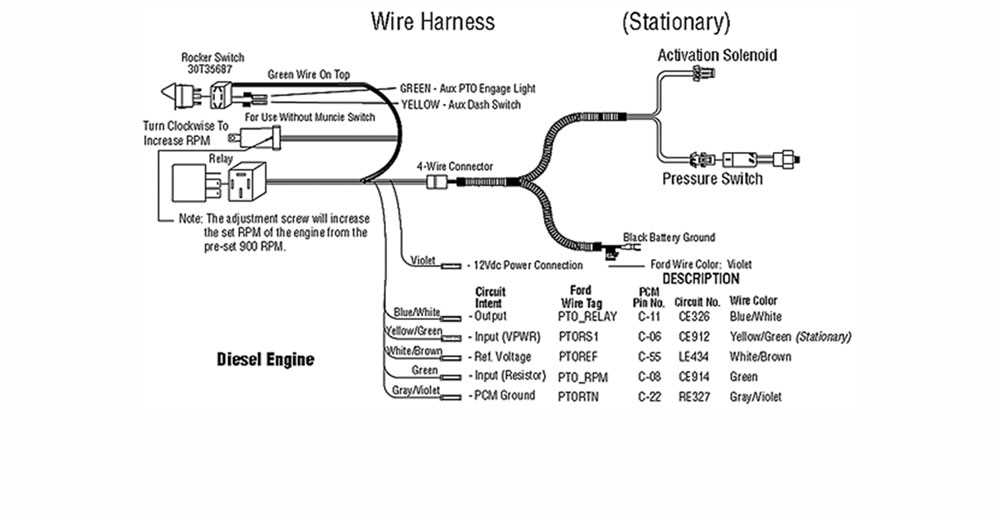

Avoid common mistakes: skipping the diode suppressor on the engagement solenoid can cause backfeed damage to switches. Install a 1N4007 diode across the solenoid terminals with the cathode (striped end) connected to the positive side. For hydraulic systems, ensure the pressure switch is wired in series–most require a 12V signal to close, so wire it between the relay’s output (terminal 87) and the solenoid’s positive terminal. Double-check polarity before applying power.
For variable-speed applications, integrate a pulse-width modulator (PWM) between the switch and relay. Set the PWM to 50-70% duty cycle to prevent rapid cycling of the engagement plate. Test under load: listen for smooth operation, feel for heat buildup at connections, and use a non-contact thermometer to confirm temperatures stay below 140°F (60°C) during prolonged use. Replace any connectors showing signs of discoloration or resistance above 0.5 ohms.
Understanding Power Take-Off Engagement Schematics

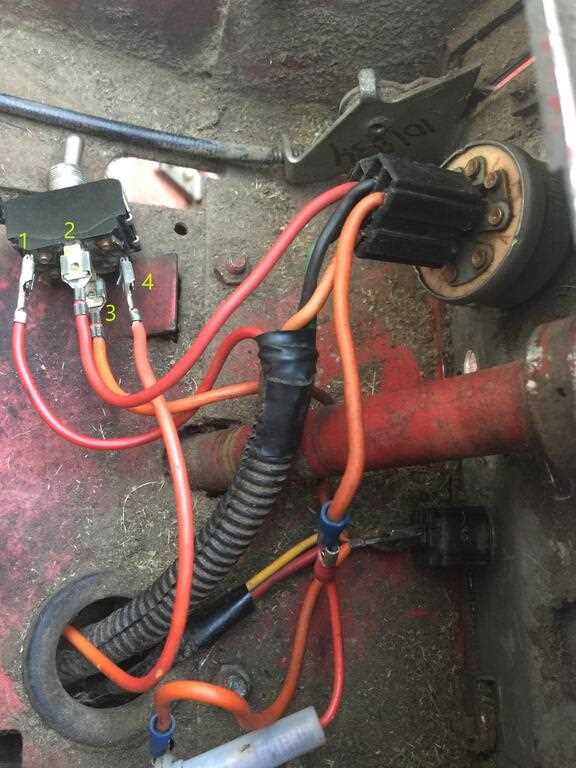

Begin by locating the activation switch–typically a three-position toggle marked *off-neutral-on*–on the tractor’s control panel. The neutral setting disconnects the circuit entirely, while the “on” position engages the electro-mechanical link. Trace the wiring from this switch to its first connection point: a 10A fuse or thermal breaker housed in a small plastic junction box near the transmission. Ensure this fuse matches the OEM specifications (usually 8-12A for 12V systems) to prevent accidental overload.
From the fuse, follow the red (positive) lead to the engagement coil mounted on the rear shaft housing–the solenoid-like component wrapped in a cylindrical casing. Verify the wire gauge here: 14 AWG suffices for most medium-duty applications, but heavy-duty tractors (e.g., loader models) may require 12 AWG to handle the 20-30 amp surge during startup. Grounding occurs via the tractor’s chassis–clean the mounting surface at the coil base with a wire brush and apply dielectric grease to prevent corrosion-induced voltage drop.
For auxiliary circuits, certain models include a safety interlock wired in series with the main activation path. If present, this microswitch (often attached to the gearshift or hydraulic lever) must close before current reaches the coil. Test continuity across its terminals with a multimeter; resistance should read under 0.5 ohms when engaged. Replace switches showing erratic readings to avoid intermittent failures.
When integrating third-party attachments, confirm voltage compatibility–some implements require 24V despite the tractor’s 12V system. Use a dual-voltage relay with a 20A contact rating, inserting it between the coil and the implement’s power input. Label all splices with heat-shrink tubing and secure loose runs with zip ties at 12-inch intervals, avoiding sharp edges and moving driveline components.
Locating Critical Elements in Power Take-Off Circuit Schematics
Start by isolating the activation solenoid–this component typically appears as a compact coil near the drive assembly’s engagement point. Look for its paired terminals: one linked to the power source (usually a 12V battery line) and another grounded through the switch mechanism. Verify continuity with a multimeter; resistance should read between 3–8 ohms for functional units. Higher values indicate coil degradation, while zero suggests a short.
Key Connections to Examine
- Battery input: Trace the red cable from the solenoid’s positive terminal back to its origin. It often splices through a fuse (10–20A) or relay box–corrosion here mimics clutch failure.
- Control switch: The manual or electronic toggle routes current to the solenoid. Inspect for:
- Loose connectors (common in vibration-prone equipment).
- Voltage drop across contacts (should not exceed 0.2V).
- Proper grounding–ensure the switch’s return path terminates at chassis metal, not painted surfaces.
- Thermal overload: Some systems integrate a bimetallic strip or resettable breaker. Locate it near the solenoid; tripped units require cooling before resetting–never bypass permanently.
Label every wire with colored tape before disassembly. Use the schematic’s reference numbers (e.g., “SOL-1,” “GND-A”) to cross-check against terminal labels on the actual installation. Miswired setups risk solenoid burnout or erratic engagement. For hydraulic-driven variants, confirm the proportional valve’s wiring mirrors the solenoid’s layout–incorrect polarity here causes reverse operation or stalling.
How to Interpret an Electromagnetic Engagement System Schematic
Begin by locating the power source symbol–typically a battery icon–on the electrical layout. Note the voltage rating, commonly 12V for small engines or 24V for commercial setups. Trace the positive lead (+) from the source to the activation switch, often marked as a manual control lever or relay contacts. Verify if the switch is momentary (spring-loaded) or maintained (latching) based on its standard symbol: a single break line for momentary, double for maintained.
Identify the electromagnetic coil within the engagement assembly by finding the circular loop or elongated rectangle labeled with resistance values (e.g., 3-5 ohms). Cross-reference this with the manufacturer’s specifications to confirm expected impedance. Connecting wires from the switch should terminate at this coil, but inspect for inline components such as diodes, fuses, or resistors–these appear as jagged lines, thin rectangles, or colored bands adjacent to the conductor paths.
Check the ground return path next. The schematic may depict it as a downward-pointing triangle or three parallel lines converging into a single point. Ensure continuity by following the negative (-) path back to the battery or a dedicated chassis connection. Weak or corroded grounds cause intermittent failures; test resistance with a multimeter (should read <0.5 ohms).
| Component | Symbol | Troubleshooting Tip |
|---|---|---|
| Activation Switch | Breaks in line (single/double) | Verify continuity in both positions; replace if clicks but no circuit formed |
| Diode (Flyback) | Triangle + line | Check polarity; reverse-bias should block current, forward-bias <1V drop |
| Thermal Fuse | Rectangle with “T” | Replace only with identical rating; overheating indicates coil short |
Examine auxiliary circuits like safety interlocks. Some schematics include normally closed (NC) or normally open (NO) contacts linked to oil pressure sensors or brake pedals. These appear as pairs of curved lines intersecting a conductor. Bypass temporarily for testing by bridging with a jumper wire, but restore original wiring afterward to prevent unintended engagement.
Locate any relays depicted as rectangles with coil and contact pins labeled (e.g., 85, 86 for coil; 30, 87 for contacts). Swap with a known-good relay if engagement is erratic. For solid-state components like transistors, look for a “T” shape with emitter (E), base (B), and collector (C) markings. Test with a transistor tester or substitute if leakage current exceeds 0.5mA.
Document modifications by redrawing sections of the schematic with a highlighter. Note wire gauge changes (e.g., 14AWG for high-current paths vs. 18AWG for controls) and color codes–commonly red for power, black for ground, and blue/yellow for signal lines. Cross-reference with physical wires using a tone generator and avoid splicing unless necessary; solder and heat-shrink joints ensure reliability.
Frequent Electrical Errors and Diagnostic Steps
Connecting the control switch directly to the power supply without a fuse or relay is a critical error. Even a 5-amp fuse can prevent meltdowns in thin gauge cables (18-22 AWG). Use a multimeter to verify voltage at the switch terminals–if readings exceed 14.5V during engine idle, check the alternator output. Low voltage (below 11V) often indicates a corroded ground point, typically near the transmission housing or battery tray.
Misrouted Cables and Chafing Risks
Avoid routing cables alongside moving components like the drive shaft or hydraulic lines. Use split loom tubing (¼” minimum diameter) for sections passing near sharp edges. Inspect tie points every 12 inches–replace any zip ties that feel brittle. If continuity tests show resistance above 0.5 ohms, track the entire path for crushed or pinched spots. Common failure points include the firewall grommet and the rear axle bracket.
Swapping polarity at the solenoid terminal is another common mistake. Incorrect connections cause rapid coil heating–visible as discoloration within 10 seconds of activation. Always cross-check terminal markings: the smaller post (S) connects to the control side, while the larger post (B) links to the battery. If the mechanism fails to engage, probe the S terminal with a test light–if lit, the issue lies downstream; if dark, trace back to the switch or safety interlock circuit.
Improper grounding leads to erratic behavior. Clean mounting surfaces with a wire brush, removing paint and corrosion until bare metal is visible. Torque ground bolts to 8-10 ft-lbs; overtightening cracks the terminal eyelets. On older models, add a secondary ground strap (4 AWG minimum) between the engine block and chassis if the primary path shows voltage drop above 0.2V. Test for stray current by disconnecting the battery and measuring resistance–values below 5 ohms confirm a solid path.
