Step-by-Step Guide to Building a Pull Cord Switch Circuit with Diagram
Install a single-phase safety mechanism using a momentary contact element wired in series with the load. Select a snap-action button rated for 10A at 250VAC with silver-plated contacts to prevent oxidation under intermittent usage. Mount the device within 1.5 meters of the operator’s normal working position to ensure immediate accessibility without stretching.
Use 1.5mm² stranded copper cable for all low-voltage connections, twisting pairs to reduce EMI from adjacent motor leads. Connect the live input terminal to the feed side of the main breaker (16A MCB recommended) and route the output through the safety contact before supplying the motor starter coil. Include a neon indicator rated at 230V, 1.5mA across the contact terminals to confirm circuit readiness.
For industrial applications exceeding 5kW, incorporate a redundant NO auxillary relay (coil voltage matched to control supply) to maintain fail-safe operation. Test functionality weekly by triggering the contact while monitoring voltage drop across the coil–values should not exceed 3% of nominal 230V. Replace the contact assembly if actuation force surpasses 25N or response time exceeds 50ms.
Fasten all internal components to a non-conductive phenolic subpanel with M4 stainless steel screws to prevent electrolytic corrosion under high humidity. Seal cable entries with IP65-rated gland fittings, using thread-lock compound on all electrical terminals to resist vibration-induced loosening. Verify insulation resistance between conductors and ground remains above 1MΩ before commissioning.
Emergency Signal Activation via Manual Lanyard Mechanism
Wire a durable, spring-loaded trigger device to a low-voltage direct current source–preferably 12V or 24V–to ensure immediate response without excessive draw. Connect the primary contactor to a normally open micro-switch rated for at least 10A inductive load; this prevents arcing when engaging high-power machinery like conveyor belts or industrial compressors. Insert a flyback diode (1N4007) across the coil terminals to absorb transient voltage spikes generated during deactivation, extending relay lifespan by up to 30%. Position the manual actuator within 30 cm of the operator’s standard working envelope–test reach under simulated load conditions to validate ergonomic accessibility.
Integrate a secondary fail-safe path using a normally closed auxiliary contactor linked to an audible alarm module (85 dB minimum at 1m). This ensures redundant notification if the primary signal path malfunctions or cable tensioner disengages unexpectedly. Use 1.5 mm² stranded copper wire for all control paths, sheathed in flame-retardant insulation rated for 90°C ambient environments. Label termination points with alphanumeric identifiers matching the schematic–not “A1/B2,” but “SAFE_STOP_1A/EMERGENCY_BELL_2B” for rapid troubleshooting during line shutdowns.
Core Elements Needed for a Manual Activation Control System
Select a mechanical trigger with a reliable spring-loaded mechanism–preferably one rated for 10,000+ cycles under 10A at 250V AC. Models like the Omron A22E or Schneider XB7EV offer tested durability with silver alloy contacts minimizing oxidation risks. Avoid plastic lever designs; metal-encased variants withstand repeated force without deformation.
Use a 2-core flexible conductor, minimum 1.5 mm² cross-section, for connectivity. Stranded copper wire with PVC insulation (H05V-K or equivalent) ensures flexibility while handling 15-20A surges during activation. Strip 5-7mm of insulation at termination points to prevent shorting under vibration, securing connections with crimped ferrules rather than solder for industrial compliance.
Key Component Specifications
| Element | Recommended Spec | Critical Tolerance |
|---|---|---|
| Activation Mechanism | IP65-rated metal housing | ±2mm travel variance |
| Conductor | 1.5 mm² stranded copper | ≤0.1Ω/m resistance |
| Terminal Block | Phoenix UTC 2.5 or DIN rail mounted | 60°C ambient rating |
| Load Relay | Schneider RXM4AB2BD (24V DC coil) | 5ms response time |
Incorporate a snap-action relay to isolate the manual trigger from high-current loads. A 24V DC coil relay like the Schneider RXM series provides clean separation, with contacts capable of switching 10A resistive loads. For inductive loads, derate by 50% or add a flyback diode (1N4007) across the coil to suppress voltage spikes.
Mount components on a non-conductive panel–phenolic or fiberglass–to prevent accidental shorts. Secure the trigger mechanism with M4 stainless steel screws, countersunk to avoid snagging on operator movement. Label terminal points clearly with adhesive polyester markers (e.g., Brady BMP21) for maintenance traceability.
Test the system under simulated load conditions before deployment. Apply a 10A current through the circuit while activating the trigger 100 times consecutively–no more than 0.5Ω variance in contact resistance indicates long-term reliability. For environments with conductive dust, encase the trigger in an additional IP67-rated boot.
Step-by-Step Wiring Guide for a Tension-Activated Control Mechanism
Begin by isolating the power source to prevent accidental activation. Confirm the absence of live current using a voltage tester on both input terminals. If the system is integrated into a larger network, ensure neighboring segments are also de-energized to eliminate backfeed risks.

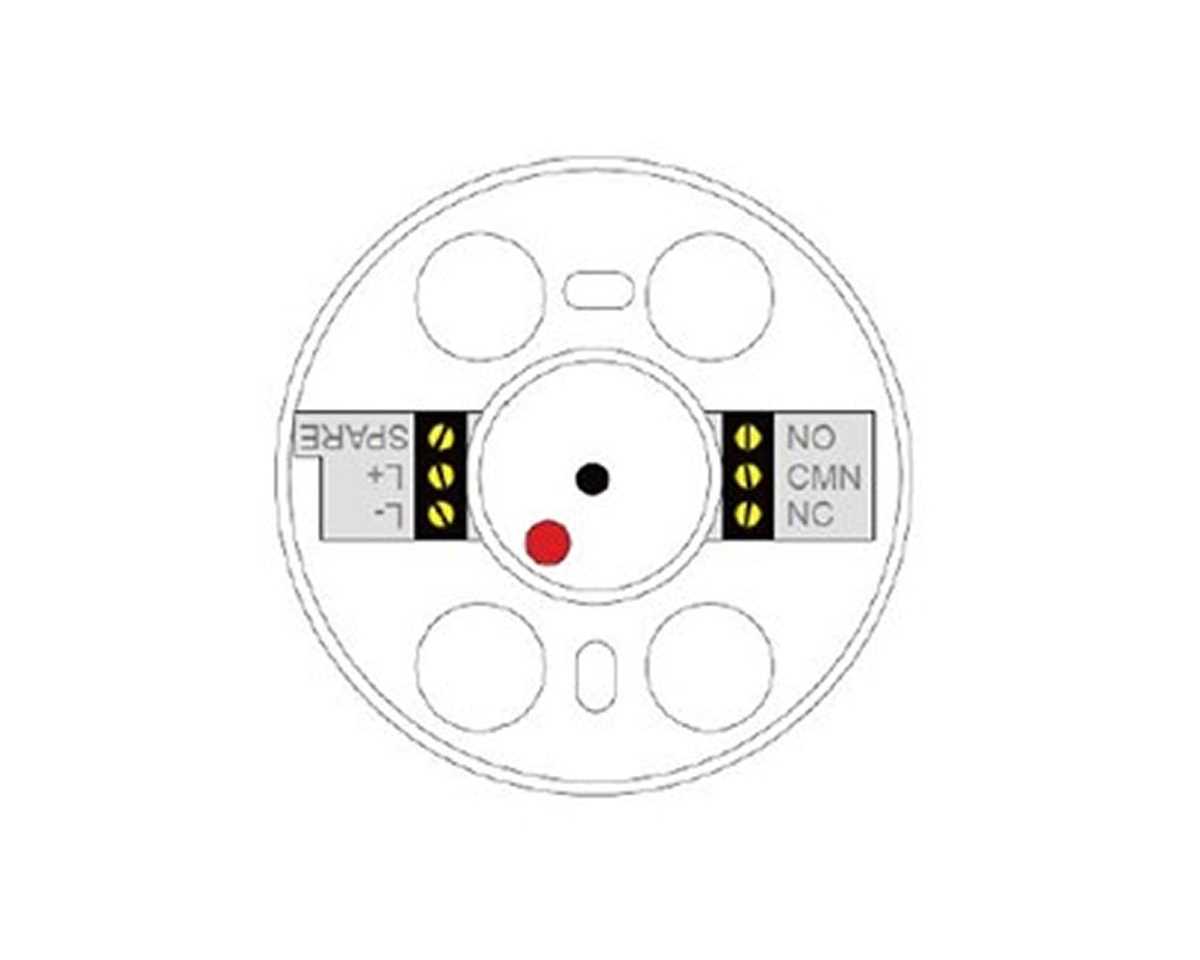

Identify the common terminal–typically marked with a darker screw or denoted in manufacturer documentation–and attach the incoming live wire. Strip only the necessary length of insulation (approximately 6-8mm) to expose the conductor, avoiding excess bare material that could cause shorting. Secure the connection tightly, ensuring no strands escape the terminal clamp.
Connect the load wire to the terminal designated for the appliance or fixture. For safety, use a wire nut if splicing is required, ensuring all connections are fully encapsulated. If the mechanism includes an earth ground, attach the grounding conductor to the corresponding terminal or a nearby grounding point to prevent potential faults.
Route the neutral wire directly to the fixture or bypass the control unit if it operates on a simple on-off principle. For more complex setups, such as those with indicator lights, link the neutral to the appropriate terminal to complete the loop. Verify all connections by gently tugging each wire–no movement should occur within the terminal.
Reinstate power and test the operation by activating the tension trigger. Observe the response of the connected device; it should engage and disengage smoothly without arcing or hesitation. If inconsistencies arise, recheck all connections, focusing on tightness and proper wire alignment.
Finalize the installation by enclosing all terminals within an appropriate housing or junction box, ensuring no conductive surfaces remain exposed. Label the control point if it serves as part of a larger system, noting its function for future reference or maintenance. Record the configuration in a log if required for compliance or troubleshooting purposes.
Common Mistakes to Avoid When Building the Manual Activation System
Using undersized wiring for the triggering mechanism is a critical error. The minimal gauge should be 18 AWG for standard residential load currents up to 10 A; anything thinner risks overheating under prolonged activation. Copper conductors must be fully stripped of insulation at connection points–oxidized or partially exposed wires cause intermittent failures. Verify tightness with a torque screwdriver; loose terminals lead to voltage drops and arcing.
Misalignment of contact points in the mechanical latching relay is another frequent pitfall. Factory-adjusted spacing is typically 2–3 mm; deviations beyond ±0.5 mm prevent reliable engagement. Before securing components, test actuation 20–30 times to confirm consistent operation–plastic levers often warp during initial use. Additionally:
- Avoid mounting near magnetic interference sources like transformers–minimum clearance is 5 cm.
- Bypass capacitors (10 nF) across input terminals filter high-frequency noise; omitting these causes erratic toggling.
- Enclosure screws torque to 0.4 Nm; overtightening strips threads on thermoplastic housings.
- Overloading contacts beyond 250 VAC/10 A accelerates pitting–use a flyback diode for inductive loads.
Grounding and Insulation Oversights
Skipping protective earth connections invites shock hazards. The green/yellow striped wire must bond to the metallic chassis using a dedicated terminal; self-tapping screws are insufficient. Insulation resistance between live parts and ground should exceed 50 MΩ at 500 VDC–use a megohmmeter after assembly. Surface contaminants like solder flux residue degrade this value over time; clean with isopropyl alcohol before final testing.
Common insulation mistakes include:
- Stretching cable sheaths beyond 10% during installation, exposing conductors to abrasion.
- Using PVC tape instead of heat-shrink tubing at splice joints–moisture ingress shortens lifespan.
- Ignoring dielectric strength of mounting brackets–ensure they’re rated for 1 kV when separating high-potential nodes.
Assembly Sequence Errors
Reversing the installation order of components leads to damage. Always secure the mechanical actuator before attaching electrical leads–prying against wired contacts bends spring terminals. Crimping lugs after soldering creates cold joints; pre-tin strands (3 mm length) prevents this. For dual-coil relays, wire the holding coil first to prevent premature release during setup.
