Yamaha Raptor 660 Complete Electrical Wiring Diagram and Connector Guide
The color-coded conductor paths for this vehicle’s ignition, lighting, and charging circuits follow a precise pattern: black/white stripes denote ground lines, while red wires handle primary power distribution from the battery. Yellow leads connect to the stator output, feeding the rectifier-regulator–verify voltage at the connector with a multimeter, targeting 13.5–14.5V DC at idle. If readings fall below 12.8V, inspect the stator coils for continuity; resistance should measure 0.1–1.0 ohms per phase.

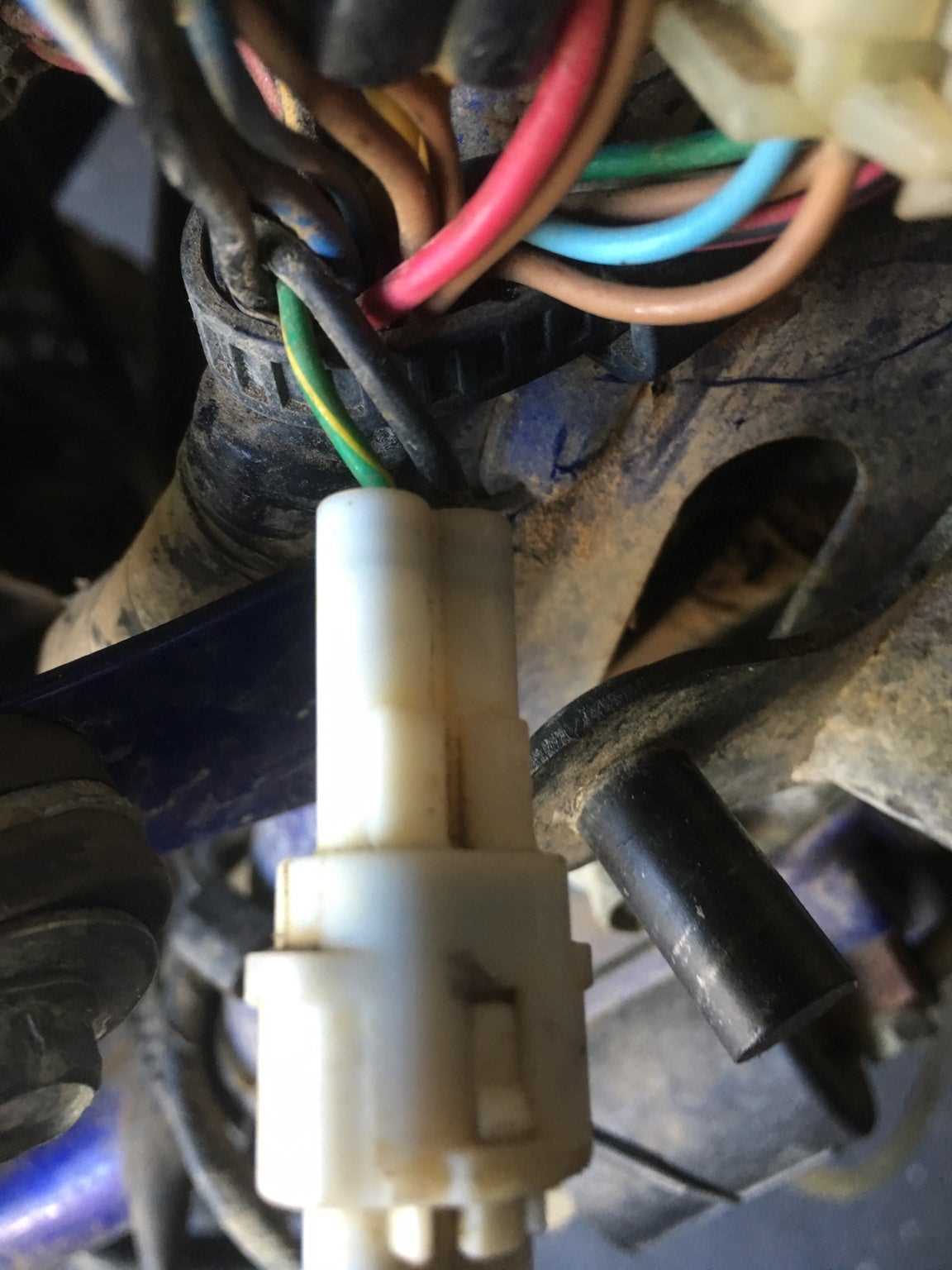

Examine the main harness near the steering column for corrosion or frayed insulation, particularly where it passes through the frame grommet–this is a frequent failure point under vibration. The CDI unit receives trigger pulses from the pickup coil via gray/red leads; test for a clean 1.5–3.0V AC signal when cranking. Replace the coil if the waveform appears distorted on an oscilloscope or if the engine misfires at specific RPM ranges.
For auxiliary circuits like the electric starter and brake lights, refer to the fuse block under the left-side panel: 15A for the starter relay, 10A for lighting. If the starter engages but the engine doesn’t crank, check the solenoid contacts–clean them with 400-grit sandpaper if pitted. When splicing repairs, use crimp connectors rated for 20A and heat-shrink tubing; solder joints alone risk fatigue failure under off-road stress.
High-resistance connections in the lighting circuit often cause dim or flickering beams. Trace the brown/red wires from the taillight to the switch, probing for voltage drop exceeding 0.3V–if found, bypass the corroded segment with 16-gauge marine-grade wire. For engine sensors, the white/red wire to the temperature sender should show 4.5–5.5V at the ECU pin; shorts here trigger false error codes, forcing limp-mode operation.

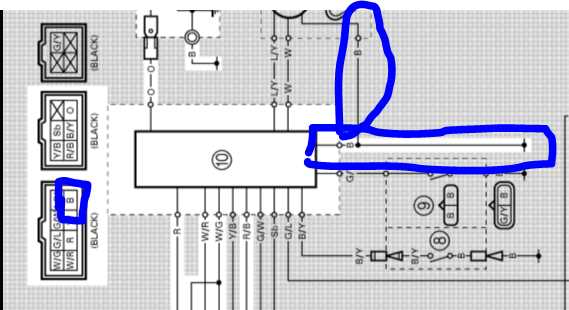

Electrical Schematic for Yamaha ATV 2001-2005 Models
Locate the main harness connector behind the left-side panel near the battery. Pin A3 (yellow/red stripe) carries ignition power–verify continuity to the CDI unit using a multimeter set to 200Ω. If resistance exceeds 1Ω, replace the harness segment between the ignition switch and CDI. Ground Pin B2 (black/white) directly to the frame with a 10-gauge wire; corrosion at factory weld points causes intermittent spark loss. For LED upgrades, splice into Pin C7 (blue) with a 5A inline fuse–stock circuits lack sufficient amperage for high-output lamps.
Trace the stator wires (three yellow leads) to the regulator/rectifier. Measure AC voltage at 3,000 RPM: expect 20-25V; readings below 18V indicate stator failure. Disconnect the negative battery terminal before probing to avoid damaging the ECU. The pickup coil (gray wires) generates 0.5-0.8V AC at idle–replace if no signal is detected during rotation. For troubleshooting no-start conditions, bypass the kill switch temporarily by bridging its connector terminals; persistent issues point to CDI failure. Always use dielectric grease on connectors in high-vibration areas like the handlebar switches.
Test throttle position sensor resistance: 0.5-1.5kΩ at closed throttle, 3-5kΩ at full. Adjust by loosening the two mounting screws and rotating the sensor until readings stabilize. Inspect the fuel pump circuit (pink/black wire) for 12V during cranking–absence of voltage suggests a faulty relay (part #3FU-81950-10-00). For EFI models, reset learned values after battery reconnection by holding the throttle wide open for 10 seconds with the ignition off. Store harnesses elevated above frame rails to prevent rodent damage; mice target soy-based insulation in OEM wiring.

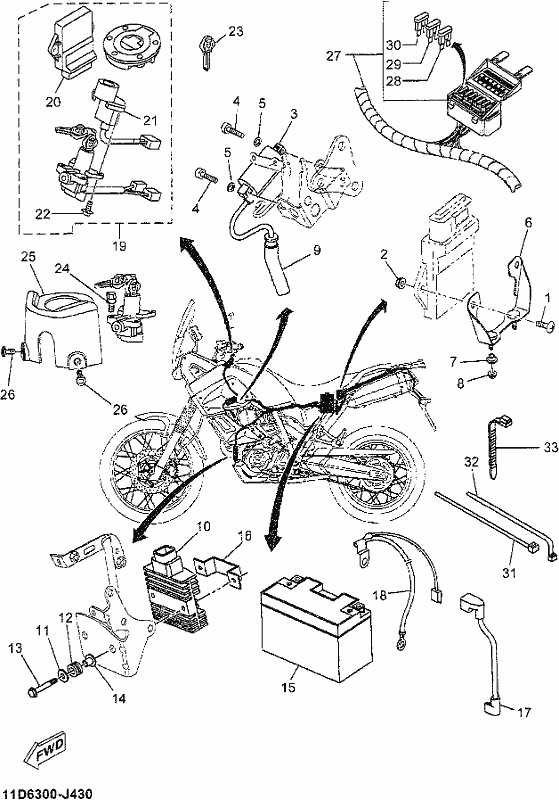

Identifying Critical Parts for ATV Electrical System Hookups
Begin with the battery compartment–locate the positive (+) terminal first, typically marked in red with a protective cap. Remove the seat or side panels if necessary, as access varies by model year. Verify the terminal connections aren’t corroded; clean with a wire brush if oxidation is visible. Ground cables must attach to unpainted metal surfaces for proper conductivity.
Trace the main harness from the ignition switch to the fuse box. The fuse box is usually mounted near the battery or under the front fairings. Check the fuse ratings listed on the cover–replace any blown fuses with identical amperage (common values: 10A, 15A, 20A). Use a multimeter to confirm power at the fuse terminals before reinstalling the cover.
The stator and regulator/rectifier form the charging circuit’s core. Inspect the stator wires (three thick yellow cables) for fraying or melting. Connectors often corrode–use dielectric grease when reattaching. The regulator/rectifier is typically a finned aluminum block near the radiator; ensure its mounting bolts are tight to prevent overheating.
For lighting systems, find the headlight relay behind the dash panel. Use a test light to verify the relay clicks when the ignition is turned on. The relay’s output wire (usually green or white) powers the headlight bulb–check for voltage at the socket if the light fails. Tail and brake lights share a common ground; inspect the bulb sockets for moisture or rust.
| Component | Location | Wire Colors | Diagnostic Tip |
|---|---|---|---|
| Ignition Coil | Near the engine block | Black/red (primary), green/white (secondary) | Measure resistance: 0.5–1.5 ohms (primary), 5–20 ohms (secondary) |
| Stator | Behind engine cover | Yellow (AC output) | AC voltage at idle: 15–25V |
| TPS Sensor | Throttle body | Green/white (signal), red (5V ref), black (ground) | Voltage sweep: 0.5V (closed) to 4.5V (open) |
Throttle position sensor (TPS) and engine temperature sensor (ETS) wires are critical for fuel injection. The TPS wire harness connects to the throttle body with 3 small-gauge wires (signal, reference, ground). ETS wires (single or double) plug into the cylinder head–check for a 2.5V reading at normal operating temperature (varies by model).
CDI unit mounts near the battery or under the rear fender. It has multiple connectors–label wires before disconnecting. The pickup coil wire (white or blue) sends timing signals; test for continuity if the engine misfires. Spark plug wires should have 5–10 kOhms resistance per foot–higher readings indicate wire replacement.
Accessory circuits, like winches or heated grips, tap into the main harness. Locate the accessory relay (often near the horn or under the seat). Fuse ratings differ–consult the manual for exact values (commonly 7.5A–30A). Insulate connections with heat-shrink tubing to prevent short circuits from vibration.
When reassembling panels, route wires away from sharp edges or moving parts. Use zip ties every 6–8 inches to secure the harness. Apply anti-seize compound to battery terminal bolts to prevent future corrosion. Double-check all connections with a torque wrench (battery terminals: 8–10 Nm, chassis grounds: 12–15 Nm).
Step-by-Step Guide to Tracing the Ignition System Leads
Locate the ignition coil first–it’s typically mounted near the engine block with two primary connectors. Disconnect the battery’s negative terminal to prevent accidental shorts before probing any circuits. Use a multimeter set to continuity mode to verify each lead without guessing.
Identify the spark plug cables by following them from the coil to the cylinder head. Label each wire with masking tape and a number (1-4 for a four-cylinder setup) to avoid cross-connections later. Check for brittle insulation or cracks; replace damaged leads immediately.
- Primary coil connector (large terminals): Power (+12V) and trigger pulse from the ECU.
- Secondary coil connector (smaller terminals): High-voltage output to spark plugs.
Trace the power lead back to the main fuse panel. A 10A fuse usually protects this circuit–confirm it’s intact. If voltage is absent, inspect the ignition relay or starter solenoid for corrosion. Probe the relay socket with the multimeter (ohms setting) to detect open circuits.
Examine the engine control unit’s trigger wire. This thin gauge lead (often green or yellow) carries the signal that fires the coil. Disconnect the ECU connector and back-probe the pin with the multimeter–expect a pulsed 0-5V signal during cranking. Absence of signal indicates a faulty sensor or wiring break.
- Set multimeter to DC volts (20V scale).
- Attach black probe to battery ground.
- Touch red probe to trigger wire at ECU connector.
- Crank engine–voltmeter should flicker.
Inspect ground connections. A faulty ground can mimic ignition failure. Scrape paint from the mounting point, clean with wire brush, and reattach the ground strap. Test resistance between ground and battery negative–values above 0.5 ohms require replacement of the strap.
Reconnect battery and verify spark. Hold a spark tester (or grounded screwdriver) 6mm from a spark plug terminal. Crank engine–blue-white spark indicates correct operation. No spark? Recheck coil resistance: primary (0.5-1.5 ohms), secondary (5-15 kOhms). Replace coil if readings deviate.
Identifying and Connecting the Electrical Harness Pins
Locate the main connector block by tracing the primary cable bundle from the engine control module–it terminates in a 12- or 16-pin plug with color-coded sockets. Use a multimeter set to continuity mode to verify pin assignments before attaching any leads; probe each socket while referencing the factory pinout chart to confirm voltage, signal, or ground designations. Mismatched connections risk short circuits or ECM corruption.
- White/red wire: 5V reference signal (sensor input)
- Black/yellow: chassis ground (verify
- Blue/orange: ignition coil trigger (pulsing 12V)
- Green/white: MAP sensor output (0.5–4.5V analog)
Insert terminals carefully–use needle-nose pliers to straighten bent female pins, and apply dielectric grease to prevent moisture ingress. For high-current circuits (starter relay, fuel pump), crimp new connectors with heat-shrink tubing to ensure corrosion resistance. Test each circuit under load before closing the housing; a 10A fuse should blow if polarity is reversed.
Label every connection with heat-shrink tags or cable markers–document wire gauge for future repairs (e.g., 18AWG for sensors, 12AWG for power leads). Store the pinout chart in a waterproof sleeve taped to the frame near the ECM for quick reference during troubleshooting.
