PWM Circuit Design Fundamentals and Practical Schematic Examples

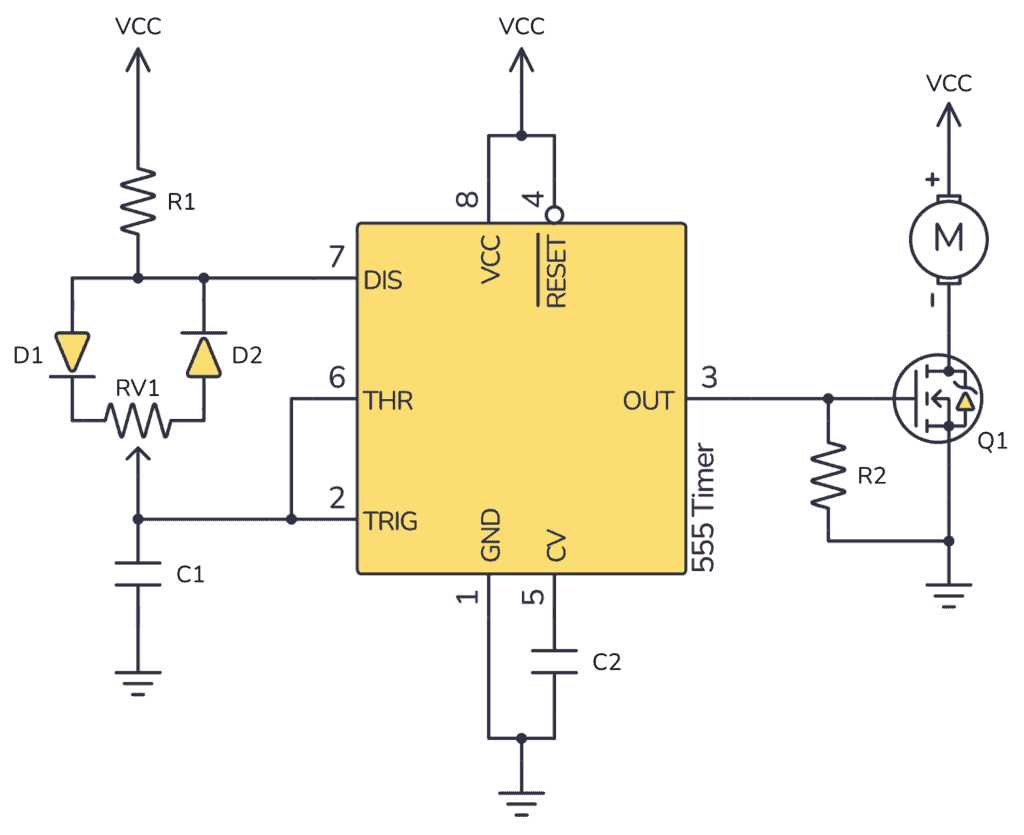

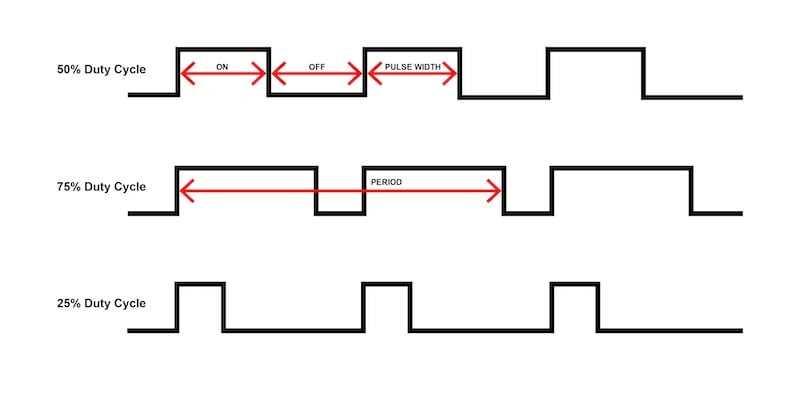

Start with a 555 timer IC in astable configuration for generating adjustable output cycles. This setup delivers a frequency range of 1 Hz to 100 kHz with minimal component adjustments–ideal for motor speed regulation or LED dimming. Connect pins 2 and 6 via a 10 kΩ resistor and use a 1 μF capacitor between pin 2 and ground for baseline timing. Modify duty cycle by replacing the standard resistor with a 100 kΩ potentiometer wired between pins 6 and 7, allowing 0% to 90% adjustment without frequency drift.

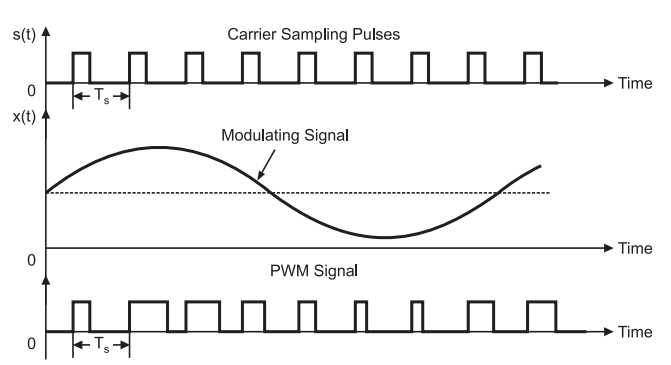

A complementary approach uses a comparator (LM311) with a triangular wave generator. Feed the comparator’s inverting input with a 1 kHz triangular signal (amplitude 0–5V) from an op-amp integrator, and the non-inverting input with a 0–5V DC control voltage. The output swings between 0V and 5V, producing precise on-off ratios. Add a push-pull stage (BC547/BC557) to drive loads up to 500 mA with rise/fall times under 50 ns.

For microcontroller integration, deploy an ATtiny85 running at 8 MHz. Use Timer1 in Fast PWM mode (8-bit) to achieve 256-step resolution with output on PB1 (OC1A). Program via Arduino IDE with the following fuse settings: LOW: 0xE2, HIGH: 0xDF. Supply 5V via an AP2112K LDO regulator to prevent digital noise from degrading signal purity. Isolate control signals with optocouplers (PC817) when interfacing with inductive loads.

For high-power applications, replace standard MOSFETs with IRFB4110 (100V, 88A). Gate drive requires 10–15V; use a bootstrap circuit (e.g., IR2104 driver) for half-bridge configurations. Add a 100 nF ceramic capacitor across the MOSFET’s drain-source to clamp voltage spikes. Ensure traces carry ≤1 A/mm² current density; widen copper pours to 4 mm for currents above 10A. Ground planes must connect directly to the power source to avoid ground bounce.

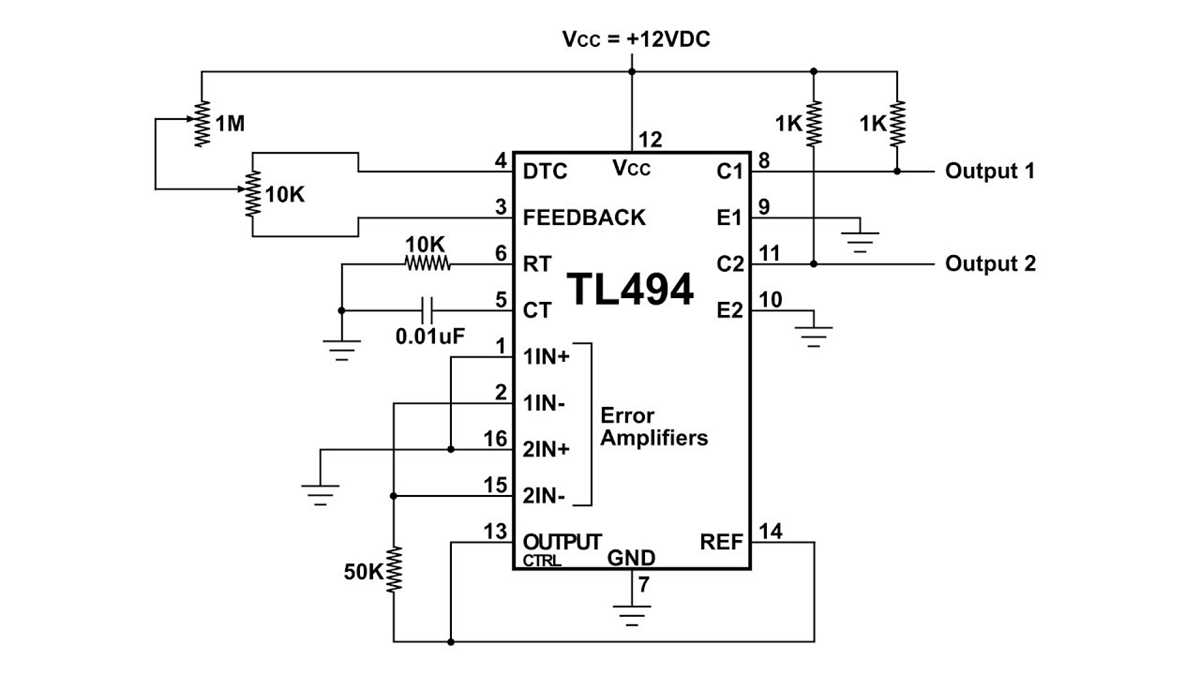

Signal Control System Blueprint Guide

Select a 555 timer IC for the core of your adjustable output system if stability under 20 kHz is required–it handles up to ±200 mA load current without additional drivers. For frequencies exceeding 100 kHz, opt for a dedicated gate driver IC like the IR2104, ensuring dead-time control to prevent shoot-through in half-bridge configurations.

Match the switching element to the load: MOSFETs (IRF540N) suit resistive or inductive loads under 10 A, while IGBTs (IRG4PC50U) handle high-voltage inductive loads up to 600 V. Always place a freewheeling diode (1N4007 for low-frequency, MUR1560 for high-speed) across inductive components to clamp voltage spikes exceeding 1.5× the supply voltage.

Regulate the gate-source voltage bias to 10–12 V for MOSFETs–values below 8 V increase R_DS(on) significantly, risking thermal failure. Use a totem-pole or push-pull driver stage for gate signals above 1 kHz to minimize propagation delays, which should not exceed 100 ns for precise duty-cycle fidelity.

Calculate the required harmonic attenuation by placing a low-pass LC filter at the output if the fundamental frequency must not exceed 3× the switching rate. For a 20 kHz signal, a 10 μH choke with a 470 nF capacitor yields –40 dB suppression at 60 kHz; adjust component values inversely with frequency to maintain cutoff consistency.

Component	Recommended Part	Key Parameter	Critical Limit
Switching Regulator	LM3405	Max Duty Cycle	97% @ 1.6 MHz
Isolated Driver	ISO5500	Common-Mode Transient Immunity	50 kV/μs
Power MOSFET	IXTK90N25L2	Continuous Drain Current	90 A

Isolate the control path from power rails using optocouplers (PC817) or digital isolators (ISO7721) when galvanic separation above 2.5 kV is required. Keep trace inductance below 10 nH/cm for high-side drivers to prevent false turn-on–use kelvin connections for gate and source leads on TO-220 packages.

Implement synchronous rectification with low R_DS(on) devices (e.g., BSC0906NS) if average output current exceeds 5 A. Configure the driver dead-time to 100–200 ns to prevent cross-conduction while minimizing body-diode conduction losses, which increase by 0.7% per 10 ns of excess dead-time at 1 MHz.

Thermal design dictates layout: allocate at least 6 cm² of copper pour per 1 W dissipation for through-hole components. Use thermal vias (0.3 mm diameter, 1.0 mm pitch) to connect the MOSFET drain pad to an internal ground plane, reducing junction-to-ambient resistance by 25% compared to single-sided designs.

Verify gate-drive signal integrity with an oscilloscope bandwidth ≥5× the switching frequency–overshoot should not exceed 10% of the gate threshold voltage. For ultra-low jitter (

Selecting Optimal Parts for a Signal Control Setup

Start with a power transistor capable of handling at least 150% of your load’s peak current. For low-voltage applications under 24V, a MOSFET like the IRFZ44N offers a 55V rating and 49A continuous drain current, ensuring minimal switching losses. Bipolar junction transistors (BJTs) like the TIP120 work for simple designs but require a base resistor calculated as Rbase = (Vin - 0.7V) / Ibase, where Ibase should be 5-10% of the collector current.

Choose a switching regulator IC for stability. The LM317 adjusts output voltage but wastes energy as heat. For efficiency, use a buck converter IC like the LM2596, supporting up to 3A with built-in overcurrent protection. Ensure the inductor’s saturation current exceeds the maximum load current by 30%–for a 2A load, a 3.3A inductor prevents core saturation, which causes waveform distortion.

Passive Component Criteria

• Capacitors: Place a 0.1µF ceramic capacitor near the IC’s power pins to suppress high-frequency noise. Output capacitors should have low equivalent series resistance (ESR) to reduce ripple–polymers or low-ESR electrolytics (
• Diodes: Fast recovery diodes like the 1N4148 suit switching frequencies above 50kHz. For higher currents, a Schottky diode (e.g., 1N5822) minimizes forward voltage drop (0.3V vs. 0.7V for silicon).
• Resistors: Precision metal film resistors (1% tolerance) maintain consistent timing in feedback loops. Avoid carbon composition types, which drift with temperature.

Microcontroller selection impacts the controller’s flexibility. An ATtiny85 operates at 20MHz with 8KB flash, sufficient for basic timing tasks. For advanced features like proportional-integral-derivative (PID) control, an STM32F103 (72MHz, 64KB RAM) processes real-time adjustments without lag. Ensure the MCU’s internal oscillator matches the switching frequency–external crystal oscillators improve accuracy for frequencies above 1MHz.

Heat dissipation demands attention. A TO-220 MOSFET with a heat sink (e.g., 6.2°C/W) prevents thermal throttling at continuous currents over 10A. Use thermal paste between the transistor and heat sink, and mount the assembly on a PCB with thick copper pours (2oz or thicker) to enhance cooling. For ambient temperatures above 50°C, reduce the load current by 20% to avoid derating.

Feedback loops require careful design. The error amplifier’s gain-bandwidth product should exceed 10× the switching frequency. For a 100kHz setup, an op-amp like the TL072 (3MHz GBW) suffices. Use a voltage divider with R1 = 10kΩ and R2 = 2.2kΩ to scale the output to the reference voltage (e.g., 1.25V for the LM2596). Add a 10nF capacitor in parallel with R2 to filter noise, stabilizing the loop.

Protection and Reliability Measures

1. Install a flyback diode across inductive loads (e.g., motors) to clamp voltage spikes. For brushless DC motors, use three-phase diodes rated for the peak inverse voltage (PIV) of the supply.
2. Place a fuse in series with the power input, sized at 130% of the maximum load current. Slow-blow fuses work for inrush currents; fast-acting types suit steady-state protection.
3. Add a snubber circuit (RC network: 10Ω resistor + 0.1µF capacitor) across MOSFETs to dampen ringing. Calculate the resistor value as Rsnub ≈ √(L/C), where L is the parasitic inductance.

Layout guidelines prevent interference. Route high-current paths (input, output, ground) as short and thick traces (minimum 2mm width for 1A). Separate analog and digital ground planes, connecting them at a single point near the power source. Keep the gate driver traces away from switching nodes to avoid coupling–use guard rings if space allows. Test the setup with an oscilloscope (50MHz bandwidth minimum) to verify clean waveforms and absence of overshoot.

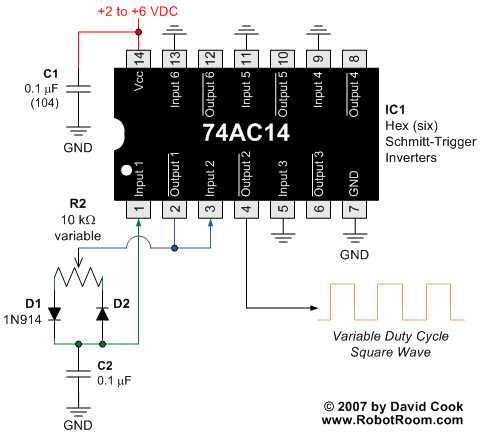

Step-by-Step Assembly of a Basic Signal Regulation Setup

Begin by gathering these components: a 555 timer IC, a 10kΩ potentiometer, a 1kΩ resistor, a 0.1µF capacitor, a 10µF electrolytic capacitor, an NPN transistor (e.g., 2N2222), a diode (1N4007), a power supply (5V–12V), and a load (e.g., LED with 220Ω resistor or small DC motor). Verify the pinout of the 555 timer–pin 1 (GND), pin 2 (trigger), pin 3 (output), pin 4 (reset), pin 5 (control voltage), pin 6 (threshold), pin 7 (discharge), and pin 8 (VCC).

Constructing the Timing Core

Connect the 555 timer in astable mode:

• Link pin 2 (trigger) and pin 6 (threshold) together.
• Attach the 10kΩ potentiometer in series with the 1kΩ resistor between pin 7 (discharge) and VCC.
• Join the wiper of the potentiometer to pin 7.
• Place the 0.1µF capacitor between pin 5 (control voltage) and GND to stabilize the signal.
• Insert the 10µF capacitor between pin 2/6 junction and GND. Polarity matters–ensure the negative lead connects to GND.

This configuration sets the oscillation frequency, adjustable via the potentiometer, typically between 100Hz and 1kHz. For a 5V supply, expect a 50% duty cycle at mid-range potentiometer settings.

Integrating the Power Stage

Solder the NPN transistor to the output (pin 3). Connect its base to pin 3 through a 1kΩ resistor to limit current. Attach the emitter to GND and the collector to the cathode of the diode (1N4007). The diode’s anode links to the load’s negative terminal, while the load’s positive terminal connects to VCC. This protects the transistor from back EMF if driving inductive loads (e.g., motors).

For LED dimming, use a 220Ω resistor in series with the LED. For motor speed control, ensure the supply voltage matches the motor’s rating (e.g., 6V motor with a 6V–12V supply). Overvoltage risks damaging components–double-check ratings before powering on. If the load draws over 200mA, replace the 2N2222 with a MOSFET (e.g., IRFZ44N) for better efficiency.

Test the setup incrementally. Apply power and verify the 555 IC oscillates by probing pin 3 with an oscilloscope–expect a square wave with adjustable on/off periods via the potentiometer. If the load doesn’t respond, check transistor polarity (NPN: base to pin 3, emitter to GND) and diode orientation (band marks cathode). Troubleshoot with a multimeter: measure VCC (5V–12V), pin 3 voltage (should toggle between 0V and VCC), and load voltage (should match pin 3 minus ~0.7V for the transistor).

Fine-tune the potentiometer to achieve the desired effect. Clockwise rotation typically increases the “on” duration, brightening the LED or speeding the motor. For precise adjustments, replace the 10kΩ potentiometer with a 1kΩ or 100kΩ variant to shift the frequency range. To invert the signal (active-low), swap the transistor to a PNP (e.g., 2N2907) and reverse the diode. Secure connections with heat-shrink tubing or electrical tape to prevent shorts.
