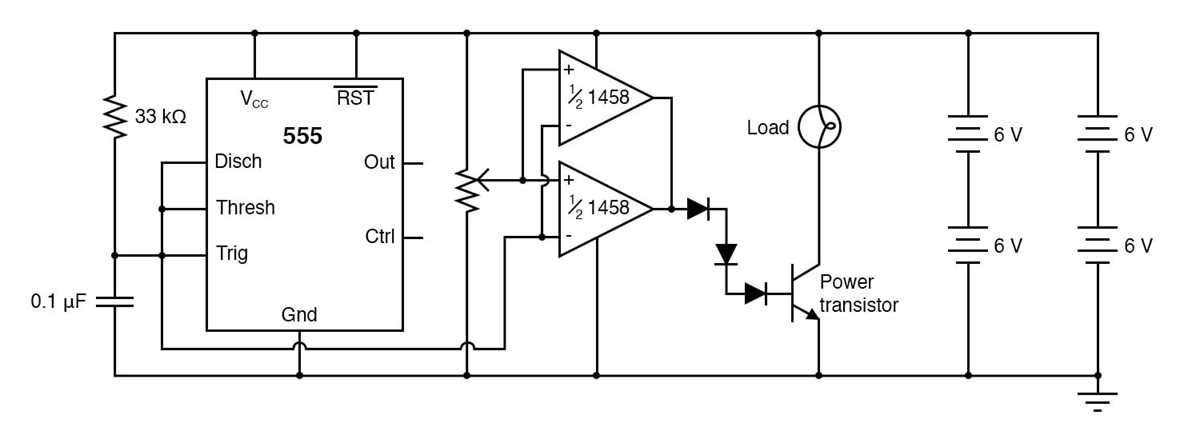

DIY PWM Controller Circuit Design Guide with Schematic Examples
For immediate implementation, choose a 555 timer IC in astable mode paired with a push-pull transistor stage. This setup delivers 1 kHz to 20 kHz switching at efficiencies above 85% when driving inductive loads up to 2A. Ensure the timing capacitor (typically 10nF-1μF) connects directly to pin 6 (threshold) and pin 2 (trigger) to maintain stable oscillation. Bypass the IC’s power pins with a 100nF ceramic disc within 2mm of the package–ignoring this step risks erratic pulse width jitter.
When selecting the output stage, opt for a N-channel MOSFET (IRFZ44N or similar) rated for at least 50V and 10A. The gate should receive a 100Ω series resistor to dampen ringing, while a fast-recovery diode (UF4007) protects against voltage spikes exceeding 100V. Avoid slow diodes like 1N4007–they cause thermal runaway in high-frequency applications. For loads under 0.5A, a TIP120 Darlington transistor suffices but sacrifices 1-2% efficiency.
To fine-tune duty cycle, replace fixed resistors with a 100kΩ potentiometer wired between pins 6/7 (discharge) and pin 8 (Vcc). A 1μF electrolytic capacitor across the pot’s outer terminals filters PWM noise, but verify polarity–reverse connection will short the timing network. For closed-loop control, insert an op-amp comparator (LM358) between the feedback node and the timing capacitor, adjusting the reference voltage to maintain target speed under varying load.
Heat dissipation demands attention. A TO-220 MOSFET without a heatsink handles only 2W; exceeding this limit triggers thermal shutdown. Use thermal paste and a 2°C/W heatsink for continuous 5W+ operation. For multi-phase designs, synchronise timing capacitors with a 40193 counter IC to prevent beat frequencies–phasing errors create audible whine in motor windings.
For critical applications, add a snubber network (10Ω resistor + 10nF capacitor) across the switching element to suppress EMI. Test waveforms with an oscilloscope–expect rise times under 50ns and duty cycle linearity ±2%. Deviations point to faulty components or improper grounding.
How to Design a Reliable Signal Modulator for Power Regulation
Start with a 555 timer IC configured in astable mode to generate variable duty cycles. Use a 1kΩ potentiometer to adjust the pulse width between 10% and 90%–this allows precise control over the output waveform without complex calibration. Pair the timer with a 10μF capacitor and two resistors (1kΩ and 10kΩ) to set the oscillation frequency at roughly 1kHz; deviations beyond ±5% may cause instability in the load current.
For switching elements, opt for an N-channel MOSFET like the IRFZ44N–its low RDS(on) (≤22mΩ) minimizes heat dissipation when driving inductive loads up to 5A. Add a freewheeling diode (1N4007) across the load to suppress voltage spikes exceeding 50V, which can damage both the modulator and connected components. Avoid BJTs for high-current applications; their higher saturation voltage leads to excessive power loss.
Stabilize the power supply with a 7805 voltage regulator feeding the timer, ensuring a consistent 5V rail (±2%) to prevent fluctuations in pulse width accuracy. Include a 0.1μF decoupling capacitor near the timer’s power pins to filter high-frequency noise, particularly critical in motor speed or LED dimming setups. Test the assembly with an oscilloscope; validate that rise/fall times remain under 50ns to avoid erratic behavior at higher switching frequencies.
For advanced tuning, replace fixed resistors with a digital potentiometer (e.g., MCP4131) interfaced via SPI. This enables software-controlled duty cycle adjustments, useful for adaptive systems like solar charge regulators or cooling fan speed management. Isolate the low-voltage control logic from high-power sections using optocouplers (PC817) to prevent ground loops; failure to do so risks corrupting digital signals in sensitive environments.
Key Parts for Building a Signal Modulation Setup
Start with a 555 timer IC (NE555 or equivalent) as the core. This chip generates adjustable duty cycles with minimal external parts. Ensure it operates in astable mode for continuous output toggling between high and low states. Pair it with a 10kΩ potentiometer to fine-tune frequency or pulse width–this allows real-time adjustments without recalculating component values.
For power handling, use a MOSFET (IRFZ44N or IRLB8743) as the switching element. These transistors handle currents up to 40A and voltages of 55V, suitable for motors, LEDs, or heaters. Gate resistors (100–470Ω) prevent ringing, while a flyback diode (1N4007) protects against inductive load spikes. Avoid BJTs for high-power applications due to higher thermal losses.
Passive Elements for Stability
Capacitors shape the timing characteristics. A 0.01µF ceramic capacitor stabilizes the control chip’s internal reference voltage, while a 0.1µF electrolytic capacitor smooths power supply ripple. Timing resistors (two 1kΩ–100kΩ values) set the charge/discharge cycle–lower values increase frequency, higher values extend pulse duration. Decoupling capacitors (0.1µF) near the IC prevent voltage dips during switching.
Linear regulators like the LM7805 provide clean 5V for logic-level inputs, but for higher efficiency, use a buck converter (LM2596) if input voltages exceed 12V. Ensure ground paths are short and direct–star grounding prevents noise coupling into sensitive nodes. For low-side switching, a current-sense resistor (0.01Ω–0.1Ω) monitors load conditions without significant voltage drop.
Feedback and Protection
Optoisolators (PC817) isolate control signals from power stages, preventing ground loops. For closed-loop systems, add a Hall-effect sensor (ACS712) or shunt resistor + op-amp (LM358) to measure output current. Suppression components like varistors (10D471K) clamp transients above expected voltage levels. Fuses (250mA–10A, fast-acting) protect traces from short circuits.
Step-by-Step Assembly of a 555 Timer IC Variable Signal Generator
Gather components first: one NE555 IC, a 10kΩ potentiometer, two 1kΩ resistors, a 100nF ceramic capacitor, a 10μF electrolytic capacitor, a breadboard, and jumper wires. Verify the IC’s pin layout–pin 1 is ground, pin 8 is VCC, and pins 2, 6, and 7 form the core timing network.
Insert the 555 IC into the breadboard, straddling the central groove. Connect pin 1 directly to the negative rail and pin 8 to the positive rail, ensuring a stable 5–15V DC input. Avoid exceeding the IC’s maximum voltage rating to prevent thermal damage.
Building the Timing Network
Link the potentiometer between pins 7 and 8, with the wiper tied to pin 6. This creates a variable resistor path for adjusting output frequency. Add the 1kΩ resistors in series with the potentiometer’s outer legs to limit current and define the minimum/maximum duty cycle range (e.g., 10% to 90%).
Attach the 100nF capacitor between pin 5 and ground to stabilize internal voltage references. Connect the 10μF capacitor from pin 2 to ground–this sets the base timing interval. For finer control, replace the 10μF with values between 1μF and 100μF, but recalibrate the potentiometer accordingly.
Testing and Output Integration
- Power the setup and measure the signal at pin 3 using an oscilloscope. A clean square wave should appear, with pulse width varying as the potentiometer rotates.
- If the waveform distorts, check solder joints for cold connections or verify capacitor polarity (electrolytic types must orient correctly).
- Drive loads (e.g., LEDs, motors) via pin 3, but insert a 220Ω current-limiting resistor to prevent exceeding the IC’s 200mA output limit. For inductive loads like relays, add a flyback diode (1N4007) in reverse polarity.
- Fine-tune the frequency by adjusting the resistor-capacitor pair: lower capacitance increases frequency, while higher resistance decreases it. Example: 1kΩ + 1μF yields ~700Hz; 10kΩ + 100μF drops it to ~1.4Hz.
For extended temperature stability, replace the ceramic capacitor with a film type (e.g., polyester). If noise persists, shield the network with a 0.1μF decoupling capacitor across VCC and ground, placed as close to pin 8 as possible.
How to Adjust Signal Timing and Pulse Ratio
Start by identifying the base clock frequency of your modulation generator. For microcontrollers like the ATmega328P, this is typically 16 MHz, while ARM-based chips may use 48 MHz or higher. Pre-scale this clock using the timer’s division register–values like 1, 8, 64, 256, or 1024 allow coarse frequency adjustments. For example, a 16 MHz clock pre-scaled by 64 yields a 250 kHz timer tick, the foundation for further tuning.
Calculate the desired output frequency by dividing the timer tick rate by the resolution of your counter. An 8-bit counter (0-255) with a 250 kHz tick produces a ~976 Hz signal at full scale. For finer control, switch to 16-bit counters (0-65535), reducing frequency to ~3.8 Hz while enabling millihertz precision. Higher bit-depth increases granularity but lowers the maximum achievable frequency–balance based on application needs.
Fine-Tuning Pulse Width
Adjust the on-time ratio using the compare match register. In fast modulation mode, this register sets the point where the output toggles. For a 50% ratio, load half the counter’s maximum value (e.g., 128 for 8-bit). For dynamic adjustments, use an interrupt service routine to update this register on-the-fly, achieving smooth transitions without glitches.
For hardware-based generators outside microcontrollers, utilize dedicated timer ICs like the NE555 or TLC555. The 555’s frequency is set by two resistors (RA, RB) and a capacitor (C): f = 1.44 / ((RA + 2RB) × C). To modify the on-time ratio, adjust RA and RB inversely–one increases while the other decreases–to maintain consistent timing while altering the high/low durations.
In switching power supplies, synchronization is critical. Align modulation frequency with the converter’s resonance point by measuring ripple current with an oscilloscope. For a buck converter, target 10-20% of the switching period for optimal efficiency–below 5% risks discontinuous conduction, above 80% increases EMI. Use an RC low-pass filter on the feedback path to smooth adjustments and prevent oscillation.
Advanced Calibration Techniques
Implement a phase-locked loop (PLL) for precision timing. Feed the modulation output into a phase detector alongside a reference signal (e.g., 10 kHz crystal oscillator). The PLL’s loop filter (typically a PI controller) automatically adjusts the generator’s frequency to match the reference, compensating for temperature drift or load variations. This is essential for motor drives where slip frequency must track rotor speed.
For software-defined generators, leverage direct digital synthesis (DDS). Pre-compute a sine-wave lookup table scaled to your counter’s resolution, then step through the table at a rate determined by a frequency control word. A 32-bit control word offers microhertz resolution–ideal for applications like RF signal generation or LED dimming where visual flicker must stay below 100 Hz.
Validate adjustments with an oscilloscope or logic analyzer. Measure rise/fall times to ensure they remain below 10% of the shortest pulse duration–slow edges degrade efficiency in switching applications. Use a current probe to quantify inductor saturation in power stages; exceeding the core’s Bmax forces frequency adjustments to reduce flux density.
