Complete Guide to Car Radio Wiring Connections for Any Model
Start by identifying the harness color codes for your vehicle’s speaker system. Most manufacturers follow a standardized scheme, but discrepancies exist. For instance, Toyota typically uses solid green for the front left speaker (+), while Ford may pair green with a stripe for the same function. Cross-reference these colors with an aftermarket adapter or a verified reference chart before making any connections. Avoid relying on universal guides–confirm specifics for your make, model, and year.
Locate the head unit’s connector pins and match them to the vehicle’s wiring. The constant 12V supply (usually yellow) must connect directly to the battery, not the ignition circuit, to retain settings. The switched 12V (often red) should route through the ignition to power the system when the key is on. Ground wires (black) require a clean, unpainted metal surface; improper grounding causes interference or complete failure. Use a multimeter to verify voltage consistency–fluctuations indicate a faulty connection.
Speaker wires require precise polarity alignment. Reversing positives and negatives weakens sound quality, creating phase cancellation. Test each pair with a 9V battery before finalizing connections: a brief touch should produce an audible pop from the corresponding speaker. If silence follows, check for broken wires, faulty speakers, or incorrect matching. Amplifier wiring demands thicker gauge cables–16 AWG suffices for factory setups, but aftermarket amplifiers need 12-14 AWG for stable power delivery.
Fuse protection is non-negotiable. Install a 10-15A fuse within 18 inches of the battery for the main power wire to prevent fire hazards. For amplifiers, add an inline fuse near the battery connection. Never splice into existing fuses–dedicated circuits prevent voltage drops. If integrating a subwoofer, route RCA cables away from power wires to avoid signal noise. Secure all cables with zip ties to prevent rattling or short circuits.
Verify every connection with a test before reassembly. Turn the ignition on and check for error messages on the dashboard. Play audio through all channels, adjusting fader and balance settings to confirm each speaker functions. If distortion occurs, reduce gain levels or revisit ground connections. Finalize by securing the head unit in its mounting sleeve–loose fits cause vibrations and poor electrical contact.
Connecting Your Vehicle’s Audio System: Key Schemes and Practical Steps
Begin by identifying the harness adapter matching your car model–aftermarket units often require proprietary connectors. Locate the vehicle’s OEM plug behind the factory head unit; wires are typically color-coded but vary between brands. For Toyota, red delivers 12V ignition, yellow handles constant power, black grounds the system, and blue/white activates power antennas or amplifiers. Ford uses purple for rear speakers and orange with a stripe for illumination dimming. Verify these against a reliable wiring chart specific to your year and trim.
Cutting or splicing OEM wires risks damaging the circuit–use crimp connectors or solder joints for secure, corrosion-resistant links. Apply heat shrink tubing over splices to prevent short circuits; electrical tape degrades over time and fails under vibration. A multimeter set to DC voltage confirms active power lines: probe red and black wires–expect 12V on ignition and battery lines when the key is in the accessory position. No voltage suggests a blown fuse or severed line requiring tracing back to the fuse box.
Critical Signal Wires and Their Functions
| Wire Color | Typical Function | Voltage Check Notes | Common Pitfalls |
|---|---|---|---|
| Red | Accessory power | 12V only with key on | Accidental fusion with yellow causes battery drain |
| Yellow | Constant power | Continuous 12V | Failing altimeter can drain overnight |
| Orange (striped) | Dashboard lighting | Varies with dimmer switch | No connection disables screen backlight |
| Blue/White | Amplifier remote turn-on | 12V when head unit powers on | Incorrect link overloads amp circuits |
Install a line-output converter if integrating amplified systems with passive speakers–direct speaker wires carry dangerous voltage levels that fry preamp inputs. Secure converter ground to the chassis, not a painted surface, to avoid interference hum. Test speaker outputs with a 1kHz sine wave file: expect symmetrical waveforms across all four channels; clipping or distortion indicates impedance mismatch or faulty crossover.
Route wires away from moving parts and sharp edges; use corrugated tubing to shield against engine heat and abrasion. Secure harnesses with zip ties every 6 inches to prevent sagging, which leads to intermittent connections. Before finalizing, verify all functional aspects: USB charging, steering wheel controls, and backup camera inputs align with manufacturer specifications. A single overlooked wire can disable Bluetooth, navigation, or reverse gear detection.
How to Pinpoint the Right Connections in Your Vehicle’s Audio System Harness
Begin by locating the harness adapter specific to your vehicle’s make and model–most aftermarket audio units include a matching plug, but if not, reference a compatibility guide or the car’s service manual. Use a multimeter set to DC voltage (20V range) to test each wire: ground wires will show 0V relative to chassis, constant power (battery feed) reads 12V even with the ignition off, accessory wires activate only when the key is in the “on” or “acc” position, and speaker leads will fluctuate between 1-8V AC when probed. Label each wire with masking tape immediately after identification to avoid confusion, noting polarity for speakers (+ for solid colors, – for striped). For rare cases where colors deviate from standard conventions (e.g., Toyota’s brown for illumination or Subaru’s gray for memory), cross-check against a pinout chart or the harness’s printed legend.
If the vehicle lacks a dedicated harness adapter, strip 5mm of insulation from the end of each wire and use a 16-18 gauge crimp connector or solder joint for secure attachment–avoid twisting wires together, as vibrations can loosen connections over time. For vehicles with factory amplifiers, identify the remote turn-on lead (typically a slim blue wire) to signal the amp when the system powers up; failure to connect this will result in no sound from rear or subwoofer outputs. When splicing into existing circuits, wrap each joint with electrical tape then secure with a zip tie to prevent fraying or short circuits from road debris. Always disconnect the negative battery terminal before handling any connections to prevent accidental shorts or blown fuses.
Step-by-Step Guide to Connecting Aftermarket Head Unit Cables
Start by matching the harness adapter to your vehicle’s factory connectors–identify the 12-pin plug (or variant) behind the dashboard and verify color-coding against the aftermarket kit’s documentation. Disconnect the negative terminal of the car battery to prevent short circuits; this step cannot be skipped. Strip 5–7 mm of insulation from each wire end using precision strippers, avoiding nicks on the copper strands, then twist strands clockwise to prevent fraying. Use solder or crimp connectors rated for automotive amperage (minimum 20 AWG)–solder provides a permanent bond, while crimps allow easier future adjustments.
Connect the head unit’s power leads first: the constant 12V (yellow) to the battery line, the switched 12V (red) to the ignition wire, and the ground (black) to a bare metal chassis point within 30 cm–scrape paint or rust for a solid contact. Attach speaker outputs (front/rear) by pairing the kit’s color-coded wires to the corresponding vehicle harness; confirm phase consistency (+ to +, – to –) to avoid canceling frequencies. Insert the antenna lead into the designated FM/AM input, then secure all connections with electrical tape or heat-shrink tubing–exposed wires risk interference or corrosion. Reconnect the battery, power on the system, and test each audio channel at half volume to detect loose connections before reassembling the dashboard.

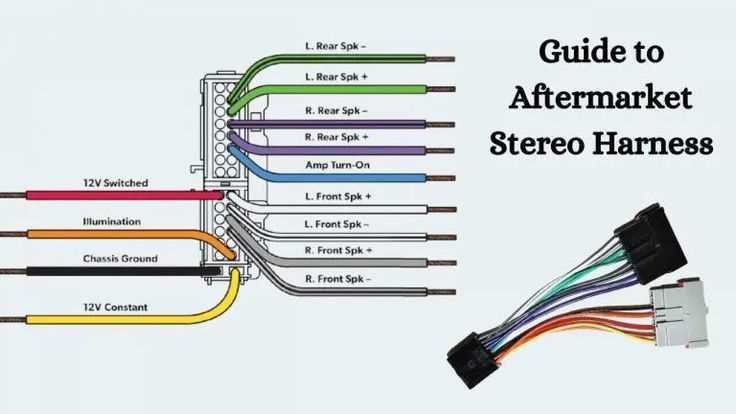

Standard Harness Color Schemes for OEM and Aftermarket Audio Systems

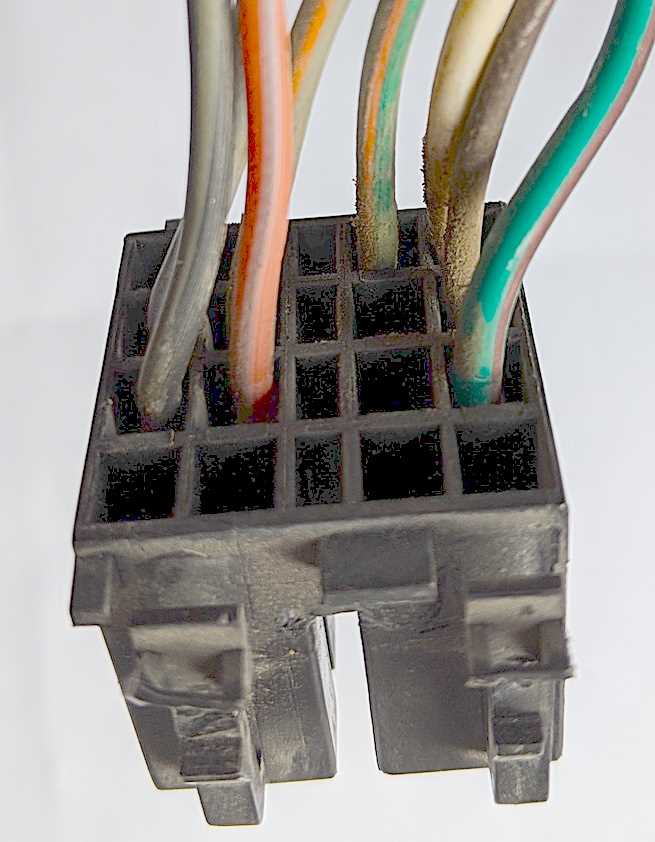

Check the vehicle’s service manual first–most manufacturers use a 12-pin connector with consistent assignments. If unavailable, remove the dashboard trim to expose the harness and verify wire colors against the labels:
- Black: Ground (negative terminal), always connect to chassis metal; strip extra insulation to ensure solid contact.
- Yellow: Constant 12V (memory keep-alive), powers presets and clock; fuse with 10A inline near battery.
- Red: Switched 12V (accessory), energizes unit only when ignition is ON; pair with a 5A fuse.
- Orange: Illumination dimmer, varies brightness with headlight intensity; often paired with gray whitespace.
- Blue/White stripe (or solid blue): Amplifier remote turn-on, activates external amps; confirm with multimeter for 12V pulse when key turns.
- Gray: Front right speaker positive; ensure polarity matches door tweeter terminals.
- Gray/Black stripe: Front right speaker negative (ground reference).
- White: Front left speaker positive; critical for stereo imaging.
- White/Black stripe: Front left speaker negative.
- Purple: Rear right speaker positive; route wires away from high-current power cables.
- Purple/Black stripe: Rear right speaker negative.
- Green: Rear left speaker positive; confirm with tone generator across harness before final connections.
- Green/Black stripe: Rear left speaker negative.
Aftermarket harnesses frequently follow the same coding but add variations: light blue may denote subwoofer output, pink antenna motor control. Use a test light to probe suspect wires–illuminate each line with ignition OFF, then ON to isolate constant, switched, and ground conductors.
Brand-Specific Exceptions
General Motors (Chevrolet, Buick, GMC, Cadillac) often swaps dark green for rear left positive and dark green/white stripe for negative. Some late-model Pontiacs use tan for front right positive instead of gray. Verify with an ohmmeter–speakers should read 4 ohms across terminals.
Ford harnesses include dark blue/orange stripe for subwoofer output (Ford Sync systems) and brown/yellow stripe for speed signal input. Pre-2005 Expeditions and Navigators may use a purple/yellow stripe for rear right positive instead of solid purple.
Toyota/Lexus consistently uses violet for rear right positive but sometimes substitutes light green for rear left positive on Corolla and Camry models. Lexus sedans may include white/red stripe for microphone input on navigation units.
Honda/Acura adopts light blue for illumination dimmer instead of orange, and blue/yellow stripe for the antenna motor lead. Pilot and Ridgeline SUVs frequently feature pink/black stripe for rear left positive.
Universal kits from Scosche, Metra, and American International standardize fourteen base colors but add prefixes or stripes to denote extra functions. Orange/white stripe marks speed signal in European vehicles, pink drives motorized antenna, and brown is reserved for CAN bus communication on luxury models. Label every wire with masking tape before cutting–mistakes risk blowing fuses or damaging the unit’s microprocessor.
For vehicles lacking factory connectors, strip ¼ inch of insulation, twist strands tightly, and solder joints; crimp connectors corrode over time. Heat-shrink tubing seals connections against moisture and vibration–never use electrical tape alone. Confirm polarity with a 9V battery: touch leads to speaker wires, cone movement indicates positive.
