Detailed Raspberry Pi 3 Circuit Schematic and Component Breakdown
Grab the official reference manual for the Broadcom BCM2837 SoC from the manufacturer’s site–it’s the only pinout source verified by engineers. The document matches the actual PCB traces, eliminating guesswork from reverse-engineering efforts. If you’re repairing power delivery circuits, focus on the TPS54318 buck converter near the USB ports: check connectivity to coils L1–L4 and capacitors C18–C21 for stable 5V output.
Signal routing between the SoC and the LAN7515 Ethernet controller follows a 48 MHz clock line; probe TP3 (on the bottom layer) to confirm clock integrity if networking fails. The microSD slot’s data lines CMD, DAT0–DAT3 run through series resistors R13–R17–measure resistance here if card initialization stalls. For GPIO headers, J8 exposes 40 pins; trace each back to the SoC ball grid to identify multiplexed functions. Pin 12 (GPIO18) carries PWM; verify it connects through R42 if audio distortion occurs.
Power sequencing starts with the MIC2026 load switch–inspect EN and OUT pins against the reference voltage rails. Overcurrent on USB devices often traces back to polyfuses F1–F3; replace with 2.5A PTC resettables if frequent trips occur. Thermal zones concentrate around the SoC and PMIC–inspect solder joints on thermal via arrays under the chip for dry relays. Boot failures commonly link to corrupted OTP bits; short TP5 and TP6 during power-up to clear corrupted settings if the red LED stays lit.
For wireless interfaces, the CYW43438 module’s antenna trace runs along the top edge; ensure ground pour clearance of 15 mils to meet FCC compliance. UART debug output appears on GPIO14 (TXD) and GPIO15 (RXD)–hook a logic analyzer at 115200 baud to capture boot logs. Voltage rails for the SoC core (1.0V), SDRAM (1.35V), and PLLs (1.8V) originate from separate LDO outputs; use an oscilloscope to check ripple
Understanding the Pi 3 Board Layout and Key Connections
Begin your analysis by locating the Broadcom BCM2837 SoC at the board’s center–this 64-bit quad-core processor operates at 1.2GHz and dictates most peripheral mappings. Pinout references often overlook the critical link between the SoC and the APX803 power supervisor, which ensures stable 3.3V and 1.8V rails during boot sequences. Verify continuity between the supervisor’s output (pin 2) and the PMIC’s input (RT8020, pin 5) to rule out undervoltage conditions.
Trace the SD card interface–specifically the CLK (GPIO 48), CMD (GPIO 49), and DATA lines (GPIO 50-53)–back to the SoC’s SDHOST controller. Signal integrity here hinges on proper termination resistors (R19-R22, 22Ω), which are frequently omitted in cloned boards. Use a multimeter to confirm 33pF coupling caps (C42-C45) are populated; missing components cause intermittent read failures at high speeds.
HDMI output demands attention to the TPD12S016 protection IC, which isolates the SoC’s TMDS signals (pins 1-12) from electrostatic discharge. Test the differential pairs (HDMI_TX_P/N_0-2) with a high-speed oscilloscope: ringback should not exceed 10% of the signal amplitude, or pixel corruption occurs. Ground planes near these traces must remain uninterrupted by vias to meet impedance targets (100Ω ±10%).
The USB 2.0 hub (SMSC LAN9514) acts as the bridge between a single SoC host port and four downstream channels. Check the 24MHz crystal (Y1) waveform for a clean sine wave; distorted outputs stall enumeration. Power sequencing matters–VBUS (5V) must stabilize within 100ms of the 3.3V rail to prevent hub lockups. Replace R44 (15KΩ feedback resistor) with 10KΩ if firmware hangs during USB initialization.
Ethernet connectivity relies on the MagJack’s integrated transformers, yet many overlook the PoE isolation requriements. LAN8710A’s MDIO lines (pins 32-38) should toggle at 2.5MHz during autonegotiation; failures here point to missing pull-ups (R8, 4.7KΩ). Pair skew across the magnetics must stay below 25ps, or packet loss climbs at 1000BASE-T.
Custom expansions targeting the 40-pin GPIO header must reconcile conflicting signal roles: UART (pins 8/10), I2C (pins 3/5), and PWM (pins 32/33). Disable Bluetooth via device tree overlays (`dtoverlay=pi3-disable-bt`) if UART is needed; shared GPIOs cause baud rate drift. For analogue projects, ADC capabilities require external ICs–the SoC lacks native ADC, but SPI-connected MCP3008 offers 10-bit resolution at 200ksps.
Power delivery diagnostics often miss the RT8020’s LDO outputs feeding the SoC core (1.2V) and DDR (1.35V). Measure VOUT on pin 2 (1.2V) and pin 4 (1.35V) under load–drooping voltages indicate inadequate input capacitance at C1-C4 (47μF). Replace the default Micro-USB fuse (F1, 2A) with a self-resetting polyswitch if frequent brownouts occur during peak current draws (>800mA).

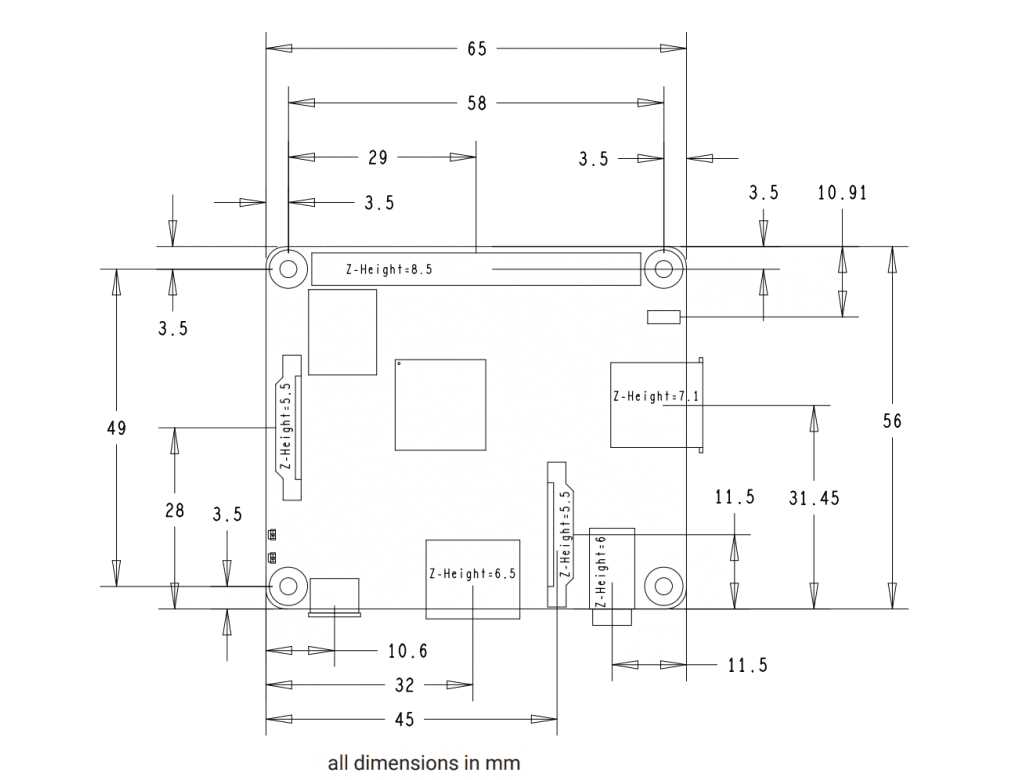

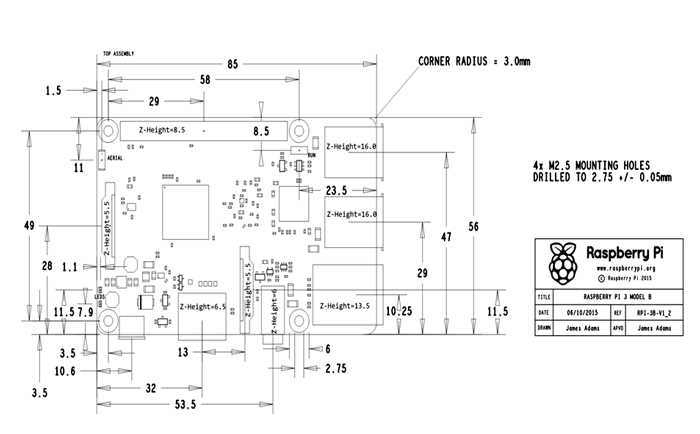

Locating the Official Pi 3 Board Layout
The primary source for the original Pi 3 circuit references is the Raspberry Pi Foundation’s hardware documentation repository on GitHub. Access the exact PCB details at this direct link. Here, you’ll find PDF files named “RPi-3B-V1_2-Schematics.pdf” and earlier revisions, covering power delivery, connectivity, and pin assignments. These files are version-controlled, ensuring you retrieve the precise design used in production.
For those seeking deeper hardware insights, download the Gerber files from the same repository. These contain:
- Layer-by-layer PCB traces
- Component placement coordinates
- Silkscreen and solder mask data
- Drill maps for vias and pads
This allows reverse-engineering or board replication without ambiguity. Note the license (BCM2837 datasheet remains proprietary), so redistribution requires compliance.
Alternative trusted channels include:
- Element14/Farnell – Official resellers often archive supplementary docs, including compliance reports with circuit breakdowns.
- Digi-Key’s Pi 3 product page – Links to cached copies if GitHub lags.
- Hackaday.io – Community-verified reverse-engineered layouts for older revisions when official files are unavailable.
Always cross-reference filenames (e.g., RPi_Model_B_Plus_3B_Plus_Plus_PCB.pdf) to avoid mismatches.
For urgent needs, the Broadcom BCM2837 chip datasheet (hosted on GitHub under raspberrypi/firmware) outlines core interfaces tied to the SoC. While not a complete board diagram, it clarifies critical nets like HDMI, USB, and SDIO. Use KiCad’s “Import Non-KiCad Schematic” tool to convert PDFs into editable schematics if modifications are needed–ensure vector quality to preserve pin labels.
Key Components and Connections in the Pi 3 Board Layout
Focus on the BCM2837 SoC as the central processor–identify its power pins (VDD_CORE, VDD_IO, PLL_VDD) and decoupling capacitors on the reference design. These must match calculated values within ±5% tolerance to prevent voltage ripple exceeding 50mV. Verify the pairing of LPDDR2 SDRAM (Micron MT41K512M8DA-107) via the 200MHz bus traces; length matching should stay under 25mm difference for all 16 data lines to avoid signal skew.
The PMIC (MxL7704) handles five regulated outputs: 1.8V, 3.3V, 5V, and two switchable 1.2V rails. Check feedback resistors (R124, R125) on the 1.2V rail–values should be 240kΩ (top) and 30kΩ (bottom) for 0.8% accuracy. Inadequate filtering here leads to audible noise on HDMI; use a 22µF ceramic capacitor at C28 with ESR under 10mΩ.
High-Speed Interfaces and Peripheral Mapping
The USB/LAN chip (LAN7515) connects via a single USB2.0 lane to the SoC. Route the 90Ω differential pairs (D+/D- traces) with no vias or sharp bends; impedance deviations beyond 10% cause packet loss. Power delivery requires a 5V/2A input at J6–ensure diode D15 (SS34) has a forward voltage drop under 0.5V to meet USB spec limits.
For microSD interfaces, the SDIO lines (CLK, CMD, DAT0-3) must be series-terminated with 33Ω resistors (R46-R51) to suppress reflections >300mVpp. The card detect pin (GPIO47) needs a 10kΩ pull-up; absent this, boot failures occur randomly. Keep trace lengths under 60mm for all SDIO signals to comply with 50MHz timing margins.
Wi-Fi/BT module (CYW43438) demands precise power sequencing: 3.3V rail must rise before 1.8V within 10ms. Antenna matching network (C18, C20, L2) should target 50Ω impedance at 2.4GHz–deviations here reduce range by 40%. Isolate noise sources by placing a 0.1µF bypass capacitor within 2mm of the module’s VDD_IO pin.
Decoding GPIO Pin Layouts from Board Blueprints
Begin by locating the pin numbering on the edge connector in the technical drawing. Most board revisions label GPIO pads sequentially starting from the outer row as P1 (e.g., P1-03 corresponds to physical pin 3). Verify this against the silkscreen on the actual board–secondary rows may alternate or follow a non-linear sequence. Pin functions (UART, I2C, SPI) are often grouped; note these clusters for quicker debugging.
Identify the ground (GND), 3.3V, and 5V rails first–these occupy fixed positions. On a typical Model 3B layout, GND is found at physical pins 6, 9, 14, 20, 25, 30, 34, 39. The 5V power rail typically sits at 2, 4, while 3.3V spans 1, 17. Cross-reference these with the blueprint’s net labels to confirm no revisions altered standard assignments.
Common Pin Functions in Tabular Form
| Physical Pin | GPIO Number (BCM) | Primary Function | Secondary Function (Alt) |
|---|---|---|---|
| 3 | 2 | I2C1_SDA | GPCLK0 |
| 5 | 3 | I2C1_SCL | GPCLK1 |
| 7 | 4 | GPIO_GCLK | GPCLK2 |
| 8 | 14 | UART0_TXD | None |
| 10 | 15 | UART0_RXD | None |
| 11 | 17 | GPIO | None |
| 12 | 18 | PCM_CLK | PWM0 |
| 19 | 10 | SPI0_MOSI | None |
| 21 | 9 | SPI0_MISO | None |
| 23 | 11 | SPI0_SCLK | None |
| 24 | 8 | SPI0_CE0_N | None |
| 26 | 7 | SPI0_CE1_N | None |
Trace signal paths from the SoC to the edge connector. The blueprint’s GPIO_GEN labels (e.g., GPIO_GEN3) correspond directly to Broadcom numbering–GPIO2 is BCM 2. Check for pull-up/down resistors on I2C/SPI lines; their absence may indicate secondary functions. For PWM or PCM audio pins (e.g., GPIO18), verify clock signals in adjacent circuitry to avoid conflicts.
Handling Revision-Specific Changes
Compare your blueprint version against the release notes for the board variant. Post-2018 layouts introduced minor shifts–for instance, GPIO28-31 were reassigned to the camera connector on later revisions, removing them from the 40-pin header. If working with a compute module variant, consult the SODIMM connector pinout instead–key differences include absent power rails and multiplexed signals. Always measure voltage on uncertain pins before connection to prevent accidental shorts on unmarked pads.
