Raspberry Pi Zero W Full Schematic Guide and Circuit Breakdown

For precise hardware interfacing with compact single-board controllers like the Pi Zero W, begin by sourcing its official barebones reference sheet from the manufacturer’s documentation repository. The latest revision (v1.3) includes critical updates: a dedicated TVS diode array on USB power lines, revised resistor values for the run-header pull-ups, and corrected GPIO labeling for BCM2835 pins 27, 28 (formerly mislabeled as ID_SD/ID_SC). Prioritize this over community-drawn SVG exports–verification against the KiCad project file (SHA-256: 3a7b…f1e2) eliminates propagation errors.

When prototyping, isolate power rails first. The 5V VBUS should route through a 600mA PPTC fuse before branching to the 3.3V LDO (MIC5205-3.3YM5-TR), whose output requires a 2.2µF X5R ceramic capacitor at the input and 10µF at the output to suppress transients. For low-noise applications, add a ferrite bead (600Ω @ 100MHz) between the LDO and the MCU’s VCC_DIG core supply. Avoid tapping 3.3V from GPIO headers–dedicate separate traces to the SoC PLLs and WI-FI radio to prevent ground loops.

Signal integrity hinges on trace geometry. Clock lines (XOSC_IN/XOSC_OUT) demand 90Ω differential pairs with 45Ω impedance and avoid vias–if unavoidable, use teardrop-shaped pads to mitigate stub effects. For I²C (GPIO 2/3), insert 1.8kΩ pull-up resistors to 3.3V, sized for to comply with the BCM2835’s 12.5pF input capacitance. Debug probes (SWD) require 330Ω series resistors on GPIO 24/25 to prevent backfeeding during programming.

Thermal dissipation dictates PCB stackup. The BCM2835 idles at 280mW and peaks at 750mW under Wi-Fi TX bursts. Allocate a 2oz copper pour on Layer 2 beneath the SoC, stitching vias (0.3mm drill, 0.8mm pad) to the bottom ground plane. For extended operation, mount a 6x6mm thermal pad (e.g., Bergquist 5000S35) between the package and an external heatsink–this reduces θ_JA from 50°C/W to 15°C/W.

Creating a Minimal Wiring Plan for the Compact Single-Board Computer W

Start by isolating the four primary power pins: 3V3 (pin 1), 5V (pin 2), GND (pins 6, 9, 14, 20, 25, 30, 34, 39), andGPIO2/3 for I²C pull-ups if needed. Connect a 10µF capacitor directly between the 5V and GND rails near the board’s micro-USB input to reduce voltage spikes during high-current startup. For low-power projects, bypass the capacitor and rely on the built-in power management IC, but include a 220Ω resistor in series with any 3V3 peripherals drawing over 50mA to prevent thermal shutdown.

Label each GPIO header pin with its Broadcom signal name (e.g., GPIO4, GPIO17) on your sketch–avoid numbering ambiguity by cross-referencing the official BCM2835 datasheet. For serial communication, wire TXD (GPIO14, pin 8) to your peripheral’s RX and RXD (GPIO15, pin 10) to its TX through 470Ω resistors to clamp voltage levels at 3V3. Disable Bluetooth by adding `dtoverlay=disable-bt` to `/boot/config.txt` if using GPIO14/15 for other protocols–this reclaims UART0 for dedicated purposes without kernel overrides.

Use a perfboard with a 2.54mm pitch to mirror the device’s 40-pin header footprint; this maintains exact dimensions for stackable expansions. Route ground traces wider than signal paths (minimum 1.5mm) and keep high-speed lines (SPI/I²C) under 5cm to avoid signal degradation. For wireless debugging, reserve GPIO2 (pin 3) and GPIO3 (pin 5) for boot-mode toggles–shorting either to GND at power-on forces USB mass storage or serial console modes, useful for recovering corrupted cards without HDMI.

Test each connection with a multimeter in continuity mode before applying power: verify

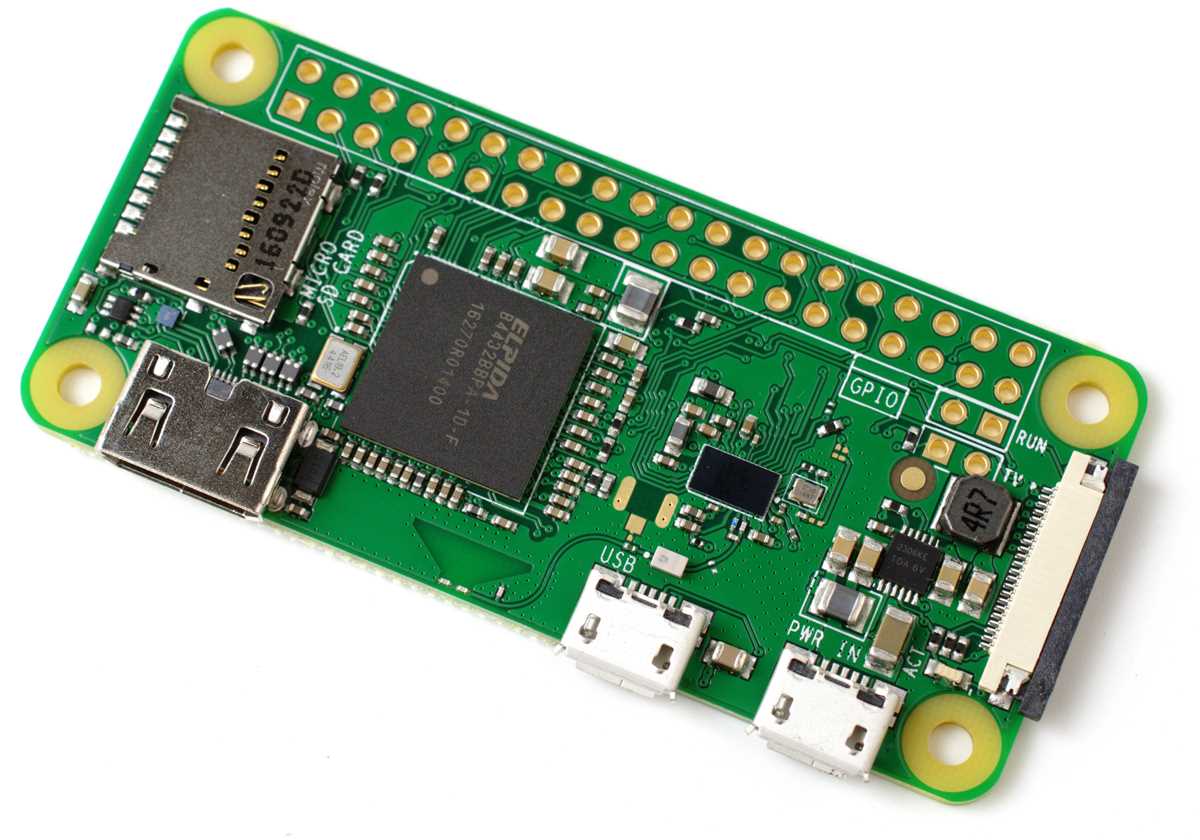

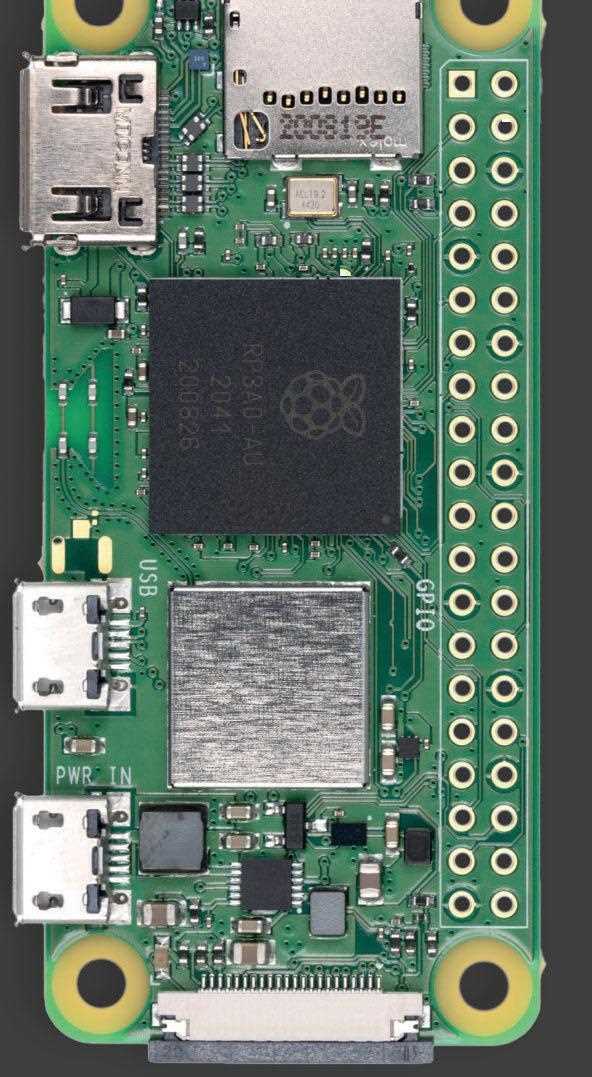

How to Identify and Label Key Components on a Minimalist Single-Board Computer PCB

Begin by locating the Broadcom processor–typically a square BGA chip near the center of the board–marked with a model number like BCM2835 or similar. Use a magnifying glass or macro lens to read the tiny laser-etched text. Label this component as CPU in your notes, noting its soldered connections to nearby power delivery and SDRAM modules.

Trace the power input path from the micro-USB port or test pads labeled 5V and GND. Follow the copper traces to adjacent capacitors and inductors, which serve as filtering and voltage regulation points. Use a multimeter in continuity mode to confirm the path, marking these as Power Management components. Record the values of surface-mount capacitors (e.g., 10µF, 22µF) and any visible series resistors.

Wireless Module and Peripheral Interfaces

Locate the onboard Wi-Fi/Bluetooth module–a shielded metal can, often rectangular, labeled CYW43438 or similar. Peel back the metallic shield carefully (if needed) to expose the die, but avoid removing it entirely to prevent damage. Document the module’s pinout connections to the main processor, labeling it as Wireless Module. Adjacent to this, identify the microSD card slot; confirm its pads align with the processor’s SDIO interface using a datasheet if available.

Examine the GPIO header at the board’s edge–20 through-hole pads, some pre-soldered with male pins. Label each pin based on its function:

• 3V3 (third pad from the corner)
• GND (multiple, evenly spaced)
• GPIO2 (I²C SDA, pin 3)
• GPIO3 (I²C SCL, pin 5)
• GPIO4 (general-purpose, pin 7)

Use a logic analyzer or oscilloscope to verify functionality if needed.

Finally, identify less obvious but critical components:

1. Reset circuitry: a small push-button (RUN or RESET) connected to the processor via a resistor network.
2. Status LEDs: typically two (green ACT for SD card activity, red PWR near the 5V input).
3. Debug pads: unlabeled test points near the processor, often used for UART (pins TXD, RXD, and GND).

Photograph each section under good lighting, annotating the images with component values and connections for future reference.

Step-by-Step Process for Drawing a Power Delivery Circuit in a Zero W Board Layout

Select a 5V power source with at least 1.5A current capability to avoid voltage drops under load. Use a micro-B USB connector or a pin header for direct input–both must include a 2.2A polyfuse (e.g., Littelfuse 0451.250) to protect against overcurrent. Route power traces wider than 2mm for low-resistance paths; copper thickness should be no less than 1oz/ft².

Add a 10µF ceramic capacitor (X5R or X7R dielectric) between the input voltage and ground, placed within 3mm of the power entry point. Include a 0.1µF decoupling capacitor for each major IC–space these no farther than 2cm from their respective power pins. For the main processor, use two capacitors in parallel: 10µF + 0.1µF to handle both bulk and high-frequency noise.

Trace Routing and Ground Plane Considerations

Separate analog and digital ground planes using a single-point star connection at the power source to prevent noise coupling. Keep high-current traces (>500mA) isolated from sensitive signal lines–maintain a minimum spacing of 0.5mm for 5V rails. Use via stitching along critical paths, placing vias at 5mm intervals on power traces to reduce impedance.

For peripheral power (e.g., Wi-Fi module), add a 3.3V LDO regulator (e.g., MIC5219) with a 4.7µF output capacitor and 1µF input capacitor. Ensure the regulator’s ground pin ties directly to the star ground–avoid daisy-chaining ground returns. Test the circuit with an oscilloscope: ripple should stay below 50mVpp under full load (measured at 20MHz bandwidth).

Final Validation and Prototyping Tips

Export the board layout to Gerber files and use freeDFM tools to verify no acute angles exist in power traces–these can cause acid traps during etching. For prototypes, hand-solder power components first, then verify continuity with a multimeter before attaching load devices. If Wi-Fi performance degrades, re-check the 3.3V rail–poor regulation often causes RF instability. Store reference designs for 0402-sized components and SMD footprints to expedite future revisions.

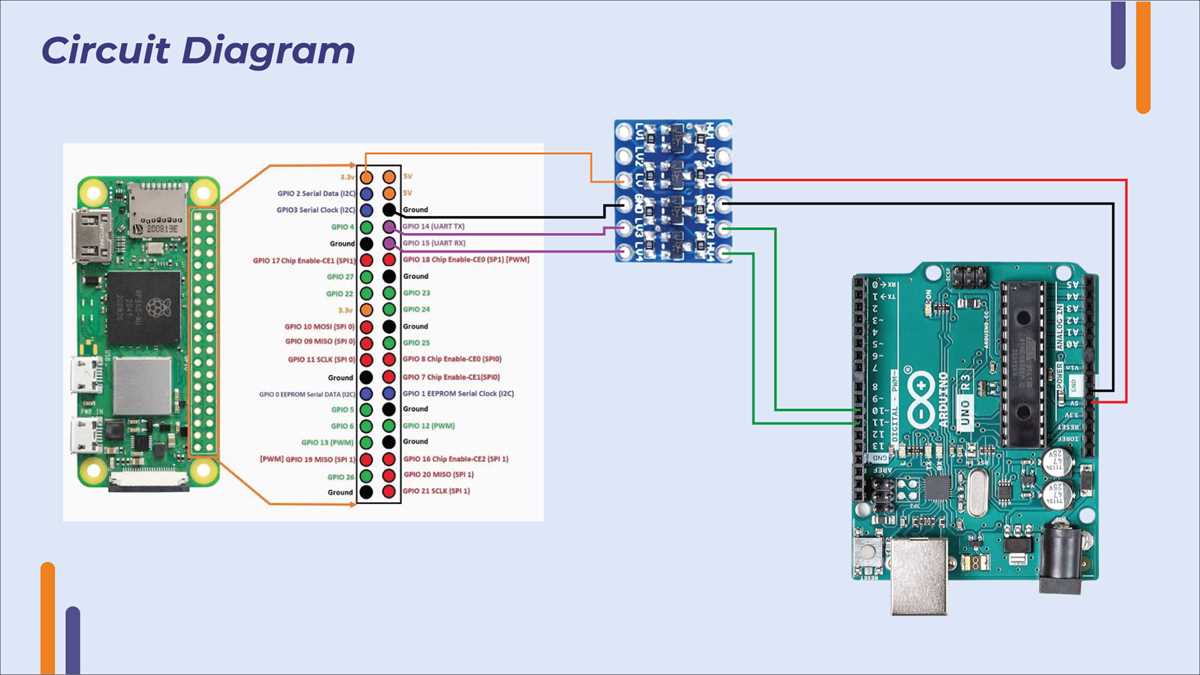

Connecting GPIO Pins and Peripherals Without Official Diagrams: Best Practices

Start by identifying pin functions using the board’s silkscreen labels. On compact single-board computers, GPIO pins follow a numbering scheme where odd-numbered pins (3, 5, 7, etc.) are typically on one side, and even-numbered (2, 4, 6, etc.) on the opposite. Power pins (3.3V, 5V) and grounds (GND) are often grouped at the edges. Verify this layout with a multimeter in continuity mode–probe each pin while referencing the manufacturer’s datasheet, even if it’s a simplified version.

Essential Tools for Safe Prototyping

• Breadboard with power rails: Isolates high-current peripherals (motors, LEDs) from logic circuits to prevent voltage drops.
• 1kΩ resistors: Current-limiting for inputs/outputs; prevents accidental shorts when testing.
• Logic level converter (5V ↔ 3.3V): Mandatory for interfacing with Arduino shields or 5V sensors–direct connection risks damaging the CPU.
• ESD-safe tweezers: Handles sensitive components like I²C EEPROMs without static discharge risks.

For I²C and SPI connections, use 4.7kΩ pull-up resistors on SDA/SCL lines. Without official schematics, measure bus capacitance with an oscilloscope–excessive capacitance (>400pF) causes signal degradation at higher speeds. For UART, cross TX/RX wires between devices (TX → RX, RX → TX) and set matching baud rates (e.g., 9600, 115200). Avoid powering servos or relays directly from GPIO; use a separate 5V/3.3V regulator to prevent brownouts. If PWM signals behave erratically, add a 100nF ceramic capacitor between the pin and ground to filter noise.

Debugging Without Documentation

1. Check for physical damage: Inspect traces near the SoC for micro-fractures using a magnifying glass.
2. Test power integrity: Measure voltages at caps near the voltage regulator–a drop below 90% of expected voltage indicates insufficient current.
3. Verify GPIO direction: Run gpio readall (WiringPi) or sudo raspi-gpio get to confirm pin modes (IN/OUT).
4. Isolate faults: Connect peripherals one at a time; complex devices often draw inrush currents that reset the board.
5. Log serial output: Redirect kernel messages (dmesg) to a USB serial adapter to catch initialization errors.
