How to Interpret Hydraulic System Diagrams Step by Step

Begin with pressure sources–pumps, accumulators, or power units. Identify symbols for fixed-displacement pumps (circles with a black triangle) and variable types (circles with an arrow through the triangle). Note flow direction indicated by solid arrows; reversed arrows denote pilot-operated components. Verify pressure ratings against system requirements; mismatches cause cavitation or overheating.

Trace fluid paths next. Solid lines represent main flow, dashed lines denote pilot control, and dotted lines indicate drain or leakage. Label each line’s function–pressure, return, or tank–using color codes if provided (red = 250+ bar, blue = return, green = pilot). Cross-reference line sizes with component ports; undersized lines create restrictions.

Isolate critical valves early:

Directional control valves (rectangles with spool positions) show flow paths in neutral, actuated, and transitional states. Count ports–T, P, A, B–then map each to actuators. Pressure relief valves (spring-loaded symbols) require adjustment notes; set 10-15% above working pressure. Flow control valves (arrows with throttles) demand precise calibration; test with a flowmeter before finalizing adjustments.

Decipher actuators last. Cylinders display bore, rod, and stroke dimensions; verify seals and mounting types (flange, clevis) match mechanical constraints. Motors (circles with curved arrows) need RPM, torque, and displacement specs–check manufacturer tables for efficiency curves. Rotary actuators (partial circles) require angle limits and load inertia calculations to prevent overshoot.

Annotate every component with real-world equivalents–solenoid part numbers, filter micron ratings, hose burst pressures. Create a legend for custom symbols; industry standards vary. Validate the entire layout against physical hardware; missing a single drain line renders the interpretation useless.

Interpreting Fluid Power Blueprints

Begin by identifying the power source–typically a pump symbol (often a circle with an arrow or internal line). Trace the primary flow path first: follow pressure lines (solid lines) from the pump outlet to actuators (cylinders or motors), noting control elements like valves (rectangles with internal arrows or letters) along the route. Check for directional valves marked “P” (pressure), “T” (tank), and “A/B” (work ports); their position dictates flow paths. Pressure relief valves (springs with arrows) safeguard the system–locate their set points (usually labeled in bar or psi) to understand max operating limits. If the layout includes accumulators, verify their gas pre-charge pressure (commonly 90% of minimum system pressure) to prevent damage during startup.

Decoding Component Annotations

Symbols without standard ISO markings require referencing the legend–manufacturers often use custom abbreviations (e.g., “PRV-250” for a relief valve preset at 250 bar). Measure distances between components on scaled prints to estimate hose/pipe lengths; mismatches can cause pressure drops or cavitation. Check actuator speeds via flow control valves (throttle symbols with arrows)–their adjustable orifices regulate rod extension/retraction times. Color-coding (if present) simplifies troubleshooting: red for high pressure, blue for return lines, and yellow for pilot circuits. Cross-reference solenoid-operated valves with electrical schematics using identical tag numbers to confirm control logic. For proportional valves, note the “ramp” or “dither” settings (often in Hz) to ensure smooth actuator movement without oscillation.

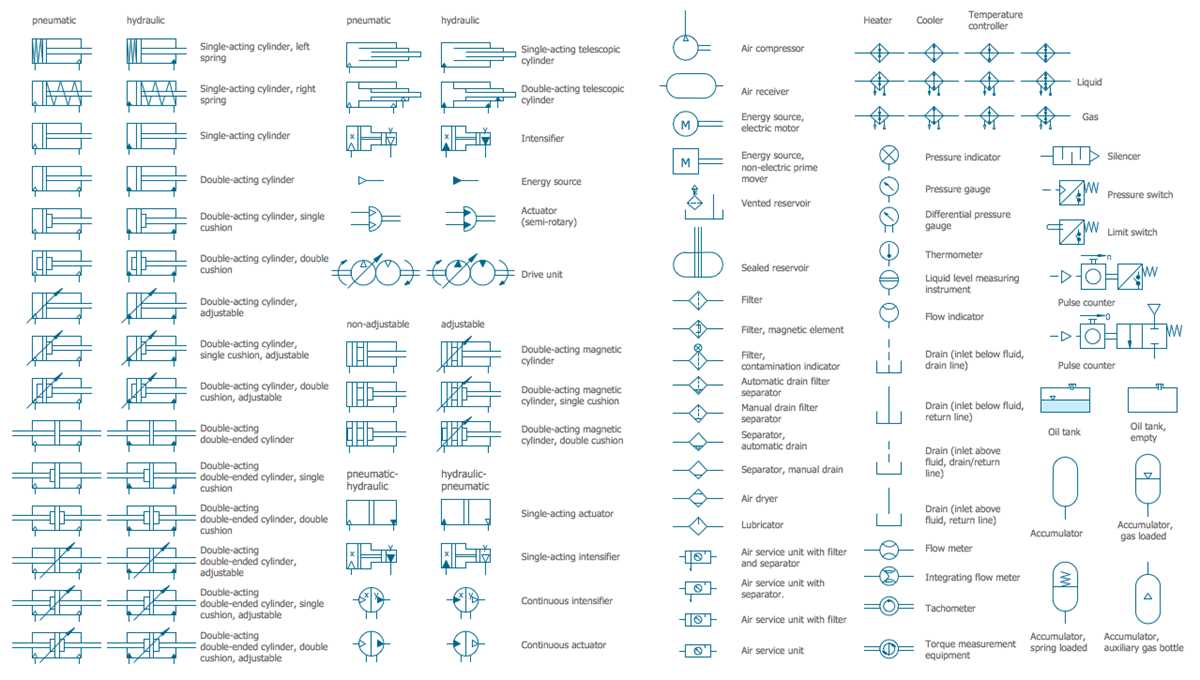

Mastering Core Glyphs in Fluid Power Blueprints

Begin by memorizing pump glyphs–circle with a black triangle or arrow denotes fixed-displacement units, while an additional arrow piercing the triangle signals variable flow. Pressure sources incorporate a solid black triangle facing the working line; absence of fill indicates a vented reservoir port. Springs appear as zigzag lines; count coils for approximate stiffness calibration.

Valves segment into distinct classes:

• Directional: squares with internal arrows (number of positions matches blocks)
• Relief: spring-adjacent orifice, often paired with a pilot line
• Flow control: unidirectional arrow with variable orifice symbol

Actuators break down into:

1. Linear: rectangle with piston rod specifier–single or double
2. Rotary: incomplete circle or half-moon, shaft indicator dictates motor vs. pump duality

Lines carry weight via thickness and stroke pattern: solid (pressure), dashed (pilot), dotted (leakage/drain), and dot-dash (mechanical linkage). Electrical crossover links adopt conventional coil-glyphs–nestled adjacent to solenoid-operated valves for intuitive troubleshooting.

Critical Glyph Pairings for Instant Recognition

Locate pressure gauges first–they consistently pair with circular enclosures containing a diagonal slash. Check valves require only a hinged flap glyph; their absence invites reverse flow faults. Accumulators manifest as half-circle reservoirs paired with gas-charged separator glyphs–differentiating bladder (smooth) from piston (linear divider) types at a glance.

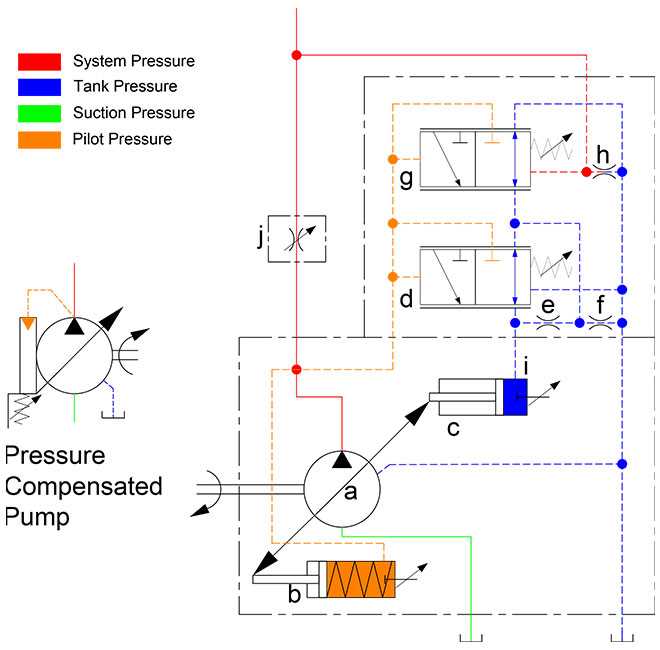

Tracing Fluid Flow Paths from Reservoir to Output Mechanisms

Begin by identifying the pump symbol–typically a circle with an inward-pointing arrow–and note its suction line. Trace this line backward to the fluid source, verifying it connects to a reservoir marked with a horizontal or angled lid notation. Check for inline filters (rectangles with zigzag lines) or strainers (diamond shapes with internal grid) on this path, as neglecting these components can mask pressure drops later in analysis. Record the suction line diameter if specified; undersized lines risk cavitation and pump starvation.

Follow the discharge line from the pump to the first directional control valve, usually depicted as a series of rectangles with arrows or T-shaped passages. Confirm the valve’s neutral position aligns with system requirements–some designs route fluid back to the reservoir in neutral, while others hold actuators locked. For closed-center systems, locate the pressure relief valve (spring-loaded symbol near the pump outlet) and note its cracking pressure; this dictates maximum system pressure before bypass activates. In load-sensing systems, pinpoint the compensator (an adjustable spring symbol tied to the pump) and trace its pilot line back to the highest-load actuator to ensure proper flow prioritization.

Critical Path Components and Failure Points

Component	Symbol	Failure Risk	Tracing Action
Check valve	Arrow in a circle	Reverse flow	Confirm arrow direction aligns with intended flow; test for stuck poppet
Accumulator	Cylinder with gas charge symbol	Pressure loss	Locate pre-charge valve; verify pressure matches 90% of minimum system pressure
Flow control valve	Rectangle with adjustable passage	Inconsistent speed	Trace metered flow path to actuator; check for parallel bypass lines
Counterbalance valve	Spring-loaded pilot valve	Runaway load	Identify pilot ratio (e.g., 3:1); verify pilot line connects to downstream actuator

At each actuator (linear: rectangle with piston rod; rotary: semi-circle with shaft), trace the working lines back to the directional control valve, noting any crossover relief valves (pairs of opposed arrows) that protect against overpressure during load reversal. For motors, identify case drain lines (dotted lines returning to reservoir) and confirm they’re not mistakenly routed to tank lines–misrouted drains cause overheating. In circuits with regenerative flow (e.g., cylinder rod extension), verify the valve spool position that routes rod-side fluid to the piston side; failure to account for differential areas here leads to incorrect speed calculations.

Conclude by mapping pilot lines–thin dashed lines often overlooked–that govern valve shifts or pressure controls. Trace these from their source (e.g., pump output, actuator load) to their destination, ensuring no unintended restrictions exist (e.g., undersized orifices, collapsed hoses). For proportional systems, locate the electronic signal lines (zigzag arrows) and cross-reference with the legend to confirm correct voltage/current ratings. Document each flow path in a matrix listing start/end points, line sizes, and pressure ratings; discrepancies here reveal bottlenecks or safety margin violations.

Decoding Pressure and Flow Regulation Symbols in Fluid Power Blueprints

Start by isolating pressure relief symbols–typically a spring-loaded valve with an arrow indicating cracking pressure (e.g., “250 bar”). The dashed pilot line connected to the tank port confirms its primary function: diverting excess flow to prevent overload. For proportional variants, note the additional rectangular box adjacent to the spring–this denotes electronic control, where current input modulates cracking pressure dynamically. Cross-reference with the component list: part numbers ending in “-PRV” often correlate to these symbols, but verify against manufacturer datasheets for accuracy in pilot ratios and response times.

Directional control notations use rectangular envelopes segmented into squares representing spool positions; count the squares to identify 2-way, 3-way, or 4-way configurations. Actuator symbols–manual (lever), solenoid (T-shaped coil), or pilot-operated (internal arrows)–determine operational method. A “Y” center position indicates open-center flow to tank, while “P” to “A/B” implies tandem center with ports blocked. Mistake-proof interpretation by tracing flow paths in each position: use highlighters to mark pressure (red), work (blue), and tank (green) lines, ensuring no cross-port leakage is overlooked during maintenance planning.
