Understanding Your Refrigerator Compressor Electrical Connections and Schematic
Begin by locating the hermetic unit’s terminal cover–typically secured with a single screw or snap-fit panel. Remove it to expose the three pins: common (C), start (S), and run (R). Standard coloring follows this convention: C (black or brown), S (yellow or red), and R (white or blue). Verify these against the unit’s service plate; deviations exist in older models or imports.
Disconnect power before proceeding. Use a multimeter set to continuity mode to confirm the start relay’s condition. Probe the relay’s input and output terminals–zero resistance indicates a functional relay, while infinite reading suggests replacement is necessary. Capacitors should be discharged; short the terminals with an insulated screwdriver to eliminate residual voltage.
For single-phase units, connect the C terminal to the neutral wire. The R terminal links to the line voltage via an overload protector, while the S terminal routes through a start capacitor and relay. Dual-voltage models require parallel wiring for low voltage (120V) or series configuration for high voltage (240V). Consult the unit’s technical manual for exact amp draw–exceeding this risks thermal trip or winding failure.
Tighten all connections to 10-12 inch-pounds torque. Over-torquing strips threads; under-torquing causes resistive heating. Reinstall the terminal cover and secure it firmly–loose covers allow moisture ingress, leading to corrosion. Restore power and monitor the first cycle. Audible hum followed by silence signals normal operation; persistent buzzing or rapid cycling indicates faulty wiring or relay malfunction.
Always use heat-shrink tubing or electrical tape on splices to prevent short circuits. Replace degraded insulation, especially near the unit’s base where vibration accelerates wear. If the motor fails to start after three attempts, disconnect power and check the start capacitor with a multimeter–capacitance should match the value printed on the casing (±10%).
Understanding Cold Unit Motor Connection Schematics
Locate the start relay and overload protector on the motor casing–these components control power delivery and safeguard against overheating. Most units use a PTC relay (positive temperature coefficient) or a current-type relay; verify the type before proceeding. For a PTC relay, connect the neutral wire to the motor’s common terminal, the line wire to the relay input, and the relay output to the start terminal. Overload protectors typically attach directly to the motor housing, with one lead linking to the run terminal and the other bridging to the start relay. Always cross-reference your model’s service manual for terminal labeling, as misalignment risks permanent damage.
Testing Continuity Before Powering Up
Use a multimeter set to ohms (Ω) to check resistance across the motor windings. Measure between common and run terminals–expect 3-15Ω. Between common and start terminals, readings should range 10-40Ω. A reading of infinity or zero indicates a failed winding or short circuit, respectively. Test the overload protector by ensuring continuity when cold; if open, replace it before energizing the system. For dual-voltage motors (115V/230V), verify jumper configurations–incorrect settings will draw excessive current or fail to start.
Label wires before disconnecting to simplify reassembly. If replacing a capacitor, match microfarads (µF) and voltage ratings–undersized capacitors reduce efficiency; oversized ones overheat windings. After reconnecting, power on briefly and monitor current draw with a clamp meter–normal operating amps should align with the motor’s nameplate rating (±10%). Excessive draw suggests miswiring, failed components, or mechanical restriction.
Identifying Components in a Cooling Unit Motor Circuit

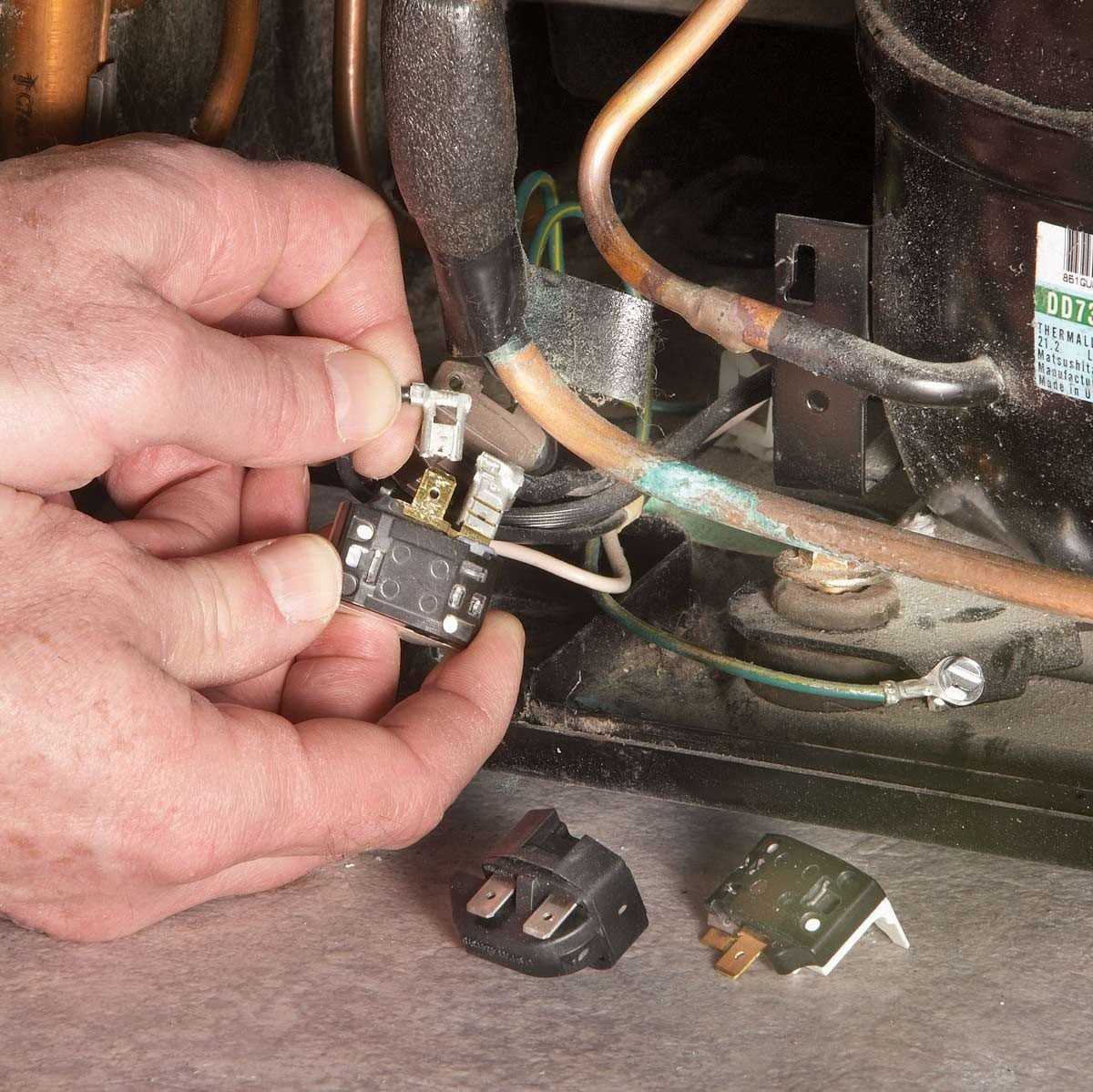

Locate the start relay first–it’s typically mounted directly on the motor housing or secured nearby on the chassis. Check for a small cylindrical or rectangular device with two or three terminals; modern models often use PTC (positive temperature coefficient) relays, which warm up to disconnect the start winding once the motor reaches operational speed. Older designs may rely on a current-sensitive relay, identifiable by its electromagnetic coil and hinged armature.
Examine the overload protector next–this safety device interrupts power if the motor draws excessive current or overheats. It’s usually a disc-shaped component fastened to the motor shell or embedded within the relay assembly. Look for thermal bimetallic strips or resistive elements that deform under heat. Some protectors include a manual reset button, while others self-reset once cooled.
Trace the capacitor–most single-phase motors require at least one capacitor to provide phase-shifted current. Start capacitors (oval, larger) boost torque during activation, while run capacitors (round, smaller) maintain efficiency. Check the labeling for microfarad (µF) values: start capacitors range from 80–300 µF, run capacitors from 5–80 µF. Terminals should be corrosion-free; bulging or leaking cases indicate failure.
Inspect the motor windings with a multimeter. Set the meter to resistance (ohms) mode and measure between the common, start, and run terminals. Expected readings:
| Winding Pair | Resistance Range (Ohms) |
|---|---|
| Common to Start | 2–7 |
| Common to Run | 1–5 |
| Start to Run | 3–12 |
Values outside these ranges suggest shorted or open windings. Verify insulation integrity by checking resistance between any terminal and the motor housing–readings should exceed 1 MΩ.
Identify the terminal block–most hermetic units use a three-pin block labeled C (common), S (start), and R (run). Confirm connections match the schematic: power enters through C, start relay engages S during startup, and R receives continuous supply. Miswiring here causes immediate damage–use colored spade connectors for clarity (red=R, blue=S, white=C).

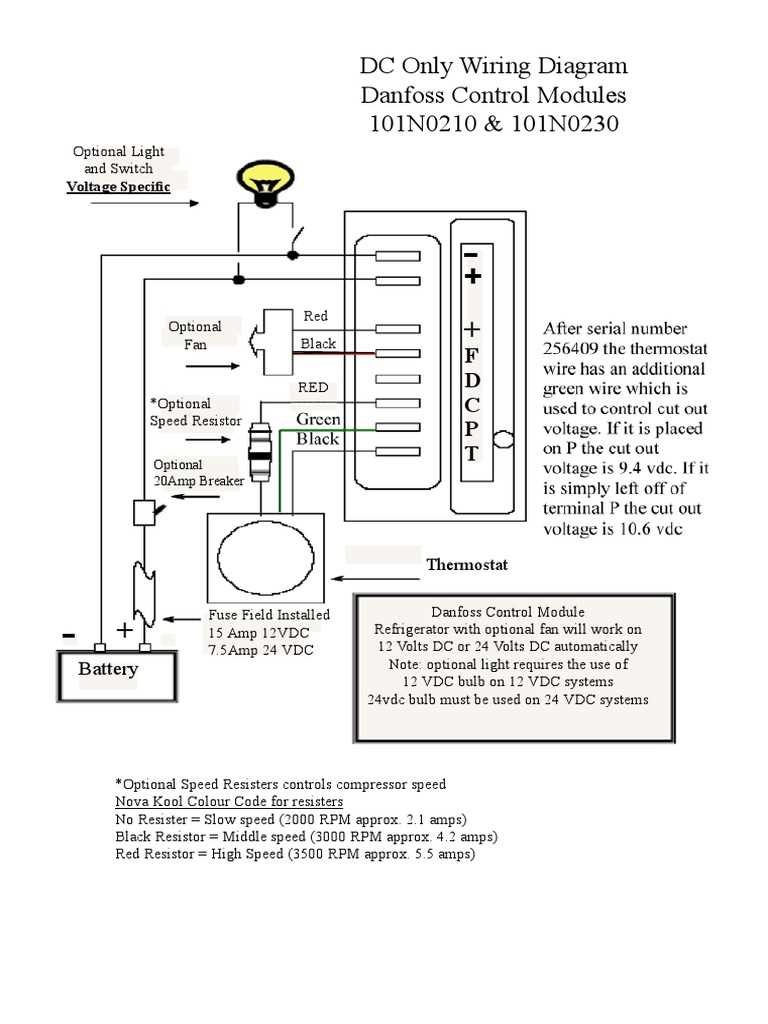

Check auxiliary components in modern systems: electronic control modules replace mechanical relays in inverter-driven units. Look for a small PCB (printed circuit board) near the motor with MOSFETs and current sensors–these regulate variable speed. Test for DC voltage (typically 3–15V) between the module’s output and ground during operation. Absent voltage or erratic readings point to module failure.
Label all connections before disassembly. Use masking tape or heat-shrink labels with permanent marker: date, terminal designation, and capacitor µF value. Store removed hardware in anti-static bags–hermetic seals are vulnerable to moisture ingress. Verify line voltage (115V/230V) at the inlet before energizing–incorrect voltage destroysthe motor instantly.
Step-by-Step Guide to Decoding a Cooling Unit Motor Circuit Blueprint
Locate the power source terminals first–these are typically marked with L (live), N (neutral), and G (ground). Verify the schematic’s voltage rating matches your electrical supply (e.g., 115V, 230V) to prevent mismatches that could damage components or create hazards. Misidentification here will cascade errors through the entire troubleshooting process.
Trace the color-coded conductors from the main relay to the motor’s start and run windings. Most schematics use black for common, red for run, and orange/yellow for start connections. Cross-reference these with the actual wires in your unit–discrepancies often indicate tampered or incorrect configurations. If the motor lacks rotation, measure resistance between these points with a multimeter: run windings should read 3-10Ω, start windings 10-30Ω.
Identify the overload protector–usually a disc-shaped or bimetallic device adjacent to the motor body. On the blueprint, it appears as a thermal switch with normally closed contacts (NC). If the motor overheats, this component trips, breaking the circuit. Test for continuity with the unit unplugged; infinite resistance suggests failure, requiring replacement. Ignoring this step risks permanent motor burnout.
- Check the capacitor values against the schematic–start capacitors range 50-100μF, run capacitors 5-30μF.
- Use a capacitance meter to verify stored charge; bulging or leaking cases signal imminent failure.
- Capacitors must be discharged via a 20kΩ resistor before handling to avoid lethal shocks.
Interpreting Relay Switching Logic
Schematics depict relays as dashed or solid rectangles with numbered pins. Pin 1 usually connects to the power supply, while 2 and 3 toggle between start and run circuits. A failing relay–audible as a clicking without motor engagement–often sticks in the start position, causing excessive current draw. Swap it with an identical model (match amp ratings) if voltage tests confirm no other issues.
Compare control board connections if your model includes one. Look for PTC thermistors (positive temperature coefficient) labeled on the blueprint with resistance curves–these temporarily bypass start windings once the motor reaches 75% speed. A defective PTC will show open circuit at room temperature. Replace it if readings exceed 5-10Ω when cold.
Document every step with photographs or notes before disassembly. Label wires with masking tape and corresponding schematic identifiers to avoid misplacement during reassembly. Reconnect terminals tightly–loose connections generate heat and arcing, accelerating component degradation. After completion, power the unit and monitor for irregular noises, vibrations, or improper cooling within the first 30 minutes; these symptoms often reveal overlooked wiring errors.
