Step-by-Step Guide to Designing a Stable Regulated Power Supply

Begin with a linear voltage stabilizer based on the LM317 integrated regulator. This proven component delivers adjustable output from 1.25V to 37V with minimal external parts: a pair of resistors to set the voltage and two capacitors (10μF input, 1μF output) for ripple suppression. Keep the input-output voltage differential within 3V to prevent overheating, especially at currents above 500mA. For fixed voltages, swap the LM317 with a 7805 (5V) or 7812 (12V) series IC–these require only a single decoupling capacitor (0.1μF to 1μF) on the input side.

For higher efficiency at load currents above 1A, switch to a buck converter topology. A LM2596 buck module reduces 12V to 5V with ~90% efficiency using an inductor (typically 33μH), a Schottky diode (1N5822), and output capacitors (220μF low-ESR). Ensure the inductor’s current rating exceeds the maximum load by 30% to avoid saturation. For variable outputs, pair the LM2596 with a 10K potentiometer in the feedback loop–this lets you tune the voltage between 1.23V and 37V.

When designing for sensitive loads (e.g., audio amplifiers or RF modules), add a Pi-filter after the stabilizer. Combine a 10μH inductor with two electrolytic capacitors (470μF each) to cut high-frequency noise below 1mV. For dual-rail outputs (e.g., ±15V), use a center-tapped transformer and two identical regulators (one for positive, one for negative voltage). Connect the transformer’s center tap to ground–this balances the rails and eliminates the need for complex grounding schemes.

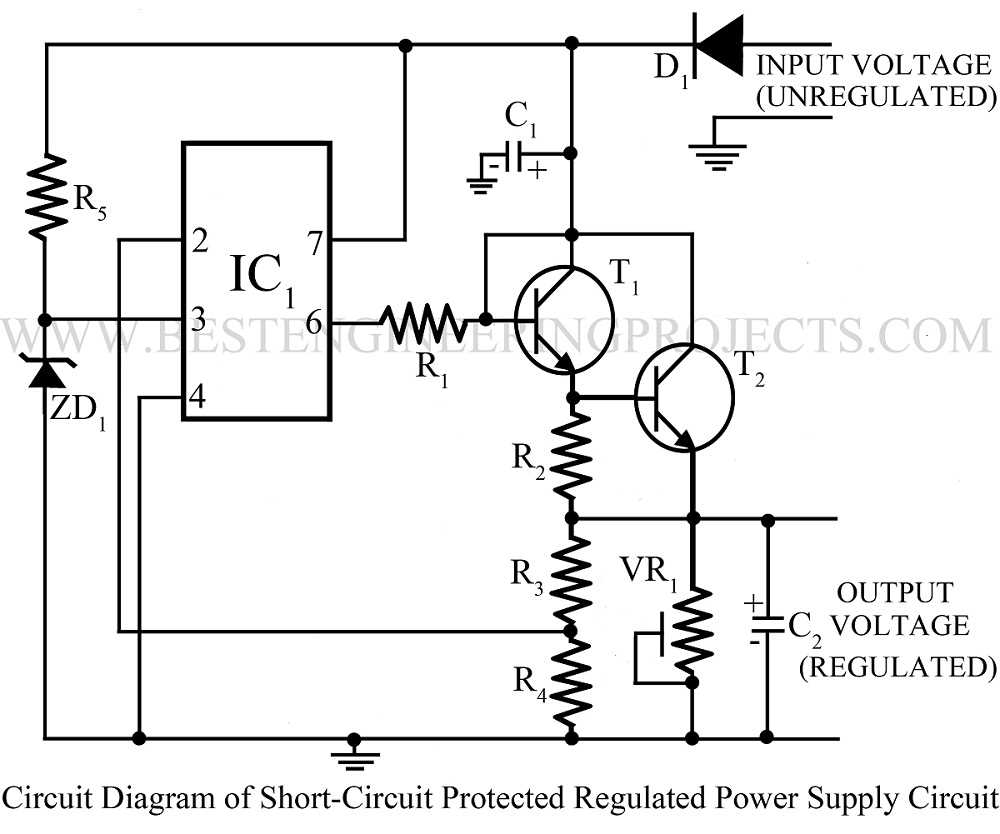

To protect against reverse polarity, short circuits, or overvoltage, integrate these components:

• Fuse (500mA to 2A) on the input line
• TVS diode (P6KE20CA) across the output to clamp spikes
• P-channel MOSFET (IRF9540N) as a reverse polarity switch

Avoid relying solely on the regulator’s built-in protection–external safeguards extend component lifespan and prevent cascading failures.

Designing a Stable Voltage Source Layout

Start with a precision linear regulator like the LM317 for adjustable outputs. Configure the input capacitor at 1000µF to handle transient loads, ensuring ripple stays below 50mV peak-to-peak. Place a 0.1µF ceramic capacitor directly between the regulator’s input and ground to filter high-frequency noise.

For fixed 5V outputs, the 7805 series remains reliable. Pair it with a 220µF electrolytic capacitor on the output to stabilize voltage under variable loads. Avoid exceeding a 1A draw without a heatsink–thermal resistance rises exponentially beyond 1W dissipation.

Use a bridge rectifier rated for at least 50V reverse voltage and 2A forward current. Each diode should handle spikes; Schottky types reduce forward drop but have lower reverse breakdown. Add a 1N4007 in parallel with each diode for redundancy during surges.

Transformers rated at 2x the required RMS voltage prevent core saturation. A 12V secondary with a 1.4:1 turns ratio yields ~16.8V DC post-rectification, ideal for 12V regulators. For PCBs, keep trace widths above 2.5mm per ampere to prevent overheating.

Critical Component Placement

Mount the smoothing capacitor within 2cm of the rectifier to minimize loop inductance. Locate the voltage reference resistors as close to the regulator’s adjust pin as possible–resistance in this path directly skews output accuracy.

Ground planes should connect all reference points to a single star node, eliminating return-path noise. Thermal vias under heatsinks improve dissipation; space them 2mm apart for optimal heat transfer.

Failure Modes to Address:

• Reverse polarity: Add a series diode before the input capacitor, even if it wastes 0.7V.
• Short circuits: Fuse the primary AC side at 125% of max load current.
• Overvoltage: Crowbar circuits with SCRs clamp outputs during transients.

Test with an oscilloscope at 20MHz bandwidth to catch ringing from poorly routed traces. Keep signal paths under 5cm for frequencies above 10kHz. Replace electrolytic capacitors every 5,000 hours if operating near their voltage rating.

Choosing Parts for a 5V Stabilized Voltage Source

For a 5V output with currents up to 1A, use an LM7805 in TO-220 packaging–it handles 1.5A peak and requires no external feedback network. Pair it with a 220µF 25V aluminum electrolytic capacitor on the input and a 100µF 16V tantalum capacitor on the output; these values minimize ripple to under 10mV while ensuring stability during load transients.

Source AC from a 9V RMS transformer with 1.2A secondary rating–this provides adequate headroom after rectification and filtering. Avoid lower voltages (7-8V) as dropout voltage (2V typical) may cause unreliable regulation at high loads. A bridge rectifier (e.g., KBU4J) is preferable over discrete diodes, reducing forward voltage drop to ~1.1V instead of 2V.

Voltage Reference and Heat Dissipation

The LM7805 has a fixed 5V reference, eliminating the need for precision resistors. However, at 1A, it dissipates ~(9V·√2 – 5V)·1A ≈ 7.4W–mount the TO-220 package on a 30mm×30mm×10mm aluminum heatsink with thermal grease. Without this, junction temperature may exceed 125°C, triggering thermal shutdown.

Consider a low-dropout (LDO) alternative like the LM2940 if input voltage falls below 7V. LDOs reduce dropout to ~0.5V but require careful output capacitor selection; ceramic types (e.g., 22µF X7R) prevent oscillation, while electrolytics may destabilize the loop.

For input filtering, a 0.1µF ceramic capacitor in parallel with the electrolytic suppresses high-frequency noise from the rectifier. Avoid exceeding the transformer’s VA rating–e.g., a 10VA unit suffices for 1A steady-state, but dimming or motor loads demand derating by 30%.

Protection and Load Considerations

Add a 1N4007 diode across the input and output of the regulator in reverse bias to clamp inductive kickback (e.g., from relays). For sensitive loads like MCUs, include a 0.5Ω ferrite bead on the output to block conducted EMI–this preserves signal integrity without affecting DC performance.

Verify component stress under worst-case conditions: assume ambient temperature of 50°C and maximum input ripple of 1V peak-to-peak. The LM7805’s worst-case dropout occurs at -40°C, so test prototypes at both temperature extremes if targeting industrial applications. Cost-optimized designs may omit heatsinks but must accept derated current limits (~500mA continuous).

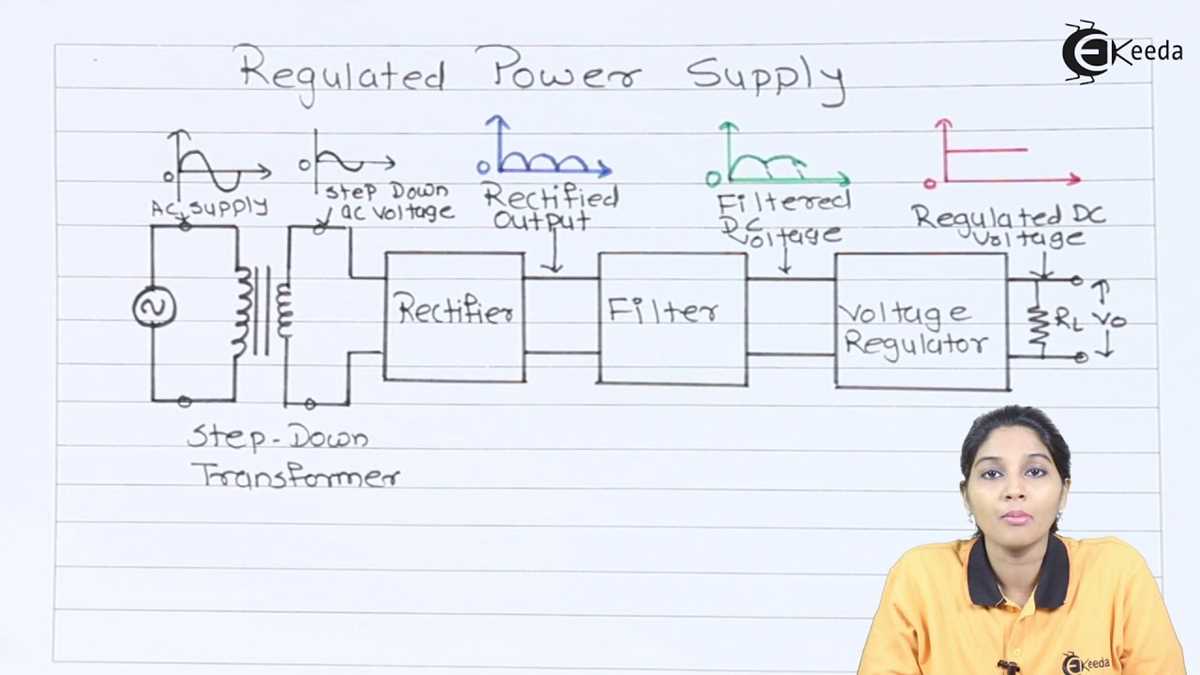

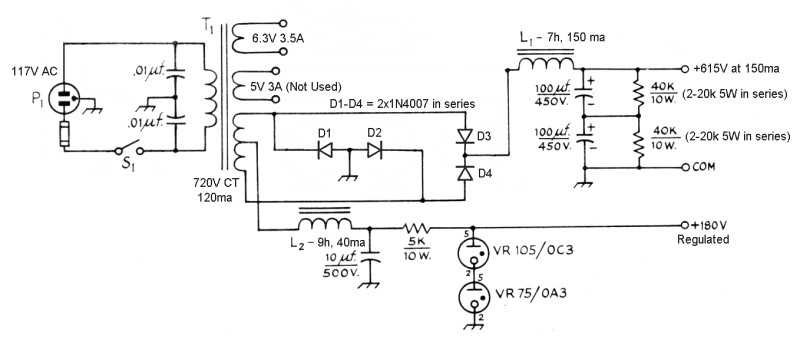

Step-by-Step Assembly of a Transformer-Rectifier-Regulator Build

Select a toroidal or EI-core transformer with a secondary winding rated 2-3V above the target output voltage. For 12V DC output, use a 15V AC secondary. Verify the transformer’s current rating matches at least 1.5× the load demand–e.g., 3A transformer for a 2A load–to prevent thermal stress. Solder the primary leads directly to an IEC socket or mains plug, ensuring 600V-rated insulation sleeves on all exposed conductors. Route secondary wires through a strain relief hole or grommet to avoid abrasion.

Mount four 1N4007 diodes in a full-wave bridge configuration. For higher currents, use Schottky types (e.g., 1N5822) to reduce forward drop. Solder the AC inputs to the transformer secondary, then attach the DC outputs to a 4700µF electrolytic capacitor, observing polarity–negative to the bridge’s cathode junction. Add a 0.1µF ceramic capacitor in parallel to suppress high-frequency noise. Leave 2cm spacing between components to allow air circulation.

Secure a linear voltage stabilizer (e.g., LM7812) on a small heatsink, even for nominal loads–dissipation can exceed 5W with 1A output. Apply thermal paste between the regulator and heatsink to improve conductivity. Connect input and ground pins to the rectified DC rail, ensuring the ground pin ties to the capacitor’s negative terminal. Route the output pin through a 100nF decoupling capacitor to ground.

Wire a bleeder resistor (1kΩ, 1W) across the main capacitor to discharge stored energy when powered off. For fault detection, insert a 1A slow-blow fuse in series with the transformer primary. Test continuity with a multimeter before energizing–resistance between primary and secondary should exceed 10MΩ.

Component	Rating	Purpose
Transformers (EI-core)	15V AC, 3A	Step-down voltage
Schottky diodes	1N5822	Rectification
Filter capacitor	4700µF, 25V	Smoothing ripple
Voltage regulator	LM7812	Fixed 12V output
Heatsink	15°C/W	Thermal management

For adjustable output, replace the fixed regulator with an LM317. Wire a 240Ω resistor between output and adjust pins, then connect a 5kΩ potentiometer from adjust to ground. Calibrate output to 3-15V by rotating the potentiometer while monitoring with a voltmeter. Add a 10µF tantalum capacitor at the adjust pin to improve transient response.

Enclose sensitive components in a grounded metal chassis. Drill 3mm ventilation holes above the heatsink; position the transformer away from AC mains wiring to minimize magnetic interference. Label all input/output terminals to prevent reverse polarity connection. For final validation, measure ripple voltage–values above 50mV peak-to-peak indicate insufficient capacitive filtering.

For redundancy, add a crowbar SCR (e.g., TYN612) across the stabilizer’s output. Trigger it via a voltage divider tuned to 13V–this clamps output if the regulator fails. Use a PCB-mounted fuse holder for the SCR’s gate series resistor to maintain accessibility. Test the crowbar by deliberately shorting the regulator’s output; the fuse should blow within 50ms.

Load Testing Protocol

Begin with a 10% load (e.g., 200mA for a 2A unit) and monitor temperature rise for 30 minutes. Steadily increase load in 20% increments, waiting 10 minutes between steps. At full load, thermal equilibrium should occur within 45 minutes–regulator case temperature should stabilize below 65°C. Log readings every 5 minutes using a K-type thermocouple attached to the heatsink’s hottest point.
