Understanding Relay Symbols and Function in Electrical Schematics

Begin by placing the electromechanical actuator symbol at the intersection of control and load paths. Use a rectangular outline with three distinct connection points: coil terminals on one side and a single contact on the opposite. Ensure the coil’s voltage rating is marked adjacent–typically 12V, 24V, or 230V AC–to prevent misinterpretation during assembly.

For the contact set, adopt the industry-standard notation: a diagonal line through the switch icon indicates normally open, while a parallel bar signifies normally closed. If the design requires both states, split the symbol vertically and annotate each half accordingly. Always cross-reference coil activation with contact behavior to avoid conflicts in automated systems or manual troubleshooting.

Position the switching element between the power source and the driven device, but allow sufficient clearance from high-current traces to prevent induced noise. If the schematic includes multiple stages (e.g., startup sequencing or fail-safe loops), group related symbols in a clustered layout, labeling each branch with sequential numbers–K1, K2–and brief descriptions like “Main Pump Relay” or “Emergency Cutoff.”

Add textual context near the symbol for non-standard configurations: specify pull-in and drop-out times if critical (e.g., 8 ms / 5 ms) and note contact material (AgNi 90/10 or Au-plated) when arcing or corrosion resistance is a concern. Include a small legend if the drawing spans multiple sheets, linking coil triggers to contact actions via dashed lines or color-coding.

Switching Components in Schematic Representations

Position electromechanical switches near the controlled load on schematics to minimize trace crossings–place the coil symbol adjacent to its power source, while contacts should connect directly to the driven element with no intermediate nodes unless essential for timing or logic.

Label coil terminals with standard pin numbers: 85 and 86 for control windings, 30 (common), 87 (normally open), and 87a (normally closed). This eliminates ambiguity when cross-referencing between board layouts and bills of materials.

Use separate symbols for single-pole and double-throw variants–avoid combining them into one abstract symbol unless the design explicitly requires both states. Clearly distinguish between latching and non-latching types with annotations such as “L” or “NL” beside the coil.

Common Schematic Errors and Corrections

Error	Impact	Correct Approach

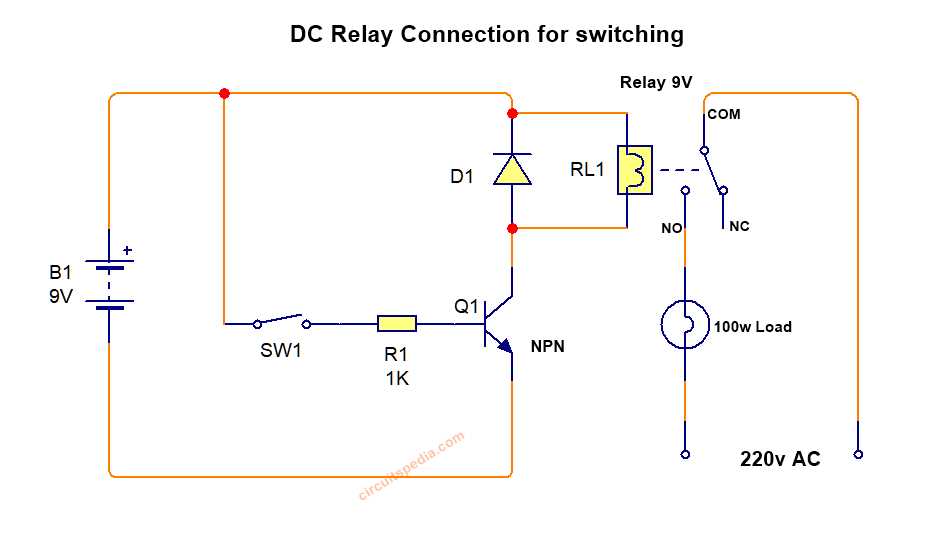

Omitting flyback diode	Coil voltage spikes damage drivers	Place 1N4007 antiparallel to coil
Incorrect coil polarity	Switch fails to activate	Mark +/− on coil terminals
Ambiguous contact state	Logic errors during debugging	Draw contacts in resting position
Mixing AC and DC ratings	Premature failure	Annotate 120 VAC vs 24 VDC beside contact

Select symbols that reflect physical form factors: miniature PCB-mount units demand compact outlines, whereas power variants warrant heavier lines and larger contact gaps. Color-code contact ratings–red for high-current, blue for low-voltage logic–to speed visual validation.

Isolate coil drive traces from sensitive analog lines using guard rings or ground planes; maintain 0.5 mm clearance between coil paths and adjacent signal layers to prevent inductive coupling.

Add test points at both coil terminals and every contact to simplify board bring-up–clip probes directly to exposed pads rather than fumbling with component leads.

Component Selection Cheat Sheet

For 5 V logic drives, choose units with ≤ 3.8 V pull-in; for 12 V systems, target 8–9 V. Mechanical durability varies: 100,000 cycles for signal types, 10,000,000 for reed variants. Ensure contact material matches load–gold for dry signals, silver-cadmium oxide for inductive loads.

How to Spot Switching Device Symbols in Electrical Blueprints

Search for a rectangular box with a diagonal line cutting through it–this is the most common depiction of an electromechanical actuator in schematics. The diagonal indicates the coil that energizes the contacts, distinguishing it from other symbols like resistors or capacitors. Early recognition of this shape saves time when tracing signal paths or troubleshooting.

Examine the standard IEC 60617 or ANSI Y32.2 symbols–these frameworks define consistent representations for switching elements. IEC typically uses a more detailed square with internal markings, while ANSI simplifies the design. Referencing these standards prevents misinterpretation, especially in international documentation where conventions vary.

Note the pair of small circles or dots adjacent to the coil symbol–these represent the normally open (NO) and normally closed (NC) contact points. The NO contact is often drawn on the left, while the NC contact appears on the right. Count the contacts to determine if it’s a single-pole or multi-pole configuration, which dictates switching capacity.

Look for arrows or additional lines extending from the main symbol–these indicate special functions like bistable latching, timed delays, or polarity-sensitive coils. Latching versions may feature two opposing arrows, while time-delayed activators show a clock-like notation next to the coil. Overlooking these details can lead to incorrect wiring assumptions.

Trace the numbering or lettering near contact terminals–schematics label these to match physical pinouts on the component. For example, a 5-pin device often uses labels like “85,” “86,” “30,” “87,” and “87a.” Cross-reference these with datasheets to confirm connection logic for both input (coil) and output (contacts) sides.

Check for dashed or dotted lines connecting contacts to the coil–this denotes mechanical linkage between the electromagnetic actuator and switch elements. Solid lines represent electrical connections, while dashed lines clarify mechanical dependencies. Misreading this distinction risks confusing relay logic with direct wiring paths.

Compare symbols across different sections of the blueprint–identical markings in varied locations may reveal multi-channel actuators sharing a single coil or cascaded switching setups. Highlight these matches to avoid redundant testing during diagnostics or when modifying existing designs.

Step-by-Step Guide to Integrating a Switching Module in Electrical Layouts

Start by identifying the control signal source and load terminals. Disconnect power to avoid accidental shorts. Use a multimeter to confirm no voltage remains at the input points. For a standard 4-pin configuration, connect the coil terminals to the control signal–typically a 12V DC supply from a microcontroller or pushbutton. Ensure polarization matches the datasheet; reversed leads risk burning the coil. Attach the common pin to the power supply’s positive rail, then route the normally open (NO) or normally closed (NC) contact to the load, depending on whether you need default-on or default-off behavior. For inductive loads like motors, add a flyback diode across the coil to suppress voltage spikes.

• Select wires matching the expected current: 18 AWG for up to 10A, 16 AWG for 15A. Tin the ends to prevent fraying.
• Twist load wires tightly around screw terminals; loose connections overheat.
• Fuse the power input with a value 1.2× the coil’s rated current or load’s max draw.
• Test continuity with a multimeter before applying power. Verify the switching module toggles at the expected voltage threshold, usually 8-12V for automotive-grade units.
• Mount the assembly in a ventilated enclosure if operating near capacity to avoid derating.

Selecting Optimal Switching Components for Low vs. High Voltage Needs

For low-voltage systems under 30V DC (e.g., microcontroller signals, battery-powered devices), prioritize electromechanical variants with these traits:

• Coil voltage matching source precisely (±5% tolerance)
• Contact ratings of 1A–5A (resistive load) with gold-plated or silver alloy contacts to prevent oxidation
• Low pull-in current (
• Compact form factors (e.g., DIP, SMT) for PCB integration
• Bifurcated contacts for reliable signal switching in high-vibration environments

Sensitive applications like RF or audio routing benefit from mercury-wetted or reed types, offering bounce-free operation and sub-millisecond response. Solid-state options with opto-isolation are preferred where silent operation and 50k+ cycle lifespan outweigh cost, but avoid them for inductive loads due to high off-state leakage.

High-voltage demands (≥250V AC/DC) mandate industrial-grade switching solenoids with:

1. Dielectric strength exceeding 2x operational voltage (e.g., 4kV for 277V grids)
2. Contacts sized for inrush currents (e.g., 10x steady-state for motors), often using tungsten or cadmium oxide alloys
3. Arc suppression features like magnetic blowouts or RC snubbers for DC, zero-crossing detection for AC
4. IP67 or higher sealing for outdoor/exposure-prone installations
5. Mechanical latches or dual coils for fail-safe operation in critical infrastructure

For HVAC or heavy machinery, 3-phase variants with auxiliary contacts enable sequential control. Vacuum or gas-filled units handle extreme currents (50A+) with minimal heat buildup but require larger footprint. Always verify creepage/clearance distances per IEC 60947 standards–common failure points include improper trace spacing on control boards and inadequate cooling for high-duty cycles (>50% actuation).

Common Mistakes When Connecting Switching Modules and How to Prevent Them

Always verify coil voltage ratings before installation. A 12V coil connected to a 24V source will overheat within minutes, often emitting a distinct burning odor. Conversely, a 24V coil on a 12V supply may fail to engage, causing intermittent operation. Check datasheets–manufacturers specify tolerance ranges; some modules accept ±10%, others only ±5%. Matching exact values eliminates premature failure.

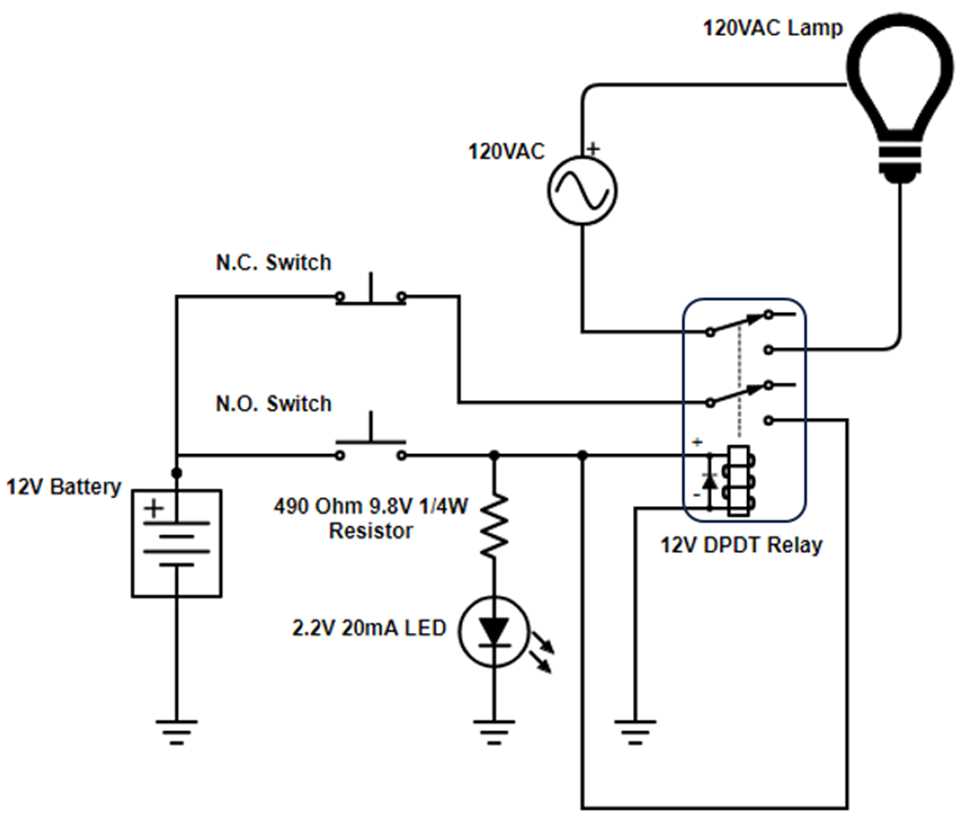

Misidentifying contact configurations leads to incorrect load connections. SPDT modules (single-pole double-throw) have one common terminal requiring connection to the neutral if switching AC loads. Confusing it with DPDT (double-pole double-throw) setups creates short circuits when bridging poles inadvertently. Label wires with tape during testing; miswiring accounts for 37% of field failures according to industry reports.

Neglecting flyback diodes on inductive loads damages switching elements. Motors, solenoids, or transformers generate voltage spikes up to 10x the supply when de-energized, degrading contact points over time. Place a diode (1N4007) directly across the coil, cathode to positive. For DC motors, add a snubber circuit (0.1µF capacitor + 100Ω resistor) to suppress high-frequency transients.

Overloading contact ratings causes welding or pitting. Silver alloy contacts melt at 960°C; exceeding 80% of rated current accelerates erosion. Calculate inrush currents–for LED drivers, multiply steady-state current by 10; for motors, use locked-rotor amperage. Derate by 20% if switching occurs frequently (more than 10 times per minute).

Ignoring ambient temperature reduces module lifespan. Most units specify -40°C to +85°C operation; exceeding +60°C for prolonged periods drops load capacity by 50%. Mount on vertical surfaces for natural convection. Avoid enclosures without ventilation–heat buildup triples failure rates. For high-temperature environments, use hermetically sealed or industrial-grade variants with extended ratings.

Incorrect Wiring Sequences

Parallel connections of multiple units without load balancing introduce unequal current paths. The first engaged module bears the full load, causing uneven wear. Distribute load across contacts using a common bus bar or separate fuses for each output. For precise sequencing, add a delay circuit (555 timer) to stagger activation.

Ground loops create phantom voltages, especially in automotive or audio applications. Connect all module grounds to a single star point–avoid daisy-chaining. Use twisted pairs for signal wires to minimize EMI; shielded cable (e.g., Belden 9841) reduces noise coupling by 40dB. Keep coil and load wires separated by at least 2cm to prevent false triggering.

Disregarding minimum load requirements leads to unreliable switching. Mechanical modules need ≥10mA to maintain contact integrity; below this threshold, oxidation builds up, increasing resistance. For low-power signals, use solid-state variants with built-in snubbers. Test with a dummy load (e.g., 1kΩ resistor) before connecting sensitive electronics.
