Step-by-Step Guide to Building a DIY Remote Control Car Circuit

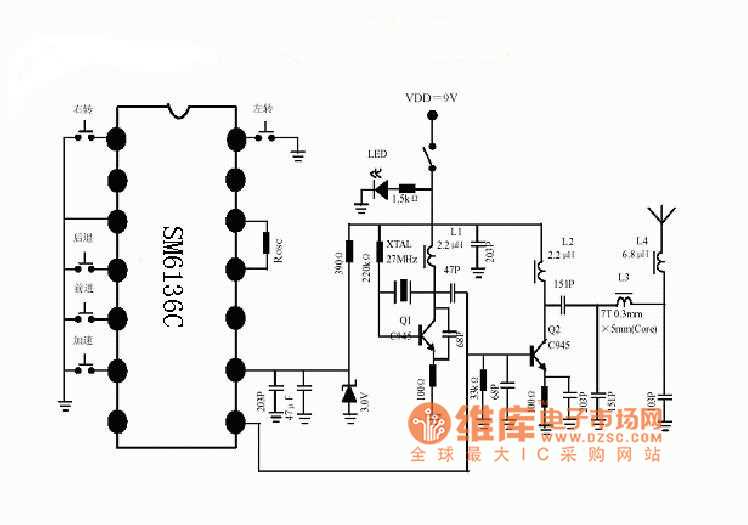

remote control car circuit diagram

Start with an ATtiny85 microcontroller paired with an nRF24L01 transceiver. The ATtiny handles low-level signal processing at 8 MHz, while the nRF24 operates on 2.4 GHz ISM band with 126 channels for interference avoidance. Power both components with a 3.7V LiPo battery–avoid alkaline cells due to inconsistent voltage drops.

Pair the transmitter’s joystick module (KY-023) directly to the ATtiny’s analog pins A2 and A3. Configure the microcontroller to read 10-bit resolution for smoother movement. Use PWM signals on pins PB0 and PB1 to drive a dual H-bridge (L298N) steering the rear wheels. Calibrate dead zones to ±5% of joystick travel to prevent unintended drift.

Solder the nRF24L01’s SPI pins (MOSI, MISO, SCK) to the ATtiny’s corresponding ports. Add a 10µF capacitor between VCC and GND to stabilize power fluctuations. For the receiver, mirror the SPI connections but attach the H-bridge directly–skip intermediate microcontrollers if latency under 50ms isn’t critical. Test transmission range in open areas before final enclosure assembly; obstacles reduce effective distance by 40-60%.

For chassis wiring, split the H-bridge’s 5V output to power a 7.4V brushed motor and a servo SG90 for front-wheel alignment. Isolate servo control lines with a 10kΩ resistor to prevent signal bleed. Ground all components to a single point near the battery to eliminate noise. Use 22 AWG silicone wires for motor connections–thicker strands handle current spikes up to 2A without overheating.

Before final soldering, upload code via Arduino IDE with attiny-master library. Verify packet delivery by monitoring serial output at 9600 baud. If signal loss exceeds 10%, switch to enhanced ShockBurst mode on the nRF24L01. For failsafe, program the receiver to default to neutral position if no signal is detected for 300ms.

Building a Wireless Toy Vehicle Schematic

Start by pairing a 2.4GHz transceiver module (like NRF24L01) with an 8-bit microcontroller (ATmega328P) for stable signal transmission. Power the system with a 7.4V LiPo battery, regulated to 5V via an LM2596 DC-DC converter, ensuring consistent voltage for motors and logic. For motor control, use an L298N H-bridge driver connected to two 6V DC gear motors–wire PWM inputs from the microcontroller to adjust speed. Add a 100µF capacitor across the battery terminals to filter noise, and include a 1kΩ resistor on the transceiver’s CE pin to prevent false triggers. Test signal strength over 30 meters in open space before final soldering.

Key Component Layout

Place the microcontroller at the center of the PCB, with the transceiver elevated on headers for antenna clearance. Route motor driver traces at least 2mm wide to handle 2A current peaks. Ground loops can be minimized by connecting all ground points to a single star node near the battery, using 18AWG wire. For failsafe operation, solder a 0.1µF ceramic capacitor between VCC and GND on every IC. Label IC pins directly on the schematic with their functions (e.g., “M1 IN1” for motor input) to simplify troubleshooting–avoid relying on default pin numbers alone.

Key Elements for a Fundamental Radio-Operated Vehicle Electrical Layout

Select a brushed DC motor rated between 6V and 12V with a stall current under 5A–ideal for lightweight chassis propulsion without overloading cheap H-bridge drivers. Pair it with a 7.2V NiMH battery pack (1500mAh minimum) to ensure consistent runtime; lithium variants offer higher energy density but require specialized charging circuits to prevent thermal runaway.

An L298N motor driver module handles bidirectional movement, supporting peak currents up to 2A per channel–sufficient for most hobby-grade setups. For wireless signal reception, integrate an NRF24L01 2.4GHz transceiver module, which provides a 100-meter range in open areas and consumes just 12mA in active mode, prolonging battery life during idle periods. The following components must be matched precisely to avoid voltage mismatches:

Component Recommended Spec Critical Note
Motor 3000 RPM @ 6V Avoid exceeding 70% PWM duty cycle to prevent overheating
Battery 7.2V 1800mAh NiMH Never discharge below 1.0V per cell to avoid permanent damage
Driver L298N (dual H-bridge) Heat sink mandatory if ambient temp exceeds 40°C
Receiver NRF24L01+PA+LNA Shield antennas near metal components to reduce signal reflection

For the microcontroller unit, an ATmega328P running at 16MHz offers a balance of low power draw (5mA active) and sufficient GPIO pins to decode throttle/steering signals. Include a 100μF electrolytic capacitor across the motor terminals to suppress voltage spikes, and a 0.1μF ceramic capacitor near the MCU’s power input to filter high-frequency noise. Skip voltage regulators if the battery’s output matches the system’s requirements–linear regulators waste energy as heat, while buck converters add complexity for gains that rarely exceed 10% efficiency in small-scale builds.

Step-by-Step Wiring Connections for Propulsion Unit and Power Source

Begin by attaching the positive terminal of the lithium-polymer (LiPo) cell directly to the input of the motor driver module’s high-current track–use 16 AWG silicone-coated wire for currents exceeding 10A. Secure the negative terminal to the driver’s ground plane, ensuring a solder joint with at least 3mm diameter to minimize voltage drop. Verify polarity with a multimeter (0V between ground and negative, full voltage at positive) before energizing; reverse connection risks permanent damage to the driver’s MOSFET array.

Critical Link Sequence

  1. Strip 12mm insulation from each wire end, tin cores with 60/40 rosin-core solder.
  2. Insert tinned ends into driver screw terminals–tighten to 0.6Nm torque with a precision screwdriver.
  3. Route power leads away from signal cables to prevent EMI noise coupling (keep >3cm separation).
  4. Connect motor leads to driver outputs: brushless units require three-phase matching (U/V/W), brushed DC aligns red (+) to the driver’s “M+” terminal.
  5. Add a 470μF, 35V electrolytic capacitor across the power leads to suppress voltage spikes during switching.
  • For brushed motors, include a flyback diode (1N5408) reverse-parallel to absorb inductive kick.
  • LiPo cells above 3S require a balanced charger–plug JST-XH connectors into each cell tap before first charge.
  • Test continuity with an ohmmeter: 0Ω between driver ground and power ground confirms fault-free grounding.

How to Integrate a Transmitter and Receiver Module for Wireless Models

Choose a 2.4GHz RF pair for interference resistance and stable operation over distances up to 50 meters. Match the modules’ voltage ranges–typical transmitters operate at 3.3V–5V, while receivers often require 5V with regulated input.

Connect power pins directly to a dedicated supply. Avoid sharing regulator current with servos or motors; use separate 3A linear regulators if the model’s system draws over 500mA. Ground both modules to the same plane to prevent signal degradation.

Wire the data lines from the transmitter’s UART (TX) to a compatible microcontroller’s RX pin. Use a voltage divider if the MCU operates at 3.3V and the module outputs 5V logic. Example resistor values: 4.7kΩ (series) and 10kΩ (to ground).

Configure the receiver’s output pins for pulse-width modulation or serial data, depending on your firmware. For PWM-based setups, map channels to throttle, steering, and auxiliary functions. For serial, decode packets using checksum validation.

  • Frequency alignment: Ensure both modules are set to identical channels. Use manufacturer-provided software to bind them before integration.
  • Antenna placement:>

    • Mount antennas vertically and at least 10cm away from metal parts or carbon fiber to avoid signal absorption.

  • Power filtering:>

    • Add a 10μF capacitor across the receiver’s power pins to smooth voltage fluctuations from motor noise.

Test range incrementally. Measure RSSI (Received Signal Strength Indicator) at 10m intervals; ideal values should exceed -70dBm. If signal drops below -90dBm, relocate antennas or reduce obstructions.

Firmware Considerations

Use interrupt-driven routines to process incoming data. For Arduino-based systems, example code snippet:

  1. Set up UART with correct baud rate (e.g., 115200).
  2. Implement a buffer to store serial packets.
  3. Validate packet structure (header + payload + checksum).
  4. Update model’s actuators only after successful validation.

Fault-Tolerant Design

Program failsafe triggers if no valid signal is received within 200ms. Default actions: return servos to neutral, engage braking, or cut motor power. Test failsafes by powering off the transmitter during operation.

Constructing a Velocity Modulator with PWM Input Processing

Begin by selecting an N-channel MOSFET, such as the IRF540N, with a current rating exceeding 20A and a voltage handling capacity of at least 30V. This component will serve as the primary switching element for regulating motor speed. Pair it with a flyback diode, like the 1N4007, positioned directly across the motor terminals to suppress voltage spikes generated during commutator operations.

For PWM signal generation, employ a dedicated microcontroller–preferably an ATmega328P–due to its 16 MHz clock speed and 8-bit resolution, which ensures precise duty cycle adjustments. Configure Timer1 in Fast PWM mode with a prescaler of 8, producing a 2 kHz frequency. This setup balances response time and audible noise reduction while maintaining smooth motor operation.

Critical: Connect the MOSFET gate to the microcontroller via a 100Ω resistor to limit current surges and stave off oscillations. Without it, gate capacitance may delay switching transitions, inducing thermal stress on the transistor. Additionally, insert a 10kΩ pull-down resistor to prevent floating gate conditions during power cycles, which could lead to unintended motor engagement.

Calibrate the PWM range experimentally: start with a 0% to 100% duty cycle mapping to motor stall and full throttle, respectively. However, implement a 15% dead zone at the lower end to counteract static friction in gear mechanisms, and cap the upper limit at 90% to avoid excessive heat buildup in the motor windings. Use a multimeter in DC voltage mode to verify the effective voltage delivered to the motor at various PWM percentages, ensuring linearity between input and output.

Integrate a low-pass RC filter at the MOSFET’s drain to smooth PWM ripples into a quasi-DC voltage. A 100μF electrolytic capacitor combined with a 10Ω resistor yields a cutoff frequency around 160 Hz, effectively attenuating high-frequency noise without introducing significant lag. Position this filter as close to the motor terminals as physically possible to minimize radiated interference affecting adjacent components.

Thermal management dictates the choice of heatsink: for continuous loads under 5A, a small aluminum finned heatsink suffices. Exceeding 5A necessitates active cooling–a 12V brushless fan mounted directly on the MOSFET’s TO-220 package extends operational limits beyond 15A. Monitor case temperature with a thermocouple; sustained readings above 85°C warrant either a larger heatsink or reduced current draw.

Isolate the microcontroller’s logic ground from the motor power ground using a star grounding topology. Connect both grounds at a single point near the power source to prevent ground loops, which manifest as erratic PWM behavior or undesired voltage offsets. For high-power setups, consider opting for an isolated gate driver IC, such as the IR2104, to enhance noise immunity and protect the microcontroller from back EMF transients.

Troubleshooting Unexpected Behavior

If the motor exhibits jitter at low speeds, increase the PWM frequency to 4 kHz–this shifts audible noise above the human hearing range while preserving torque delivery. Conversely, persistent high-pitched whining suggests insufficient dead time or excessive capacitance in the gate drive circuitry; adjust the gate resistor to 47Ω and re-evaluate.

For stubborn stalling issues, verify the MOSFET’s on-state resistance (RDS(on)) at your operating voltage. The IRF540N specifies 44 mΩ at 10V gate drive, but this degrades at lower voltages. Ensure the microcontroller’s output pin delivers at least 5V under load–if not, insert a level-shifting transistor, like the 2N2222, to amplify the signal to 12V, guaranteeing full MOSFET saturation.
