Understanding Resistor Schematic Symbols and Circuit Design Basics
Start with a fixed-value linear element: use the IEC 60617 symbol–a rectangle–when drafting compliance documentation. For general-purpose sketches, the ANSI Y32 zigzag line saves time and reduces clutter. Always label the value in ohms, kilohms, or megohms directly beside the symbol; omit units only if the context guarantees clarity, such as a printed circuit board silkscreen.
Adopt consistent scaling: 1 mm per volt for power ratings below 1 W, 2 mm per volt for 1 W–5 W, and 3 mm per volt for anything above. This prevents layout errors during thermal stress analysis. Add a power rating suffix–¼ W, ½ W, 5 W–inside parentheses adjacent to the value when physical size matters, especially in surface-mount layouts.
For tapped or multi-value elements, split the rectangle into segments proportional to resistance value ratios, then annotate each segment with its respective value. Use a dotted vertical line to indicate the tap point and label it with the percentage or absolute resistance from the common terminal. This method mirrors real-world multi-section adjustable parts.
Color coding remains essential even in monochrome diagrams: use solid black for carbon film, dark gray for metal film, and light gray for wirewound. Specify tolerance bands–gold for ±5%, silver for ±10%, none for ±20%–via a two-letter tolerance field positioned below the value. These visual cues accelerate component selection during prototyping.
Include parasitic inductance symbols–a pair of curved lines at each terminal–only when dealing with frequencies above 1 MHz or pulse edges faster than 100 ns. Tags with ESL in nanohenries help SPICE simulations converge accurately.

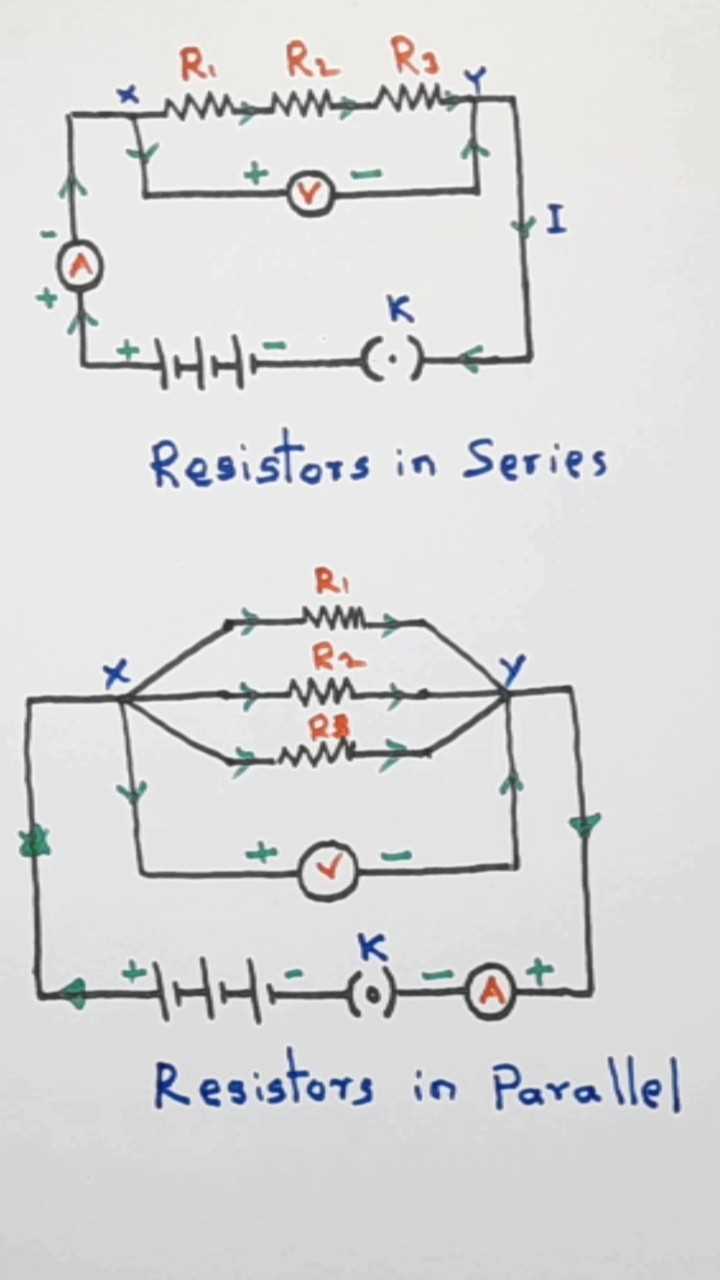

Network configurations demand distinct representation: series chains use a single horizontal line connecting multiple symbols, while parallel arrays connect both ends of each symbol to a common pair of nodes. Label branch values separately if they differ; otherwise, use a multiplier prefix to reduce visual noise.
Nonlinear components–such as varistors–require an additional symbol modifier: a diagonal arrow across the rectangle. Annotate the voltage-current characteristic curve reference in a text box adjacent to the symbol to prevent mismatches during board bring-up.
Understanding Passive Component Visual Representations
Use standardized IEC or ANSI symbols for consistent circuit documentation–these differ from manufacturer-specific notations. IEC 60617 outlines a horizontal rectangle with two leads for fixed linear elements, while ANSI Y32.2 employs a zigzag line. For precision networks, label values directly on the symbol (e.g., “4.7kΩ ±1%”) to eliminate ambiguity in multi-sheet designs.
For variable types like trimpots or potentiometers, indicate the wiper terminal with an arrow touching the symbol’s body. SMD layouts often falta the diagonal slash for chip types; instead, use a small rectangle with a numeric or alphanumeric code inside (“R100” for 100Ω). Polarized networks such as thermistors or varistors require a secondary marker–typically a “T” or “V” adjacent to the rectangle.
Grouped element arrays simplify dense layouts. Represent bussed networks with a single zigzag or rectangle, adding a bracket to denote multiple taps–ensure each tap references the same base unit (e.g., “4x10kΩ”). For non-linear components like light-dependent networks, modify the base symbol with a circle or partial ellipse to distinguish behavior. Always cross-reference with a bill of materials when multiple variants share visual traits.
Thermal derating curves should inform symbol placement. Position heat-sensitive networks away from high-power traces, annotating maximum ratings (“250mW”) directly below or adjacent to the element. For high-frequency applications, include parasitic inductance in the visual cue–either as a coiled segment or a numeric note (“L ≈ 0.3nH”). CAD tools like KiCad or Altium allow custom meta-data attached to symbols for automated DRC checks.
Recognizing Passive Component Markings in Electrical Blueprints
Start by locating the zigzag line–this is the most common notation for fixed-value impeding elements in plans. ANSI (IEEE 315) and IEC 60617 standards define subtle differences: the former uses a tall, narrow zigzag with sharp angles, while the latter often depicts a shorter, wider version with smoother curves. Variable types feature an arrow diagonally crossing this shape, indicating adjustability. Precision networks with multiple taps add small perpendicular lines along the zigzag, each representing a tapping point. Non-linear variants like thermistors or photoresistors include a slash through the zigzag or a secondary symbol adjacent, such as a temperature-dependent curve or a light-dependent arrow.
Key Variations and Their Meanings
| Graphical Marking | Component Type | Common Values/Traits | Identification Tips |
|---|---|---|---|
| Zigzag with sharp angles | Fixed carbon film | Ω to kΩ range, ±5% tolerance | Look for associated alphanumeric codes (e.g., “470R” = 470Ω) |
| Zigzag with smooth curves + arrow | Adjustable potentiometer | Rotary or slide, typically 1kΩ–1MΩ | Arrow indicates wiper; check for taper ratings (linear/log) |
| Zigzag with temperature symbol | NTC/PTC thermistor | Negative/positive temperature coefficient | NTC curves downward; PTC curves upward in plots |
| Zigzag with parallel lines | Wirewound high-power | 5W–100W, often ceramic-core | Parallel lines denote wire-wound construction |
For surface-mount layouts, codes like “102” (1kΩ) or “4R7” (4.7Ω) replace symbols, often accompanied by tolerance letters (e.g., “K” = ±10%). Thick-film types appear as rectangular blocks with value encoding directly on the PCB legend. In hybrid circuits, embedded variants may lack explicit markings–trace connections to active elements or consult BOMs for clarification.
Step-by-Step Guide to Illustrating a Passive Component in Circuit Blueprints
Begin with a straight horizontal line–this represents the lead of the element. Ensure the segment is at least 10mm long for clarity, even in dense layouts. Use a technical pen with 0.3mm tip for precision, or vector-based software with grid snapping enabled to maintain consistency across drawings.
At one end of the lead, draw a narrow rectangle perpendicular to the line. The rectangle should measure 4mm in width and 8mm in length for standard IEC notation. ANSI/IEEE variants may require slight adjustments–5mm width and 10mm length–so verify the target standard before proceeding.
Inside the rectangle, add parallel diagonal lines angled at 45 degrees, spaced 1mm apart. These stress marks must not extend beyond the edges of the rectangle. For non-linear components, replace diagonals with a single zigzag line (three peaks, 1.5mm amplitude) centered within the shape.
Extend the second lead from the opposite end of the rectangle, matching the length of the first. Align both leads to the same horizontal axis for readability. Misalignment by even 0.5mm can introduce ambiguity in complex circuits, especially when nested with inductors or capacitors.
Label the component with its value in clear, 3mm-tall sans-serif text. Place the text above or below the rectangle, centered horizontally. Use engineering notation (e.g., “4.7kΩ” or “220R”)–avoid scientific notation unless scaled for microelectronics. For multi-sheet designs, include a reference designator (e.g., “R1”) at the top-left corner, 2mm from the edge.
Check the rendered element against the target standard’s tolerances. IEC 60617 specifies exact proportions: rectangle aspect ratio of 2:1, diagonals touching all four edges. Deviations may cause misinterpretation during PCB layout or troubleshooting. In CAD tools, lock the symbol layer before adding adjacent components to prevent accidental distortion.
Common Pitfalls and Corrections
Avoid tapering the rectangle–all sides must be strictly perpendicular. For hand-drawn drafts, use a ruler with metric gradations to eliminate visual guesswork. If the element is part of a voltage divider, ensure the taller lead connects to the higher potential node; reversing this can mislead readers during signal tracing.
Advanced Symbol Variants
For surface-mount components, shorten both leads to 2mm and double the rectangle’s width-to-length ratio (8mm x 4mm). Thermal sensors use the same base shape but with a slash across the diagonals. Always cross-reference with datasheets–manufacturers may prescribe proprietary markings for specialty variants like fusible or precision types.
Common Pitfalls in Drawing Fixed Value Components on Circuit Blueprints
Omitting the unit designation on passive elements leads to ambiguity. A marking like “10k” without “Ω” forces engineers to infer the value, risking misinterpretation. Industry standards mandate clarity: always append “Ω”, “kΩ”, or “MΩ” directly beside the numeric value. Misplaced decimal separators–such as “4,7” instead of “4.7”–can cause errors in international designs where comma usage varies by region. Stick to period notation for consistency.
- Use “R” for values under 1 Ω (e.g., “R5” for 0.5 Ω).
- Apply “k” or “M” prefixes without spaces (e.g., “10k”, not “10 k”).
- Label trimmers separately (e.g., “VR2” or “RT2”) to distinguish from fixed types.
Incorrect orientation on annotated plans creates confusion during assembly. A vertical film-based part drawn horizontally may misalign with its physical footprint, causing reverse mounting. Follow the IPC-2221 standard: align the longer axis of tapered symbols with the intended PCB layout. For SMD types, enforce consistent pin-1 dot positioning–either top-left or bottom-right–to prevent silkscreen misalignment.
Overlapping lines or crowded notation obscures critical data. Stacked annotations (e.g., value atop tolerance) reduce readability; instead, stagger them diagonally. Avoid placing identifiers near vias or pads–use an uncluttered edge of the symbol’s outline. For multi-section parts, draw clear boundaries between portions to prevent short-circuit assumptions during testing.
- Group related parameters (value, tolerance, power rating) in a single corner.
- Leave 1.5x text height clearance around critical markings.
- Use dashed lines for optional layers or future modifications.
- Highlight high-power types with a thicker outline (0.5 mm vs. 0.25 mm).
