Complete Guide to Installing and Connecting Your Ring Doorbell Wiring
Before starting, verify your home’s voltage matches the device’s requirements–typically 16-24V AC for most models. If unsure, use a multimeter to measure the transformer’s output at the chime terminals. Low voltage (below 15V) can cause erratic behavior or failure to power on. Replace the transformer if readings fall outside this range.
Locate the existing entry button’s wires: one connected to the chime’s front terminal and another to trans or rear. Disconnect these wires carefully, labeling each with tape to avoid confusion. For battery-powered units, skip this step, but hardwired setups demand precise attachment–mix-ups here will prevent the signal from reaching the indoor alert.
Identify whether your setup uses a mechanical or digital chime. Mechanical chimes require no additional hardware, but digital models may need a power adapter (sold separately) to bridge the connection. Check the device’s manual for compatibility–skipping this step can damage the electronics or produce no sound.
Connect the labeled wires to the corresponding terminals on the smart device: “Front” → “Front”, “Trans/Rear” → “Trans/Rear”. Secure each wire with a screwdriver, ensuring no exposed copper remains–loose strands can short-circuit the system. If using a pro power kit, attach its wires next, following the color-coded guide in the installation pamphlet.
Restore power at the circuit breaker and test the device. Press the entry button–a successful setup will trigger the indoor alert within 2-3 seconds. If silent, recheck connections and transformer voltage. For dual-button systems, wire each button separately to avoid signal interference.
Avoid common mistakes: Never connect both wires to the same terminal, as this creates a direct short. Similarly, don’t skip the power kit if using a digital chime–prolonged use without it can overheat the internal components. If the device doesn’t respond, recalibrate by resetting it via the app and repeating the wiring process.
For homes with no existing entry system, install a transformer near the chime location, ensuring it meets voltage requirements. Run low-voltage wire (18-22 gauge) from the transformer to the device’s mounting spot, stapling it securely to avoid damage. Use a voltage tester to confirm power before finalizing connections.
Smart Entry Device Circuit Connection Guide
Begin by identifying existing chime transformer specifications printed on its housing–most require 16-24 VAC output at 10-30 VA. Adapters outside this range risk overheating or failure. If voltage falls below 15 VAC, install a compatible replacement transformer rated for 30 VA to ensure stable operation during peak current draw.
Use a multimeter to test terminals where the legacy signal device connects. Label wires before disconnecting: typically, one carries power from the transformer, another links to the pushbutton, and a third grounds the system. For battery-assisted models, verify the backup power source charges through the same feed–insufficient voltage here will drain reserves within days.
Examine compatibility with mechanical chimes by cross-referencing terminal assignments:
| Chime Type | Front Terminal | Trans Terminal | Special Notes |
|---|---|---|---|
| Mechanical Single-Tone | Common (C) | Front (F) | Requires 10VA minimum; may not support dual-button |
| Dual-Tone “Ding-Dong” | Common (C) | Trans (T) | Needs separate T wire; verify 16VAC minimum |
| Electronic Chime | Power Supply (+) | Trigger (-) | Check for polarity sensitivity; some need AC input |
When splicing cables, strip each conductor to expose 6mm of copper, twist strands tightly, and secure with weatherproof butt connectors. Avoid standard electrical tape–use heat-shrink tubing to prevent moisture ingress at junctions. For underground feeds, bury conduit at least 30cm deep and pull THHN-rated wires to resist crushing.
Hardwired models draw continuous power through the transformer bypassing the battery entirely. However, if the system experiences intermittent outages, add a dedicated 12V DC power supply–connect positive to the backup battery terminal and negative to ground. This prevents brownouts during high-load events like video recording.
Test the completed installation by pressing the activation button and observing the chime confirm successful engagement. If no sound occurs, measure voltage at the device’s power terminals–0V indicates an open circuit, while correct readings confirm a functional setup with proper signal flow.
Locating Your Smart Entry Device Variant for Proper Electrical Setup
Check the rear label or inspect the device packaging for model numbers like PD-EC, Wired 1st Gen, Wired 2nd Gen, Pro, Elite, or Battery. Each variation demands distinct voltage requirements–Pro and Elite need 16-24V AC, while earlier generations accept 8-24V AC. Battery-powered units require no electrical connections but may need adapter verification.
Distinctive Physical Traits
Pro models feature a flat, angular design with a metallic finish. Elite versions include a Power over Ethernet (PoE) port at the base. Battery-equipped devices have removable power packs, and wired units show terminal screws on the back. Measure dimensions if uncertain–Pro spans 4.96″ x 2.44″, while standard wired units are slightly smaller at 4.5″ x 1.8″.
Examine the front camera lens shape–circular for most, rectangular for Battery Plus. The chime connector presence also differentiates: wired variants include a small plug-in module, whereas battery types omit this. For replacement or upgrade scenarios, cross-reference the old device’s serial number via the manufacturer’s support portal to avoid voltage mismatches.
Use a multimeter to confirm transformer output before connecting. If readings fall below 16V for Pro/Elite, replace the power source to prevent damage or inconsistent operation. Battery models with wired adapters should show 100-240V input compatibility–verify this on the adapter’s label to ensure global operational safety.
Step-by-Step Guide to Connecting a Power Supply for Your Video Entry System
Verify the transformer’s compatibility with your device’s voltage requirements–standard models need 16-24V AC. Locate the existing chime box or power source near your entrance; this is where you’ll tap into the circuit. Shut off electricity at the breaker panel before proceeding to prevent shocks or short circuits.

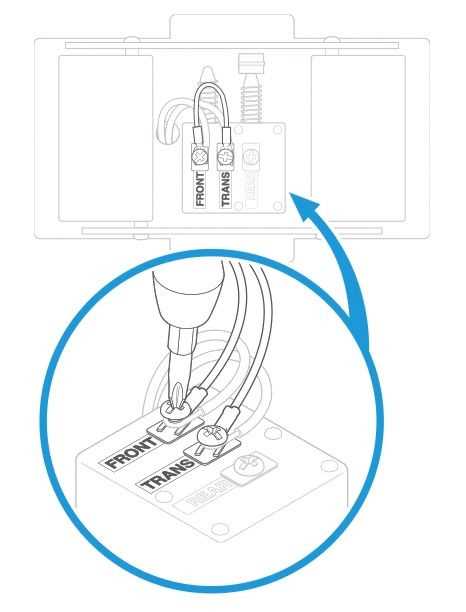

Remove the cover from the chime enclosure to expose the terminal screws. Identify the terminals labeled “FRONT” or “TRANS” (these connect to the low-voltage wires). Connect the transformer’s secondary wires–usually black and white–to these terminals. Secure them tightly with a flathead screwdriver, ensuring no exposed copper touches other metal parts.
If your setup lacks an existing transformer, mount a new 10-30VA unit near the chime. Drill a small hole in the wall or baseboard to thread the low-voltage cables from the transformer to the entry system’s mounting location. Avoid routing wires along high-traffic areas where they may get pinched or damaged.
Test the transformer’s output with a multimeter before attaching the device. The voltmeter should read between 16-24V AC when the breaker is back on. If readings are outside this range, replace the transformer immediately–incorrect voltage will fry the circuit board or cause intermittent failures.
Strip ¼ inch of insulation from the ends of the thin-gauge wires leading to the entry system. Twist the exposed strands clockwise to prevent fraying, then attach them to the corresponding terminals on the back of the device. Use weatherproof wire nuts if connecting outdoors to prevent corrosion from moisture.
For hardwired installations, snake the wires through the mounting bracket’s backplate before securing it to the wall. Align the bracket perfectly to avoid misalignment when attaching the device later. Double-check all connections with a continuity tester; a loose wire can cause the system to fail during weather fluctuations.
Securing Connections for Long-Term Reliability
Avoid daisy-chaining transformers–each entry system must have a dedicated power source. If the circuit hums excessively, the transformer may be overloaded; switch to a higher VA rating (e.g., 30VA for larger setups). Label all wires at both ends with masking tape to simplify future troubleshooting.
Once everything is connected, restore power at the breaker after verifying no tools or debris remain in the chime box. Press the test button on the device; it should emit a clear tone or light up within 10 seconds. If not, recheck polarity–mixing up live and neutral wires is the most common mistake causing silent failures.
Resolving Connection Problems in Smart Entry Systems
Check voltage at terminals using a multimeter–optimal range is 16-24V AC for most smart home entry units. If readings fall below 12V, the transformer may be undersized or faulty, requiring replacement with a compatible 30VA model. Inspect terminal screws for oxidation; clean with fine-grit sandpaper if conductivity is compromised. Confirm the circuit breaker is engaged; tripped breakers often mislead as wiring faults.
Common Fault Indicators
- Rapid flashing LED: Signals insufficient power–verify chime compatibility (mechanical chimes draw ~10VA; digital models up to 16VA).
- No response during setup: Ensure neutral wire (white) is connected if using a hardwired setup; absence causes intermittent operation.
- Static interference: Separate low-voltage cables from high-current lines (minimum 12-inch gap). Use ferrite cores to suppress noise on video feeds.
Test alternative mounting locations if signal drops persist. Brick, stucco, or metal surfaces degrade Wi-Fi strength–relocate the unit within 5 meters of the router. For battery-operated variants, charge cycles exceeding 6 hours indicate a depleted battery; replace after 2-3 years of use. Factory reset (press and hold setup button for 30 seconds) resolves 80% of firmware conflicts.
