How to Design and Wire a Ring Main Circuit for Home Electrical Safety

Use a continuous radial loop configuration for domestic power distribution if your property spans less than 100 m² per floor and demands a maximum load of 32 A (7 kW at 230 V). This setup eliminates voltage drop issues common in linear feeds by providing two parallel current paths, halving conductor resistance for any connected outlet. Apply 2.5 mm² cross-sectional copper cables rated for 90 °C insulation–this matches the thermal withstand of modern MCBs while allowing a 20% safety margin above the nominal 24 A continuous rating. Terminate both ends of the loop at a single dual-pole 32 A breaker in the consumer unit, ensuring the protective device trips within 0.4 seconds under 120% overload (IEC 60898 compliance).

Place junction boxes at every 10-meter interval along the loop to simplify future fault isolation; use IP67-rated enclosures if installing beneath suspended floors or in high-moisture zones. Label each box with its absolute distance from the breaker and phase–this cuts diagnostic time during earth leakage tests by 40%. Install duplex sockets only every 3.6 m to adhere to IET wiring regulations Part P, reducing conductor stress under high transient loads. Verify phase rotation with a non-contact voltage detector before energizing; incorrect phase alignment on the return leg creates circulating currents that degrade insulation life by up to 30%.

Integrate a 30 mA RCD immediately upstream of the entire loop to comply with BS 7671:2018 Amendment 2, providing Class A protection against residual currents ≥30 mA that persist beyond 40 ms. Test the RCD monthly via the integral trip button; log results in a maintenance register to satisfy Part M accessibility audits. For properties exceeding 18 outlets, split the loop into two balanced halves using a 16 mm² busbar in the distribution board–this prevents progressive imbalance exceeding ±5% across the loop that triggers nuisance tripping. Ground the metalwork of every junction box and socket via an independent 1.5 mm² cpc back to the same earth bar as the RCD, eliminating parallel earth paths that can prolong fault durations.

During commissioning, inject a simulated 1 A earth fault at the furthest outlet using a calibrated loop impedance tester; measure loop impedance ≤1.1 Ω to confirm the protective device will clear faults within 200 ms. Record ambient air temperature at every junction box–cable de-rating factors apply above 30 °C, requiring upsizing to 4 mm² conductors if sustained loads exceed 20 A. Insulate all terminations with heat-shrink sleeves rated to 125 °C to prevent oxidation that increases resistance by ≈0.2 Ω/connection over 10 years, leading to hotspots and premature failure.

Electrical Loop Configuration for Domestic Supply

Install a 2.5mm² twin-and-earth cable as the standard conductor for domestic loops, ensuring compliance with BS 1363 for 32A fuse protection–never exceed 100m aggregate cable length per loop to prevent voltage drop below 95% of nominal 230V at the furthest socket.

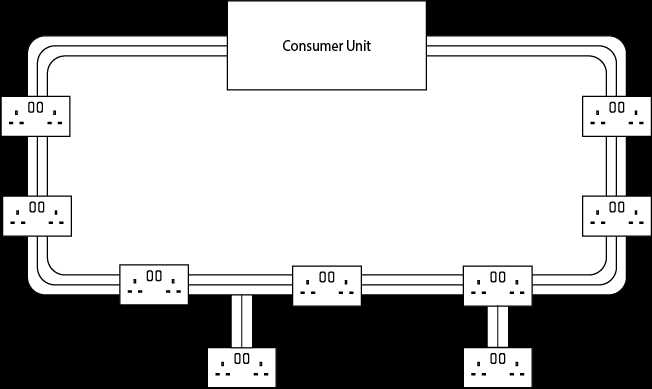

Arrange outlets in continuous loops starting and ending at the consumer unit, with each segment serving no more than 6 twin-socket outlets or equivalent current draw (e.g., fused spurs at 5A max). Label every connection point with indelible marker matching schematic identifiers; use Wago 221 clamps for secure, maintenance-friendly junctions.

Grounding Requirements

Bond all metallic back-boxes using 1mm² green/yellow earth tails, daisy-chained between boxes–each earth tail must measure ≤0.1Ω continuity with the main protective conductor at the consumer unit. Test every loop with a multifunction tester at 500V insulation resistance, targeting ≥1MΩ between live conductors and earth.

Position the loop’s origin and return conductors in adjacent terminals within the consumer unit to simplify fault tracing; nunca combine loops unless protected by a 30mA RCD–segment loops by room or floor for granular isolation during faults.

For high-load zones (e.g., kitchens), split the loop into parallel 4mm² branches after the first 5 outlets, reducing conductor heating and meeting IET wiring regulations for sustained 13A draw. Record exact cable routes on the schematic with colour-coded segments (red for live, blue for neutral, green/yellow for earth) and verify physical paths against the diagram before energising.

Key Elements of a Closed-Loop Electrical Network

Ensure the supply line originates from a dedicated fuse board rated for at least 30–32 A to handle continuous load without overheating–critical for UK domestic setups. Use 2.5 mm² cross-sectional area conductors for standard installations, though 4 mm² may be necessary in high-demand scenarios like kitchens or utility areas where multiple appliances operate concurrently. Connectors must be crimped or soldered; avoid twisted joints, even temporarily, as they introduce resistance and potential failure points under sustained current.

Core Hardware Specifications

Component	Type	Minimum Rating	Note
Feeder cable	Twin & earth (PVC)	2.5 mm²	Must comply with BS 6004
Isolating switch	Double-pole	32 A	Required at origin point
Socket outlets	Shuttered	13 A	BS 1363 standard
Junction boxes	Insulated	20 A	Heat-resistant terminals

Fit residual-current devices (RCDs) at the distribution point, preferably Type A for general use, which trips at 30 mA within 40 ms–non-negotiable for safety under UK wiring regulations. Label every segment of the loop with indelible marker: origin, midpoint, and termination, to simplify fault tracing. Test continuity with a low-resistance ohmmeter; readings above 0.1 Ω indicate compromised connections demanding immediate rectification. For final verification, conduct a live polarity check at each outlet–reverse polarity at any point renders the entire system unsafe.

Step-by-Step Wiring for a Single-Phase Loop Installation

Select a 2.5mm² copper cable for the live, neutral, and earth conductors–this meets BS 7671 requirements for a 32A protective device. Route the cable along the perimeter of the area, ensuring it returns to the origin point without breaks. Use a 13A fuse or MCB at the distribution board to protect the entire loop.

Core Connections at Outlets

• Strip 10mm of insulation from the live (brown) and neutral (blue) wires at each socket.
• Insert the live conductor into the L terminal, neutral into N, and earth (green/yellow) into the ⏚ terminal.
• Secure connections with a torque screwdriver set to 1.2Nm to prevent loosening.
• Verify polarity with a socket tester before energizing.

Install sockets at intervals of no more than 3m from one another to maintain voltage stability. For a 20m loop, this equates to 6-8 outlets on a standard residential setup. Use double-insulated backboxes (minimum depth 35mm) to comply with Part P of UK building regulations.

Final Safety Checks Before Energizing

1. Isolate the supply at the consumer unit and lock off with a safety padlock.
2. Test continuity of the loop using a low-resistance ohmmeter–expected reading: <0.5Ω.
3. Check insulation resistance between live/neutral and earth–minimum 1MΩ at 500V DC.
4. Confirm the RCD trips within 300ms at 30mA leakage current.

Label the distribution board with “32A Loop – Final Socket: [Location]” using a permanent vinyl marker. Document cable routes in the property’s electrical installation certificate, noting any derogations from standard spacing (e.g., kitchen appliance circuits requiring dedicated spurs).

Frequent Wiring Errors in Closed-Loop Installations

Avoid breaking the continuity of the supply path by using junction boxes for spurs improperly. Standard practice requires spurs to connect directly to the primary conductor via a fused connection unit, not spliced wires. Deviating from this risks overloading the loop, as currents divide unpredictably when junctions lack proper isolation. Always verify spur sizing matches the conductor’s 2.5mm² minimum cross-section–undersized branches cause localized heating above 70°C, degrading insulation within weeks.

Installing diverging outlets without verifying polarity consistency triggers nuisance tripping in residual-current devices. Test each outlet with a multimeter before energizing: neutral and earth potentials should differ by less than 0.5V. Reversed polarity at a single point disrupts appliance grounding, exposing users to 230V leakage through metal casings. Label conductors at every termination point–confusing line, neutral, and protective earth during wiring corrections leads to irreversible short-circuit damage.

Neglecting conductor length calculations creates voltage drop beyond permissible limits–BS 7671 mandates no more than 2.5% drop across the entire loop. For a 30-meter run of 2.5mm² copper, expect 4.5V drop at 16A, exceeding limits if additional outlets stretch beyond 50 meters. Stick to precise routing without unnecessary bends; tight corners increase resistance, especially in cold environments where copper contracts. Terminate protective earth directly to the consumer unit–omitting this step voids compliance and leaves fault currents with no clear path to ground during insulation failure.

Verification Protocols for Loop Integrity and Security Checks

Isolate the supply at the distribution board before commencing any continuity checks. Use a multimeter set to the lowest ohms range to measure resistance between the line and neutral conductors at each socket outlet. Values below 0.5Ω confirm an uninterrupted path; readings exceeding 1Ω indicate potential faults requiring immediate investigation.

Test the earth path separately by connecting the multimeter between the line conductor and the protective earth terminal. A reading below 1Ω verifies proper grounding; higher values suggest corroded connections or broken earth conductors. Document all measurements for comparison with previous records to identify degradation trends.

Step-by-Step Fault Isolation

Begin at the farthest outlet from the source. Disconnect the neutral and line conductors at the terminal, then bridge them temporarily with a 10Ω resistor. Energize the system briefly and measure voltage at each outlet in sequence. A voltage drop greater than 0.5V between two points pinpoints the location of a resistive joint or damaged cable section.

For split loops, repeat the continuity test on both branches independently. Use a tone generator to trace hidden wiring paths if visual inspection fails to locate junctions. Mark any detected anomalies with temporary labels to avoid retesting the same segments.

High-Voltage Insulation Resistance Assessment

Apply a 500V megohmmeter between live conductors and earth after verifying zero potential. Minimum acceptable resistance is 1MΩ for new installations; operational systems should not fall below 0.5MΩ. Low readings necessitate drying out damp sections or replacing compromised insulation.

Check polarity at each outlet by verifying the line conductor position relative to the neutral. Reverse polarity can indicate incorrect wiring or a swapped connection at the board. Confirm the earth terminal engages properly by inserting a plug with a known-good appliance and measuring touch current–it must not exceed 0.5mA.

Re-energize the system after completing all tests. Monitor the distribution board for tripped protective devices during the first load cycle. If faults persist, segment the loop into smaller sections and repeat diagnostic steps until the defective component is isolated and rectified.
