Designing Reliable Safety Circuits Key Components and Schematics

Begin with redundant fail-secure paths in any shutdown protocol. Use dual-channel relays arranged in a series-parallel configuration to ensure no single point of failure disrupts critical operations. A 2-pole relay with forcibly guided contacts (IEC 61810-3 Type A) prevents sticking–replace standard relays immediately if wear exceeds 5% of nominal actuation force.

Isolate control and power domains with optocouplers rated for 10 kV/µs surge immunity. High-speed isolators like the ISO7741 handle edge rates above 100 Mbps, but verify creepage and clearance distances against IEC 62368-1 Table 22 for pollution degree 2 environments (minimum 4 mm for 250 VAC). Keep trace spacing above 0.5 mm per 100 V to prevent flashover.

Deploy a three-stage interlock: mechanical (e-stop), electronic (PLC watchdog), and firmware (cyclic redundancy check). The firmware stage should poll safety-critical sensors at 1 ms intervals, triggering a hardware reset on consecutive CRC failures. Store redundant checksums in separate memory blocks–corruption in any two bytes should trip a fail-stop condition.

Use safety-rated I/O modules with diagnostics like the Siemens SIMATIC ET200SP F-DI, which monitors internal short circuits and open lines. Configure the module for dual-channel input verification: both channels must agree within 20 µs before acknowledging a valid signal. Log discrepancies to non-volatile memory for post-event analysis–persistent mismatches indicate sensor drift or wiring degradation.

Ground all protective loops through a dedicated star point, avoiding daisy-chaining. Use 10 AWG copper wire for star connections, ensuring less than 0.1 Ω resistance between any two points. Separate digital and analog grounds at least 5 cm on the PCB to reduce noise coupling–high-frequency transients (above 1 kHz) can falsely trigger shutdowns.

Test every pathway under fault conditions: simulate wire breaks, short circuits, and supply voltage drops (±15%). Document mean time to detection (MTTD) and mean time to repair (MTTR) for each scenario. For example, a broken signal wire in a Category 3 system (ISO 13849) should trigger a safe state within 50 ms–any longer demands redesign of the suppression network.

Protective Electrical Schematics: Key Design Principles

Start by isolating critical fail-safe components on a separate branch to prevent cascading malfunctions. Use redundant relay contacts in parallel–at least two per critical path–to ensure continuity even if one contact welds or fails open. Specify components with a minimum 20% derating margin for voltage, current, and temperature to avoid premature degradation.

Label every conductor with a unique identifier tied to its function (e.g., *EMR-STOP-L1* for emergency stop line 1). Avoid generic numbering like *W1* or *C2*–these lead to miswiring during maintenance. Color-code wires per IEEE 315 standards: red for high-priority shutdown lines, blue for interlock returns, and yellow for auxiliary controls.

Component Selection Criteria

• Relays: Opt for force-guided contacts rated for 10 million cycles; avoid standard relays in safety-critical paths.
• Switches: Use positive-break devices–mechanical separation must physically occur, even if contacts stick.
• Fuses: Select slow-blow types for inductive loads; specify 1.5× the calculated maximum current.

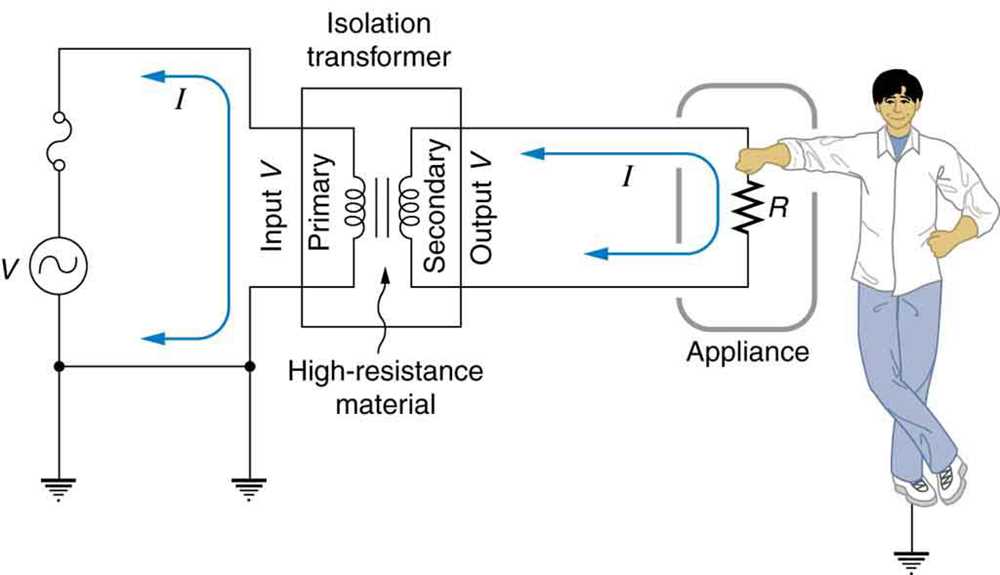

• Transformers: Isolate control power with 3 kV dielectric strength between primary and secondary windings.

Ground all enclosures and metal parts to a single point to eliminate ground loops. Verify ground resistance is below 0.1 ohms using a milli-ohmmeter before energizing. Never rely on conduit alone for grounding–use dedicated copper conductors sized per NFPA 70 Article 250.

Test the scheme under simulated fault conditions. Forced opening of a single relay contact should trigger a full shutdown within 50 ms. Log test results with timestamps, component serial numbers, and environmental conditions (temperature, humidity). Repeat tests after any modifications or after 1,000 hours of operation, whichever comes first.

1. Disconnect power and verify zero voltage using a meter before any adjustments.
2. Trace each path manually with a wiring diagram–never assume continuity from previous installations.
3. Apply 120% of rated voltage for one hour to detect latent defects like insulation breakdown.
4. Check for unexpected paths using an insulation tester (set to 1 kV for 60 seconds).

Store spare relays and switches in an ESD-safe environment. Label them with the date of commissioning and projected replacement interval (typically 5 years for relays, 10 years for switches). Replace all components in safety-critical paths at 80% of their rated lifespan, even if they appear functional.

Critical Elements of Protection Systems in Industrial Equipment

Integrate dual-channel architecture for all redundant control paths to eliminate single-point failures–this mandates physically separated signal routes verified through cross-checking logic. Use components rated for category 3 or 4 per ISO 13849-1, ensuring each channel operates independently while monitoring the other for discrepancies within 20 ms response time. Implement galvanic isolation between input/output stages to prevent transient voltages from corrupting protective functions.

Select emergency stop devices with direct opening contacts (force-guided relays) that maintain circuit interruption even under contact welding scenarios–test actuation cycles monthly with load conditions matching real-world operations. Apply light curtains or laser scanners with muting functionality only where necessary, configuring muting zones to cover no more than 50% of the detection field and requiring external validation via safety PLC before activation.

Deploy safety-rated interlock switches with encoded outputs to prevent bypassing–opt for RFID-based or magnetic coding systems with unique identifiers that change upon each access attempt. For moving parts guarding, combine perimeter fencing with laser-based area scanners set to PL d minimum, adjusting sensor sensitivity to avoid false trips while maintaining sub-140 ms reaction times.

Verify power supply integrity by splitting protective functions across separate sources–use uninterruptible power supplies for control voltage with battery backup sized for 30 minutes of continued operation after mains failure. Document all component selections with exact model numbers, wiring diagrams showing exact conductor cross-sections (minimum 0.75 mm² for signal lines), and proof tests demonstrating full functionality under maximum load conditions.

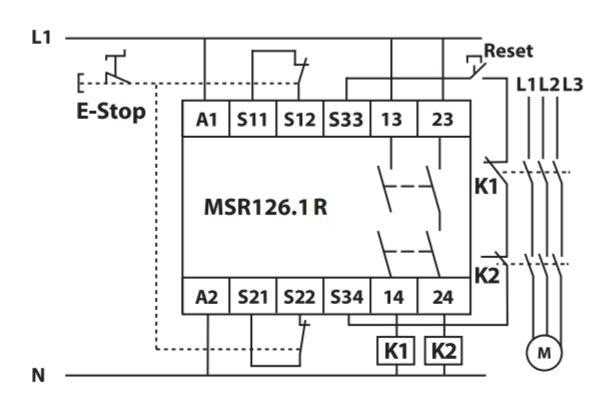

Step-by-Step Guide to Wiring Emergency Stop Buttons in Control Schemes

Locate the emergency stop button at a reachable height–no higher than 1.6 meters and no lower than 0.7 meters–ensuring immediate access without stretching or crouching. Select a push-button with a red actuator and yellow background, compliant with ISO 13850, to meet industry visibility standards. Verify the button’s rating matches the system’s voltage and current; most industrial applications use 24V DC or 230V AC with a 10A contact rating.

Run a dedicated conductor pair from the button to the power interruption device–typically a contactor or relay. Use stranded copper wire, AWG 14 for distances under 30 meters or AWG 12 for longer runs, to minimize voltage drop. Strip 8-10 mm of insulation from each wire end, crimp ring or spade terminals, and secure them under the button’s screw terminals. Tighten to 1.5 Nm torque to prevent loosening from vibration.

Connecting to the Power Interruption Device

Identify the normally closed (NC) contacts on the emergency stop button–these must open when pressed. Wire one terminal to the control voltage source (e.g., 24V DC) and the other to the coil of the contactor or relay controlling the machine’s power feed. Bypass auxiliary components like timers or overload relays directly in the series path to ensure the emergency stop cuts all power, not just partial circuits. Test continuity with a multimeter: resistance should read near zero ohms before pressing and infinite ohms after.

Integrate a reset function using a latching relay or a separate reset push-button with normally open (NO) contacts. Connect the relay’s coil in parallel with the emergency stop’s NC contacts; when the emergency stop is released, the relay latches, requiring manual reset to restore power. Use a mushroom-head button for the reset, distinct in shape and color (e.g., green or black) to prevent accidental activation. Label all connections with heat-shrink tubing or numbered tags for troubleshooting.

Validate the setup by simulating a fault: press the emergency stop and confirm the machine halts within 200 ms. Measure voltage at the contactor’s coil terminals–it should drop to zero. Check for residual energy in capacitors or motors; if present, add braking resistors or discharge circuits. Document the wiring layout on a separate schematic with wire colors, terminal numbers, and device references (e.g., “ES1,” “K1”) for maintenance. Store spare emergency stop buttons on-site with identical specifications to minimize downtime during replacements.

Integrating Optical Protection Barriers with Programmable Logic Controllers

Begin by pairing the light curtain’s output signal with a relay module certified for industrial guarding. Use PNP or NPN outputs based on the PLC’s input specifications–most modern PLCs accept PNP directly, while older models may need an intermediary relay to invert the signal. Verify the relay’s response time: it should trip within 20-40 ms to meet ISO 13855 category 3 or 4 requirements.

Wire the relay’s normally open (NO) contact to a dedicated PLC input channel. Avoid sharing inputs with non-critical signals to prevent interference.

• Connect one side of the relay contact to the PLC’s 24V DC supply.
• Link the other side to a PLC input terminal configured as a sinking or sourcing input–match the light curtain’s output polarity.

Label each connection with its functional purpose on the schematic to simplify troubleshooting.

Configure the PLC’s input filter to ignore transient spikes. Most PLCs offer configurable filtering; set it between 5-10 ms to suppress false triggers caused by electrical noise. Program the logic using boolean operations–when the input goes low (indicating an interruption), halt the machinery via the PLC’s output channels. Use ladder logic’s OTL instruction for latching to ensure the stop command persists until manually reset.

Test the integration under real operating conditions. Simulate barrier interruptions while monitoring:

1. Relay switch time via an oscilloscope–should remain under 40 ms.
2. PLC input latency–confirm the input register updates within one scan cycle.
3. Machine stop time–verify mechanical components cease motion under ISO 13849-1 PLd.

Repeat tests across varying supply voltages (20.4V to 28.8V DC) to ensure stability. If delays exceed tolerance, check for undersized relay coils or voltage drop in wiring.

Implement redundancy by adding a second relay module. Route one light curtain output to both relays, then wire each relay’s NO contact to separate PLC inputs. Program the PLC to require both inputs to detect the interruption before triggering a stop–this meets ISO 13849 PLd/e redundancy guidelines. Use series-connected relay contacts to eliminate single-point failures.

Document the integration details:

• Light curtain model, resolution (14-40 mm), and sensing range (0.5-5 m).
• Relay model, coil voltage, and contact rating (e.g., Siemens 3SK1 24V DC, 6A resistive load).
• PLC input configuration, including scan time and filter settings.
• Test results with timestamps and technician signatures.

Store this documentation alongside maintenance logs to expedite future diagnostics.
