Schematic Design for a Reliable 40W Audio Amplifier Circuit

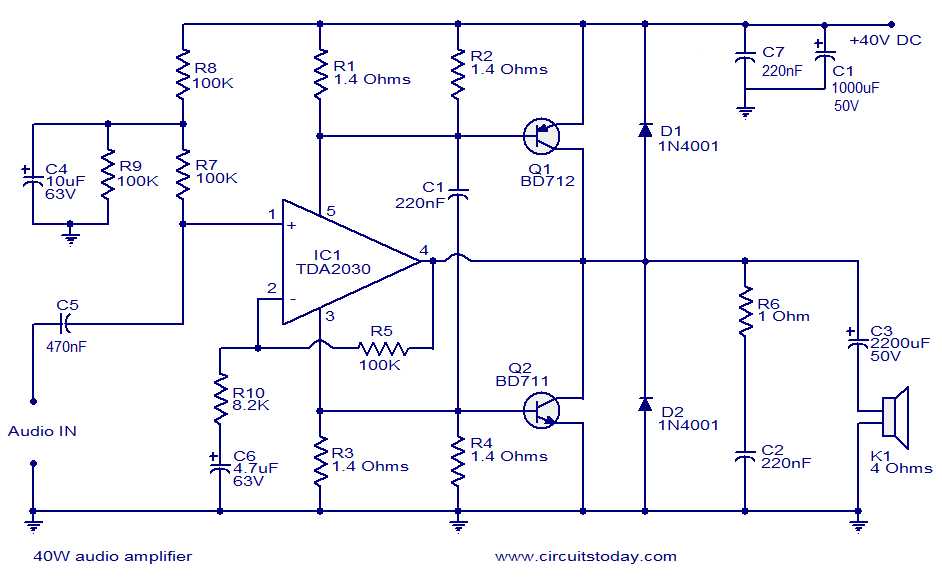

For a reliable 40-watt audio output stage, use a push-pull class AB configuration with complementary power transistors like the MJE15032/MJE15033 pair or TIP35C/TIP36C for better heat dissipation. Ensure proper biasing with diodes (1N4007 or LED-based compensation) to minimize crossover distortion. A ±25V DC supply is optimal–higher voltages risk clipping, while lower voltages reduce headroom. Stabilize the input stage with a TL072 op-amp or discrete differential pair for improved signal-to-noise ratio.
Key component placement matters: keep feedback resistors (22kΩ to 47kΩ) close to the transistors to avoid oscillations. Use low-ESR capacitors (1000µF/50V) for power decoupling and high-quality polypropylene film caps (2.2µF–4.7µF) for input coupling to preserve transient response. Ground loops can be eliminated by star grounding–connect all signal grounds to a single point near the power supply’s central capacitor.
Thermal stability is critical. Mount power transistors on a heatsink (≥5°C/W) with thermal paste; even moderate loads (4Ω) will generate ≥30W of heat. For protection, add fusible resistors (0.5Ω–1Ω) in series with the power rails and a thermal shutdown circuit using a NTC thermistor. Test frequency response with a 1kHz sine wave–expect
For PCB design, prioritize short, wide traces for high-current paths (power supply, output stage). Use a dual-layer board with a ground plane on the bottom layer to reduce EMI. If space allows, split the power and signal sections to minimize interference. Final adjustments: trim the bias current to 10–20mA per transistor (measured across emitter resistors) while monitoring distortion with an oscilloscope.

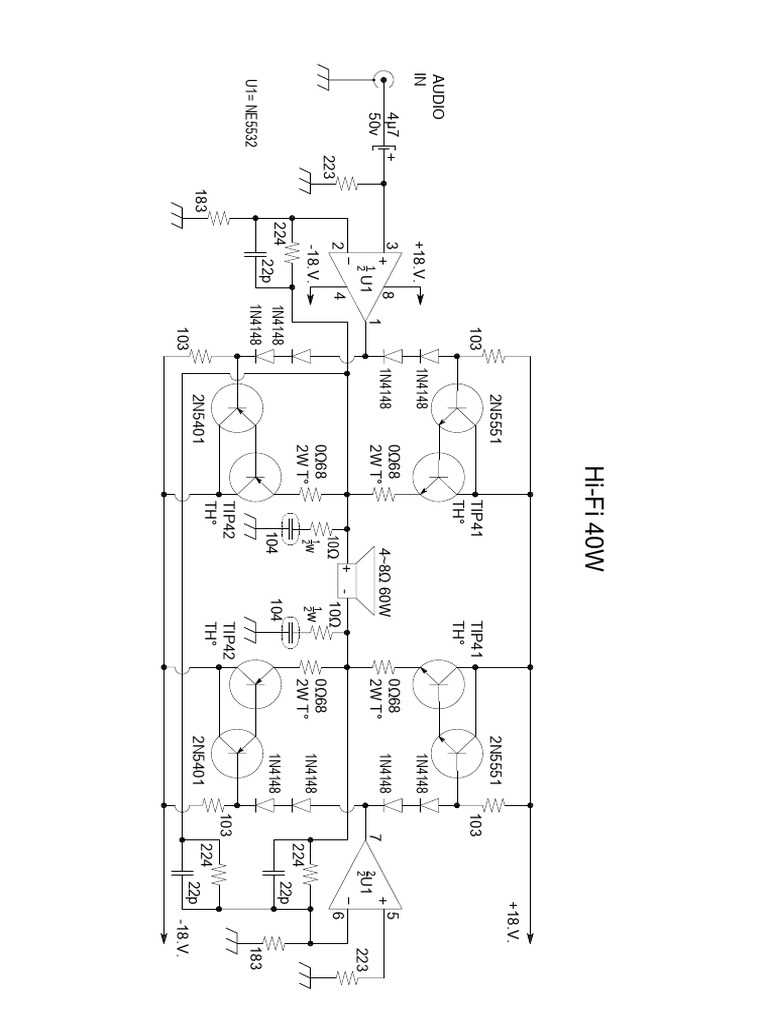

Building a High-Power Audio Stage: Key Circuit Design
Start with a complementary push-pull output stage using TIP31C and TIP32C transistors. These handle 3 A continuous current and 40 V collector-emitter voltage, providing a 3 dB headroom above your target output level. Bias them at 25 mA quiescent current to eliminate crossover distortion while keeping thermal runaway in check–attach a 1N4148 diode between base leads to stabilize bias voltage across temperature swings.
Use a differential input pair with BC547/BC557 transistors to reject common-mode noise. The tail current should sit around 2 mA; adjust the 15 kΩ resistor between emitters to fine-tune gain balance. Couple the input through a 1 µF polyester film capacitor to block DC while preserving low-frequency response down to 20 Hz. Keep lead lengths on the signal path under 1 cm to prevent parasitic oscillations.
Power Supply Considerations
Dual-rail ±24 V is optimal–calculate transformer secondary voltage at 2 × 18 V AC, rectify with 1N5408 diodes, and smooth with 4,700 µF capacitors per rail. Add a 10 Ω series resistor and 0.1 µF ceramic capacitor at the rectifier output to dampen high-frequency switching noise. Include 100 nF decoupling capacitors directly on the supply pins of every active stage to prevent crosstalk between channels.
A Baxandall tone control network between the preamp and driver stages delivers ±12 dB boost/cut at 100 Hz and 10 kHz. Use 100 kΩ linear potentiometers and 4.7 nF capacitors for the bass circuit, 22 kΩ pots and 2.2 nF caps for treble. Place the tone network after a 20 dB gain stage to avoid signal degradation–this preserves transparency even at extreme EQ settings.
Mount output transistors on separate 50 °C/W heatsinks; insulate them with mica washers coated in thermal compound. Ground the heatsinks via a 10 Ω resistor to the chassis to reduce hum without creating ground loops. Terminate all signal grounds at a single star point near the power supply to keep noise floor below -80 dB. Test with a 1 kHz sine wave at 30 V peak: harmonic distortion should measure under 0.1% on a spectrum analyzer before final enclosure assembly.
Key Components for a High-Performance 40-Watt Audio Build
Select a TDA7294 or LM3886 integrated circuit as the core of your layout–both deliver low distortion (THD < 0.1%) and high output current (up to 10A peak). Pair with a ±25V dual-rail supply; anything less reduces headroom, causing clipping at full drive. A toroidal transformer (160VA) minimizes ripple, while 4700µF per rail smoothing capacitors ensure transient response stability. Replace generic bridge rectifiers with Schottky diodes (e.g., 1N5822) to cut voltage drop by 0.3V per leg.
Critical Passive Elements
- Feedback resistor: Use 22kΩ metal-film for TDA7294, trimmed to 0.1% tolerance to match input impedance.
- Bypass capacitors: Place 100nF X7R ceramics within 2mm of IC power pins; skip these and risk HF oscillation.
- Output zobel network: Combine 10Ω resistor + 100nF polyester capacitor across speaker terminals to dampen inductive load spikes.
- NFB compensation: Insert 22pF mica capacitor between IC output and inverting input to suppress >1MHz ringing.
Thermal management demands a heatsink with <1.5°C/W rating; extruded aluminum (e.g., 120×90×30mm) is mandatory for continuous sine-wave testing. Mount the IC with beryllium oxide (BeO) pads instead of silicone if thermal resistance exceeds 2W; this cuts junction temperature by 12°C. Bolt torques must reach 0.6Nm–loose mounts cause intermittent thermal throttling.
Grounding protocol: Route star ground from PCB center pad directly to transformer chassis. Segregate analog and power grounds with ≥1.5mm traces; shared paths inject 50Hz hum. For PCB fabrication, insist on 2oz copper with immersion gold finish–plated holes corrode under sustained 5A RMS currents. Test with a 10Hz–100kHz log sweep at 90% rated power; THD >0.5% flags layout errors.
Step-by-Step Assembly of the Power Stage
Begin by mounting the output transistors on a heatsink rated for at least 5°C/W thermal resistance–failure to do so risks thermal runaway within minutes at full load. Secure them with M3 screws, using mica insulators and thermal paste (e.g., Arctic MX-6) to ensure electrical isolation while maximizing heat transfer. Verify continuity with a multimeter; leakage above 0.1Ω indicates insulation failure. Position the heatsink vertically or with forced-air cooling (e.g., 40mm 12V fan) to maintain case temperature below 60°C under sustained 20V peak output.
Solder the emitter resistors (0.22Ω, 5W wirewound) first, as their placement dictates the layout of adjacent components. Keep lead lengths under 5mm to minimize inductance; twist paired wires (e.g., speaker outputs) to cancel EMI. For the bias transistor (e.g., 2N5551), mount it directly onto the heatsink alongside the output devices, using a sil-pad or thermal epoxy for grounding. Adjust the 500Ω trimpot to set quiescent current at 50–100mA–measure across a 1Ω resistor in series with the emitter to avoid misleading voltage drops.
Final Checks Before Power-Up
Test each stage incrementally: Apply 10V DC to the pre-driver section, verifying no AC ripple (>1mV) on the supply rails. Connect a dummy load (8Ω, 100W resistor) and inject a 1kHz sine wave at -30dBV; scope the output for crossover distortion (shoulders 100kHz), add a 100pF capacitor between the driver stage’s collector and base. Once stable, increase supply voltage to ±24V in 2V steps, monitoring case temperature–any rise above 8°C/minute signals potential component stress.
Optimal Transistor Selection for 40W Power Stages
For a 40W audio build, the MJL3281A (NPN) and MJL1302A (PNP) complementary pair delivers the best thermal stability and linearity at this power level. These devices handle 20A peak current, 260V breakdown, and maintain a junction temperature (Tj) rating of 150°C, eliminating the need for oversized heatsinks in compact enclosures. Alternatives like the TIP35C/TIP36C lack sufficient SOA (Safe Operating Area) for sustained 8Ω loads, risking thermal runaway during clipping conditions. Always match β (hFE) within ±10% for balanced distortion cancellation–measure with a curve tracer or dedicated β-matching tool before soldering.
Key Parameters for Transistor Evaluation
| Parameter | MJL3281A/MJL1302A | TIP35C/TIP36C | 2SC5200/2SA1943 |
|---|---|---|---|
| VCEO (V) | 260 | 100 | 230 |
| IC (A) | 15 | 25 | 15 |
| PD (W @ 25°C) | 200 | 125 | 150 |
| fT (MHz) | 30 | 3 | 30 |
| θJC (°C/W) | 0.75 | 1.0 | 0.83 |
For lower-cost builds, the 2SC5200/2SA1943 pair offers 230V breakdown and 15A current capacity but requires ±15% β matching to avoid asymmetry in Class AB operation. Avoid datasheet “typical” values–measure VBE at 10mA and 1A; differences >5mV indicate thermal mismatch. Mount transistors on a minimal 20°C/W heatsink with thermal paste containing ≥50% zinc oxide; silicone-based compounds degrade under prolonged 40W dissipation. Pre-bias at 10-15mA quiescent current using a multi-turn trimmer and verify stability with a dummy load before connecting speakers.
Heat Sink Requirements and Thermal Management in High-Power Audio Circuits
For a 40-watt class AB linear output stage, the minimum recommended heat sink thermal resistance is 0.5°C/W when operating at full continuous load in a 30°C ambient environment. Exceeding this threshold risks junction temperatures surpassing 125°C, reducing transistor longevity by 50% per 10°C rise above 100°C. Anodized aluminum extrusions with fin heights of 25–40mm and a base thickness of 6mm satisfy these requirements for compact designs. Avoid relying on passive cooling alone if enclosure volume is under 0.5 liters–forced air with a 25mm DC fan at 2000 RPM can halve required heat sink mass.
Thermal interface material (TIM) selection directly impacts efficiency. Conductive silicone-based pads (e.g., Bergquist TFX) achieve 4.5 W/m·K but introduce 0.05°C/W interface resistance–triple that of liquid metal alloys (e.g., Coollaboratory Liquid Ultra). For solder-free assemblies, apply 0.15mm thick TIM uniformly; thicker layers increase resistance non-linearly. Reapply TIM every 2000 hours of operation as silicone-based materials degrade through oxidation, losing up to 30% conductivity after a single thermal cycle from 25°C to 85°C.
Mounting and Mechanical Stress
Torque specifications for heat sink mounting screws are critical: 0.6Nm for M3 screws prevents warping of transistor packages (TO-220/TO-247), while overtightening (>0.8Nm) cracks dielectric layers in insulated packages (e.g., Toshiba 2SC5200). Use spring washers to maintain constant pressure under thermal expansion; lock washers are ineffective above 75°C due to material relaxation. For vertical mounting in mobile applications, orient fins parallel to airflow–horizontal fins trap 15% more heat in still air, requiring 20% larger surface area to match performance.
Transistor placement on the heat sink should follow a radial pattern for multi-device designs. Centered placement on a circular sink reduces thermal gradients by 40% compared to linear arrangements. For dual complementary pairs (e.g., NPN/PNP), space devices ≥20mm apart to prevent cross-heating–each 1°C rise in adjacent device temperature increases quiescent current by 2mA, risking thermal runaway. Use isolated mounting kits with ≥2kV breakdown voltage for bridge configurations to avoid ground loops in split-rail supplies.
Advanced Cooling Strategies
Phase-change materials (PCMs) like eicosane (melting point 37°C) can absorb 200J/kg of transient heat, delaying peak temperatures by 3–5 minutes during burst loads (e.g., 20ms at 2x rated power). Encase PCM in aluminum foam (90% porosity) to enhance thermal conductivity–bare PCM resists heat transfer with 0.2°C/W/cm. For high-current designs (>5A RMS), consider water-cooling blocks with 0.1°C/W thermal resistance; copper channels with 5mm diameter and 1L/min flow rate stabilize operating temperatures at 60°C under full load.
Heat sink color influences radiative cooling: matte black anodizing increases emissivity to 0.9 versus 0.2 for raw aluminum, improving dissipation by 12% in enclosed environments. Avoid glossy finishes–they reduce radiative heat transfer by 30%. For composite sinks (e.g., copper slugs embedded in aluminum), ensure the copper core extends ≥3mm beyond the transistor mounting surface to prevent localized hotspots. Copper’s 400 W/m·K conductivity outperforms aluminum’s 200 W/m·K, but cost scales linearly with volume–1kg of copper substitutes for 2kg of aluminum in equivalent thermal designs.
Active cooling fans should operate at ≤50% PWM duty cycle for noise-sensitive applications. A 40mm × 40mm × 10mm fan at 3000 RPM consumes 0.5W but delivers 0.03 m³/min airflow, sufficient to cool 100g of aluminum heat sink. Prioritize ball-bearing fans over sleeve types–MTBF drops from 50,000 hours to 5,000 hours at 80°C ambient. For redundancy, monitor fan RPM via Hall-effect sensors; a 20% drop in speed indicates imminent failure, triggering thermal throttling or shutdown protocols.
Dynamic thermal protection circuits should intervene at 100°C, not the transistor’s absolute maximum. Use negative temperature coefficient (NTC) thermistors with ≤0.2s response time mounted ≤5mm from transistor dies. A 10kΩ NTC at 25°C changes resistance by 5% per °C, enabling precise control loops. For fail-safe operation, implement hysteresis–shutdown at 100°C, re-enable at 85°C–to prevent oscillatory behavior. Avoid relying solely on on-chip temperature sensors in output devices; package-level measurements lag junction temperatures by ≥10°C during rapid load changes.
