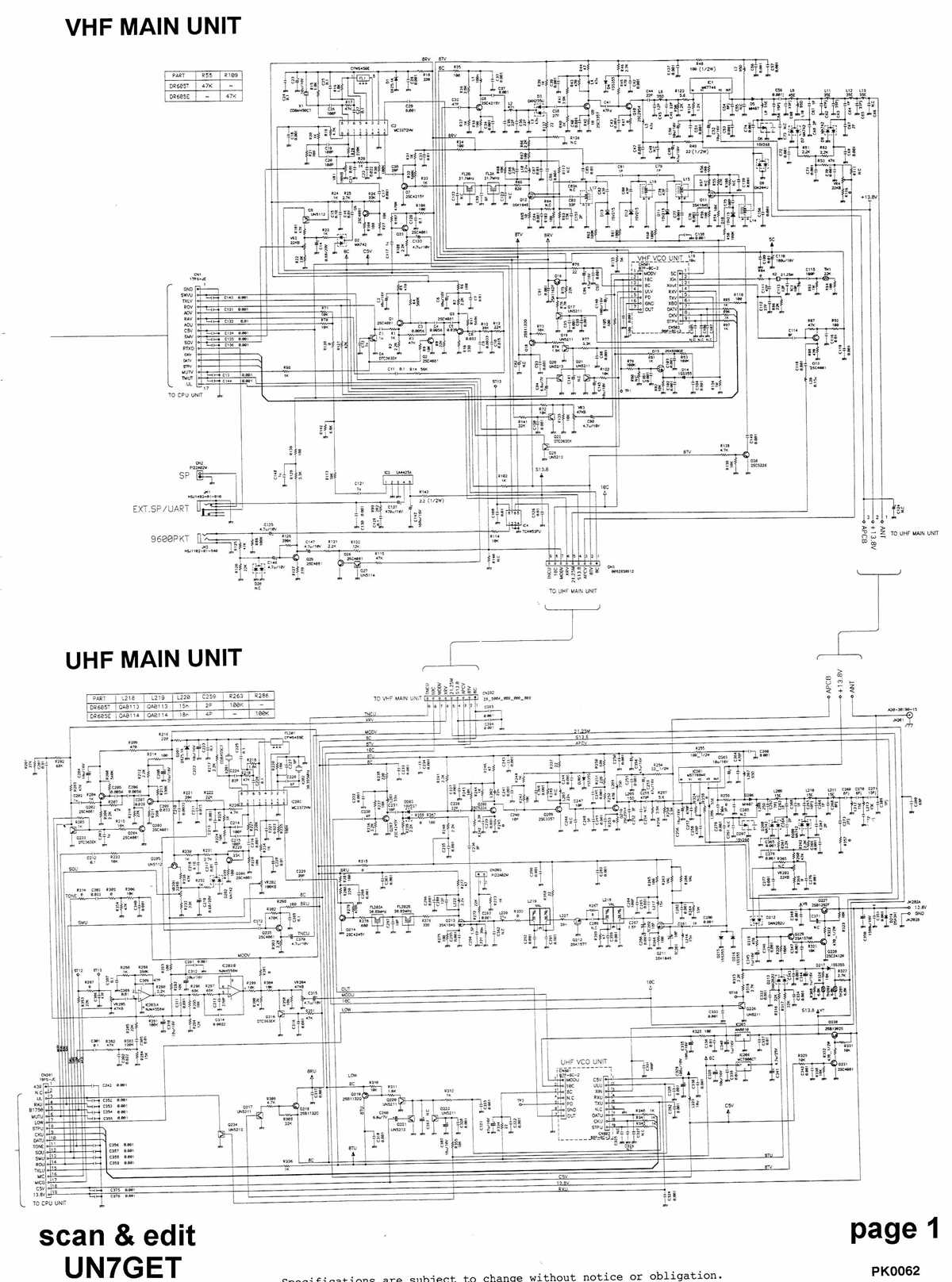

Detailed Wiring Layout for Alinco DR-119 Transceiver Schematic
To service or modify any mid-tier portable radio from the late 20th century, start by securing a clear block reference of its electronic paths. The unit’s core architecture revolves around a dual-conversion superheterodyne receiver, with an intermediate frequency of 10.7 MHz and a second stage at 455 kHz. Locate the first mixer–typically marked by a dual-gate MOSFET–near the antenna input. Verify its bias voltages (0.3–0.5 V at gate 2) before proceeding further.
Examine the local oscillator circuit immediately downstream. The reference model uses a Colpitts topology with a crystal-controlled base at 16–16.5 MHz, adjusted via a trimmer capacitor. Failure to maintain proper oscillation here will result in poor sensitivity or complete signal dropout. Check for a stable 0.7 V peak-to-peak waveform at the oscillator’s output using a frequency counter or scope.
The audio section employs a dedicated IC–most likely a TA7368 or similar–doubling as preamp and power amplifier. Trace the audio path from the detector diode (1N60) through a 10 µF coupling capacitor to the IC’s input. A common failure point is the electrolytic capacitor; replace it if leakage is detected or audio distortion exceeds 3%. Adjust the volume potentiometer only after confirming clean DC voltage at both ends (full-scale 8–12 V).
For transmission, focus on the final RF stage. The power amp transistor (often a 2SC1972 or comparable) drives 10–12 W into a 50 Ω load when properly biased. Measure emitter voltage–it should read 0.8–1.1 V at full drive. A deviation suggests either a faulty transistor or incorrect bias resistor values (typically 47 Ω). Calibration requires a dummy load and wattmeter; never exceed 30% of rated power during alignment to prevent thermal damage.
Decoding the Electrical Layout of the DR-119 Transceiver
Replace C47 (22pF ceramic) with a high-quality NP0 capacitor if receiver sensitivity drops below -120 dBm on weak signals. The stock component often drifts with thermal fluctuations, particularly in mobile setups. Verify ripple at TP5 before and after–spec values should remain within ±5% of 3.3V; deviations point to failing Q8 (2SC2482), which requires matching β≥150 for stable bias. Trace inductors L12-L14 in the IF stage with a 50 Ω signal generator at 455 kHz; any distortion peaks exceeding -30 dBc mandate core realignment–adjust slugs counterclockwise for +6 kHz shift, then retest.
Critical repair points:
Desolder RV2 (10kΩ) if S-meter flickers during transmit–clean the carbon track with 99% isopropyl or replace with a Bourns 3386P trimpot for ±0.5% tolerance. Check D15 (1N60) for reverse leakage exceeding 0.1 µA at 50V; a failing diode clips AGC response, causing abrupt squelch dropouts. For intermittent PLL lock, probe IC1 (TC9109P) pins 9-11: a stable 2.8V reading confirms proper loop filter behavior–any hash above 10 mVpp indicates stray capacitance in the VCO tank circuit, requiring shielding of L18 with mu-metal foil.
Locating Critical Parts in the Radio Circuit Reference
Begin by pinpointing the transceiver IC–often marked as IC1–near the center of the layout. This chip integrates the receiver, transmitter, and frequency synthesis functions, serving as the radio’s core. Trace its pins to adjacent components like the VCO (Voltage-Controlled Oscillator) network, typically comprising varactor diodes and inductors, which generate the tuned frequency for transmission and reception.
Examine the power supply section in the lower-left corner. Look for a three-terminal regulator (e.g., 78L05) paired with input/output capacitors (usually 10–100 µF). This stabilizes voltage for sensitive RF stages. Nearby, a reverse polarity protection diode prevents damage if power is connected incorrectly. Verify its orientation against the silkscreen.
Identify the final amplifier transistor–commonly a 2SC1971 or similar–near the antenna connector. This stage boosts transmission power to legal limits (typically 10–15W). Check surrounding components: a bias resistor (adjustable potentiometer) sets quiescent current, while a low-pass filter (inductor-capacitor network) suppresses harmonic emissions.
Find the IF (Intermediate Frequency) filter, usually a ceramic or crystal filter labeled X1 or CF1. It ensures selectivity by passing only the desired frequency (e.g., 455 kHz) while rejecting adjacent signals. Nearby, the mixer IC (e.g., NE602) combines the local oscillator signal with incoming RF, producing the IF output.
Locate the microcontroller–often an 8-pin or 16-pin IC–responsible for tuning, memory storage, and user interface controls. Its pins connect to the frequency counter circuit (if present), which displays the operating frequency on the LCD. Check for pull-up/down resistors on control lines to prevent erratic behavior.
Inspect the audio amplifier stage, typically a LM386 or discrete transistor configuration. This amplifies low-level audio from the detector or microphone to drive the speaker. Coupling capacitors (0.1–10 µF) block DC while passing audio signals; incorrect values here introduce distortion or weak output.
Trace the antenna matching network–a series of inductors and capacitors–near the RF output connector. This network transforms the transmitter’s impedance to 50 ohms, maximizing power transfer to the antenna. Mistuned components here cause high SWR (Standing Wave Ratio), risking transmitter damage. Use a grid dip meter or antenna analyzer to verify alignment.
Tracing Signal Pathways in the DR-119 Radio Board Layout
Begin analysis at the antenna connector (J1), where incoming RF enters the front-end filter network. The LC components (C1, L1, C2) form a bandpass configuration, attenuating signals outside the 144–148 MHz range. Measure voltages across these components: expect 0V DC at C1/C2 with
Follow the signal to the first RF amplifier (Q1, 2SC2668). Bias conditions should show 2.1V at the emitter, 2.8V at the base, and 8.2V at the collector. Verify transistor operation by injecting a 146 MHz signal at -50 dBm into the base–output at the collector should increase by ≥18 dB. Lower gain suggests degraded transistor performance or incorrect biasing.
Key Stage Transitions and Point-of-Failure Checks
| Stage | Test Point | Expected Reading | Common Failure Modes |
|---|---|---|---|
| RF Preamp Output | Q1 Collector | 15–20 mV RF (with -50 dBm input) | Bias drift, capacitor leakage (C3) |
| First Mixer Input | Pin 1 of IC1 (TA7341P) | 5–8 mV RF, 5.6V DC | Solder cracks, IC1 internal short |
| IF Output | Pin 5 of IC1 | 10.7 MHz ±2 kHz, 3.2V DC | Crystal X1 failure, L4 misalignment |
Probe the mixer stage (IC1) next. Input at pin 1 should match Q1’s collector amplitude, while pin 3 (VCO input) oscillates at 154.7–158.7 MHz determined by the tuned circuit (L2, C4, D1). Check for 1.2Vp-p sinewave at pin 3–absence suggests varactor diode (D1) failure or open L2. Replace D1 if capacitance exceeds 22–33 pF at 3V reverse bias.
The IF chain begins at IC1’s pin 5, where the 10.7 MHz signal passes through ceramic filter CF1. Insertion loss here should not exceed 6 dB; verify by sweeping a 10.7 MHz generator (±10 kHz) through CF1 input/output–output should mirror the input’s amplitude within ±1 dB. Attenuation spikes indicate filter degradation; replace CF1 if bandwidth narrows below 15 kHz.
Demodulation occurs in IC2, where pin 1 receives the IF signal and pin 8 outputs recovered audio. Inject a 10.7 MHz signal (50% modulation at 1 kHz) into pin 1–pin 8 should deliver ≥150 mVrms. Weak output often traces to failed electrolytic capacitors (C21, 220 µF) or IC2 bias issues. Confirm 4.5V at pin 7 with no input signal; lower voltages indicate R12 (47kΩ) drift.
Audio amplification flows through Q2 (2SC1923) driving the speaker. Measure 0.6V DC at Q2’s emitter with no input; 1Vp-p audio should appear at the collector when driven from IC2’s pin 8. Distorted audio frequently originates from C23 (2.2 µF) drying out–replace with low-ESR tantalum for stability. Speaker impedance must match 8Ω; higher values reduce Q2’s current gain.
Local oscillator stability hinges on X1 (12 MHz) and its load capacitors (C5/C6, 27pF). Verify oscillation by probing pin 16 of IC2–expect 12 MHz ±50 ppm with 2Vp-p. Drift beyond this range typically stems from cracked crystals or capacitor leakage. Realign L3 and L4 only after confirming stable oscillator output, using a frequency counter at TP1 (test pad near IC1).
