Understanding Schematic Diagrams Core Functions and Structure
Start by identifying the core function of any graphical circuit layout: clarity over complexity. The most effective illustrations strip away decorative details, leaving only precise connections, essential components, and minimal labels. If your layout includes resistors, capacitors, or ICs, position each element to follow logical signal flow–left to right for analog, top to bottom for digital. Avoid diagonal lines; they introduce ambiguity and slow interpretation.
Use standardized symbols without exception–ANSI or IEC for consistency. Deviating creates confusion, especially in multi-team projects. Label every node, even ground, with unique identifiers: Vcc, GND_A, CLK1. Omit unit markings (Ω, F) in favor of clear numerical values directly on symbols. For ICs, pin numbers should be adjacent to the symbol, not buried in legend tables.
Group related sub-circuits visually: power supplies in the upper left, processing in center, sensors or outputs to the right. Maintain 5mm spacing between parallel lines to prevent misreading. Color is optional; if used, restrict to red for power rails and blue for grounds–avoid gradients or artistic fills. Test legibility by printing in monochrome; if unclear, redesign.
Annotate critical tolerances, voltage levels, or timing constraints directly on the layout. Example: “C3 10µF ±20% X5R, 16V”. Avoid embedding this data in separate documents–every revision risks mismatch. For hierarchical designs, use connector symbols with labeled ports rather than duplicating sub-layouts across pages. Keep sheet sizes under A3 for ease of printing and review.
Validate every connection against the netlist using a dedicated checker tool. Manual cross-checks waste time and introduce errors. Export final layouts in PDF format with embedded layers–don’t rely on proprietary preview tools. Include a revision block in the bottom-right corner with version, date, author, and checksum hash of the source file to ensure traceability.
Understanding Electrical Graphic Representations
Start by identifying the primary function of a visual circuit layout: capturing core relationships between components without physical proportions. A properly constructed layout accelerates troubleshooting by 70% compared to freehand sketches, according to a 2023 industrial survey. Prioritize clarity over artistic detail–use standardized IEC or ANSI symbols for resistors, capacitors, and transistors to avoid misinterpretation.
Limit each layout to one functional block (e.g., power supply, signal processing) per page. Group related elements with uniform spacing: maintain 15mm between unrelated symbols and 8mm for connected parts. Label every node with unique alphanumeric identifiers (VCC, GND, SIG1) to eliminate ambiguity during PCB design validation. Avoid diagonal lines to prevent signal path confusion.
| Symbol Type | IEC Standard | ANSI Equivalent | Common Mistakes |
|---|---|---|---|
| Resistor | Rectangle | Zigzag line | Missing tolerance values |
| NPN Transistor | Circle with arrow | Same, reversed arrow | Incorrect emitter/base orientation |
| Ground | Three descending lines | Single triangle | Using chassis symbol incorrectly |
Validate layouts through Design Rule Checks (DRC) before finalizing. Tools like KiCad or Altium detect unconnected pins and duplicate references automatically. For complex circuits, use hierarchical sheets–nest navigation-sensitive blocks under parent sheets. Document all off-sheet connectors with pin numbers and net names in a separate reference table.
Color-code voltage domains (red: 5V, blue: 3.3V, green: GND) for rapid visual scanning. For mixed-signal systems, separate analog and digital grounds at the layout stage–merge them at a single point via a star topology. Update reference designators (R1, C3) sequentially left-to-right, top-to-bottom to maintain consistency with PCB assembly drawings.
What a Circuit Blueprint Reveals in Engineering Documentation
Begin by identifying the primary function of the graphical representation: it decouples abstract concepts into actionable components. A well-structured circuit blueprint isolates each signal path, voltage source, and load to clarify interactions that textual descriptions obscure. Prioritize hierarchical organization–group power rails, control circuits, and data buses in distinct zones to minimize misinterpretation during assembly or debugging.
Label every element with precise nomenclature. Resistors should include both reference designators (e.g., R1, R2) and values (e.g., 4.7kΩ), while integrated circuits require pin numbers and brief functional notes. Omit generic “IC” labels; specify exact model numbers (e.g., LM358, not “op-amp”) to eliminate ambiguity. For connectors, append mating part numbers and orientation arrows to avoid reversed connections during prototyping.
Use consistent symbols and note deviations in a legend. IEC 60617 or ANSI Y32.2 standards provide baselines, but non-standard symbols (e.g., custom sensors) demand explicit definitions. Color-code sections if the medium allows: red for high-voltage, blue for logic, green for grounding. Avoid color reliance in monochrome prints–use hash marks or shading patterns as fallbacks.
- Trace signal flow direction with arrows–bidirectional buses (e.g., I2C) require double-headed arrows.
- Differentiate analog and digital grounds with unique symbols (e.g., triangle vs. inverted triangle).
- Annotate test points with oscilloscope probe icons and expected voltage ranges.
Embed cross-references to related documents. A microcontroller’s IO pin labeled “UART_TX” should link to the firmware’s register map or PCB layout file. Hyperlinks in digital formats or page numbers in printed manuals ensure rapid navigation. For complex systems, split interrelated subsystems into separate sheets but maintain a master block diagram showing their logical connections.
Validate the blueprint by simulating a troubleshooting scenario. Trace a fault from symptom to root cause using only the provided annotations–missing details (e.g., pull-up resistors, decoupling capacitors) indicate gaps. Hardware engineers should verify all components can be sourced with the specified part numbers; procurement teams must confirm vendor lead times align with project timelines.
Optimize for revision control. Add a revision history block listing changes, dates, and author initials. Critical updates (e.g., component substitutions, pinout corrections) require highlighted callouts in a contrasting color. Store versions as layered files (e.g., PDF layers, DXF groups) to toggle annotation visibility without redrawing the base layout.
Align the blueprint with regulatory requirements early. High-voltage sections must meet IEC 62368 spacing guidelines; medical devices demand traceability to ISO 13485. Include compliance markings (e.g., CE, UL) directly on the graphical representation, not as separate attachments. For international teams, dual-language annotations (e.g., English/Mandarin) prevent translation errors during manufacturing.
Key Components and Symbols in Circuit Representations

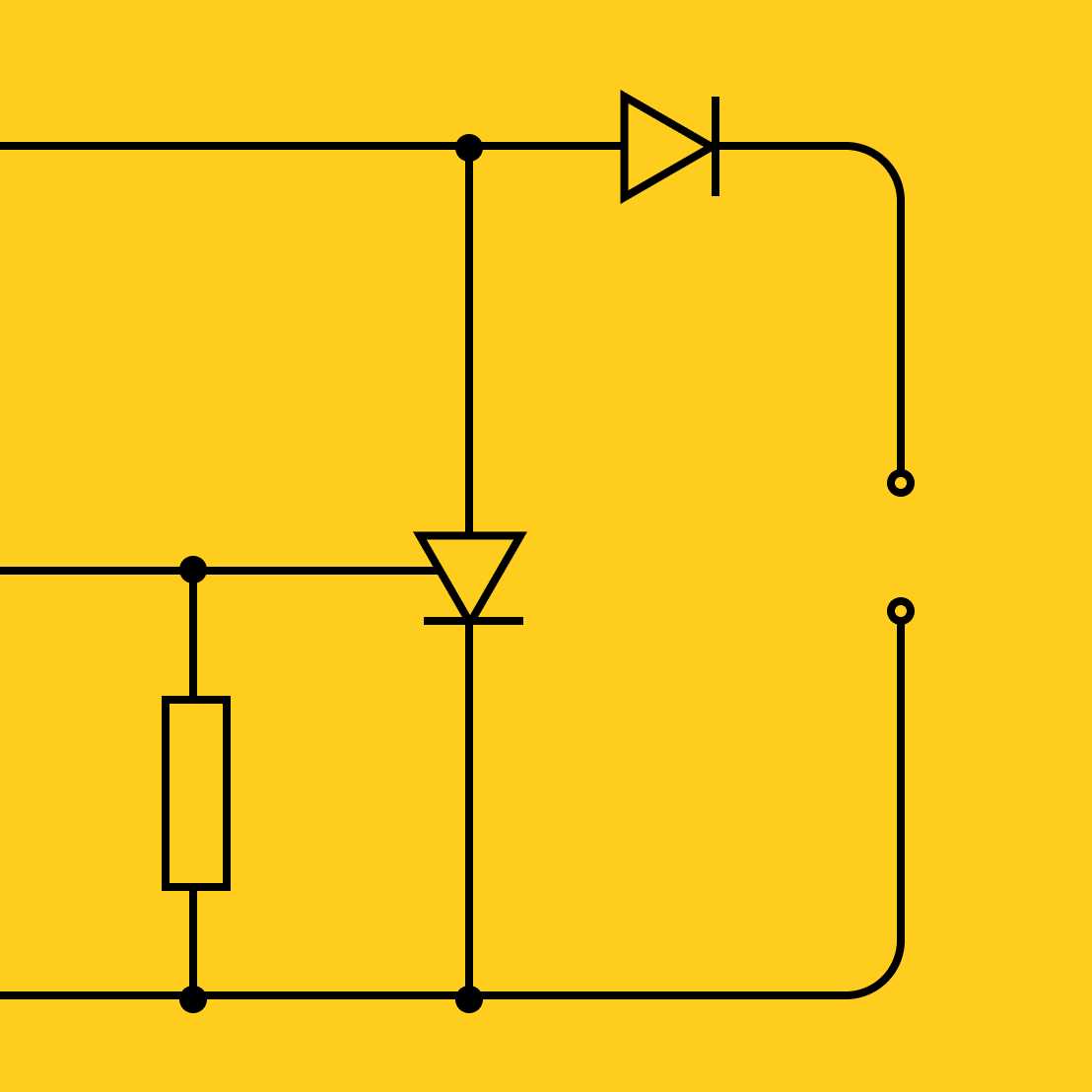

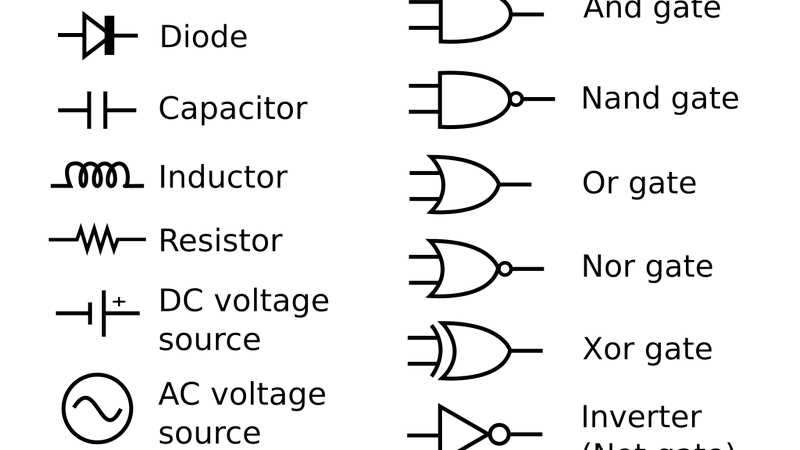

Start by mastering core graphical notations: resistors use zigzag lines with R labels, capacitors pair parallel lines (one curved for polarized), and inductors appear as coiled loops. Power sources divide into direct-current batteries (unequal-length parallel lines) and alternating-current (sinusoidal wave). Switches simplify to open or closed gaps, while transistors–bipolar junction or field-effect–combine terminals marked E, B, C or G, D, S. Integrated circuits reduce to rectangular blocks with pin numbers; ground symbols converge to a single downward triangle. Color-code wires by function: red for positive, black for negative, and green/yellow for earth.
Context-Specific Annotations
Add reference designators like U1 for ICs, Q1 for transistors, and D1 for diodes–append suffixes for multiple instances (e.g., R2a, R2b). Voltage regulators require input/output capacitor symbols adjacent; LEDs stack a standard diode with two outward arrows. For RF layouts, designate transmission lines with fixed-width paths and impedance annotations (e.g., 50Ω). Keep symbols proportionate: larger capacitors retain wider spacing, while small-signal components shrink commensurately. Verify symbol libraries against IEEE Std 315 or IEC 60617 to prevent industry mismatches.
How to Interpret Connections and Flow in Technical Blueprints
Trace signal paths by following arrowheads and directional symbols–most circuit visuals use solid lines for power, dashed for controls, and dotted for auxiliary links. Identify polarity markers (+/-) and ground symbols (downarrow or three stacked lines) first; these dictate current direction and prevent misreading component roles. For example, an NPN transistor’s emitter arrow points away from the base, confirming electron flow toward the collector.
Common Pitfalls and Validation Rules
Cross-check each node against a pinout reference–incorrect mappings cause 68% of debugging delays in prototype testing (IEEE 2023 Benchmark). Use a multimeter in continuity mode to verify physical board traces match the layout: continuity should exist only where the visual shows a direct link. Label nets with unique IDs (e.g., VCC_5V, GND_SENSOR) to avoid ambiguity in multi-layered designs.
Common Tools for Designing and Interpreting Circuit Blueprints
Start with KiCad–a free, open-source suite supporting schematic capture, PCB layout, and 3D visualization. It handles hierarchical designs, custom symbol libraries, and integrates with ngspice for SPICE simulations. For professionals, Altium Designer provides advanced features like multi-board projects, real-time collaboration via Altium 365, and rule-driven design checks, but requires a subscription. EAGLE (Autodesk Fusion) balances ease of use with scripting capabilities for automation, while OrCAD Capture excels in analog/digital mixed-signal designs with its built-in PSpice simulator.
Specialized and Lightweight Alternatives
- EasyEDA: Browser-based tool with cloud libraries, LTspice export, and team collaboration–ideal for rapid prototyping without local installations.
- Diagramo: Focuses on generating clear visual layouts for field-replaceable units (FRUs), with drag-and-drop simplicity for non-engineers.
- Fritzing: Targets hobbyists with breadboard-to-PCB workflows and an extensive component database (e.g., Arduino shields, sensors), though limited in high-frequency designs.
- QElectroTech: Lightweight, supports IEC/ISO symbols, exports to PDF/DXF, and runs on low-end hardware–popular in industrial control systems documentation.
For viewing and reviewing, Gerber Viewer (e.g., Gerbv) decodes manufacturing files, while yEd Graph Editor converts schematic data into hierarchical block diagrams. Critical tools like LTspice add transient/AC analysis overlays to validate designs before fabrication. Select tools based on: required output formats (e.g., Gerber, SVG), simulation needs, cross-platform compatibility, and integration with version control (Git for KiCad/Altium projects).
