Standard Electrical Symbols in Schematic Diagrams Explained

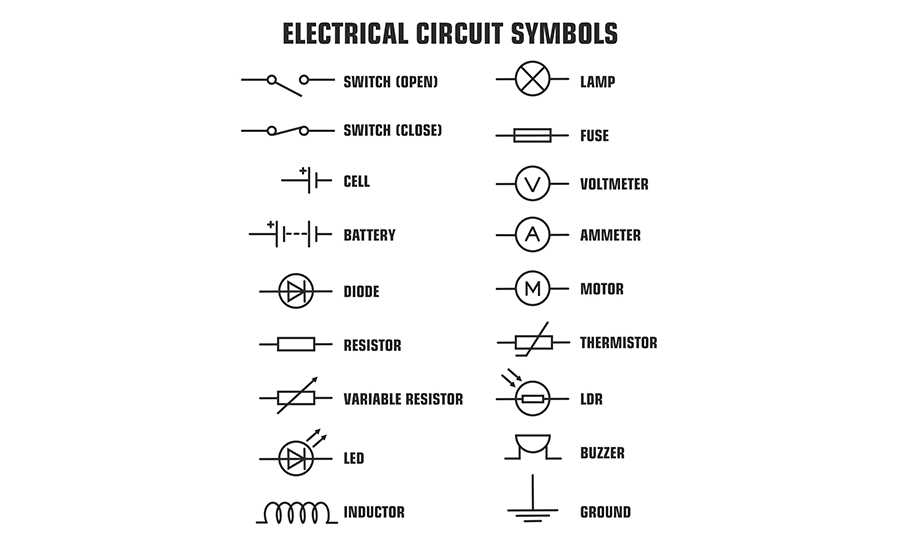

Begin by memorizing core component glyphs used in technical blueprints. A resistor is depicted as a jagged line segment, while a capacitor appears as two parallel lines–one straight, one curved. Inductors show loops or coils, and batteries split into alternating long and short bars. Misinterpreting a battery’s polarity markers can reverse circuit behavior, so verify alignment before finalizing layouts.
Adopt standardized IEC 60617 symbols for international compatibility. A switch’s state (open or closed) must align with the default configuration specified in your documentation. Transistors (BJTs, FETs) require precise orientation–Arrow direction on BJTs indicates collector, emitter, and base roles. Ignoring this risks incorrect signal paths in amplification stages.
Use dotted lines for virtual connections in multi-layer boards to avoid accidental shortcuts during soldering. Ground symbols vary: Chassis ground (three decreasing horizontal lines) differs from signal ground (single horizontal line). Mixing them can introduce noise in mixed-signal designs.
Label all power rails with voltage levels to prevent overstress. A circle atop a T-line denotes a test point–place them at critical nodes for troubleshooting. For integrated circuits, distinguish between digital (rectangular outline) and analog (curved outlines) blocks via shape cues. Missing this distinction may cause miswiring in systems combining both domains.
Validate every glyph against ANSI Y32.2 or equivalent regional standards before fabrication. Errors propagate downstream–an inverted diode symbol (arrow facing the wrong direction) will mislead entire subcircuits. Always cross-reference symbols in schematics with datasheets to confirm pin assignments and internal configurations.
Key Graphical Notations in Circuit Blueprints
Begin by memorizing the three most common resistive element types: fixed resistors (straight line segments), variable resistors (arrow cutting through a line), and rheostats (arrow tangent to the line). Each variant demands distinct interpretation–fixed values denote unchanging impedance, variable types indicate adjustable thresholds via sliding contacts, while rheostats function solely as current limiters. Reference IEC 60617 or ANSI Y32.2 standards for precise dimensions; deviations beyond ±5% may mislead fabrication teams into sourcing incorrect components.
Capacitive icons split into polar and non-polar classifications. Polarized capacitors (curved line opposite a straight line with a “+” sign) must align voltage polarity or risk catastrophic failure; non-polar types (parallel lines) tolerate bidirectional current but yield lower capacitance per volume. Film capacitors employ an additional diagonal slash–this subtle distinction signals polypropylene dielectric, critical for high-frequency circuits where tolerance drift degrades performance.
Inductive coils occupy three primary forms: air-core (spirals), iron-core (wrapped spirals), and tapped coils (interrupted spirals). Iron-core symbols mandate annotation of core material–ferrite vs. laminated steel alters inductance by orders of magnitude. Tapped coils require explicit pin numbering; reversed notation causes phase inversions, nullifying filter designs in RF amplifiers. Verify winding directions via dot conventions–left-side dots indicate mutual coupling polarity.
Transistor glyphs bifurcate into BJTs (NPN/PNP arrows) and FETs (three-terminal “T” gates). BJTs demand arrow alignment with emitter current; reversed arrows mirror transistor behavior, invalidating bias calculations. FETs substitute arrows with gate-source-drain arrangements–depletion-mode variants carry a dual-gate slash, necessitating voltage differentials exceeding 20V for channel modulation. Always cross-reference datasheets; package pinouts invert between TO-92 and SOT-23 footprints.
Switch categories span SPST (single break), DPDT (dual-break crosses), and rotary types (arc-segmented circles). SPST designs often omit NC/NO labels–annotate explicitly using latching mechanisms symbols (zigzag line) where bistable operation applies. Rotary selectors require angular division notation; 360° circles split into 12 equal segments default to 30° increments unless otherwise specified in the legend.
Ground symbols divide into chassis (downward triangle), earth (horizontal bar below triangle), and signal (three descending lines). Chassis grounds conduct sink currents up to 10A but introduce noise if star-point topology isn’t enforced–isolate analog and digital domains using separate ground planes. Earth symbols mandate compliance with IEC 60364; absent regional approval, installations risk safety violations during fault conditions.
IC representations hinge on ANSI 91.1 notation: rectangles for through-hole, trapezoids for surface-mount variant. Pin numbering ascends counterclockwise from lower-left corner–violate this sequence, and PCB routing flips orientation, disrupting PCB traces on mirrored footprints. Memory devices append slash lines for dual-port configurations, while microcontrollers stipulate VCC/GND adjacency; diverging placement induces latch-up during transient events.
Key Circuit Representations and Their Physical Counterparts
Start by memorizing the resistor icon – a straightforward zigzag or rectangle – as it maps directly to carbon-film or wirewound components in power supplies, signal conditioning blocks, and current-limiting networks. Carbon-film variants dominate low-power circuits due to cost, while precision wirewound types serve instrumentation and audio gear where temperature stability outweighs price.
Capacitor glyphs – parallel lines or curved plates – translate to electrolytic, ceramic, and film parts in practice. Electrolytics offer high capacitance per volume but exhibit polarity; reverse voltage degrades dielectrics within milliseconds. Ceramic capacitors, though non-polarized, suffer from capacitance drop under DC bias and microphonic noise in high-impedance circuits. Film types, whether polyester or polypropylene, deliver stable values and low losses, making them ideal for filters and oscillators where signal integrity cannot tolerate drift.
Inductors, marked by coiled wire loops, manifest as ferrite-core chokes, air-core coils, and toroidal transformers. Ferrite cores excel in switching power supplies, handling high-frequency currents while avoiding saturation. Air-core inductors eliminate core losses, though they occupy more board space and radiate stray fields unless shielded. Toroids, wound on donut-shaped cores, confine magnetic flux, reducing electromagnetic interference in sensitive analog stages like RF front ends and phase-locked loops.
Transistors appear as three-terminal junctions: BJTs with an arrow denoting emitter, FETs with a diagonal gate bar. Bipolar junction transistors excel in amplification and switching where input impedance matters less; MOSFETs dominate power conversion and digital logic due to near-infinite gate impedance. In power modules, insulated-gate bipolar transistors (IGBTs) bridge the gap, combining voltage-driven gates with high voltage-blocking capability common in motor drives and solar inverters.
Common Representations and Their Practical Trade-offs
| Icon Shape | Physical Device | Primary Use Case | Critical Limitation |
|---|---|---|---|
| Zigzag line | Carbon-film resistor | Pull-ups, voltage dividers | ±5% tolerance, temperature coefficient ±200 ppm/°C |
| Parallel plates | Electrolytic capacitor | Power supply smoothing | Reverse polarity destroys oxide layer within seconds |
| Coiled loop | Ferrite-core inductor | Switching regulator output | Saturation at high currents, core losses above 1 MHz |
| Arrow-tipped junction | NPN transistor | Analog signal amplification | Current-driven base requires buffering in high-impedance circuits |
Diodes, simply arrows striking a line, crystallize into silicon rectifiers, Schottky barriers, and Zener junctions. Silicon types withstand reverse breakdown around 1000 V but drop 0.7 V forward, throttling efficiency in low-voltage circuits. Schottky diodes, with lower 0.2–0.3 V drop, switch faster at the cost of higher reverse leakage, making them fit for switch-mode supplies and RF mixers. Zener diodes regulate voltage in shunt circuits; their breakdown curves stabilize outputs against input fluctuations and load transients.
Switch representations – usually a break contact – split into mechanical toggle switches, MOSFET-based solid-state relays, and reed contacts. Toggles route signals between paths but introduce bounce artifacts lasting milliseconds; debounce capacitors or flip-flops mitigate this in control interfaces. Solid-state relays use optical isolation, eliminating mechanical wear and suit high-frequency switching but suffer thermal runaway under sustained faults. Reed switches, enclosed in glass vials, sense magnetic fields without power drain, ideal for battery-powered sensors and security loops.
Selecting Components Based on Icon Traits
Choose component families by matching icon traits to circuit demands. For high-frequency signals, opt for surface-mount inductors and ceramic capacitors with tight tolerances; their self-resonant frequencies reach hundreds of MHz, whereas through-hole types resonate at tens of MHz. In precision analog front-ends, replace electrolytic capacitors with film or polymer types; their leakage currents measure in nanoamperes, versus microamperes in electrolytics, preserving signal-to-noise ratios. For power stages, pair IGBT icons with real modules rated at least 2× nominal operating voltages; undersizing triggers avalanche breakdown under transients.
Always cross-reference icon labels with datasheet curves. A transistor labeled “Q” in documentation might depict low-voltage MOSFET or high-voltage IGBT depending on context; verify gate threshold voltages and maximum collector-emitter breakdown limits before prototyping. Similarly, resistor values on posters often omit power ratings–carbon-film parts default to 0.25 W, while wirewound types handle watts but introduce inductance in fast edges. By connecting graphical cues to measurable specs, you eliminate guesswork and field-reliable designs on first prototypes.
