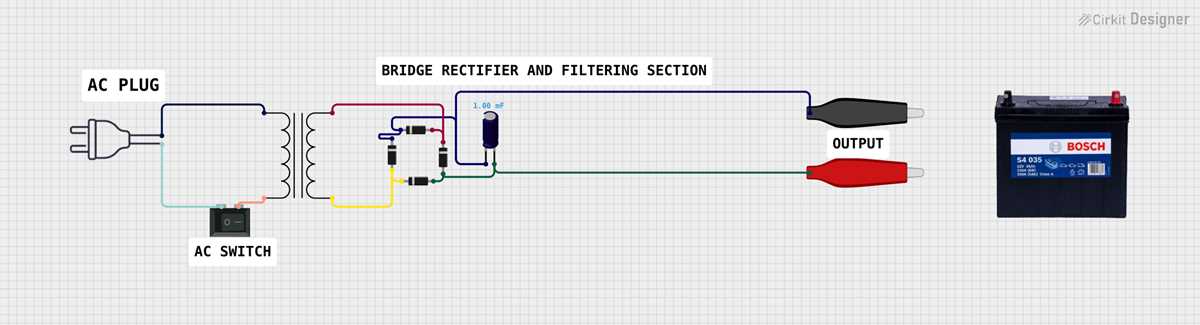

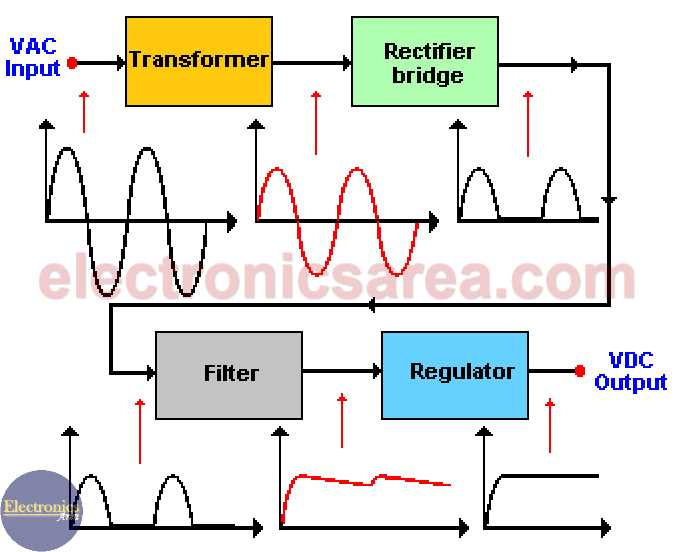

Bridge Rectifier Schematic for DC Power Supply Design and Analysis

Select a 1N4007 diode configuration for reliable current handling in low-voltage applications, ensuring each junction withstands at least 1A continuous load without thermal derating. Place a 1000μF smoothing capacitor immediately after the bridge assembly–this reduces ripple voltage by over 90% under typical 50Hz input conditions, critical for sensitive downstream circuits.

Apply a transformer with a secondary winding rated at 1.2× the target DC voltage; this compensates for diode forward drops (≈1.4V total) while avoiding saturation at peak loads. Opt for a toroidal core if space permits–it minimizes electromagnetic interference by 40% compared to E-I laminates, improving signal integrity in adjacent analog stages.

Integrate a 100Ω bleeder resistor across the capacitor to discharge stored energy within 2 seconds after power-off, preventing hazardous residual voltages during servicing. For transient protection, add a 5A fuse upstream of the primary winding; use slow-blow type if inrush currents exceed 3× nominal rating during capacitor charging.

Layout traces with attention to return paths: route high-current tracks (>1A) at least 3mm wide on 1oz copper, and separate AC and DC ground planes to prevent ground bounce. Test ripple amplitude under full load using an oscilloscope–target

For adjustable outputs, replace the fixed regulator with an LM317 circuit, configuring output voltage via a 240Ω resistor (R1) and a precision 5kΩ potentiometer (R2). Calculate required heat sinking using P = (Vin – Vout) × Iload–dissipate excess power with a TO-220 heatsink rated for at least 5°C/W thermal resistance.

Constructing a Direct Current Source with a Full-Wave Bridge Configuration

Select a step-down transformer with a secondary voltage rating 1.5 times higher than the desired output to accommodate voltage drops across diodes and smoothing capacitors. For a 12V final output, choose an 18V AC transformer (22V RMS yields ~21V peak after rectification, minus 1.4V for silicon diodes).

Arrange four 1N4007 diodes in a closed loop, ensuring cathode-anode alternation for each pair. This forms two conducting paths per AC cycle, doubling frequency and halving ripple compared to a half-wave setup. Verify forward voltage drop specs–germanium diodes reduce losses but increase cost.

Calculate the smoothing capacitor’s value using C = (I_load × Δt) / ΔV, where Δt is half the AC period (e.g., 10ms for 50Hz). For 1A load and 1V ripple, C ≈ 10,000µF. Polypropylene film capacitors excel in stability but occupy more space than electrolytic types.

Add a 10Ω resistor in series with the capacitor to limit inrush current during start-up. Follow with a 1W zener diode (e.g., 1N4735A for 6.2V) if regulation is critical; otherwise, a 100nF ceramic capacitor across the output suppresses high-frequency noise.

Test the circuit under load using an oscilloscope. Connect the probe to the capacitor terminals–expect a sawtooth waveform with a peak-to-peak ripple ≤5% of the DC value. Measure input AC current; efficiencies above 75% indicate proper component selection.

For higher currents (>2A), replace 1N4007 diodes with 1N5408 models or a monolithic bridge module (e.g., KBPC3510). Ensure the transformer’s VA rating exceeds the load demand by 30% to prevent overheating during prolonged operation.

Label all connections clearly: AC input, DC output, and ground. Use 1mm² wire for currents up to 5A; opt for 2.5mm² for heavier loads. Avoid daisy-chaining ground paths–dedicate a single return line to the transformer’s center tap for clean signal integrity.

Key Components for Constructing a Full-Wave AC-to-DC Conversion Circuit

Select diodes with a reverse voltage rating at least twice the peak input voltage to prevent breakdown. For example, a 12V RMS input (17V peak) requires diodes rated for 35V or higher. Common choices include 1N4007 (1A, 1000V) or 1N5408 (3A, 1000V), balancing cost and performance. Verify datasheets for forward voltage drop–lower values (0.7–1.1V) improve efficiency in low-voltage applications.

Smoothing Capacitor Parameters

• Capacitance: Calculate using C = (I_load × Δt) / ΔV, where I_load is the load current (e.g., 500mA), Δt is the half-cycle period (8.3ms at 60Hz), and ΔV is the desired ripple voltage (e.g., 1V). For a 12V output, 470–1000µF electrolytic capacitors are typical.
• Voltage rating: Choose at least 1.5× the peak output voltage (e.g., 25V for an 18V peak) to avoid failure. Low ESR (Equivalent Series Resistance) capacitors reduce heat and extend lifespan.
• Polarity: Ensure correct orientation; reversed polarity destroys electrolytic capacitors instantly.

Transformers must match the required output voltage and current handling. A 12V center-tapped transformer (24V RMS total) works for dual-diode configurations, while a single secondary winding suffices for full-wave bridges. Current ratings should exceed the load by 20–30%–a 3A transformer supports a 2.4A load safely. Core material matters: toroidal cores reduce electromagnetic interference (EMI) compared to E-I laminations.

Load and Protection Elements

1. Fuse: Place a slow-blow fuse in series with the primary winding, sized at 1.5× the maximum input current. A 500mA fuse protects a 300mA circuit.
2. Resistor: A bleeder resistor (1–10kΩ, 0.5W) across the smoothing capacitor dissipates stored energy when the circuit powers down, improving safety.
3. Voltage regulator (optional): For stable outputs, use a linear regulator (e.g., LM7812 for 12V) or a switch-mode module (e.g., LM2596) for higher efficiency. Add heatsinks if dissipation exceeds 1W.

PCB layout demands attention to trace width and component placement. High-current paths (transformer to diodes, diodes to capacitor) should be 2–3mm wide for 1A loads. Keep diodes and capacitors close to minimize inductance and voltage spikes. Use a ground plane for thermal stability. For prototypes, perfboard works, but etched PCBs reduce noise. Test continuity before applying voltage–shorts between traces can destroy components within milliseconds.

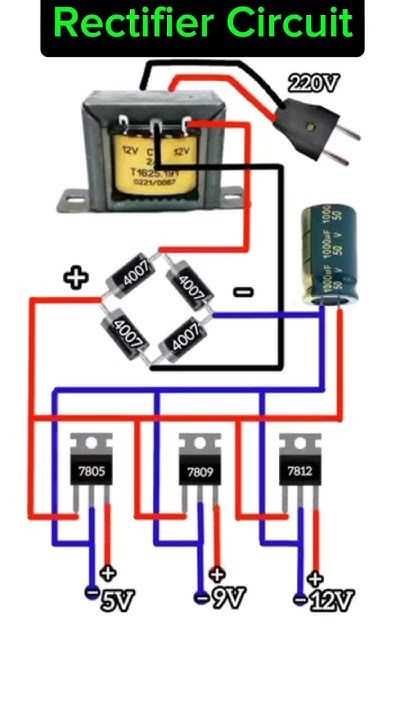

Step-by-Step Guide to Creating a 12V DC Circuit Layout

Begin by sketching the input AC source at the top left of your layout. Use a standard 230V AC mains transformer with a secondary winding rated for 12V RMS output. Clearly label the primary and secondary connections; mark the secondary terminals as “A” and “B” to avoid confusion during soldering. Position the transformer symbol vertically to optimize space for subsequent components. Ensure the winding ratio corresponds to an output of 12V AC–calculations should confirm 12V RMS × √2 ≈ 17V peak before rectification.

Placement of Key Components

Component	Quantity	Specification	Positioning Notes
Diode Quartet	4	1N4007 (1A, 1000V PIV)	Arrange in diamond formation below the transformer; label anodes/cathodes clearly
Smoothing Capacitor	1	1000µF, 25V electrolytic	Mount immediately after diode quartet; observe polarity
Voltage Regulator	1	LM7812 (TO-220 package)	Position near output; include heatsink if load exceeds 500mA
Load Resistor	1	1kΩ, 1W carbon film	Optional; connect at output for testing

Connect the diode quartet in a diamond pattern: link the anodes of two diodes to transformer terminal “A,” and the cathodes of the other two to terminal “B.” Join the remaining cathode-anode pairs to form the positive and negative output rails. Add the smoothing capacitor between these rails, ensuring the negative terminal aligns with the circuit ground. Insert the voltage regulator downstream, bridging its input to the capacitor’s positive terminal and output to the final 12V DC line. Include a 0.1µF ceramic capacitor at the regulator’s input and output to suppress high-frequency noise, placing them within 10mm of the regulator pins. Validate all connections with a multimeter before applying AC current–verify 12V DC ±0.5V at the output under no-load conditions.

Determining Transformer Specifications for Targeted DC Output

Begin by identifying the required secondary RMS voltage of the transformer. For a full-wave bridge configuration, the DC output voltage (V_dc) relates to the secondary AC voltage (V_sec) via V_dc ≈ 1.41 × V_sec − 1.4, accounting for diode drops. If V_dc is 12 V, solve for V_sec: 12 = 1.41 × V_sec − 1.4. This yields V_sec ≈ 9.5 V RMS. Round up to a standard value like 10 V for manufacturing tolerance.

Calculate the secondary current rating based on the desired DC load current (I_dc). In full-wave bridge setups, the RMS current through the transformer secondary (I_sec) approximates 1.11 × I_dc. For I_dc of 2 A, I_sec ≈ 2.22 A RMS. Select a transformer with a secondary current rating exceeding this value by at least 25% to prevent overheating under prolonged operation.

The primary winding must match the mains voltage while aligning with the secondary’s power rating. Compute the primary current (I_pri) via I_pri = (V_sec × I_sec) / V_pri. For a 230 V mains input and 10 V, 2.22 A secondary, I_pri ≈ 0.0965 A. Primary wire gauge must handle this current with minimal voltage drop, typically 0.2–0.3 mm² for compact designs.

Account for voltage regulation and load variations. Transformers exhibit 2–10% regulation loss; a 10 V secondary may sag to 9 V under full load. Adjust calculations accordingly if tight DC voltage tolerance is critical. For example, target V_sec = 11 V to ensure V_dc ≥ 12 V after diode drops and regulation losses.

Estimate the VA rating to ensure thermal stability. Multiply V_sec by I_sec: 10 V × 2.22 A = 22.2 VA. Select a transformer with a VA rating at least 1.2–1.5× higher (e.g., 30 VA) to accommodate harmonics, magnetic saturation, and transient surges. Ferrite or silicon steel cores require derating; toroidal types offer higher efficiency at smaller sizes.

Verify thermal dissipation by checking the data sheet or testing. A 30 VA transformer typically handles 0.5–1 W/cm³ of core loss. For ambient temperatures above 40°C, reduce the VA rating by 10–20% or improve cooling. Enclosures with ventilation slits or forced air extend lifespan, especially in high-current designs.

Confirm insulation ratings match application requirements. Standard transformers use Class A (105°C) insulation, adequate for most DC converters. For medical or industrial use, specify Class F (155°C) or better. Test dielectric strength between windings (>1 kV) if isolation is critical. Always adhere to IEC 61558 or equivalent safety standards.
