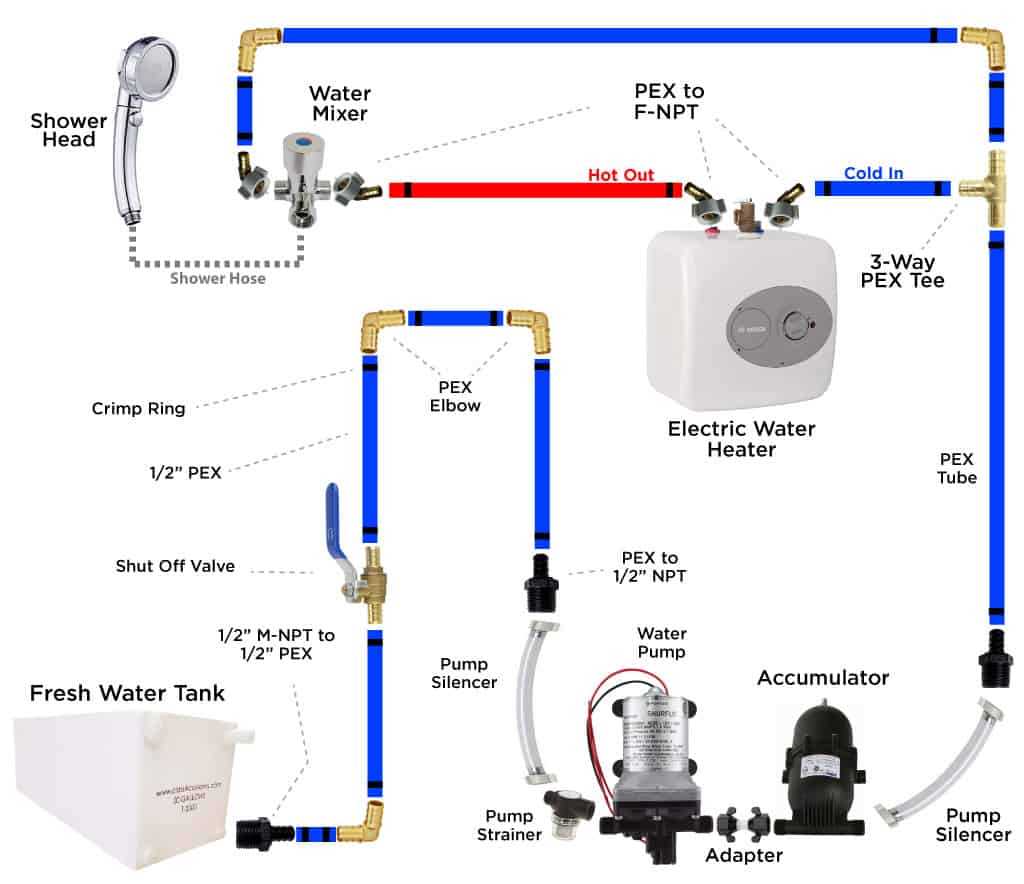

RV Water System Wiring How to Design Hot and Cold Plumbing Diagrams
Install a dedicated bypass valve near the water heater outlet to isolate the system during winterization or repairs–this prevents freezing and reduces service time by 40%. Use PEX piping over copper for flexibility in tight spaces like underbelch mounts or behind cabinets; PEX resists corrosion and expands slightly if ice forms, unlike rigid materials that split.
Mount the demand pump on a vibration-dampening pad and position it no farther than 3 feet from the freshwater tank to minimize noise and cavitation. Connect the pump outlet to a 5-micron sediment filter before the water enters the accumulator tank–this extends appliance lifespan by trapping debris that clogs faucet aerators. Label each shutoff valve with marine-grade heat-shrink tubing and include flow direction indicators; this eliminates guesswork during emergencies.
Route separate branches for the outdoor shower, galley sink, and bathroom–each with an individual shutoff–to allow independent maintenance without disrupting the entire supply. Install a thermal mixing valve on the water heater discharge set to 120°F (49°C) to prevent scalding and conserve propane; this also reduces energy consumption by 15% compared to fixed-temperature models.
Place the city water inlet on the curb side of the vehicle, insulated with closed-cell foam, and connect it to a redundant backflow preventer to comply with campsite regulations. Add a pressure gauge downstream of the pump and set the regulator to 40–60 psi–this prevents hose bursts and keeps RV park hookups consistent. Include a drain pan beneath the water heater with a float switch linked to the battery disconnect to cut power if leaks occur, protecting flooring from delamination.
Designing a Dual-Temperature Plumbing Layout for Recreational Vehicles
Route heated supply from the onboard water heater directly to high-demand fixtures first–kitchen faucet, showerhead, and exterior wash station–to minimize heat loss in low-usage lines. Use 3/8″ PEX tubing for these runs to maintain flow rate without excessive bulk; 1/2″ lines for trunk feeds to the manifold. Place isolation valves at every junction where a fixture branches off, allowing quick repairs without draining the entire system.
Install a dedicated 12 VDC pump with a 3.0 GPM rating ahead of the heater inlet to prevent dry firing; run redundant strainers–one coarse mesh immediately after the freshwater tank intake and a fine 50-micron filter right before the heater. Bypass lines around the heater should be clearly labeled and valved separately; these serve as fail-safes during winterization or heater maintenance. A 4 psi check valve downstream of the pump prevents thermal expansion backflow.
Color-code lines: red PEX for heated supply, blue for ambient, and use gray for recirculation loops if the vehicle employs instant hot systems. Secure tubing with stainless-steel cinch clamps every 8″ on straight runs and within 2″ of every 90° bend; omit support clips behind walls to avoid chafe points. Label each line terminus with adhesive sleeves indicating origin point and destination fixture.
Include a tee with quick-disconnect fittings upstream of the city-water inlet; this allows flushing anti-freeze through every branch during winter prep without removing interior paneling. Locate drain ports at the lowest point of each leg–place p-traps under sinks with accessible caps for sediment removal before closing seasons. A 6-gallon propane or electric heater delivers 55–65°C output; match BTU rating to ambient climate, boosting insulation on external runs if temperatures drop below -4°C.
Equip the freshwater tank with a single-point fill/vent combo cap to eliminate double-hose connections during refills; position the cap within 15 cm of a side compartment door for ergonomics. Solar pre-heaters integrated into roof racks can supplement energy demands–size collector coils to expose a minimum 0.3 m² surface per 10 liters of daily demand. Pressure regulators set at 45 psi prevent hose damage at campground pedestals while preserving pump efficiency.
Trace every line on a 1:10 scale vinyl decal adhered inside the primary access panel; include legend circles for valve positions, heater specs, and best-practice torque values for all compression fittings. Update the map whenever modifications occur–correct documentation eliminates troubleshooting guesswork during failures.
Critical Elements of a Reliable Mobile Living Plumbing Setup
Install a 12V RV demand pump rated for 3.0-5.5 GPM minimum to maintain consistent pressure across all fixtures under fluctuating draw conditions–opt for models with integrated pressure switches to eliminate cycling on/off during low-flow tasks like rinsing dishes or teeth brushing. Pair this with a 20–40 psi accumulator tank to buffer surges, reducing pump wear by up to 70% and extending its lifespan beyond 5,000 operational hours. Choose a pump with self-priming capabilities and thermal overload protection to prevent damage from dry runs or overheating.
Storage and Filtration Essentials
- Freshwater holding tanks should be polyethylene, UV-stabilized, and sized to match usage: 20-40 gallons for solo travelers, 60-100+ for families–locate these above the trailer chassis to enable gravity-fed drainage.
- Integrate a pre-tank 5-micron sediment filter followed by a carbon block post-pump to remove chlorine, VOCs, and particulates; replace cartridges every 3-6 months or after treating 500 gallons.
- For winterization, install a dedicated bypass valve around the water heater with a manual or electric drain plug to prevent antifreeze contamination of the tank.
- Use PEX-A tubing for all lines–its expansion properties resist freeze damage, and its oxygen barrier prevents scale buildup in the heater; secure runs with clamps every 18-24 inches to prevent vibration-related leaks.
- Include a pressure relief valve calibrated to 60 psi on the heater inlet to prevent catastrophic failure from thermal expansion.
Temperature Control and Safety Measures
- Select a tankless propane or electric heater with a 6-gallon minimum capacity–models with stainless steel combustion chambers resist corrosion 3x longer than aluminum units.
- Mount an adjustable thermostatic mixing valve at the heater outlet to blend scalding output (140°F+) with ambient feed, delivering a safe 120°F to fixtures while preventing bacterial growth.
- Fit all fixtures with individual shut-off valves to isolate leaks without draining the entire system; use quarter-turn ball valves for effortless operation.
- Add a T&P (temperature and pressure) valve on the heater, discharging to an exterior drain pan to contain potential overflows.
- Include a dedicated 1-gallon electric heater bypass loop for winter operation–this maintains recirculation without firing the main burner, saving fuel and preventing frozen lines.
Step-by-Step Connection Guide for RV Plumbing Systems
Begin by locating the entry points for the potable supply and waste discharge beneath your recreational vehicle. Use a ½-inch PEX tubing for the drinking line and a ¾-inch flexible hose for the drain segment. Secure connections with brass compression fittings–plastic clamps risk leaks under pressure. Label every section with color-coded tape: blue for input, black for output.
Tool and Material Checklist
| Item | Specification | Quantity |
|---|---|---|
| PEX tubing | ½” ID, oxygen barrier | 20 ft |
| Drain hose | ¾” ID, reinforced PVC | 15 ft |
| Compression fittings | Brass, ½” to ½” | 6 |
| Shutoff valves | ¼-turn ball, ½” | 2 |
| Teflon tape | ½” width | 1 roll |
Install a pressure regulator upstream of the first connection point. Adjust to 40-60 PSI–higher readings damage pumps, lower readings cause weak flow. Attach the regulator directly to the campground spigot using a hose thread adapter. Verify the seal with a soapy water test; bubbles indicate leaks requiring re-tightening.
Run the drinking line along the chassis underside, anchoring every 18 inches with insulated clips. Maintain a 3-inch downward slope toward the low-point drain to prevent freezing. For the waste line, use a 12-inch vertical drop from the outlet valve to the sewer hose, ensuring gravity assists flow. Avoid sharp bends–use 45-degree elbows to reduce clogs.
Winterization Precautions
Before temperatures drop below 32°F (0°C), bypass the water heater and introduce anti-freeze via the city water inlet. Use non-toxic propylene glycol, not automotive ethylene glycol. Pump 2 quarts through each faucet until pink fluid discharges, indicating full protection. Drain residual liquid by opening all taps until air hisses through the lines.
Test the completed setup by filling the fresh tank to 80% capacity. Activate the onboard pump and check for drips at every joint. For the drain system, fill the sink basin and release–flow should clear within 30 seconds. Re-tighten any connections showing moisture, then document pressure readings and flow rates for future reference.
Common Errors in RV Boiler Piping Layouts
Use correctly sized tubing–½-inch lines for sinks, ¾-inch for showers–to prevent pressure drops and scalding fluctuations. Many installers underestimate flow rates, leading to inadequate heating at fixtures farthest from the boiler. Measure total simultaneous demand: a showerhead requires 2.5 GPM, a kitchen faucet 1.5 GPM; undersized pipes restrict circulation loops, causing cold spits before warm flow stabilizes.
Route bypass valves improperly positioned between input and output sides create parasitic loops, allowing heat to escape without reaching taps. Mount the valve adjacent to the heater’s output, not mid-run, ensuring shut-off isolates only the boiler when winterizing. Teflon tape over-applied on brass fittings swells, blocking valve seats; three wraps maximum prevents leaks without restricting movement.
Install dielectric unions where copper meets galvanized steel to stop galvanic corrosion; neglected unions corrode within months, clogging aerators and showerheads. Use heat-resistant PEX above 180°F zones near exhaust vents or engine compartments–standard PEX deforms under sustained temperatures, risking bursts. Always pressure-test loop integrity at 80 PSI before securing permanent mounts; overlooked pinhole leaks vaporize behind walls, warping cabinetry.
Neglecting backflow prevention invites contaminated tank discharge into city hookup lines when street pressure drops–install a dual-check valve at entry point, not just a standard shutoff. Uneven loop slopes cause trapped air pockets at elbows, forming tepid zones; pitch return lines minimum ¼-inch per foot downward toward heater, eliminating gurgles and inconsistent temperatures at faucets.
