Detailed iPhone 5s Circuit Board Schematic and PCB Design Analysis

For hardware engineers or repair technicians examining the A1533 logic board, begin with the signal flow map available in the official service documentation. The primary power rails–PP5V0_USB, PP_VCC_MAIN, and PP3V0_MESON–must be verified first using a multimeter in diode mode. Readings outside the 0.3–0.8V range indicate compromised pathways, often caused by corroded vias near the U2 baseband chip or L10 charging coil.

Trace connectivity from the Nand Flash (U2 DRAM stack) to the A7 SoC (U1) via the AP_TO_NAND bus lines. Signal integrity issues here manifest as boot loops or incorrect storage capacity readouts. Probe test points TP1101 and TP1102 with an oscilloscope; clean 3.3V square waves confirm proper data transfer. If waveforms are distorted, inspect R2120–R2123 resistor array–common fail points under prolonged thermal stress.

Examine the electrical routing plan for the Lightning port (J3) near the bottom edge. The four-layer board design routes high-speed USB 2.0 differential pairs–D+ (L49) and D– (L50)–through buried vias, susceptible to microfractures from repeated mechanical stress. Use a thermal camera to detect uneven heat distribution during charging cycles; hotspots exceeding 65°C suggest damaged L352 or L353 inductors, requiring reflow or replacement.

Isolate faults in the cellular RF section by measuring TX_EN and PA_ON control lines at Q401 and Q402. Absent 1.8V pulses at these nodes suggest a failed U405 power amplifier module–frequently damaged from liquid ingress. Desolder U405 using a hot-air station at 380°C with Kapton tape shielding adjacent components; verify pad cleanliness under 10x magnification before installing a replacement module.

Understanding the Internal Blueprints of the 5s Model

Start by identifying power distribution paths on the board–trace the PMIC (Power Management IC) connections to critical components like the A7 processor, flash storage, and baseband module. Use a multimeter in continuity mode to verify each line before applying power, as corrosion or solder bridges in these paths are the most frequent culprits behind boot failures. The PMIC on this device splits voltage into three regulated outputs: VCC_MAIN for logic, VCC_3V3 for system peripherals, and AVCC for analog circuits. Check for stable 3.8V on the battery connector J4501 during testing, as fluctuations here often indicate either a faulty battery or a shorted capacitor near C4020 on the underside of the board.

Examine the RF section closely–locate the Skyworks 77809 die on the rear of the logic board near the SIM tray cutout. This component handles Wi-Fi, Bluetooth, and GSM amplification; failed reception usually ties back to damaged inductors L1801-L1803 or a compromised EMI shielding can causing thermal stress. Signal integrity tests require a spectrum analyzer; inject a 2.4GHz test tone at -40dBm into the antenna flex connector and monitor output at U1900. If signal drops below -70dBm, replace the antenna switch IC first before digging into the baseband.

Repair traces related to the Touch ID sensor by focusing on the MESON connector J4200–pins 15 (DATA), 16 (CLK), and 17 (VDD) are the most vulnerable to liquid ingress. Clean oxidation with isopropyl alcohol and a fiberglass brush, then reflow the connector with fresh solder paste. If the device still fails to recognize fingerprint input, measure resistance between TP4201 and the A7 die; values above 1.2kΩ confirm a broken trace requiring jumper wire repairs between the via and the processor’s BGA pad.

Locating Premium-Quality iPhone 5s Circuit Blueprints for Hardware Fixes

Start with Zhongguancun forums (bbs.zgc), where repair technicians share high-definition internal blueprints for Apple’s 2013 A7 model. Filter posts tagged 5s_M7 or N51AP–these contain factory-grade visuals from Foxconn or Pegatron production lines. Another reliable source is AllSocket (allsocket.org), a database offering 600+ DPI scans of logic boards, including power rails, signal paths, and EMI shielding zones. Request files via DM, specifying exact board revision (e.g., N51AP_2.4) to avoid outdated versions.

• Microsoldering Discord communities like Jessa’s Board Repair Hub often archive leaked servicing manuals. Search pinned channels for 5s_full_stack files, which include annotated layer-by-layer layouts with component callouts (e.g., U52_RF, C203_power).
• For paid professional-grade resources, BGA Fix (bgafix.com) sells unlockable ZIPs containing:
  1. Gerber files for the A7 chipset’s BGA footprint.
  2. Thermal maps pinpointing heat-sensitive zones under the rear-facing camera bracket.
  3. Voltage testing points correlated with the Tristar IC.

  Cost: $45 per download, updated quarterly for FCC-regulated modifications.

• Wayback Machine (archive.org) retains defunct Apple Service Source PDFs–enter apple-service-manual-iphone-5s.pdf in the search bar to recover official schematics once hosted on apple.com/support/manuals.

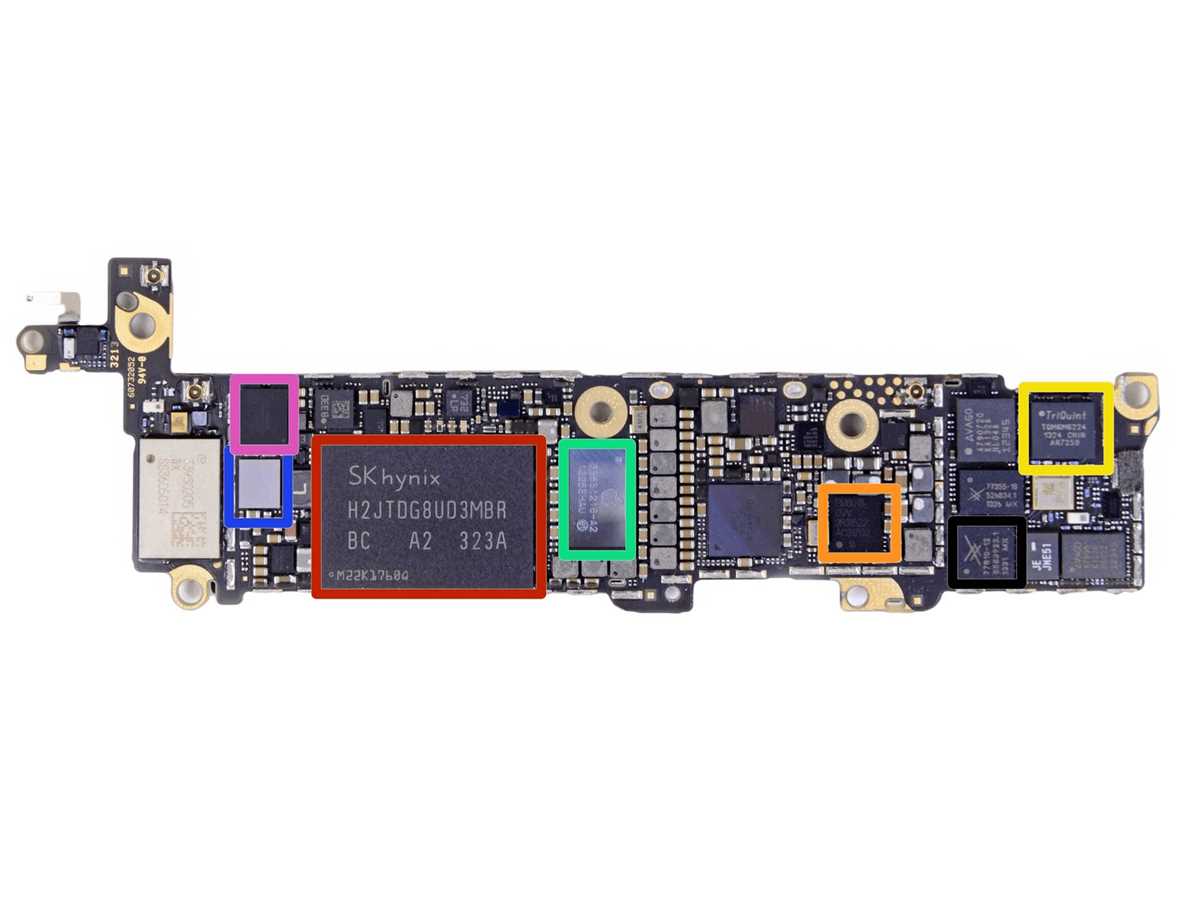

Critical Hardware Elements in the 5s Circuit Board Design

Begin repairs by locating the A7 processor, marked U0501 on silkscreen. This 64-bit SoC integrates CPU, GPU, and secure enclave–handle directly beneath the EMI shielding to avoid damaging adjacent power management ICs (U1202). Use a hot air station at 300°C with low airflow to prevent lifting ball grids; pre-tin the replacement site if reworking.

• LPDDR3 RAM (U0601): Stacked above the A7; stores active sessions. Signal corruption often mimics boot loops–check continuity on data lines (DQ) with a multimeter prior to desoldering.
• Qualcomm MDM9615M (U5002): LTE modem; consumes right-side board space. Failed units emit no network–test RF paths with spectrum analyzer at 700–2600 MHz bands before replacing.
• NXP 8960 Secure Element (U1101): Handles fingerprint transactions. Static discharge here bricks Touch ID–ground wrist straps during service.

Power delivery requires three buck converters (U201, U2101, U3300), each switching at 2 MHz. Replace inductors (L0200 series) if cracked or overheated–match core material (ferrite vs. iron powder) using part numbers.

The Wi-Fi/Bluetooth module (U1401 Broadcom BCM4334) shares traces with the main antenna. Corrosion here drops Bluetooth or Wi-Fi–reflow solder joints under microscope, then apply conformal coating to exposed pads. Monitor output with software tools post-repair to confirm RF calibration.

1. Flash storage (U5011): Toshiba MLC NAND; interface via eMMC bus. Read/write errors demand chip-off recovery–use BGA rework station at 260°C with flux designed for lead-free solder.
2. Audio codec (U601 Cirrus Logic 338S1193): Route dock connector signals through ferrite beads (FB600 series). Failed beads cause no speaker output–replace with 600 Ω impedance units.
3. Battery fuel gauge (U7100 TI BQ27541): Reports inaccurate charge levels if firmware corrupt. Reprogram via I2C bus using TI programmer; confirm protocol version matches hardware revision.

Step-by-Step Process to Analyze the iPhone 5s Circuit Board Blueprint

First, procure a high-resolution reference map of the board’s components, such as those from official service manuals or verified third-party sources. Focus on identifying key sub-systems: power management, baseband, application processor, memory clusters, and RF circuits. Label each section with colored markers–red for critical voltage lines, blue for data buses, and green for ground planes–before attempting deeper analysis. This visual segmentation prevents misinterpretation of dense routing.

Trace the main power delivery network starting from the charging IC, typically a Qualcomm PM8018 or similar. Follow the primary rails–VBAT, VCC_MAIN, and 5V boost paths–using a multimeter in continuity mode to confirm connections. Note how voltage regulators (LDOs and buck converters) distribute power to the processor and memory. Record any deviations from expected values, such as drops below 3.3V on core rails, which often indicate failed capacitors or resistive joints near the chips.

Examine the processor’s ball-grid array (BGA) footprint by cross-referencing pinouts with component datasheets. Locate the CPU’s core power pins (often labeled VCORE) and observe their thermal pads–these should connect to ground via multiple vias. Check for cold solder joints under a microscope, especially around the A7 chip’s perimeter. Verify that decoupling capacitors (typically 0201 or 0402 packages) are soldered flush with no tombstoning.

Inspect the NAND flash memory next. Measure resistance between its power pin and ground; values below 50Ω suggest a short. Confirm data lines (MD bus) connect directly to the CPU with no intermediate resistors or filters. Use an oscilloscope to check signal integrity on the flash clock line–ringing or excessive noise may indicate missing termination components or PCB trace damage.

Follow the display connector’s flex cable path backwards to the logic board. Identify the display driver IC and ensure it receives stable 1.8V and 3.3V rails. Check the LCD_RESET and LCD_ENABLE lines for proper toggling with a logic analyzer–floating signals often cause black screens. Look for EMI shields covering the driver; corrosion under these shields frequently affects touch functionality.

Analyze the wireless section by locating the Wi-Fi/Bluetooth module (usually a Murata or Broadcom IC). Confirm its antenna feed lines connect to impedance-matched traces leading to the main FPC connectors. Use a spectrum analyzer to verify the 2.4GHz and 5GHz bands are not attenuated by damaged matching networks or cracked PCB traces near the antenna pads.

Finally, document every finding including component designators (e.g., C2101, U3400), trace widths, and via placements. Create a reverse-engineered block diagram grouping functional sections with real-world resistance and capacitance measurements. This record becomes invaluable for diagnosing recurring faults like intermittent power cycles or RF interference.
