Understanding Heat Pump Schematic Diagrams Key Components and Workflow

Begin by identifying the four core components: evaporator, compressor, condenser, and expansion valve. Each must be positioned to optimize thermal exchange and refrigerant flow. A reversed Carnot cycle operates between –10°C and 50°C for standard units–deviations require recalibration of pressure ratios. Use R-32 or R-290 as working fluids for 20% higher COP compared to R-410A, despite slightly elevated flammability risks.

Place the evaporator in the low-pressure zone with fin spacing between 1.5–2.5 mm for air-source systems. Coil material–preferably copper with hydrophilic coating–reduces frost accumulation at sub-zero temperatures. For ground-source loops, vertical boreholes (60–100m depth) achieve 35–45 W/m thermal conductivity, outperforming horizontal trenching by 30%.

Compressor selection dictates efficiency: scroll compressors deliver 8–12% higher seasonal performance than reciprocating types in part-load conditions. Oil management is critical–ISO 68 synthetic lubricant prevents sludge formation at 80°C discharge temperatures. Ensure suction gas superheat remains within 5–10°C to avoid liquid carryover.

Condenser design follows the evaporator’s logic but operates at 15–30 bar. Plate heat exchangers (PHE) offer 40% reduced footprint over shell-and-tube types while improving heat transfer coefficients by 15%. Expansion valves must regulate subcooling to 3–5°C–electronic types achieve ±1°C precision, mechanical types require manual adjustment every 500–1000 hours.

Refrigerant lines demand copper (L-type per ASTM B88) with insulation R-value ≥ 5.4 m²K/W for 10mm lines. Avoid 90° bends–use 45° or radius bends to limit pressure drops to

Key Components of a Thermal Transfer Circuit

Start by placing the compressor at the core of your layout–position it between the evaporator and condenser coils to ensure optimal refrigerant flow. Use a scroll or reciprocating unit rated for at least 3.5 kW per ton of cooling capacity when working with residential systems, adjusting for ambient temperature ranges (target 4.5 kW for climates exceeding 35°C).

Select copper tubing with a minimum wall thickness of 0.8 mm for the high-pressure liquid line, increasing to 1.2 mm if the circuit exceeds 15 meters in length. Insulate all suction lines with closed-cell foam (6–12 mm thick) to prevent condensation and energy loss, particularly in humid environments where latent heat gains can reduce efficiency by 8–12%.

Install a thermal expansion valve (TXV) with a nominal capacity matching the system’s load–oversized valves cause hunting, while undersized ones struggle with superheat control. For R-410A systems, set the superheat range between 5–8°C; for R-32, adjust to 7–10°C to account for higher discharge temperatures. Calibrate the valve using manufacturer-provided subcooling charts specific to the refrigerant blend.

Integrate a three-way reversing valve with a response time under 3 seconds to switch between heating and cooling modes. Position it downstream of the compressor but upstream of the condenser/evaporator to minimize pressure drops. For variable-speed drives, ensure the valve actuator’s voltage (typically 24V or 230V) matches the control board’s signal; misalignment causes erratic cycling or failure.

Use a suction-line accumulator if the system operates in low-ambient conditions (*below 0°C for air-source units). Size it at 1.5x the compressor’s displacement volume to prevent liquid slugging. Pair it with a crankcase heater (20–50W) to avoid refrigerant migration during off-cycles, which can dilute lubricant and increase wear by 30–40% over time.

Choose refrigerant piping diameters based on equivalent lengths, not straight-line distances. For example:

• 5/8″ OD for suction lines up to 10 meters;
• 3/4″ OD for 10–20 meters;
• 7/8″ OD for 20+ meters or vertical rises over 6 meters.

Avoid 90° elbows–use 45° bends where possible to reduce pressure losses, which can degrade performance by 2–5% per sharp turn.

Install pressure and temperature sensors on both sides of the evaporator and condenser for real-time monitoring. For accuracy, place sensors in thermowells (not surface-mounted) filled with thermal compound to eliminate air gaps. Log data at 1-minute intervals; deviations exceeding ±2°C from calculated superheat/subcooling indicate flow restrictions or valve malfunctions.

Prioritize condensate drainage by sloping evaporator coils at 1–2° downward toward the drain pan. Use a P-trap with a 50 mm seal to prevent air infiltration, and insulate the drain line in unconditioned spaces to avoid condensation forming on its exterior. In frost-prone climates, integrate a demand-defrost controller that activates at coil temperatures below 2°C, but limit defrost cycles to 10 minutes maximum to prevent energy waste.

Core Elements in Thermal Exchange System Blueprints

Position the evaporator coil outdoors to maximize latent energy absorption from ambient sources–air, ground, or water. Opt for finned tube designs in air-source models, with copper or aluminum alloys for efficient phase transition. Ensure coil spacing matches climate conditions: 1.5–2.5 mm gaps for humid zones, 2.5–4 mm for dry or cold regions. Verify refrigerant charge calculations against manufacturer specs; undercharging reduces capacity by 15–20%, while overcharging risks liquid backflow into compressors.

Select scroll compressors for residential applications; they outperform reciprocating units in efficiency by 10% while operating at lower decibel levels (52–58 dB). In industrial setups, screw compressors handle larger loads but require oil separators with

Integrate bi-flow thermal expansion valves (TXVs) for reversible cycles, allowing precise flow control in both heating and cooling modes. Size TXVs according to liquid line diameter–undersizing causes superheating, oversizing leads to hunting. For geothermal loops, use coaxial or plate-style condensers; stainless steel resists corrosion from mineral-rich fluids. Pressure drop across condensers should not exceed 5 psi; higher values indicate scaling or refrigerant imbalance.

Design refrigerant lines with minimal bends–each 90° elbow adds 1–1.5 psi resistance. Use insulated copper piping for vapor lines to prevent energy loss; uninsulated lines lose 3–5% efficiency. Diameter mismatches between components cause flash gas formation–follow manufacturers’ pipe size charts strictly. Install sight glasses downstream of TXVs to monitor refrigerant state; bubbles indicate undercharge, oil streaks signal contamination.

Maintain a 0.5–1°F temperature differential between incoming fluid and refrigerant at the evaporator inlet for optimal heat transfer. Ground loops require antifreeze solutions with low viscosity and high specific heat–propylene glycol (30–50% concentration) balances performance and toxicity. Electronic control boards should include defrost algorithms triggered by coil temperature (below 32°F) or frost accumulation duration (typically 10–15 minutes).

Exhaust fans in air-source units must achieve 800–1200 CFM per ton of capacity; improper airflow chokes evaporators, reducing system output by 12–18%. Ground-source circuits need spacing between u-bends (4–6 ft horizontally, 15–20 ft vertically) to prevent thermal bleed. Validate all electrical connections for 1–2% voltage drop–higher losses degrade compressor performance over time. Include isolation valves to simplify maintenance without full system recovery.

Interpreting Flow Pathways in Energy Transfer System Blueprints

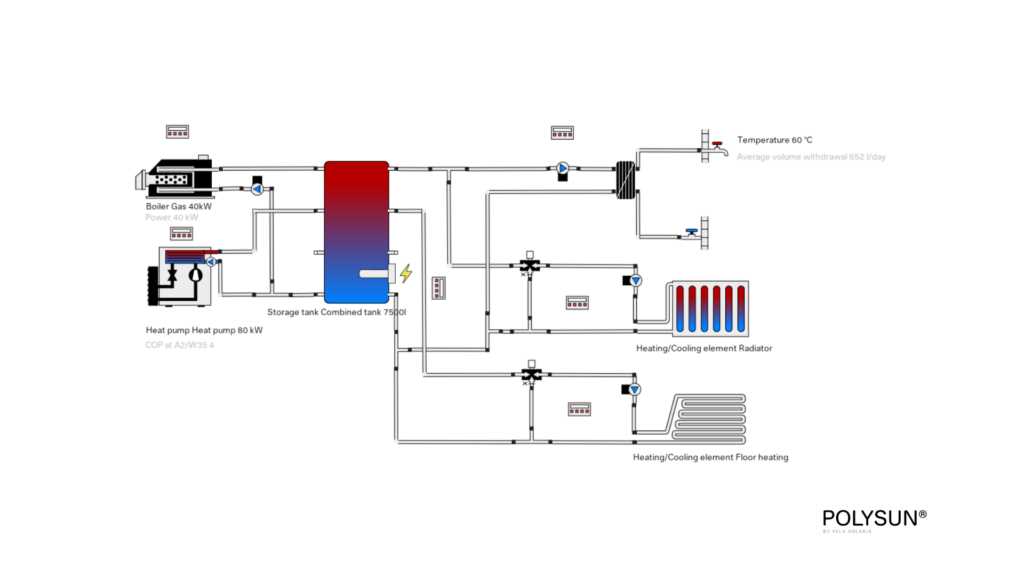

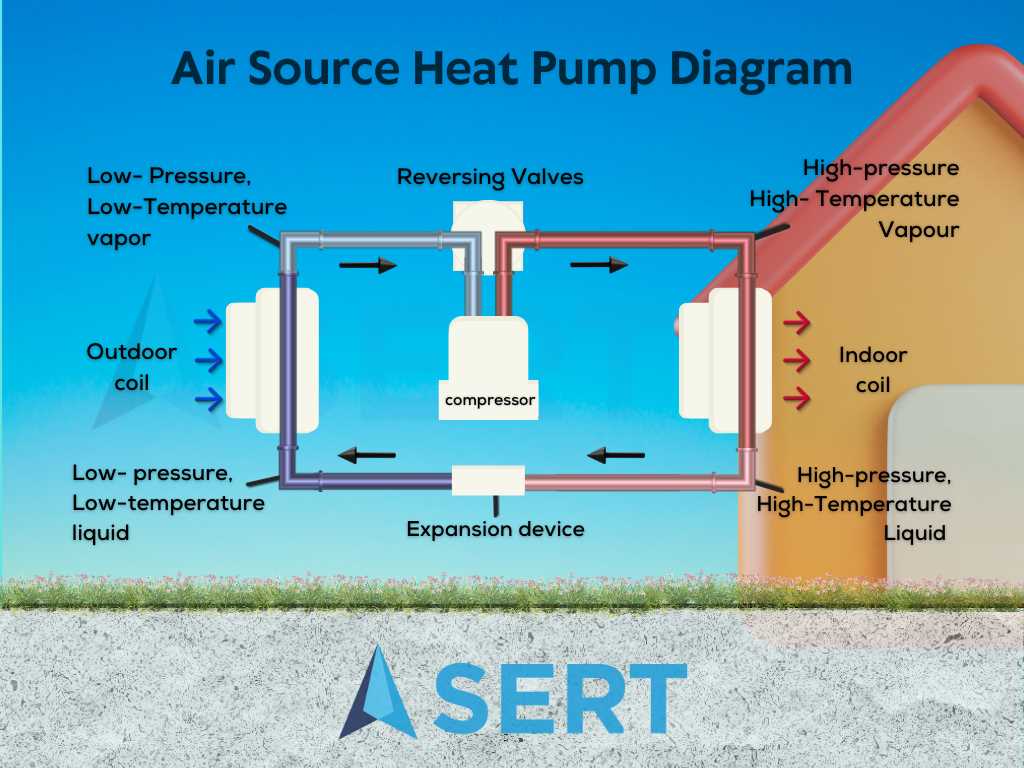

Identify the primary circuit first–look for thick, solid arrows or bold lines indicating the dominant medium path. These typically connect the compressor outlet, condenser inlet, expansion device, and evaporator outlet in a closed loop. Trace their sequence carefully: high-pressure discharge must lead to a cooling coil before reaching the restriction point, then expand into low-pressure intake.

Color coding often signifies phase states: red for superheated vapor, blue for subcooled liquid, and purple or striped patterns for two-phase mixtures. Check the legend if present or cross-reference industry conventions–most refrigeration layouts adhere to these standards. Misinterpreting these can reverse the entire cycle’s logic, swapping condenser and evaporator functions.

Observe valve positions and bypass lines. Closed valves show flow resistance with perpendicular marks across the line, while open ones align with the conduit. Bypasses split main streams into auxiliary paths for defrosting, hot gas reheating, or oil separation; these diverge at acute angles and rejoin downstream. Follow each branch to its termination point–some loop back instantly, others extend to secondary exchangers.

Decoding Non-Standard Notations

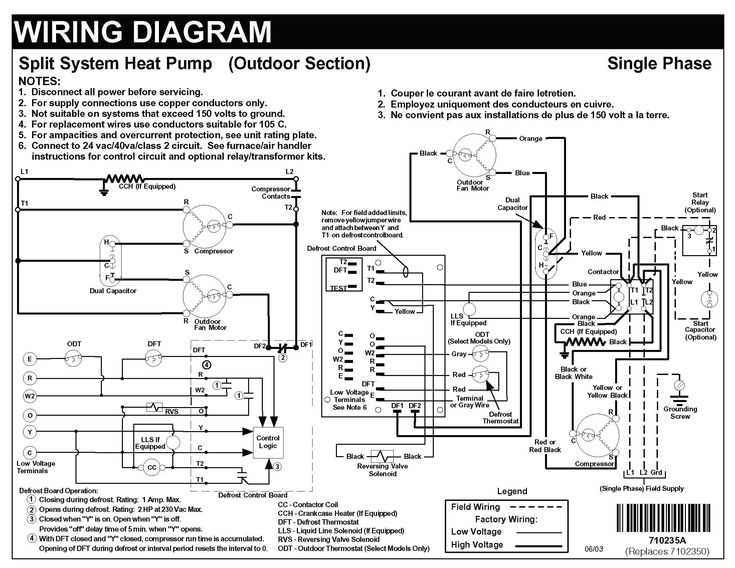

Dashed or dotted lines represent control signals, sensor feedback, or balance lines rather than refrigerant movement. Electrical or pneumatic connections intersect the fluid pathway at right angles, marked by circular or triangular symbols for sensors, pressure points, or solenoids. Verify these interactions only after confirming the primary fluid route to avoid confusion with parallel networks.

Temperature and pressure annotations near key points provide critical validation. High-side values cluster near the compressor outlet and condenser inlet, while low-side figures appear post-expansion and pre-compressor intake. Cross-check these readings against expected saturation curves–deviations above 2°C or 5 psi typically indicate measurement errors, mislabeled components, or actual system faults.

Check for mirrored or symmetrical arrangements in reversible units. The reversing valve–often depicted centrally–swaps inlet and outlet connections between indoor and outdoor coils. Its shift alters flow directions entirely, converting the cooling coil into a heating element and vice versa. Follow each mode’s distinct pathway separately to isolate seasonal operation logic.

Final validation involves mentally operating each component in sequence. Start the compressor: vapor draws from the low side, compresses, then discharges into the heat rejection coil. Liquid exits, passes through the restriction (cooling further), then absorbs ambient energy in the heat absorption coil before returning to the compressor. Any break in this continuum reveals misread directions or unaccounted components like accumulators or filter-driers.
