Inverter Refrigerator Schematic Circuit Diagram Breakdown and Analysis

Replace conventional compressor-driven units with a frequency-modulated power conversion approach for 30-40% energy savings. Begin with a PWM-controlled bridge rectifier using IRFP460 MOSFETs–these handle up to 500V and 20A continuous current with R_DS(on) under 0.27Ω, minimizing heat loss during high-load cycles. Pair them with a UC3843 current-mode controller set to 100kHz switching frequency to optimize efficiency while avoiding audible coil whine.

Ensure the snubber network across MOSFET drains includes a 10nF polypropylene capacitor and a 47Ω 2W resistor to suppress voltage spikes exceeding 600V during switching transitions. Without this, transient voltages can degrade gate oxide layers in under 500 hours of operation. Add a bidirectional TVS diode (1.5KE600CA) to clamp spikes to 550V, extending component lifespan.

For temperature regulation, integrate a K-type thermocouple at the evaporator coil with an AD8495 precision amplifier to achieve ±1°C accuracy. The amplified signal should feed into the UC3843’s compensation pin through a 10kΩ resistor and 100nF capacitor, forming a proportional-integral control loop that adjusts compressor speed based on thermal demand rather than fixed cycles.

Power the control logic via a flyback converter using an LNK306PN IC, which runs directly from the high-voltage DC bus (340V) and delivers 12V at 300mA with 92% efficiency. Avoid linear regulators–they dissipate excessive heat, requiring bulky heatsinks and reducing overall system density.

Test the system under variable load conditions: run the compressor at 50Hz (baseline), then step to 30Hz, 70Hz, and 100Hz while monitoring evaporator coil temperature and input current. Expect coefficient of performance (COP) improvements of 1.2x at 30Hz and 0.8x at 100Hz compared to fixed-speed designs.

Understanding the Core Components of Modern Cooling Systems

Start by identifying the power conversion stage–the heart of the system. A typical layout includes a high-frequency switching module (often an IGBT or MOSFET array) that regulates voltage supply to the compressor. This stage must handle switching frequencies between 20–100 kHz to balance efficiency and thermal output. Ensure the gate drivers are isolated (optocouplers or transformers) to prevent noise interference with control signals. For optimal performance, verify that the snubber circuits across switching elements are sized correctly–values of 10–100 nF for capacitors and 10–100 Ω for resistors are standard, but adjust based on component ratings and load conditions.

Next, examine the control feedback loop. A PID controller, often implemented via a microcontroller (STM32, PIC, or Arduino-compatible), adjusts compressor speed using inputs from temperature sensors (NTC thermistors) and current sensors (Hall-effect or shunt resistors). The PID gains should be tuned empirically–start with proportional gain Kp=1.0–3.0, integral gain Ki=0.1–0.5, and derivative gain Kd=0.01–0.1–and refine using an oscilloscope to monitor overshoot and settling time. Avoid placing sensors near high-current paths; thermal gradients can distort readings by ±2°C, compromising stability.

Pay close attention to the protection mechanisms. Overvoltage circuits (varistors or TVS diodes) must clamp transients below 1.5× the peak supply voltage. Undervoltage lockout should trigger when input drops below 80% of nominal to prevent erratic behavior. A soft-start sequence (gradual ramp-up over 1–3 seconds) reduces inrush current, protecting capacitors and motors. For noise suppression, add EMC filters (common-mode chokes and X/Y capacitors) at the AC input; compliance with CISPR-14 requires attenuation of 40–60 dB at 0.15–30 MHz.

When designing the compressor drive, match the inverter’s output to the motor’s specifications. Brushless DC (BLDC) motors dominate modern designs; ensure the commutation logic (trapezoidal or sinusoidal) aligns with the motor’s pole count. For a 4-pole motor, commutation steps occur every 90° electrical; sensorless methods (back-EMF) reduce mechanical complexity but require precise timing. Finally, heat sinks for switching devices should dissipate 10–20 W per transistor–aluminum alloys (6061-T6) with thermal grease are adequate for most applications. Test under full load (e.g., ambient +10°C) to validate thermal stability before final assembly.

Core Elements of a Variable-Speed Cooling Unit Electronic Blueprint

Prioritize selecting a high-quality power module capable of handling dynamic load fluctuations. Models like Infineon’s IPM (Intelligent Power Module) series–such as the FS800R07A2E3–deliver efficiencies above 95% under partial loads, critical for maintaining stable operation across compressor speed variations from 1,800 to 4,500 RPM. Ensure the module integrates overcurrent protection (OCP) and overtemperature shutdown (OTS) thresholds tailored to the cooling system’s thermal envelope, typically 85°C for consumer-grade units. Pair this with a low-ESR (Equivalent Series Resistance) DC-link capacitor rated for at least 1.5× the peak bus voltage to suppress ripple currents, which can degrade the module’s lifespan by up to 30% if underspecified.

Component	Recommended Specification	Failure Risk if Undersized
Power Module	600V/8A, >95% efficiency @ 20% load	Thermal runaway, reduced MTBF
DC-Link Capacitor	450V,	Voltage sag under load, premature ageing
Gate Driver IC	Isolated, 15kV/µs CMTI,	False triggering, shoot-through faults
Current Sensor	Closed-loop Hall effect, ±1% accuracy	Overcurrent misdetection, compressor stall

Anchor the design with a microcontroller possessing dedicated PWM hardware and a minimum clock speed of 80 MHz–ARM Cortex-M4 cores (e.g., STM32F334) excel here with built-in floating-point units for real-time PI loop calculations. Allocate at least 2 ADC channels per phase for accurate back-EMF sensing, critical for sensorless field-oriented control (FOC). Use a galvanically isolated gate driver (e.g., ISO5852S) with reinforced isolation (5kV RMS) to prevent ground loops, which can corrupt feedback signals and cause erratic compressor behavior. Validate PCB trace widths using IPC-2221 standards: 1 oz copper traces should support 10A/mm² at 50°C ambient, with a 20% derating margin for adjacent high-current paths.

How to Interpret a Drive Board Blueprint for Variable-Speed Compressor Regulation

Locate the power input terminals first–these are typically marked L (live), N (neutral), and G (ground). Measure incoming AC voltage between L and N to confirm it matches the board’s rated input, usually 220–240V for residential units. Discrepancies above 10% indicate potential wiring faults or unstable supply, requiring an isolation transformer before proceeding.

Trace the rectification stage next, identified by a bridge configuration or dual-diode setup directly after the input. Use a multimeter in diode mode to check forward voltage drops (≈0.4–0.7V per junction). Failed readings suggest open diodes; replace the full bridge to avoid uneven DC bus voltage, which destabilizes compressor speed modulation.

Follow the DC link to the bus capacitors–large electrolytic components rated 400V or higher, often labeled C_BUS or DC+. Verify capacitance with an LCR meter; values below 80% of nominal (e.g., 1000µF instead of 1200µF) cause ripple current issues, leading to erratic torque control in the motor. Discharge capacitors fully before testing using a 1kΩ resistor to prevent damage to the meter or board.

Identify the IGBT or MOSFET driver stage, where PWM signals from the microcontroller gate the switching devices. Probe gate-to-emitter voltage during operation–steady 12–15V pulses confirm proper gate drive, while fluctuating signals (

Examine the current sensing resistor array, often a low-ohm shunt (e.g., 0.01Ω) near the DC bus negative rail. Measure voltage drop across it during full load–expect 50–150mV at rated current. Higher readings point to overcurrent conditions, potentially damaging the power stage. Recalibrate or replace the shunt if corrosion or thermal drift is visible.

Finally, review the feedback loop elements: thermistors for temperature, Hall sensors for rotor position, and voltage dividers for bus monitoring. Compare sensor outputs to expected ranges (e.g., 0–5V for linear Hall sensors, 10kΩ at 25°C for NTC thermistors). Deviations mandate sensor replacement or recalibration of the control algorithm via firmware updates if supported.

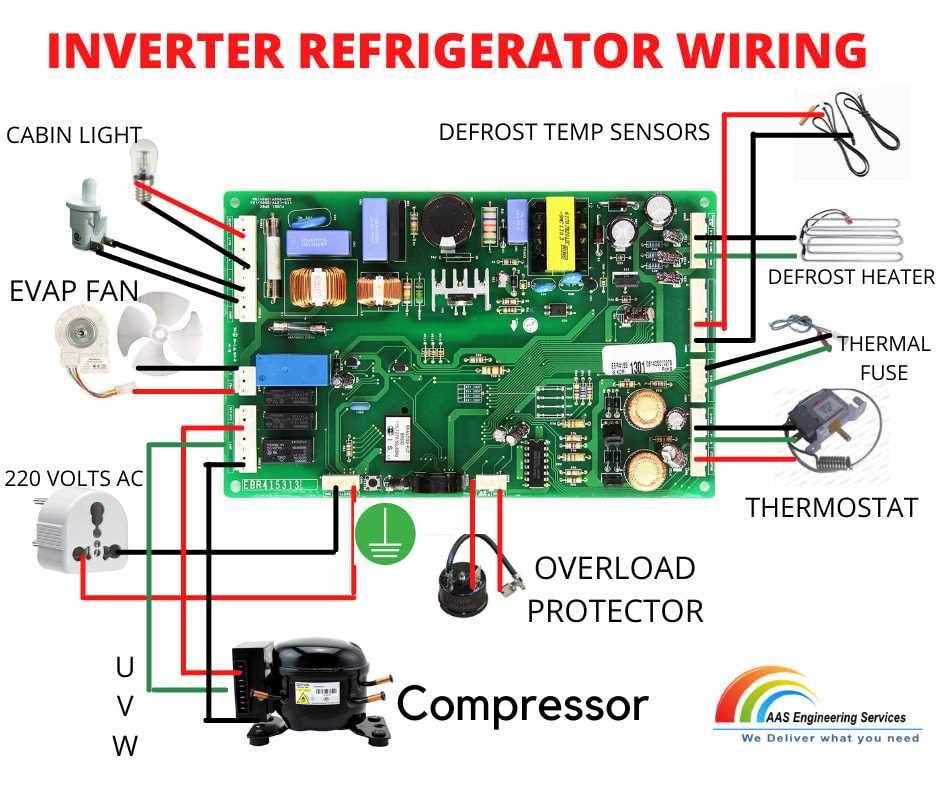

Troubleshooting Common Issues Using the Variable-Speed Cooling Unit Wiring Layout

Start by verifying the power supply voltage at the compressor terminals with a multimeter. A reading below 187V or above 253V for a 220V system indicates an unstable input, causing overheating or erratic operation. Check the main fuse and thermal cutout for continuity–if blown, trace the wiring back to the power board for shorts or loose connections. Replace damaged wires with identical gauge (typically 1.5mm² for high-current paths).

If the cooling cycle fails to initiate, inspect the control module’s PWM signal output to the compressor. Use an oscilloscope to confirm a 20–100kHz signal; absence suggests a faulty drive IC or corrupted firmware. Probe the feedback loop from the temperature sensor–resistance should decrease linearly with cooling (e.g., 10kΩ at 25°C). Replace sensors with values outside ±5% of manufacturer specs. Examine solder joints on the control board under magnification; reflow cracked connections with lead-free solder.

Key Component Checks

• Compressor start capacitor: Discharge fully before testing. A capacitance below 90% of rated value (e.g., 35µF for a 40µF unit) prevents proper startup torque.
• Defrost heater: Measure resistance (typically 50–100Ω). Infinite resistance means an open circuit; clean oxide buildup at terminals before replacement.
• Fan motor: Spin freely by hand. If stiff, lubricate bearings or replace if winding resistance exceeds 20% above nominal (e.g., 180Ω vs. 150Ω).

For intermittent power loss, focus on the wiring harness. Flex each wire at connector joints while monitoring voltage–drops indicate broken strands. Reinforce weak points with heat-shrink tubing. If the unit trips the breaker, disconnect the compressor momentarily; persistent tripping points to internal shorting in the windings (replace compressor). For frost buildup on evaporator coils, test the defrost timer outputs–apply 5V manually to activate the heater if stuck in cooling mode.
