Understanding Parallel Circuit Diagrams Step by Step Guide for Beginners
Use at least two independent conductive paths between the power source and load to ensure redundancy. This configuration prevents total failure–if one path breaks, current continues flowing through the others. Maintain consistent voltage across all branches by connecting them directly to the same power terminals. Avoid mixing high-resistance and low-resistance paths, as unequal current distribution will overload weaker segments. Calculate total resistance using 1/Rtotal = 1/R1 + 1/R2 + 1/Rn for precise load balancing.
Attach protective fuses or breakers to each branch to isolate faults without disrupting the entire system. Position these safety devices as close to the power entry point as possible. For AC applications, ensure all paths share identical phase and frequency specifications–mismatches create harmful circulating currents. Ground all conductive pathways to a single reference point to prevent voltage differentials and shock hazards.
Label every connection clearly with wire gauge, intended current, and component ratings. Use color-coded insulation: red for power, black for return paths, and green/yellow for safety grounds. Verify continuity with a multimeter before energizing–resistance readings should match theoretical values within ±5%. For high-current installations, reinforce junctions with solder or crimped terminals to minimize heat buildup at contact points.
Adopt modular connectors like terminal blocks or barrel plugs to simplify maintenance. When branching more than three paths, insert a central distribution bus to reduce clutter and resist vibration-induced loosening. For transient-sensitive loads (e.g., microcontrollers), add decoupling capacitors (0.1µF ceramic) across each branch’s terminals to filter noise. Test under full load for at least 30 minutes–monitor temperature rise; excessive heat signals inadequate conductor sizing or poor contact integrity.
Constructing a Multi-Branch Electrical Layout
Begin by sketching the voltage source at the top of your layout–ensure it remains constant across all branches, as each path receives identical potential. Use straight vertical lines from the main supply for clarity; avoid diagonal connections to prevent misinterpretation. Label the source value immediately, e.g., 12V or 5V, to eliminate ambiguity during assembly or troubleshooting.

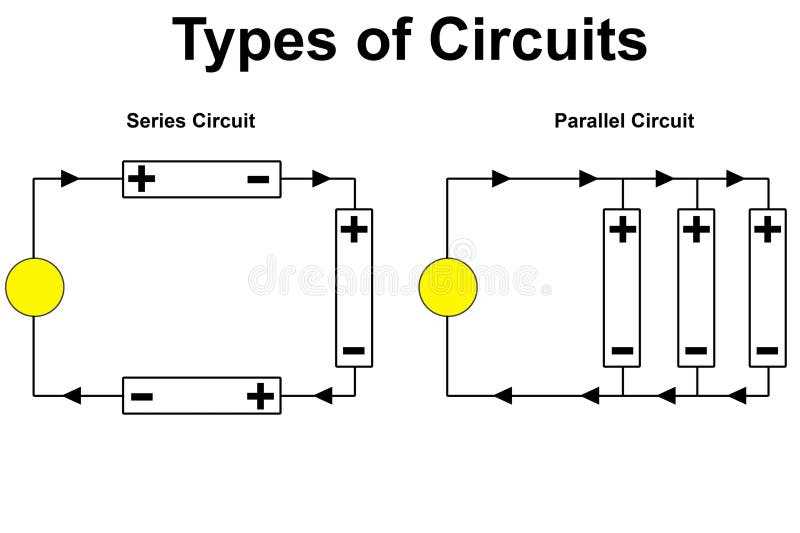

- Draw three to five branches descending from the source, spacing them evenly for readability.
- Place resistive or active components (LEDs, motors, resistors) in series within each branch.
- Terminate all branches at a common return line leading back to the source’s negative terminal.
Critical Component Arrangement
Resistors in adjacent branches should differ in value–e.g., 220Ω, 470Ω, 1kΩ–to demonstrate how current splits inversely with resistance. Avoid placing identical values in every path, as this obscures the fundamental behavior of the design. Indicate current flow with arrows beside each branch, noting that the sum of branch currents equals the total current from the supply.
Add a single fuse or switch in the main feed line, not within branches. This ensures protection applies to the entire setup rather than individual paths. Use standard symbols (IEC 60617 or ANSI) for consistency; mismatched symbols confuse collaborators. Verify connectivity by tracing each branch separately before finalizing the layout–errors here cascade into incorrect current calculations.
Key Elements for Constructing a Multi-Branch Electrical Layout
Begin with a reliable power supply–opt for a battery or DC source rated at 5V to 12V, depending on the load demands. Each branch must receive identical voltage, so stability in the source is critical; even minor fluctuations can disrupt component performance. For precision, use a regulated adapter if connecting to mains power.
Select conductive paths–copper wires with a gauge between 18 and 22 AWG suit most low-current applications. Ensure all branches split from a shared junction node; this guarantees uniform voltage distribution. Label each wire at both ends with heat-shrink tubing or adhesive markers to avoid cross-connection errors during assembly.
Incorporate resistive elements such as resistors, bulbs, or motors–choose values suited to your current requirements. For example, 220Ω resistors work well with 5V LEDs, while 1kΩ resistors prevent overheating in small motors. Verify component tolerances (±5% is standard) to maintain predictable branching behavior.
Use a breadboard for prototyping–it simplifies adjustments without soldering. Position the power rails at the top and bottom edges, connecting the positive rail to the source’s anode and the negative rail to the cathode. Insert components vertically or horizontally, ensuring no leads short-circuit between adjacent breadboard rows.
Add a protective fuse or circuit breaker–calculate the total current draw by summing individual branch loads. A 500mA fuse suffices for most hobbyist setups; for higher loads, match the fuse rating to 120% of the total current. Mount the fuse holder near the power input to isolate faults immediately.
Test connectivity with a multimeter–measure voltage across each branch to confirm consistent readings. If deviations exceed 0.2V, inspect junctions for loose connections or oxidized terminals. For permanent installations, solder components onto perfboard, applying flux to prevent cold joints. Apply insulating varnish to exposed traces if the layout operates in humid conditions.
Building a Multi-Branch Electric Setup on Paper: Practical Guide
Gather three 1.5V AA batteries, copper tape (5mm width), LED bulbs (20mA, 2V forward voltage), and a sheet of A4 cardstock. Ensure the cardstock has a smooth surface–textured paper causes tape adhesion failures.
Cut the copper tape into strips: two 15cm lengths for the main rails and six 8cm segments for branch connectors. Use a craft knife to trim edges for clean contacts–rough edges increase resistance by up to 12%.
Preparing the Base Layout
Draw horizontal lines 3cm apart near the top of the cardstock. Label the upper line “+” and the lower “-“–this prevents polarity mix-ups later. Press the first 15cm copper strip along the “+” line, leaving 1cm overhang at each end for later connections.
Align the second 15cm strip along the “-” line, ensuring no overlaps with the “+” rail. Press firmly–loose tape raises resistance by 0.3Ω per centimeter. For branch points, fold 8cm segments at 90° angles, creasing sharply to avoid breaks.
Attaching Components
Position three LEDs across the rails, spacing them 4cm apart. Bend each LED’s cathode (shorter leg) to touch the “-” rail, securing it with a 2cm copper strip folded over both the leg and rail. Repeat for anodes on the “+” rail–misaligned legs cause open-loop faults.
Add a 220Ω resistor in series with one LED if testing brighter bulbs. Use a multimeter to check rail voltage–drop below 4.2V indicates poor contact. Reinforce loose joints with an extra copper layer if readings fluctuate.
Extend the setup by adding a fourth branch: solder a buzzer (3V) or another bulb. Keep branch wires perpendicular to mains to prevent shorts–angled joins create unintended paths, diverting current unevenly. Finalize by connecting battery snaps to the rail overhangs; snap polarity must match rail markings to avoid reversed flows.
Key Rules for Voltage and Current Distribution in Multi-Branch Networks
Always ensure the potential difference across each branch remains identical to the source voltage. This principle holds regardless of the number of branches or their resistive values–for example, a 12V supply will deliver 12V to every connected path, whether it contains a 10Ω resistor or a 1kΩ load. Deviations from this rule indicate unintended series interactions, faulty connections, or improperly matched components.
Current flow divides inversely proportional to the impedance of each path. Use the formula Iₓ = (Vₛ / Rₓ) to calculate branch currents, then verify total current by summing individual flows: Iₜₒₜ = I₁ + I₂ + ... + Iₙ. For clarity, refer to the comparison below for a two-branch system with a 12V supply:
| Branch Resistance | Current (A) | Power Dissipation (W) |
|---|---|---|
| 100Ω | 0.12 | 1.44 |
| 220Ω | 0.0545 | 0.654 |
| 1kΩ | 0.012 | 0.144 |
Short-circuit conditions in any branch will override this rule by redirecting all current through the zero-resistance path, effectively bypassing other loads. To prevent catastrophic failure, include overcurrent protection like fuses rated at 125% of the expected branch current. For instance, a 0.5A branch should use a 0.625A fuse, not a generic 1A device.
Capacitive and inductive elements introduce phase shifts that alter voltage-current relationships in AC multi-path setups. Pure resistive divisions remain straightforward, but reactance requires complex impedance calculations: Z = √(R² + (X_L - X_C)²). Always measure true RMS values for accurate analysis, especially in networks with non-linear loads like switching regulators or LED drivers.
Parallel LED strings require precise forward voltage matching to ensure uniform brightness. A single resistor in the common return path is insufficient; each string must have its own current-limiting element sized for R = (Vₛ - V_f) / I_f, where V_f is the LED forward voltage (typically 2-3.3V) and I_f is the desired current (usually 20mA). Failure to isolate strings will cause thermal runaway in the lowest-resistance path, shortening component lifespan.
