Step-by-Step Schematic of a Thermal Power Plant Components and Workflow
To optimize performance in a large-scale energy generation setup, prioritize precise arrangement of the boiler, turbine, and condenser. The boiler’s pressure and temperature must align with design specs–typical supercritical units operate at 24 MPa and 565°C to maximize efficiency. Any deviation beyond ±2% in steam parameters reduces output by 3-5%. Ensure water-tube boilers incorporate membrane walls to handle fluctuating loads without thermal stress cracks.
Combustion efficiency hinges on proper air-fuel ratios: excess air should remain below 20% to prevent heat loss. Pulverized coal systems demand consistent particle size–target 70% passing 200 mesh. Failing this increases unburnt carbon by 15%, clogging ESPs and reducing electrostatic precipitator effectiveness. Integrate real-time emissions monitoring; NOx levels above 200 mg/m³ trigger regulatory penalties.
Steam turbines require staggered blade angles–high-pressure stages at 15° and low-pressure at 45°–to balance torque and prevent erosion. Condenser vacuum must stay above 70 kPa; leaks drop efficiency by 0.5% per kPa lost. Cooling towers need drift eliminators to cap water loss under 0.002% of circulation volume. Verify generator rotor insulation resistance–values below 1 MΩ indicate moisture ingress, risking ground faults.
Piping layouts should minimize bends; each 90° elbow adds 2-3 kPa to pressure drop. Feedwater heaters boost cycle efficiency–opt for LP heaters with 120°C terminal temperature rise and HP heaters at 180°C. Deaerators must remove oxygen to
Auxiliary systems often overlooked: ash handling requires dense-phase conveying for coal ash (>60% density) to avoid pipeline abrasion. Dust suppression in coal yards cuts PM10 emissions by 40%. Electrical sync checks–phase angle within 10° and voltage ±5%–prevent generator damage during grid connection. Regular blade washing for air-cooled condensers recovers up to 2% lost capacity annually.
Key Components of a Large-Scale Heat Generation Facility
Start by identifying the primary fuel input system, which typically handles coal, natural gas, or biomass. Ensure the pulverizers or mills for solid fuel are calibrated to achieve particles between 70-200 microns–this optimizes combustion efficiency. Gas turbines require a separate feed mechanism with pressure regulators set between 20-30 bar for stable operation. For multi-fuel systems, integrate diverter dampers to switch fuel sources without disrupting output.
- Coal handling: Use vibrating feeders and belt conveyors with moisture sensors to prevent clogging.
- Gas supply: Install redundant shutoff valves to isolate leaks within 2 seconds.
- Biomass: Pre-treat with drying chambers to reduce moisture below 15% for consistent heat release.
The combustion chamber should maintain temperatures between 1,300°C–1,500°C for complete fuel oxidation. Water-tube boilers demand circulation pumps with flow rates exceeding 3 m³/s per MW generated, while fire-tube designs require thicker tubes (minimum 8 mm) to withstand internal pressure spikes. Monitor flue gas oxygen levels–target 3–4% to minimize excess air and heat loss.
Select turbines based on capacity: impulse types for high-pressure stages (above 100 bar) and reaction designs for low-pressure expansions. Blade materials must resist erosion–use nickel-based alloys for temperatures exceeding 600°C. Condenser vacuum levels should stay below 0.1 bar absolute to maximize efficiency; air ejectors or vacuum pumps are critical for maintaining this range.
- Cooling system: Wet cooling towers lose 2–5% of water to evaporation; dry systems avoid loss but increase capital costs by 30%.
- Ash handling: Dense-phase pneumatic conveyors reduce dust emissions by 40% compared to mechanical systems.
- Environmental controls: Electrostatic precipitators remove 99% of fly ash; wet scrubbers cut SO₂ emissions by 95% with limestone slurry.
Integrate a distributed control system (DCS) with dedicated processors for boiler, turbine, and generator subsystems. Set alarms for critical parameters: steam pressure deviations over 5%, turbine vibration exceeding 150 µm, or generator stator temperatures above 120°C require immediate shutdown. Backup diesel generators must activate within 10 seconds of a grid failure to prevent thermal shock in steam lines.
Critical Elements and Their Roles in Energy Conversion Facilities
Begin with the boiler–a high-pressure vessel where combustion transforms fuel into superheated steam. Opt for fluidized bed or pulverized coal systems for superior efficiency; the former reduces nitrogen oxide emissions by 70% while maintaining 90% sulfur capture rates. Ensure steam temperatures reach 565°C at 16.5 MPa to maximize turbine performance without exceeding creep limits of austenitic steel alloys.
The turbine assembly, divided into high-pressure (HP), intermediate-pressure (IP), and low-pressure (LP) stages, converts thermal energy into mechanical rotation. HP stages typically operate at 3,000–3,600 RPM, demanding precision blade profiles with ≤0.01 mm tolerances to prevent vibration-induced fatigue failures. LP stages require moisture separators to mitigate erosion from condensing droplets, which can reduce blade lifespan by 40%.
Condensers, often overlooked, dictate cycle efficiency. Surface condensers using titanium tubes resist biofouling in brackish cooling water, extending maintenance intervals by 3–5 years. Maintain a vacuum of ≤3.4 kPa to lower turbine backpressure; each 1 kPa improvement boosts output by 1.2%. For air-cooled units, fan blade angles must be optimized seasonally to counter ambient temperature swings of ±20°C.
Optimizing Auxiliary Systems for Baseline Loads
| System | Key Metric | Recommended Action |
|---|---|---|
| Feedwater Heaters | Terminal Temperature Difference (TTD) ≤2.8°C | Replace copper-nickel tubes with 316L stainless steel to prevent ammonia corrosion in deaerators |
| Cooling Towers | Approach Temperature ≤3.5°C | Implement drift eliminators with ≤0.002% carryover to reduce plume visibility and water loss |
| Fuel Handling | Pulverizer Capacity ≥85% of boiler rating | Use inert gas purging for coal silos to prevent spontaneous combustion events |
Generator rotors demand cryogenic hydrogen cooling at 4–5 bar to limit winding temperatures below 120°C. Silver-bearing copper conductors (98% Cu, 2% Ag) increase thermal conductivity by 8% over pure copper while resisting hydrogen embrittlement. Excitation systems should feature brushless designs with ±0.5% voltage regulation to stabilize grid synchronization during load transients.
Exhaust gas treatment necessitates selective catalytic reduction (SCR) for NOx control, targeting ≤25 ppm at the stack. Catalyst honeycomb pitch of 4–6 mm balances backpressure and surface area; platinum-palladium ratios of 1:3 optimize low-temperature activity. Electrostatic precipitators require ≤10 mA/m² current density to achieve ≥99.8% particulate removal, with rapper cycles adjusted to soot resistivity (10¹⁰–10¹² Ω·cm).
Minimizing Degradation Through Material Selection
Superheater tubes face the harshest conditions, demanding TP347H FG austenitic stainless steel for creep resistance up to 650°C. For waterwalls, SA-213 T22 alloy resists fireside corrosion from low-rank coals with ≤0.5% sulfur content. High-temperature lubricants for turbine bearings must withstand 200°C, with molybdenum disulfide additives reducing wear rates by 30% under boundary lubrication. Regular ultrasonic thickness testing (≤1.5 mm tolerance) on steam headers prevents catastrophic failures from thermal fatigue.
Grid interconnectivity depends on step-up transformers with forced-oil-forced-air (FOFA) cooling to handle overloads of 1.3× nameplate rating for 2 hours. Core laminations of 3% silicon steel minimize hysteresis losses to ≤0.8 W/kg at 60 Hz. Surge arresters with zinc oxide varistors protect against lightning strikes, clamping voltages to ≤2.5× system peak during transients. Phase-shifting transformers can mitigate loop flows in congested grids, improving line loading by 15% without infrastructure upgrades.

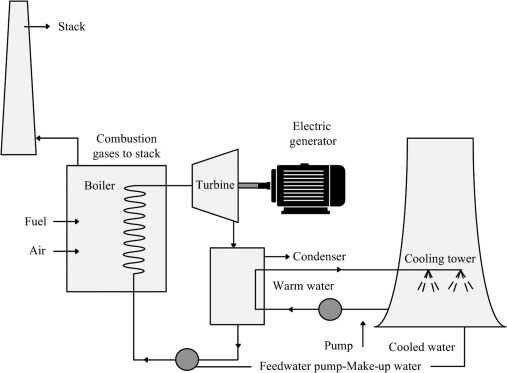

Step-by-Step Flow of Steam and Water in an Energy Generation Facility
Begin by pressurizing feedwater in the boiler feed pumps to 180–220 bar, ensuring it overcomes resistance in economizers, waterwalls, and superheaters. Preheat the water to 250–300°C in the economizer using exhaust gases from the turbine–maximizing efficiency by recovering 10–15% of otherwise wasted energy. Avoid bypassing this stage, as it reduces fuel consumption by up to 8% and prevents thermal shock in downstream components.
The heated water enters the steam drum, where it separates into liquid and vapor phases under high pressure. Natural circulation drives liquid into waterwalls, absorbing radiant heat from combustion to generate saturated steam at 350–375°C. Here, precise control of drum water level is critical–deviations beyond ±5 cm risk tube overheating or turbine water induction. Superheaters then elevate steam temperature to 540–600°C, ensuring dry, high-enthalpy vapor enters the turbine at optimal conditions for isentropic expansion.
After expanding through high, intermediate, and low-pressure turbine stages, exhaust steam at 0.05–0.1 bar condenses in the vacuum condenser, reducing volume by 99.9% for efficient pumping back into the cycle. Use a surface condenser with titanium tubes for corrosion resistance; untreated cooling water can increase backpressure by 0.03 bar, cutting output by 2–3%. Reheat steam between turbine stages–raising it from 300°C to 540°C–recovers 12–15% of energy otherwise lost, boosting cycle efficiency to 42–45%.
