Complete A320 Electrical and Avionics System Schematic Breakdown

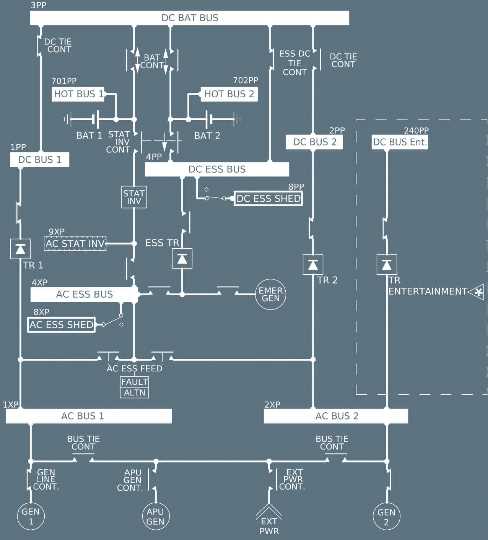

Begin by isolating the aircraft’s primary power distribution buses in the technical illustration. The AC Bus 1 and AC Bus 2 supply 115V at 400Hz–verify their connection to the Generator Control Units (GCUs) before proceeding. Identify the Transformer Rectifier Units (TRUs) feeding the 28V DC system; trace their inputs to the Static Inverters and Emergency Generator, ensuring redundancy paths are unobstructed.

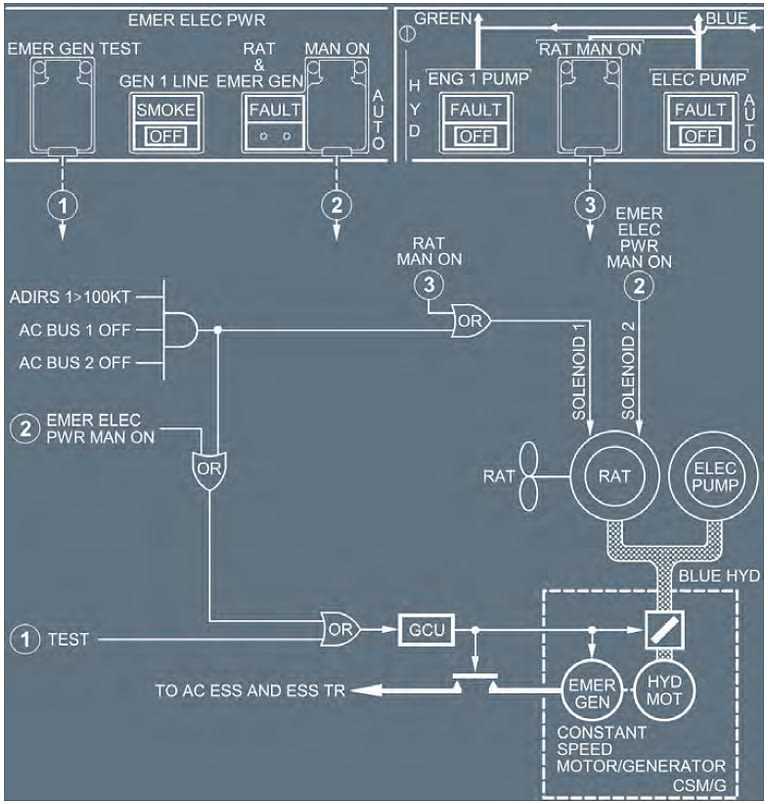

Focus on the Hot Battery Bus–it must remain energized even with aircraft batteries disconnected. Confirm the Battery Charger links to this bus via the DC Bus Tie. Check the Essential Bus connections, including the Ram Air Turbine (RAT) deployment logic, to validate automatic failover during dual generator loss.

Examine the galley power feeds–these draw directly from Main AC Buses and often trip during overload. Cross-reference the Current Transformers (CTs) placements with the Ground Power Unit (GPU) interface to prevent false readings. The APU Generator schematic must align with the External Power Contactors; mismatched polarity here risks damage to avionics.

For troubleshooting, prioritize the Electrical Load Management System (ELMS). Its six Load Management Computers (LMCs) govern shed sequences–verify their communication with the Flight Warning System (FWS). The DC ESS Bus should split into two sub-buses; confirm each powers only critical instruments (e.g., standby attitude indicator, engine fire loops).

Use a multimeter to test line replaceable unit (LRU) connectors–corrosion at the Circuit Breaker Panel (CBP) junctions is a common failure point. For legacy revisions, cross-check wire gauges against the Airbus Wiring Diagram Manual (WDM); deviations may violate EASA CS-25 standards. Label all receptacles and terminal blocks with part numbers before disassembly.

Understanding the Airbus Narrow-Body Electrical Blueprint

Begin with the central power distribution panel (PDP) located aft of the rear cargo bay. Trace the main bus bars (left, right, and emergency) on the reference layout–each feeds distinct zones: avionics, wing anti-ice, and cabin systems. Label the contactors (GLC1, GLC2) linking generators to buses; failure modes are documented under ATA Chapter 24-40. Use 4-gauge wiring for primary runs between PDP and TRUs (50A rating), ensuring bundling separates AC and DC lines to minimize interference.

Cross-reference the hydraulic schematic (ATA 29) when assessing pump drives–hydraulic motors share the same bus segments as flap actuators. Voltage drops exceeding 0.5V across any 5-meter section indicate corroded lugs; replace with nickel-plated terminals. The DC essential bus redundantly sources from battery direct feeds and inverter outputs–test under load by simulating generator failure via the external power disconnect switch.

Isolate faults by toggling individual circuit breakers on the overhead panel while monitoring current draw on the ECAM’s electrical page. For precision, use a clamp meter at the junction boxes near frames 42–44; readings should match nominals (±2A for 115V AC lines). Store a laminated copy of the bus hierarchy near the maintenance log for quick access during ramp checks.

Official Sources for Airbus Single-Aisle Technical Blueprints

The primary and most authoritative repository for all engineering documentation is the AirbusWorld portal. Registered operators–airlines, MROs, and approved training centers–receive credentials granting access to the Plans & Manuals section, where every airframe variant’s wiring, hydraulic, and avionics layouts are stored in PDF and 3D CAD formats. Specific document sets carry identifiers like ATA 24-00-00 (electrical), ATA 29-00-00 (hydraulic), and ATA 32-00-00 (landing gear systems). Airbus releases revisions within 48 hours of airworthiness directive issuances; operators must synchronize their local libraries accordingly.

Channel	Format	Access Level	Update Frequency
AirbusWorld	PDF / STEP / CATIA	Operator & MRO only	Daily
EASA DOA	PDF scanned	Public & repair stations	Quarterly
FAA DER	TIFF / PDF	Airworthiness delegates	As directed
Supplier portals (e.g., Collins, Safran)	Native CAD	Approved vendors	On request

For entities lacking direct Airbus credentials, the European Union Aviation Safety Agency’s (EASA) Design Organisation Approval database hosts legally mandated technical data packages. These include system schematics in ATA-standardized chapter splits, though resolutions may be lower than OEM originals. FAA Delegated Engineering Representatives (DER) similarly distribute compliance documents; however, they exclude proprietary geometry details. Independent MROs often license Airbus-approved CAD models through third-party aggregators such as PartsBase or Component Control, which repackage OEM blueprints under annual subscription tiers matching airframe variants to maintenance programs.

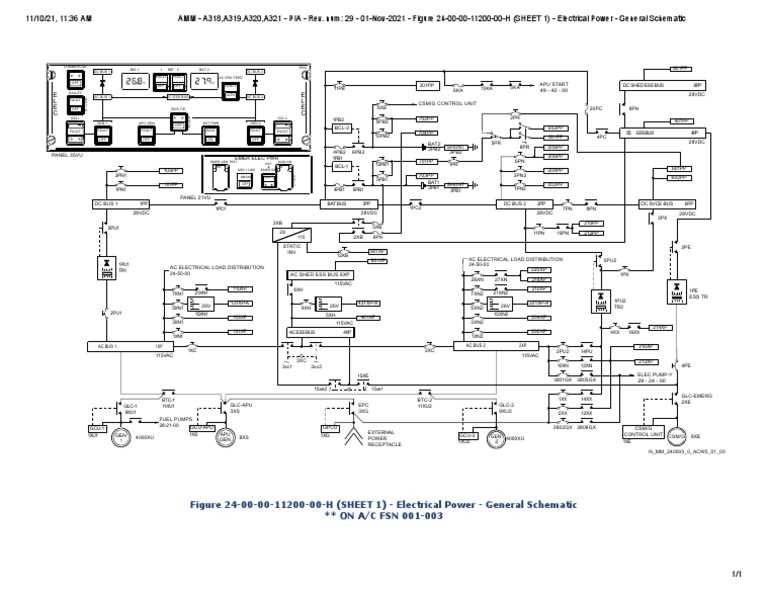

Key Systems Illustrated in the Electrical Blueprint of a Modern Narrow-Body Jet

Begin by isolating the AC generation network–the backbone of onboard power distribution. Identify the variable-frequency generators (VFGs) mounted on each engine, each rated at 90 kVA, supplying 115V/400Hz three-phase AC to the main buses. Trace the lines to the Generator Control Units (GCUs), which regulate voltage within ±2V and trip within 1.5 seconds on overvoltage or undervoltage faults. Cross-reference the Bus Tie Contactors (BTCs)–critical for automatic load shedding during single-engine operation–ensuring they engage at 28VDC from the aircraft’s battery bus.

Critical Power Redundancy Pathways

• External Power Interface: Verify the APU generator (90 kVA) and ground power unit (GPU) connection points, both feeding the AC tie bus via dedicated contactors. The GPU must meet ARINC 609 standards for phase sequencing–failure risks reverse rotation of induction motors, particularly in fuel pumps.
• Transformer-Rectifier Units (TRUs): Locate the 200A TRUs, converting 115V AC to 28V DC for essential avionics. Each TRU outputs 28 ± 0.5V under full load (0.9 power factor); degradation beyond ±1V triggers ELEC TR OVERHEAT warnings.
• Battery System: The 23Ah Ni-Cd battery (or 36Ah Li-ion on retrofit models) maintains 28VDC for 30 minutes of essential bus coverage. Check the Battery Charge Limiter (BCL)–it must prevent overcharging by switching to float mode at 31V.

Focus next on fault protection logic. The electrical map integrates Generator Line Contactors (GLCs) and Bus Feed Contactors (BFCs), which auto-isolate in upon detecting short circuits or ground faults. The Electrical Load Management System (ELMS) uses load shedding priorities–categorized as non-sheddable (e.g., fly-by-wire computers), sheddable (galley), and uninterruptible (IFE, lighting). Verify that the AC ESS BUS remains powered via the AC ESS FEED from either AC BUS 1 or AC BUS 2–failure here cascades to loss of flight control laws.

For troubleshooting, prioritize the Static Inverter, which converts 28VDC to 115V/400Hz for single-phase critical loads (e.g., Captain’s Primary Flight Display). Test its input ripple voltage ( under load); excessive ripple (>0.5Vpp) degrades ADC accuracy. Cross-check the DC Bus Feeders–each resistor-rated 50A–for thermal degradation, as hotspots (>120°C) indicate impending feeder oxidation. Use a thermal imager to scan the Main Power Distribution Panel (MPDP), where copper busbars (rated 300A) must show uniform thermal gradients; localized heating signals poor crimping or corrosion in lugs.

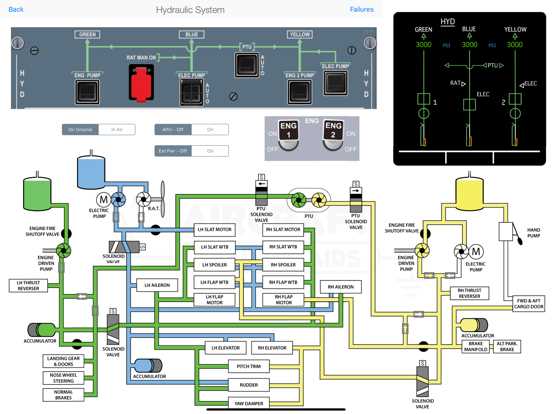

Interpreting Hydraulic and Flight Control System Blueprints

Identify color coding first: green denotes the main hydraulic circuit, blue the auxiliary, and yellow the standby. Each line thickness indicates pressure rating–thicker lines handle 3000 psi, while thinner ones mark return paths or low-pressure components. Trace fluid flow from reservoirs to pumps, then through filters, accumulators, and actuators. Note bypass valves near critical junctions; these prevent overpressure by redirecting fluid when limits exceed thresholds.

Locate primary flight control surfaces–elevators, ailerons, rudder–and follow their hydraulic actuators. Dual tandem cylinders at each surface ensure redundancy: one from the green system, one from the blue. Check mechanical feedback links (usually dashed lines) connecting actuators to cockpit controls. Non-return valves near control valves prevent hydraulic lock if a single system fails. Pitch trim actuators connect to the horizontal stabilizer via screw jacks–verify both electrical and manual override paths.

Study the landing gear sequence in the fluid layout: NLG doors open using green system pressure, while MLG doors rely on yellow. Gear extension/retraction uses dedicated selector valves, each with position sensors tied to ECAM warnings. Brake accumulators recharge via the yellow circuit; anti-skid valves modulate pressure independently on each wheel. Cross-check hydraulic fluid cooler placement–usually in the fuel tank heat exchanger–to confirm thermal regulation downstream of high-load components.

Isolate the Power Transfer Unit (PTU) in the hydraulic map–it links green and yellow systems via a variable-displacement motor-pump assembly, activating when pressure differential exceeds 500 psi. Verify suction boost pumps in each reservoir feed all three circuits, with priority valves ensuring landing gear and flap operation during low-pressure scenarios. Rudder travel limiters appear near the fin actuator cluster, adjusting maximum deflection based on airspeed inputs from the Air Data Inertial Reference System.

Examine the flight control computers (FCCs) represented as dashed boxes connected to actuators–each surface has two FCC channels, cross-monitored for consistency. Hydraulic cut-off valves (HCUs) near the wing roots disable respective circuits during maintenance or failures. Check trimmable horizontal stabilizer actuator (THSA) positions–both electrical motors and hydraulic motors share load paths, with mechanical locks preventing runaway. Thermal relief valves in high-pressure lines prevent fluid expansion damage during temperature extremes, typically set to 3500 psi.
