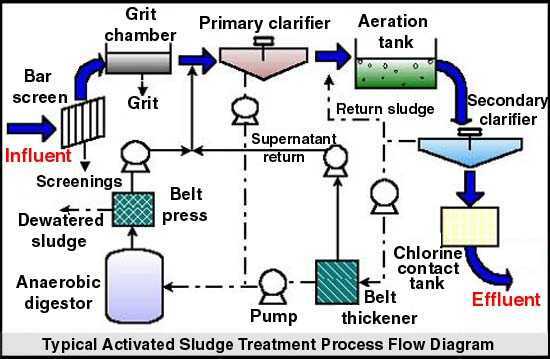

Understanding the Activated Sludge Process Flow Schematic and Key Components

Start with a clear separation of primary and secondary treatment zones. Primary sedimentation removes 50–70% of suspended solids and 25–40% of organic load (BOD), but secondary treatment must handle the remaining biodegradable content. Install a grit chamber with a detention time of 30–60 seconds to prevent abrasion in downstream equipment and reduce maintenance cycles by up to 40%.

Aeration basins require 1.0–2.5 mg/L dissolved oxygen (DO) for optimal microbial activity–falling below 0.5 mg/L triggers filamentous bulking, while exceeding 3.0 mg/L increases energy consumption by 30% without improving degradation rates. Use fine-bubble diffusers over coarse types; they achieve 15–25% higher oxygen transfer efficiency (OTE) per kWh. Tank depth should be 4–6 meters–shallower units waste energy, deeper ones face mixing limitations.

Return mixed liquor (RML) flow rates should be 50–100% of influent volume to maintain 2,000–4,000 mg/L of suspended solids in the basin. Lower ratios dilute biomass, reducing treatment efficiency; higher ratios increase clarifier loading, risking solids carryover. Design clarifiers with a surface overflow rate of 0.8–1.2 m³/m²·h and a solids loading rate below 4 kg/m²·h to prevent sludge blanket formation.

Waste sludge withdrawal must balance growth and decay rates. Operate at a mean cell residence time (MCRT) of 5–15 days–shorter intervals reduce biomass concentration; longer ones lead to endogenous respiration and increased inert solids. Monitor sludge volume index (SVI) weekly: values below 100 mL/g indicate dense, settleable flocs; above 200 mL/g signal bulking. Adjust RAS rates or chemical dosing (polyaluminum chloride) accordingly.

Incorporate a selector zone upstream of aeration to suppress filamentous organisms. Use either anoxic (DO

Energy recovery via methane from anaerobic digestion can offset 30–50% of plant electricity needs. Size digesters for 15–20 days hydraulic retention time (HRT) at 35–37°C–mesophilic range balances pathogen destruction with energy input. For every 1,000 kg of BOD removed, expect 0.3–0.4 m³ of biogas (60–70% methane); optimize gas storage to handle peak demand periods.

Visual Flowchart of Biological Wastewater Treatment Workflow

Start by mapping the aeration basin as the core treatment zone, where oxygen levels must remain between 1.5–3.0 mg/L to sustain microbial flocs. Position the influent pipe at a 30-degree angle to the basin’s inlet to minimize short-circuiting and ensure even distribution of incoming wastewater. Label dissolved oxygen probes and airflow diffusers with their operational ranges–diffusers should maintain a bubble diameter of 2–5 mm for optimal gas transfer efficiency.

Connect the aeration basin to the secondary clarifier via a 0.6–1.0 m wide channel, sloped at 1% to prevent sedimentation. The clarifier’s rake mechanism should operate at 0.3–0.6 RPM, with a sludge blanket depth of 0.3–0.5 m to avoid solids carryover. Indicate the return activated biomass line with a flow rate set to 50–100% of the influent volume, adjusting based on mixed liquor suspended solids (MLSS) data, typically targeted at 2,500–4,000 mg/L.

Critical Component Placement

Locate the waste biomass withdrawal point at the clarifier’s deepest section, where solids concentration peaks (8,000–12,000 mg/L). Use a timer-controlled pump set to discharge 0.5–1.5% of the daily influent volume, aligning with sludge age targets of 5–15 days. Install a flow meter on the return line and a turbidity sensor on the effluent outlet, calibrating both to trigger alarms at >10 NTU for the effluent and

Design the aeration control loop with PID tuning constants: proportional band 50–100%, integral time 3–8 minutes, and derivative time 0–2 minutes. Size blowers to deliver 2–4 m³ of air per kg of biochemical oxygen demand (BOD) removed, factoring in altitude and temperature adjustments. Include a standby blower with automatic cut-in below 1.0 mg/L DO to prevent system crashes.

Troubleshooting Annotations

Mark bulking zones with filamentous organisms by adding pH probes in the aeration basin–target 6.5–8.0 to suppress growth. Indicate polymer dosing points for foaming control, with injection rates of 0.5–2 mg/L, coordinated with surface aeration adjustments. Label F/M ratio zones (0.2–0.6 kg BOD/kg MLSS/day) directly on the flowchart, using color gradients to highlight optimal versus critical ranges.

Finalize the schematic with a legend showing pump capacities (e.g., return line: 30–50 L/s), pipe diameters (primary feed: 200–300 mm), and valve types (plug valves for sludge lines). Add a marginal note for HRT (hydraulic retention time) targets: 4–8 hours for aeration and 2–4 hours for clarification. Include a reference scale (1:50) for physical dimensions to ensure on-site construction accuracy.

Core Elements of a Biological Wastewater Treatment Plant Design

Aeration basins should be sized based on a minimum hydraulic retention time (HRT) of 6–8 hours for municipal waste, with deeper tanks (4–6 meters) favoring oxygen transfer efficiency while reducing footprint. Surface aerators or fine-bubble diffusers must deliver 1.5–2.0 mg/L dissolved oxygen (DO) at peak load, balancing energy use and microbial activity–suboptimal DO levels below 0.5 mg/L slow nitrification and promote filamentous bulking.

Secondary clarifiers require a surface overflow rate (SOR) of 16–24 m³/m²·day to prevent solids carryover; conical bottoms with 60-degree slopes improve sludge compaction. Hydraulic detention time should not exceed 3 hours to avoid septicity, and scrapers must rotate at 0.02–0.05 rpm to maintain a 2–4% solids blanket without resuspending settled biomass.

Return activated biomass lines should maintain a recycle ratio (RAS) of 25–50% of influent flow, adjusted via variable-speed pumps to stabilize mixed liquor suspended solids (MLSS) between 2,000–4,000 mg/L. Thicker RAS lines (DN150 or larger) prevent clogging from fibrous debris, while flow meters with ±2% accuracy ensure precise biomass redistribution to aeration zones.

Anoxic selectors, if incorporated, demand a 1:1 volume ratio with initial aeration zones and a nitrate-nitrogen (NO₃-N) loading of 0.1–0.3 kg NO₃-N/kg MLSS·day to suppress filamentous growth. Mixers must deliver 5–10 W/m³ to keep solids suspended without excessive turbulence, which shears floc particles and reduces settleability.

Sludge wasting systems should extract 0.5–1.5% of influent flow via timed blowdown sequences, targeting a food-to-microorganism (F/M) ratio of 0.2–0.4 kg BOD/kg MLSS·day. Waste sludge pumps must handle viscosities up to 10,000 cP, with progressive cavity designs preferred over centrifugal alternatives to avoid cavitation during peak viscosity events.

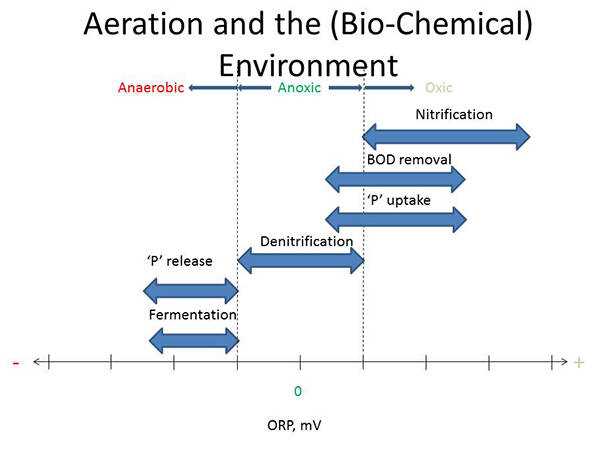

Online instrumentation requires redundant DO, ORP, and MLSS probes mounted in flow-through chambers to minimize fouling. DO sensors should alarm at 0.3 mg/L and trigger aeration adjustments within 30 seconds to prevent process upsets, while ORP values below -100 mV signal the need for supplemental carbon dosing in nitrogen removal stages.

Foam control nozzles should operate at 2–4 bar pressure, spraying biodegradable antifoam agents (e.g., polyglycol esters) at 0.5–2.0 L/hr per 1,000 m³ of basin volume. Skimmers must remove floating matter at a rate of 0.5–1.0 m³/hr to prevent accumulation, with stainless-steel blades cutting through scum layers without damaging basin liners.

Emergency overflow structures must be sized for 2× peak wet-weather flow, with baffled inlet channels to dissipate energy and prevent aeration basin drawdown. Alarms linked to level sensors should activate 5 minutes before overflow, allowing operators to initiate bypass valves or increase sludge wasting to temporarily increase hydraulic capacity.

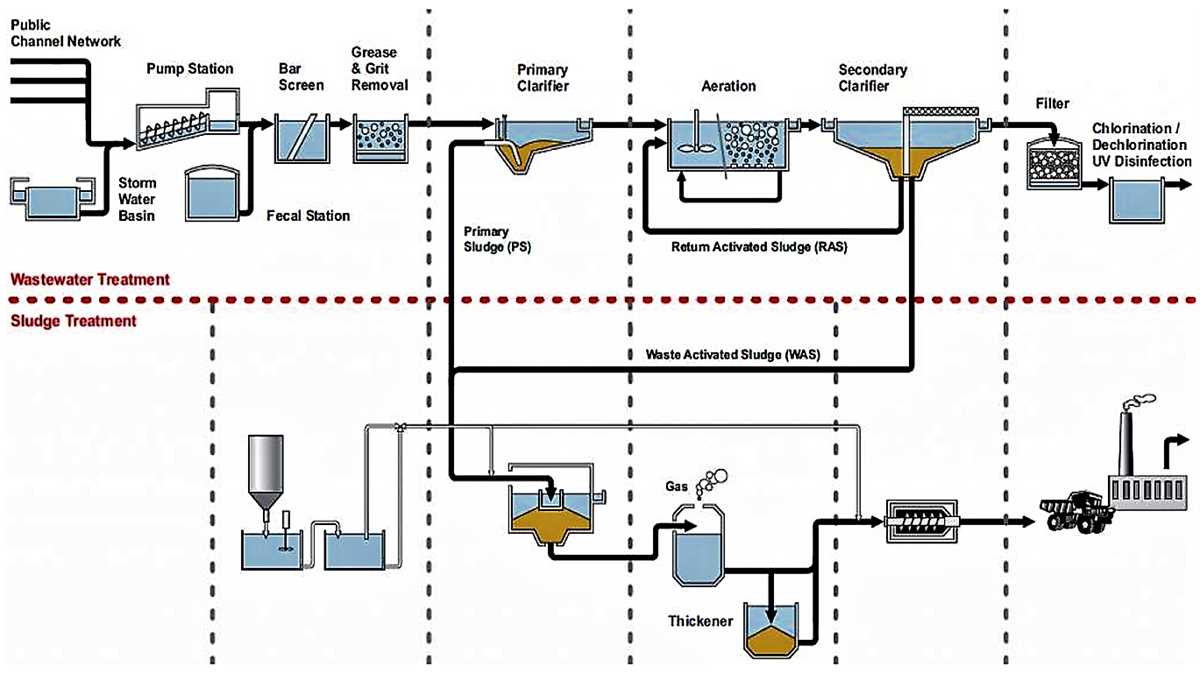

Step-by-Step Flow Path in a Biological Wastewater Treatment Circuit

Ensure influent enters the primary clarifier at a controlled velocity of 0.3–0.6 m/h to allow settleable solids to separate efficiently. Install scum baffles angled at 45–60° to prevent floating debris from passing into downstream stages, reducing organic load on aeration basins by 20–30%.

Direct effluent from the clarifier to the aeration tank using gravity-fed channels or low-head pumps, maintaining dissolved oxygen (DO) levels between 1.5–3.0 mg/L. Use fine-bubble diffusers with ≥30% oxygen transfer efficiency to minimize energy consumption–target 0.2–0.4 kWh/kg BOD removed. Balance mixed liquor suspended solids (MLSS) at 2,500–4,000 mg/L for optimal microbial activity.

• Avoid short-circuiting by designing inlet/outlet configurations with length-to-width ratios ≥3:1.
• Monitor sludge blanket depth in secondary clarifiers weekly–maintain to prevent denitrification in the settled zone.
• Recycle treated biomass at 50–100% of influent flow using variable-speed pumps to stabilize floc formation.

Divert 30–50% of return biomass to an anoxic zone before aeration for nitrogen removal, reducing nitrate to nitrogen gas. Time hydraulic retention in the anoxic phase to 1–3 hours, ensuring carbon sources (e.g., methanol or influent BOD) remain available. Test nitrate levels () and adjust recycle ratios accordingly.

After secondary clarification, channel effluent through tertiary filters if stringent discharge limits apply. Use sand or multimedia filters with 5–10 mm grain size to remove ≥85% of residual suspended solids. Implement UV disinfection or chlorination with contact times ≥30 minutes at 2–5 mg/L chlorine residual to meet coliform standards ().

Route waste biomass to sludge handling units–thicken to 4–6% solids via centrifuges or belt presses before anaerobic digestion. Maintain digester temperatures at 35–37°C for mesophilic digestion, achieving 30–50% volatile solids reduction over 15–30 days. Dewater stabilized solids to 20–25% dryness for land application or incineration, ensuring compliance with regulatory moisture limits (≤50% for Class B biosolids).
