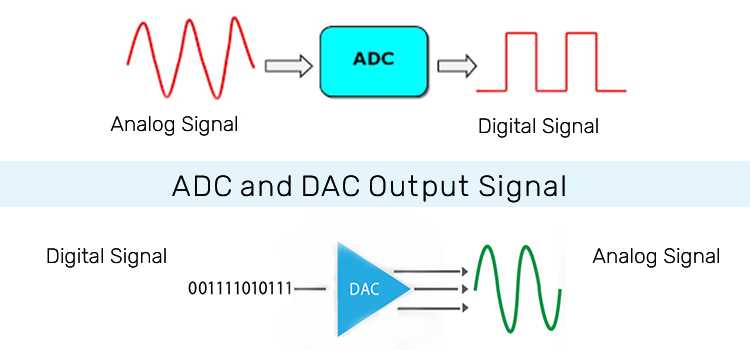

Understanding Schematic Designs for ADC and DAC Circuits in Electronics

Start by identifying the required resolution and sampling rate upfront–these dictate the architecture of your analog-to-digital or digital-to-analog front-end. For 12-bit systems operating at 1 MHz, a successive approximation register (SAR) topology delivers a balance of power efficiency and speed, consuming under 10 mW while achieving ±0.5 LSB INL. Avoid delta-sigma converters for this range; their oversampling overhead introduces unnecessary latency when real-time processing is critical. Conversely, for high-resolution applications (18-bit and above), delta-sigma remains the optimal choice, but ensure the modulator clock runs at least 64× the input signal bandwidth to maintain SNR above 100 dB.

Place the reference voltage source as close as physically possible to the converter’s reference pin–ideally within 5 mm–to minimize noise coupling. Use a low-noise LDO with output noise below 10 µVrms and a load regulation tighter than 0.1 mV/mA. For biphasic systems, decouple the reference with a 10 µF tantalum capacitor in parallel with a 0.1 µF ceramic; never rely on a single capacitor, as impedance spikes at high frequencies degrade performance. If the converter lacks an internal reference buffer, budget an additional 2–3 mA for an external op-amp with 1 MHz bandwidth and 20 V/µs slew rate to prevent droop under transient loads.

Route analog and digital grounds as separate nets until they converge at a single star point–typically the converter’s AGND pin. Avoid daisy-chaining grounds, as this creates ground loops with voltage gradients exceeding 10 mV, corrupting low-level signals. For mixed-signal PCBs, isolate the analog section with a moat 50–100 mils wide to block return currents from the digital domain; fill the isolation gap with stitching vias spaced every 150 mils to maintain impedance integrity. Keep digital traces at least 200 mils away from the converter’s sensitive pins (REF, IN, OUT) to prevent crosstalk–any overlap amplifies jitter in the sampling clock by up to 30%.

Select input drivers based on the converter’s input impedance: for high-impedance (>1 MΩ) SAR designs, use a JFET-input op-amp with input bias current below 1 pA to avoid leakage-induced offset errors. For low-impedance (

Clock distribution requires strict attention to jitter: a 1 ps RMS jitter on a 10 MHz clock degrades SNR by 6 dB in a 16-bit converter. Use a low-phase-noise oscillator (e.g., Crystek CVHD-950) with jitter below 0.5 ps and avoid PLLs unless absolutely necessary–their phase noise adds 10–20 ps of jitter. For multiplexed systems, insert a minimum 20 ns guard time between channel switches to allow the sampling capacitor to settle; violating this introduces channel-to-channel crosstalk exceeding 0.2% in 14-bit designs. When using FPGAs to generate clocks, route the high-speed LVDS traces with controlled impedance (typically 100 Ω differential) and terminate them with a 100 Ω resistor to prevent reflections that distort the converter’s timing.

Key Circuit Representations for Data Conversion Systems

Begin with a clear block structure for signal chains: separate analog front-end, sampling stage, quantization logic, and digital output interface. Use standardized symbols for operational amplifiers, comparators, and digital encoders–consistent notation prevents misinterpretation during debugging or replication.

For voltage-referenced designs, integrate a precision bandgap reference circuit upstream. Ensure the reference has low drift, defined as less than 10 ppm/°C across operational temperatures, and decouple it with a 0.1 µF capacitor near the converter’s reference pin.

Implement a differential input configuration whenever signal integrity is critical. Single-ended inputs introduce common-mode noise; differential pairs with matched impedances (typically 50 Ω) reduce errors by 20–30 dB in high-frequency applications.

Add anti-aliasing filters directly after the analog input stage, tailored to the Nyquist rate of your system. A third-order Butterworth filter with a cutoff at 80% of the sampling frequency minimizes aliasing artifacts without excessive phase distortion.

Place sampling switches adjacent to the converter core, using low-leakage transistors (e.g., CMOS with sub-pA leakage) to prevent signal degradation. Gate drivers should swing rail-to-rail to ensure full charge transfer during sampling.

Use segmented resistor ladders for quantization in high-resolution configurations. Equalize resistor values within ±0.1% tolerance to maintain monotonicity–deviations beyond this threshold create nonlinearity errors exceeding 1 LSB.

Route digital output traces orthogonally to analog signal paths to minimize crosstalk. Maintain a minimum 3-mil spacing between parallel lines carrying clock and data signals to avoid capacitive coupling.

Include decoupling capacitors–1 µF for bulk storage and 0.01 µF for high-frequency noise suppression–at each power pin. Position them within 2 mm of the converter’s package to suppress transient voltage spikes that distort conversion accuracy.

Critical Elements in Precision Converter Circuit Layouts and Their Operational Roles

Begin by ensuring the sampling network employs low-leakage diodes with reverse recovery times below 5 ns–critical for preserving signal integrity in high-speed quantization stages. Use a dedicated track-and-hold amplifier with input impedance exceeding 1 MΩ and a droop rate under 1 μV/μs to prevent charge loss during aperture delay windows shorter than 100 ps. Select ceramic capacitors rated for X7R dielectric with values between 10–100 nF for anti-aliasing filters, positioned within 2 mm of the converter’s analog input pins to suppress transient noise above 1 MHz.

Reference Voltage Stabilization Tactics

Integrate a buried zener reference with temperature drift below ±5 ppm/°C, bypassed with a 1 μF polypropylene capacitor to reject power supply ripple above 1 kHz. For multi-channel systems, implement discrete Kelvin sensing traces to the reference node, reducing parasitic resistance below 0.1 Ω and eliminating ground bounce effects during simultaneous sampling events. Avoid sharing reference paths between analog front-ends and digital cores to prevent digital switching noise from coupling into low-level signals.

Noise Mitigation Hierarchy:

• Route analog signal traces at least 3x wider than digital traces (minimum 150 μm) to minimize capacitive coupling.
• Isolate ground planes for analog, digital, and power domains using stitching vias spaced at
• Place ferrite beads (47 Ω @ 100 MHz) on all digital return paths entering sensitive blocks to block high-frequency transients.
• Clock distribution networks must employ differential LVDS pairs with impedance-matched terminations (100 Ω ±10%) and trace lengths held within ±5 mm tolerance.

For resolution levels exceeding 16 bits, enforce a star-ground topology centered at the converter’s analog common pin, with individual return paths for each major functional block–sensors, references, and decoupling networks. Use PCB stackups with a dedicated 1 oz copper analog ground layer beneath sensitive components to contain electromagnetic emissions below -90 dBm at 50 MHz harmonics. Validate layout integrity by measuring power supply rejection ratio (PSRR) across the full input range, targeting values over 70 dB at 1 kHz.

Step-by-Step Construction of a Digital-to-Analog Converter Block Layout

Begin by selecting a precision reference voltage source with a stability of ±0.1% or better for 16-bit resolution applications. Choose a low-noise variant, such as the LT1021 or ADR4525, to minimize output ripple. Place a 10μF decoupling capacitor within 5mm of the reference pin and a 0.1μF ceramic capacitor in parallel to suppress high-frequency noise. Route the reference line as a star topology, avoiding shared traces with digital signals to prevent cross-coupling.

Integrate a binary-weighted resistor network for resolutions under 8 bits or an R-2R ladder for higher precision. For R-2R networks, use 0.1% tolerance resistors to maintain monotonicity in 14-bit systems. Calculate resistor values using R_LADDER = 2 × R_FEEDBACK for balanced settling times. Terminate unused resistor branches with a 1kΩ pull-down resistor to prevent floating-node oscillations. Example values for a 4-bit R-2R network:

Bit Position	Resistor (R)	Resistor (2R)
MSB	10kΩ	20kΩ
Bit 2	10kΩ	20kΩ
Bit 1	10kΩ	20kΩ
LSB	10kΩ	20kΩ

Incorporate a high-speed operational amplifier with a slew rate of at least 20V/μs (e.g., OPA211) to buffer the output. Compensate the amplifier by adding a 10pF feedback capacitor for stability in unity-gain configurations. For bipolar output ranges, bias the amplifier’s inverting input with a negative reference voltage, ensuring symmetry around zero. Connect the output to a low-pass RC filter with a cutoff frequency of f_C = 1/(2πRC) to attenuate clock feedthrough–use 1kΩ and 1nF for a 160kHz cutoff in 1MSPS systems.

Implement digital logic buffering using a 74LVC series latch to synchronize input data with the clock. Route data lines as differential pairs with 100Ω impedance matching to reduce skew. For microcontroller-driven designs, insert a 3-state buffer (e.g., SN74LVC1G125) between the MCU and converter inputs to isolate the mixed-signal section. Ground the buffer’s enable pin via a 1kΩ resistor to prevent inadvertent floating during power-up. Test linearity by sweeping digital inputs in 1LSB increments and measuring output with a 6½-digit DMM; deviations exceeding ±0.5LSB indicate resistor mismatch or amplifier offset errors.
