Understanding the AC to DC Rectifier Circuit Schematic Design and Functionality

Start with a full-wave bridge configuration if your input spans 120–240V AC. Four diodes (e.g., 1N4007) arranged in a diamond pattern eliminate the need for a center tap, cutting transformer costs while maintaining efficiency. For lower voltages–under 50V AC–replace the bridge with a single diode and a smoothing capacitor (470µF/50V) to reduce forward voltage drop. Heat dissipation becomes critical above 2A; mount diodes on an aluminum plate of at least 5mm thickness with thermal paste between the diode base and the plate.

Select capacitors based on ripple current specs, not just capacitance. A 1000µF/35V electrolytic capacitor rated for 1.2A ripple current handles a 3A load at 36V DC without overheating. For higher frequency noise–common in switch-mode supplies–add a parallel film capacitor (0.1µF–1µF) close to the load. Avoid placing capacitors more than 2cm from the diodes; longer traces introduce inductance, spiking ripple to 50mV even with 2A loads.

Use a transient voltage suppressor (TVS) across the output if the power source suffers from spikes. A 1.5KE series diode (e.g., 1.5KE27A) clamps surges exceeding 30V to 42V, protecting downstream components without adding bulk. For adjustable outputs, integrate a linear regulator (LM317) after the capacitors; set the output via two resistors, but avoid values below 240Ω during 1A draw–internal dropout reaches 2V, risking thermal shutdown.

Trace width on PCB must match current demands. Copper traces of 2oz thickness support 3A with a 5°C temperature rise; for 5A, increase width to 3mm or use parallel traces. Place the input fuse (slow-blow, 125% of max current) immediately after the AC lines to prevent fire hazards. Never skip fuse testing; verify it blows within 2 minutes at 150% load before final assembly.

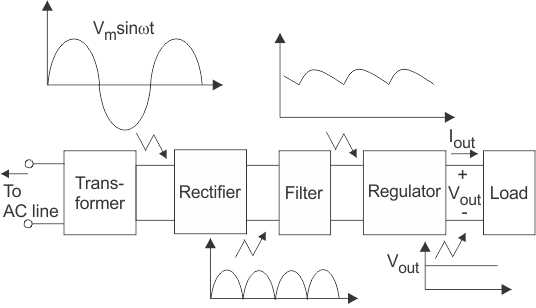

Visual Representation of Power Conversion from Alternating to Direct Current

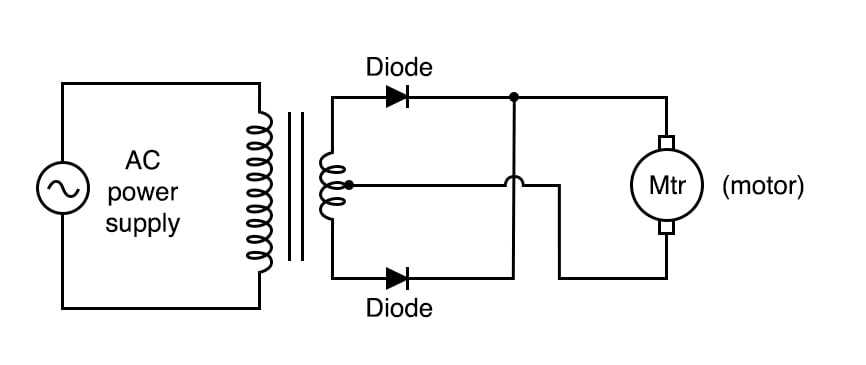

Begin by sketching the transformer secondary with a center tap if using a full-wave bridge configuration–this halves voltage stress on diodes while doubling ripple frequency for smoother output. Use four 1N4007 diodes (or Schottky for lower forward drop) arranged in a diamond pattern, connecting anode-cathode pairs across the transformer windings. Ground the center tap for half-wave designs, but omit it if aiming for a bridge layout where opposite diodes conduct alternately each half-cycle.

Critical Layout Considerations

• Place a 1000µF electrolytic capacitor immediately after the diode network to reduce ripple–calculate minimum value via C = I_out / (2 × f × V_ripple), where f is 100Hz for full-wave or 50Hz for half-wave.
• Avoid ground loops by routing return paths directly to the capacitor’s negative terminal rather than the transformer’s ground.
• For high-current loads (>1A), add a heatsink to diodes; 1N5408 variants handle 3A continuous.
• Label voltage nodes at transformer secondary, diode junctions, and capacitor output for troubleshooting–expected readings: V_secondary × 1.41 (peak), V_peak - 0.7V (diode drop), V_peak × 0.636 (average DC).

To validate the design, trace current paths during each AC cycle: positive half-period flows through the top diode pair, negative through the bottom. Use a multimeter in diode-test mode to check continuity between AC inputs and DC outputs–read ~0.7V forward drop per diode. For precision, replace the final capacitor with a π-filter (inductor + second cap) if noise exceeds 5% of DC output; an air-core inductor suffices for

Core Parts for Constructing a Power Conversion Setup

Select diodes with a reverse voltage rating at least 1.5× the peak alternating input–1N4007 handles 1000 V, sufficient for 230 VAC mains. If the load draws more than 1 A, switch to schottky variants like SB560 (60 V, 5 A) to cut forward drop below 0.5 V, improving efficiency in low-voltage applications.

Capacitors smooth the pulsating output; calculate reservoir value with C = (I_load × Δt) / ΔV. A 4700 µF electrolytic charged at 20 V tolerates 10 % ripple for a 2 A load–verify ripple current rating (e.g., Nichicon LKG series allows 2.5 A at 105 °C) to prevent thermal runaway.

Voltage Regulation Add-ons

For regulated DC, pair the reservoir with a linear stabiliser: LM7812 clamps at 12 V; thermal resistance (°C/W) times power dissipation dictates heatsink size–0.5 W needs

Transient protection guards downstream loads–install a bidirectional TVS (SMBJ15CA, 15 V clamping) across input terminals and a fast-blow fuse (10 A for 2 A circuits) in series with the AC line, sized at 5× nominal current to clear faults before diodes avalanche.

Grounding conductors: use twisted pair for return paths to minimise EMI, and route high-current traces (>1 A) at least 2 oz/ft² copper width; a 5 A path requires 2.5 mm width on 1 oz FR-4. For high-frequency noise rejection, place a 0.1 µF ceramic capacitor directly across stabiliser input and output terminals.

Building a Single-Phase Half-Wave Converter: Practical Assembly Guide

Begin with a 1N4007 diode–its 1A forward current and 1000V reverse voltage ratings suit most low-power applications. Solder the anode to the AC input lead, ensuring polarity matches the transformer’s secondary winding (typically 12V RMS for small loads). Connect the cathode to a 1000µF smoothing capacitor’s positive terminal, mounting the capacitor’s negative leg to the circuit’s ground. Verify connections with a multimeter: AC voltage across the transformer should drop to ~0.7V DC at the diode’s output before the capacitor charges.

Secure a 1kΩ load resistor between the capacitor’s positive terminal and ground to prevent voltage buildup. For heat dissipation, attach the diode to a small aluminum heatsink if ambient temperatures exceed 50°C. Test ripple voltage with an oscilloscope: expect ≤10% of the DC output (e.g., ≤1.2V for a 12V supply). If ripple exceeds tolerances, double the capacitor’s value or add a 100µF low-ESR type in parallel. Avoid exceeding the diode’s reverse voltage limit during transient spikes by confirming the transformer’s peak voltage (V_peak = V_RMS × 1.414) stays below 1000V.

Drawing and Reading a Full-Wave Bridge Converter Layout

Begin by placing the four diodes in a diamond formation. Label each diode’s anode and cathode–anodes connect to the alternating current (AC) input lines, while cathodes unite at the positive direct current (DC) output. Ensure the diodes’ orientation opposes the adjacent pair to force current through the load during both voltage polarities. Misaligned diodes will block one half-cycle, reducing efficiency to half-wave operation.

Connect the AC source terminals to the outer points of the diamond, where the diode anodes meet. Use clear, straight lines for these connections, avoiding unnecessary bends that complicate tracing. The AC lines should enter horizontally or vertically, aligned with the grid to maintain readability. Mark the AC input with a sine wave symbol or “AC IN” to differentiate from DC components.

The load resistor or capacitor attaches between the joined diode cathodes (positive DC terminal) and the shared anode point (negative DC terminal). Position the load below or beside the diode bridge, keeping wires short to minimize parasitic resistance. For capacitance-based smoothing, add an electrolytic capacitor in parallel with the load, observing polarity–positive to the cathode junction, negative to the anode junction.

Use the table below to verify component specifications for common applications:

Application	Diode Type	Peak Reverse Voltage (V)	Average Forward Current (A)	Capacitor (µF) for 10% Ripple
Low-power (5V, 1A)	1N4007	1000	1	1000
Medium-power (12V, 3A)	1N5408	1000	3	4700
High-power (48V, 10A)	STTH200L06TV1	600	20	10000

Indicate current flow with arrows on the layout–during the positive AC half-cycle, trace current from one AC terminal through the forward-biased diode pair, across the load, and back via the reverse-biased pair. Repeat for the negative half-cycle; the path should mirror, ensuring full-wave conversion. Highlight these paths in distinct colors or dashed lines for clarity.

Add test points at the AC input, DC output, and across each diode to measure voltages. Label these “TP1,” “TP2,” etc., for troubleshooting. Include ground symbols if referencing a common return path, but omit them for isolated designs. Ground symbols should connect to the negative DC output, never to the AC side.

For printed layouts, assign separate layers for AC and DC paths. Route AC lines on the top layer, DC on the bottom, with vias at crossover points only. Keep traces wide–minimum 2.54 mm for 1A currents–to prevent overheating. Place the capacitor as close to the diode cathodes as possible to reduce ripple.

Verify the layout by simulating signal behavior. Use a software tool to check for open loops, shorted paths, or incorrect polarity. Confirm the DC output voltage matches V_DC = 0.636 × V_{AC peak} for resistive loads or V_DC ≈ V_{AC peak} − 1.4V with a smoothing capacitor. Adjust component values if ripple exceeds 10% of the nominal DC voltage.

Determining Output Potential and Ripple Metrics in Power Conversion Systems

For single-phase half-wave converters, the average DC output equals approximately 0.318 times the peak AC input. Multiply this by the RMS source value to obtain the effective voltage: V_dc = 0.318 × V_peak. Ensure capacitance selection matches load demands–undersized filters amplify ripple beyond acceptable engineering thresholds.

Full-bridge configurations yield superior performance: the steady-state output climbs to 0.636 × V_peak or 0.9 × V_rms. Calculate ripple percentage via r = (1 / (2√2 fRC)) × 100%, where f denotes mains frequency, R signifies load impedance, and C represents reservoir capacitance. Target ripple below 5% for sensitive instrumentation; 10% suffices for general-purpose applications.

Thermal derating impacts voltage regulation–semiconductor voltage drops (e.g., 0.7V for silicon diodes) reduce output by 1-2%. Compensate by oversizing the transformer tap or adjusting nominal DC expectations. For 12V nominal output, anticipate 11.3-11.5V post-drop if using standard bridge topology.

Capacitor ripple current capacity directly influences longevity. Ultra-low ESR electrolytics (≤ 0.1 Ω) handle ripple currents exceeding 3A per 1000µF at 120Hz. Verify datasheets against calculated ripple current I_c(rms) = V_ripple(rms) / X_c, ensuring capacitors operate below 80% rated ripple current to avoid premature failure.

Line impedance and transformer leakage reactance introduce non-ideal behavior. Measure actual secondary voltage under load–open-circuit values deceive by ignoring copper losses. For 18VAC nominal, expect 15-16VAC under full load. Compensate by recalculating output potential using these real-world figures rather than theoretical assumptions.

High-frequency ripple demands attention beyond 50/60Hz–switching regulators introduce HF noise (10-100kHz). Ferrite beads or LC filters become mandatory when ripple amplitude exceeds 20mV_pp. Calculate HF ripple via V_ripple = I_load / (f × C), where f denotes switching frequency. Prioritize low-ESL capacitors for effective attenuation.

Use simulation tools like LTspice for iterative validation–hand calculations rarely account for parasitic elements. Run transient analyses with models incorporating diode recovery time, capacitor ESR/ESL, and PCB trace impedance. Validate with oscilloscope measurements: HV probes reveal AC spikes invisible to standard multimeters, while current probes uncover hidden ripple currents in grounding paths.
